Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 15, 1981.
As of Wednesday, June 26th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1981 and older model year gasoline-powered motor vehicles having a Chevrolet 305 or 350 CID eight-cylinder engine and automatic transmission.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-112
  • Executive Order 112 / D112
  • ARB # D-112
  • Executive Order No: D-112
  • C.A.R.B. No. D-112
  • Resolution D-112
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-112 PDF

D-112 Document:

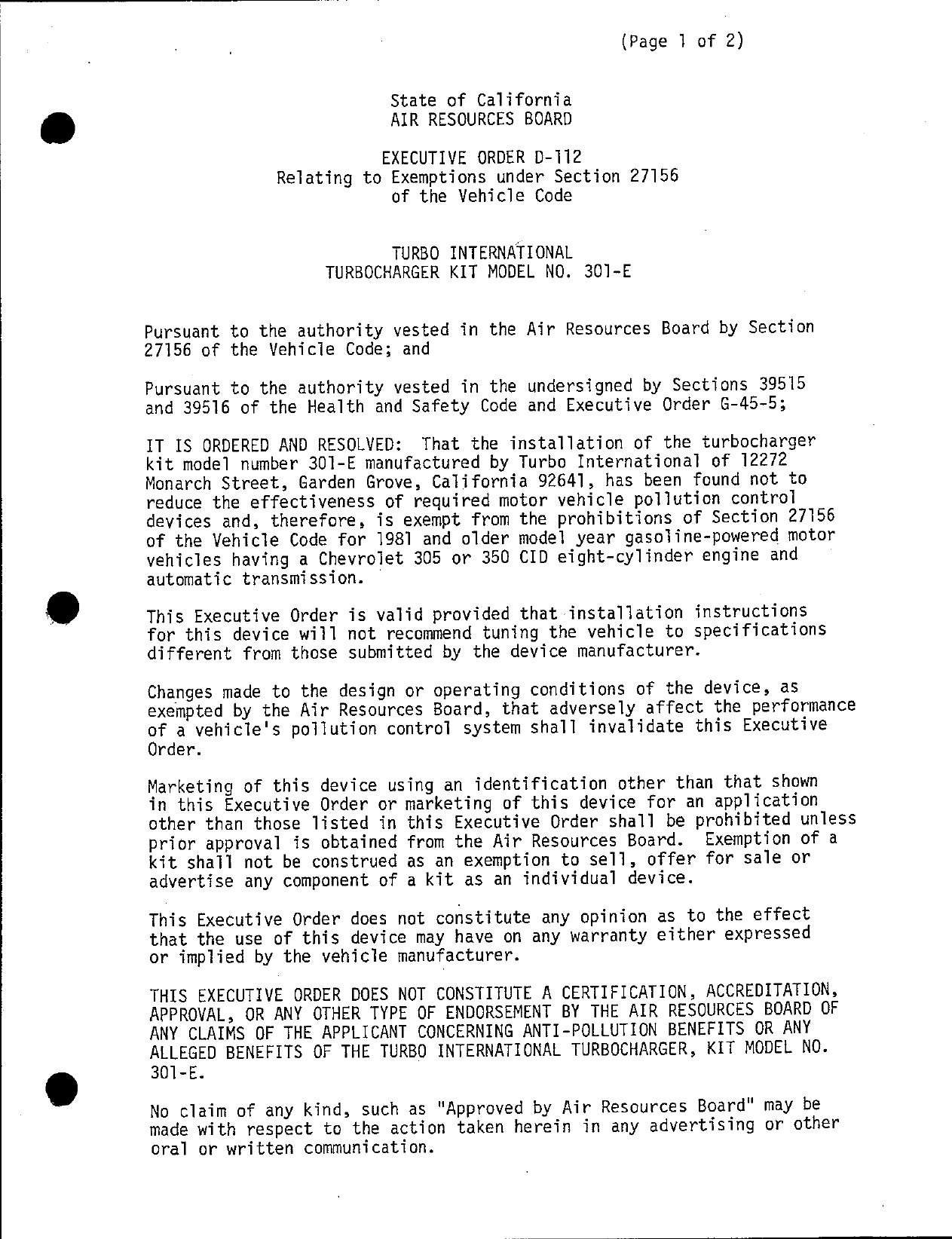

                                                  (Page 1 of 2)


                          State of California
                          AIR RESOURCES BOARD

                         EXECUTIVE ORDER D—112
              Relating to Exemptions under Section 27156
                          of the Vehicle Code


                          TURBO INTERNATIONAL
                   TURBOCHARGER KIT MODEL NO. 301—£


Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515
and 39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESQLVED: That the installation of the turbocharger
kit mode] number 301—E manufactured by Turbo International of 12272
Monarch Street, Garden Grove, California 92641, has been found not to
reduce the effectiveness of required motor vehicle pollution control
devices and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for 1981 and older model year gasoline—powered motor
vehicles having a Chevrolet 305 or 350 CID eight—cylinder engine and
automatic transmission.

This Executive Order is valid provided that installation instructions
for this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown
in this Executive Order or marketing of this device for an application
other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board. Exemption of a
kit shall not be construed as an exemption to sell, offer for sale or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect
that the use of this device may have on any warranty either expressed
or implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE TURBOQ INTERNATIONAL TURBOCHARGER, KIT MODEL NO.
301—E.

No claim of any kind, such as "Approved by Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.


TURBOQ INTERNATIONAL                               EXECUTIVE ORDER D—112
TURBOCHARGER KIT MODEL NO. 301—E                        (Page 2 of 2)



Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

     "43644.   (a) No person shall install, sell, offer for sale, or
     advertise, or, except in an application to the state board for
     certification of a device, represent, any device as a motor vehicle
     poliution control device for use on any used motor vehicle unless
     that device has been certified by the state board.     No person shall
     sell, offer for sale, advertise, or represent any motor vehicle
     pollution control device as a certified device which, in fact, is
     not a certified device.   Any violation of this subdivision is a
     misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he
deems advisable.


Executed at E1 Monte, California, this    19"   day of Ma       81.



                                    : D. Drachand, Chief
                                   Mobile Source Control Division


                           State of California
                           AIR RESOURCES BOARD

                               Staff Report

                                May 1, 1981

Evaluation of the Turbo International Turbocharger Kit for Compliance
With the Requirements of Section 27156 of the Vehicle Code



I.    INTRODUCTION

      Turbo International of 12272 Monarch Street, Garden Grove, California

92641 has applied for exemption of a turbocharger kit from the prohibitions

of Section 27156 of the Vehicle Code (V.C.).     The kit, turbocharger kit

model number 301—E, is intended for 1981 and older model year gasoline

powered motor vehicles having a Chevrolet 305 or 350 CID eight—cylinder

engine and automatic transmission.

      Turbo International has submitted back—to—back emissions tests
conducted on a 1981 Chevrolet Corvette at Custom Engineering Performance

in Garden Grove, California.    Confirmatory tests were conducted on the

same vehicle at the Air Resources Board (ARB) laboratory in El Monte,

California.

II.   TURBOCHARGER KIT DESCRIPTION

      The purpose of the turbocharger kit is to increase the volumetric

efficiency of an engine.   The major components of the Turbo International

kit are a Rayjay turbocharger, a replacement exhaust manifold {right

bank), a crossover pipe, a carburetor—to—manifold adapter box, and a

watgr injection system.    The components are packaged with installation

hardware and instructions and sold as a kit.


    The crossover pipe routes the exhaust from the left cylinder bank to

join the right cylinder bank exhaust.     The Turbo International‘s replace—

ment manifold is connected directly to the turbine inlet of the turbocharger.

     Maximum positive manifold pressure is limited to 7 psig by the

size of the compressor inlet.   No wastegate or other active boost

limiting device is used.
     The adapter box is mounted under the carburetor.     The original

carburetor is retained.    No internal modifications are made to the

carburetor.

     Water injection is employed to limit detonation.     Water is piped

from a small plastic reservoir through a solencid to the adapter box.

The solenoid is activated by a signal from a pressure sensor located

on the adapter box at the compressor outlet.     When 1 psig of pressure

is sensed, the solenoid injects water into the adapter box, ahead of

the turbocharger, through a 0.042 inch orifice.     A schematic of the

turbosystem is shown in Figure 1.

III. TEST PROGRAM

     A 1981 Chevrolet Corvette with a 350 CID eight—cylinder engine

and automatic transmission was used for testing.     The certification

test weight is 3625 lbs.    The road load horsepower (RLHP) used in the

testing was 8.0 horsepower at 50 mph.     The following test procedure

was used to determine emissions of the unmodified (baseline) vehicle at

both Custom Engineering and ARB laboratories:

          One cold start CVS—75 at 1 times RLHP

          One hot start HFET at 1 times RLHP

          One cold start CVS—75 at 2 times RLHP

          One hot start HFET at 2 times RLHP

                                     2.


      The test sequence was repeated on the vehicle after the applicant‘s

turbocharger insta11ation.to provide a back—to—back emissions comparison.

IV.   APPLICANT‘S TEST DATA

      The applicant‘s emissions test data in Table 1 was generated at

Custom Engineering Performance.       *

                                     Table 1

                        Applicant‘s Emissions Test Data
                             1981 Chevrolet Corvette

                                                       Exhaust Emissions (g/mi)
      Test                        Load                  HC        CO       NOx

BaseTine CVS—75                   1XRL                 0. 36     5.64      0. 78
Device CVS—75                     1XRL                 0.41      4.74      0.66
Baseline HFET                     IXRL                 0.14      2.74      0.50
Device HFET                       1XRL                 0.11      3.49      0. 34
Baseline CVS—75                   2XRL                 0.46      5.16      0. 97
Device CVS—75                     2XRL                 0.41      4. 55     0.73_
Baseline HFET         _ _         2XRL                 0.14      2.98      0.75
Device HFET                       2XRL                 0.13      4.16      0.56
V.    ARB‘s TEST DATA

      The ARB‘s emissions test data is shown in Table 2.

                                     Table 2

                            ARB‘s Emissions Test Data
                             1981 Chevrolet Corvette

                                                       Exhaust Emissions (g/mi}
      Test                        Load                  HC        CO       NOx

Baseline CVS—75 *                 1XRL                 0. 31     3.96      0.50
Device   CVS—75                   1XRL             ‘   0. 41     4. 66     0. 68

Baseline HFET                     ixrb     00200   Co 093        1.82      0.23
Device       HFET                 IXRL                 0. 13     3.75      0.23

Baseline CVS—75                   2XRL                 0. 31   ~ 3.63      0.70
Device       CVS—75               2XRL                 0. 41     3.26      0. 67

Baseline HFET                     2XRL _               0.15      2.71      0.40
Device       HFET                 2XRL                 0.12      3. 25     0.57

*Quality Audit data


VI.    DISCUSSION

       The ARB‘s baseline tests under fiofmai road condition did not yield

any valid data due to instrument problem.    As a result, the 2% quality

audit data was used for comparison with the device test data.

       The 2 sets of laboratory data (Tables 1 and 2) show that there

are some changes in emissions due to the installation of the turbocharger

kit.    The changes, however, are within the test variability and insignificant.

VII. CONCLUSION_AND RECOMMENDATIONS

       Emission tests indicate that the Turbo International turbocharger

kit model 301—E will not significantly effect emissions when installed

in accordance with the manufacturer‘s instructions.    The staff recommends

that Turbo International be granted an exemption from the prohibitions

of V.C. Section 27156 for this kit for 1981 and older model year gasoline—

powered motor vehicles having a Chevrolet 305 or 350 CID eight—cylinder

engine and automatic transmission.    The staff recommends that Executive

Order O—112 be adopted.


            Figure 1


     imz _
l ASSEMBLY DRWNG

     MECHANIGIL




                         ELECTRIAL & MATER                                                                               &
                                                                                                                                  O .F
                        To bcortgage                                                                              ~5
                                                                                                                   "Sa               i               oo

                       6——                      c —_—_                      ®                 onLy                                        $
                  @ Toprassire awich                                                      WATER                                          @

                       Ground to nat n stenchy estum                                                 .                  i7               crouno        &
                  @ g=—=— > me                                                                (+
                                                                                                              .
                                                                                                                                  Coat
                                                                                                                             comécrons               puscon
                                                                                                                                                    covecren
                       Tomisurothi                Sotenald vaee pomer ond
                                                    =—=————mg
                       Towatersunp(=]                                                                         7                               pet
               B @rzcs sace————cp                                                             to reno
                       Ground to nut on ateaing couem                                          /@

               ©                                            es
                       ——=—                                                                    1


                                           a       23                       ver ue                                                        3
                                       *                a                                                                          werok¥er
             Five Tonout &>
                                  orothe|*                                                                        A8,

                                    &7                                                                                       56


                                                        2                                 >                             NXP
                       %
                       te /
              To nep rowentzad                                      ;           (             w          //
             onneuir smice ow                    /\’&es                                                  7         /         y


                                               a
                                                 ~
                                                  @~ O
                                                   ioige
                                                       x .                           i;
                                                                                                                         L
                  «c            w              FQ. S



Document Created: 2005-09-01 12:43:52
Document Modified: 2005-09-01 12:43:52

| Previous E.O. D-111 | Next E.O. D-112-1 | Next E.O. D-113
