Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 3, 1984.
As of Friday, October 4th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
No. 301 E101984 and older 305 CID and 1083 and older 350 CID carbureted only engines equipped with automatic transmissions, found on General Motors Corporation vehicles up to 6000 lbs. GVW.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-114-2
  • Executive Order 114-2 / D114-2
  • ARB # D-114-2
  • Executive Order No: D-114-2
  • C.A.R.B. No. D-114-2
  • Resolution D-114-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-114-2 PDF

D-114-2 Document:


CARB_D-114-2

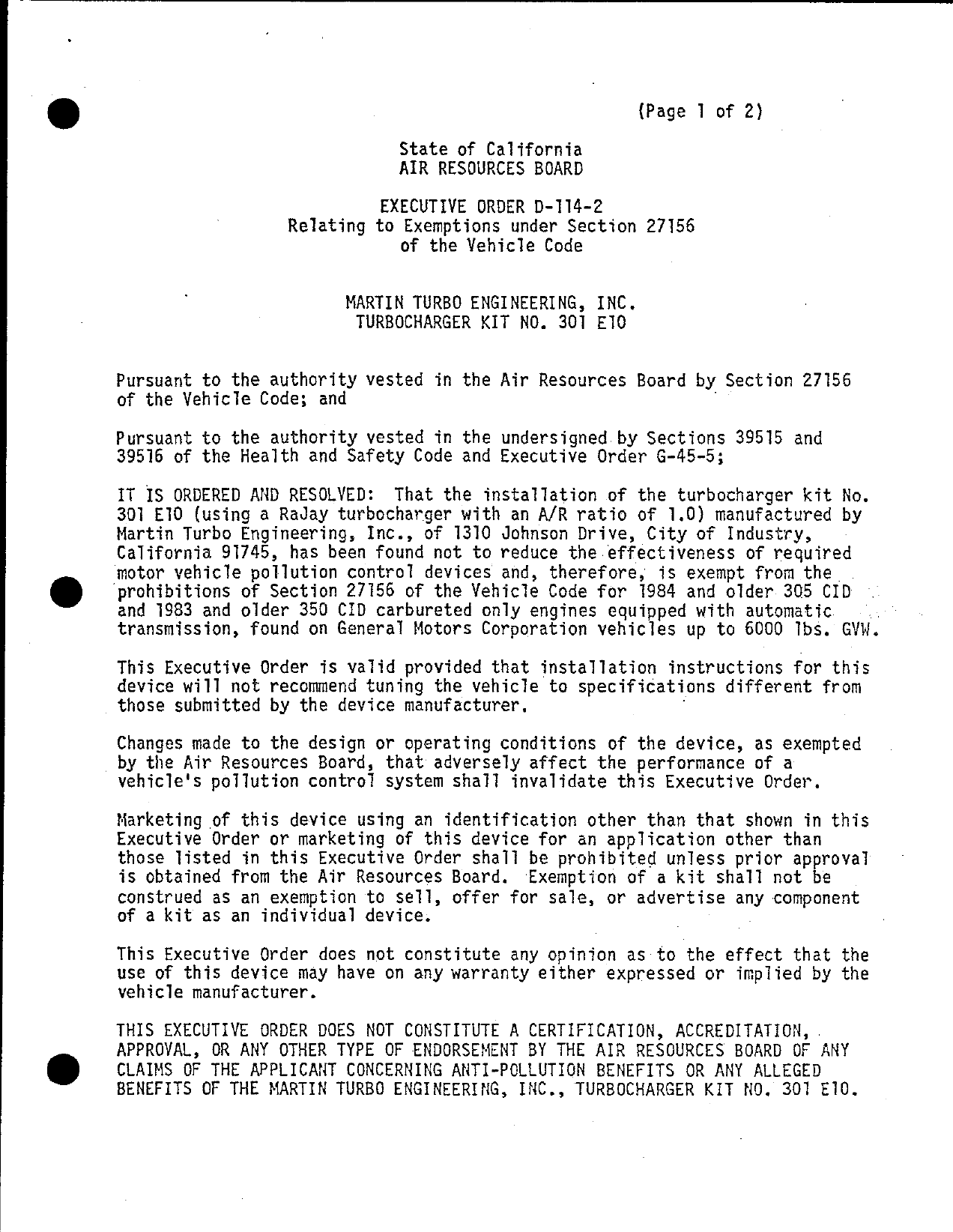

                                                         (Page 1 of 2)

                              State of California
                              AIR RESOURCES BOARD

                            EXECUTIVE ORDER D—114—2
                  Relating to Exemptions under Section 27156
                              of the Vehicle Code


                        MARTIN TURBO ENGINEERING, INC.
                         TURBOCHARGER KIT NO. 301 E10


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:   That the installation of the turbocharger kit No.
301 E10 (using a RaJay turbocharger with an A/R ratio of 1.0) manufactured by
Martin Turbo Engineering, Inc., of 1310 Johnson Drive, City of Industry,
California 91745, has been found not to reduce the effectiveness of required
motor vehicle pollution control devices and, therefore, is exempt from the
‘prohibitions of Section 27156 of the Yehicle Code for 1984 and older 305 CID
 and 1983 and older 350 CID carbureted only engines equipped with automatic
 transmission, found on General Motors Corporation vehicles up to 6000 Ibs. GVW.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVYAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE MARTIN TURBO ENGINEERING, INC., TURBOCHARGER KIT NO. 301 E10.


MARTIN TURBO ENGINEERING, INC.                     EXECUTIVE ORDER D—114—2
TURBOCHARGER KIT NO. 301 E10                            (Page 2 of 2)




No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644. (a) No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board. No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device. Any violation of this
    subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—114—1, dated May 28, 1983, is superseded and of no
further force and effect.

                                           pool
Executed at. E1 Monte, California, this           day of Apgeil, 1984.


                                          ;;ZWWM 7
                                          K. D. Drachand, Chief
                                          Mobile Source Division


                             STATE QF CALIFORNIA

                             AIR RESOURCES BOARD




EVALUATION OF THE MARTIN TURBO ENGINEERING, INC.‘S TURBOCHARGER KIT NO. 301
E10 FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.




                                April 2, 1984


                                                   Issue Date:   April 2, 1984




EVALUATION OF THE MARTIN TURBO ENGINEERING, INC.‘S TURBOCHARGER KIT NO. 301
E10 FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.




                                       by
                            Mobile Source Division

                             State of California
                             Air Resources Board
                             9528 Telstar Avenue
                             E1 Monte, CA 91731


{This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


  '                        .                 SUMMARY



                Martin Turbo Engineering, Inc., of 1310 Johnson Drive, City of Industry,

          California 91745, has requested an update to the existing Air Resources

          Board‘s Executive Order No. D—114—1.     The applicant requested that their

          add—on turbocharger kit No. 301 E10 be also exempted from the prohibitions in

          Vehicle Code Section 27156 for the 1984 model—year vehicles up to 6000 Tbs.

          GVW powered by a General Motors (GM) 305 or 350 cubic inch displacement (CID)

_—________cight«cylindercarburetedengineandautomatictransmission,.___________________ _
                Based on the fact that the closed—loop carbureted engines used in the

          1984 model—year GM vehicles up to 6000 Tbs. GVW are carryovers (identical

          engine designs and calibrations) from the 1983 model—year, the staff concludes

          that the applicant‘s turbocharger kit will not adversely affect exhaust
   ‘      emissions from 1984 GM vehicles up to 6000 Tbs. GVW powered by a GM 305 CID

          eight—cylinder carbureted engine and automatic transmission.     However, since

          the Air Resources Board did not certify any GM vehicles up to 6000 Ibs. GV

          powered by a 350 CID engine in 1984, the staff is unable to include the 1984

          GM 350 CID vehicles upto 6000 Tbs. GVW in the update exemption.
                The staff recommends that Martin Turbo Engineering, Inc. be granted
          their update request for vehicles up to 6000 Tbs. GVW powered by é GM 305 CID

          eight—cylinder carbureted engine and automatic transmission in the exemption

          of their add—on turbocharger kit No. 301 E10.     The staff recommends that

          Executive Order No. D—114—2 be issued.


                                   CONTENTS
                                                   Page Number



SUMMARY                                                 i
CONTENTS   _                                           11
I.    INTRODUCTION                                      1
II.   CONCLUSION                                        1
11.   —RECOMMENDATIONS                                  1
IV.   TURBOCHARGER KIT DESCRIPTION AND OPERATION        2
Y¥.   DISCUSSION                                        3




                                      11


EVALUATION OF THE MARTIN TURBO ENGINEERING, INC.‘S TURBOCHARGER KIT NO. 301
E10 FOR EXEMPTION FROM THE PROHIBITIONS IN VEKHICLE CODE SECTION 27156 IN
ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.


I.     INTRODUCTION
       Martin Turbo Engineering, Inc., of 1310 Johnson Drive, City of Industry,

California 91745, has requested an update to the existing Air Resources

Board‘s Executive Order (E.0.} No. D—114—1.     The applicant requested that
their add—on turbocharger kit No. 301 E1O be also exempted from the
prohibitions in Vehicle Code {VC) Section 27156 for the 1984 model—year

vehicles powered by a General Motors (GM) 305 or 350 CID eight—cylinder
carbureted engine and automatic transmission.

II.    CONCLUSION
       Baséd on the fact that the closed—loop carbureted engines used in the

1984 model—year GM 305 CID vehicles up to 6000 1lbs. GVW are carryovers

{identical engine designs}) from the 1983 model—year, the staff concludes that
the turbocharger kit will not adversely affect exhaust emissions from 1984

vehicles powered by a GM 305 CID eight—cylinder carbureted engine and

automatic transmission.   However, since the Air Resources Board did not

certify any GM vehicles up to 6000 Tbs. GVW powered by a 350 CID engine in
1984, the staff is unable to include the 1984 GM 350 CID passenger cars in the

update exemption.

III.   RECOMMENDATIONS
       The staff recommends that Martin Turbo Engineering, Inc. be granted

their update request for gasoline engine powered vehicles up to 6000 Ibs. GVW

powered by a GM 305 CID eight—cylinder carbureted engine and automatic

transmission in the exemption of their add—on turbocharger kit No. 301 E10.

The staff recommends that Executive Order No. D—114—2 be issued.


    IV.   TURBOCHARGER KIT DESCRIPTION AND OPERATION
          The purpose of turbocharging is to increase the volumetric efficiency of

    an engine by forcing more air into an engine than it would take in under

    naturally aspirated conditions.

          The major components of the turbocharger kit are a RaJay turbocharger

    model No. 301 E10 with an A/R ratio of 1.0, a replacement Martin inlet

    manifold lid and exhaust manifold (right cylinder bank)}, a crossover pipe,

    replacement secondary metering rods, and a water injedtion unit.     The



    as a kit.
          The crossover pipe routes exhaust from the left cylinder bank to join

    the right cylinder bank exhaust at the Martin exhaust manifold.     The turbine

.   inlet of the turbocharger mounts directly to the exhaust manifold.     The

    turbine and the compressor are Tinked together by a solid shaft and driven by

    exhaust gases.    Intake air/fuel mixture is compressed by the compressor and

    returned to the intake manifold lid.
          Maximum positive manifold pressure (boost) is limited to 5 psi by a

    pressure control valve positioned in the intake manifold 1lid.    No wastegate or

    other active Timiting device is used.

          Lubrication of the turbocharger is provided by a line from the oil1

    pressure sending unit mounted on the engine block to the turbocharger bearing

    housing.    Oil from the turbocharger is returned to the oil drain adapter

    positioned between the fuel pump and engine block.


       The original equipment manufacturer (OEM) secondary metering rods (ID

CH) in the carburetor are replaced by Martin‘s No. 937050 metering rods (ID

CJ).   The metering rods are raised by 0.005 of an inch from the OEM position.
The applicant claims that the replacement metering rods increases secondary

«fuel delivery for proper and efficient operation of the kit.

       Water injection is employed to control NOx emissions and to suppress
detonation.   Water is drawn from a small plastic reservoir by a pump and

 injected into the top of the carburetor through a nozzle.   Flow is restricted
by a 0.015 inch orifice ahead of the nozzle.   The pump is activated when
manifold vacuum is beTow 6 inches Hg.

       No modifications to the OEM tune—up specifications are required nor

permitted when the turbocharger kit is installed.   All OEM emissions controls

afe left intact.

V.     DISCUSSION

       Martin Turbo Engineering, Inc‘s. turbocharger kit No. 301 E10,

applicable to 1983 and older model—year vehicles up to 6000 Tbs. GVW powered

by a GM 305 or 350 CID eight—cylinder carbureted engine and automatic

transmission, was granted an exemption (E.0. No. D—114—1) on May 28, 1983.

The exemption was granted on the basis that the effectiveness of the vehicle‘s

pollution control system was not reduced.   Evaluation consisted of comparative

 {(without and with the kit installed on a test vehicle) chassis dynamometer

CYS—75 and HFE tests at normal certification dynamometer road Toading.


     The applicant is making available kit No. 301 E10 for the 1984 models
powered by a GM 305 or 350 CID engine also.    The applicant requested that the

exemption be updated to include these vehicles.
      In response to the request, the staff reviewed the 1984 model—year |

certification for application submitted by GM.    The staff revealed that:

      1.   no GM vehicles up to 6000 Tbs. GVW powered by a 350 CID engine were

           California—certified in 1984; and

      2.   the closed—l0oop carbureted GM 305 CID engines used in the 1984

           model—year vehicles up to 6000 lbs. GVW are carryovers.

      The staff is therefore, of the opinion that the 1984 GM 305 CID vehicles

up to 6000 lbs. GVW will have the same degree of performance/emissions impact

as in the 1983 model—year GM vehicles up to 6000 Tbs. GVW models which have

been granted exemption under Executive Order D—114—1.    No additional testing
was required or performed for updating the passenger car exemption.



Document Created: 2005-09-01 12:45:33
Document Modified: 2005-09-01 12:45:33

Previous E.O. D-114-1 | Previous E.O. D-113 | Next E.O. D-114-3 | Next E.O. D-115
