Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 12, 1985.
As of Saturday, October 12th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
No. 301 E10General Motors Corporation passenger cars up to 6000 lbs gross vehicle weight: 1) 1984 and older model-year passenger cars with a 305 cubic inch displacement carbureted engine. 2) 1982 and older model-year passenger cars with a 350 CID carbureted engine.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-114-3
  • Executive Order 114-3 / D114-3
  • ARB # D-114-3
  • Executive Order No: D-114-3
  • C.A.R.B. No. D-114-3
  • Resolution D-114-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-114-3 PDF

D-114-3 Document:


CARB_D-114-3

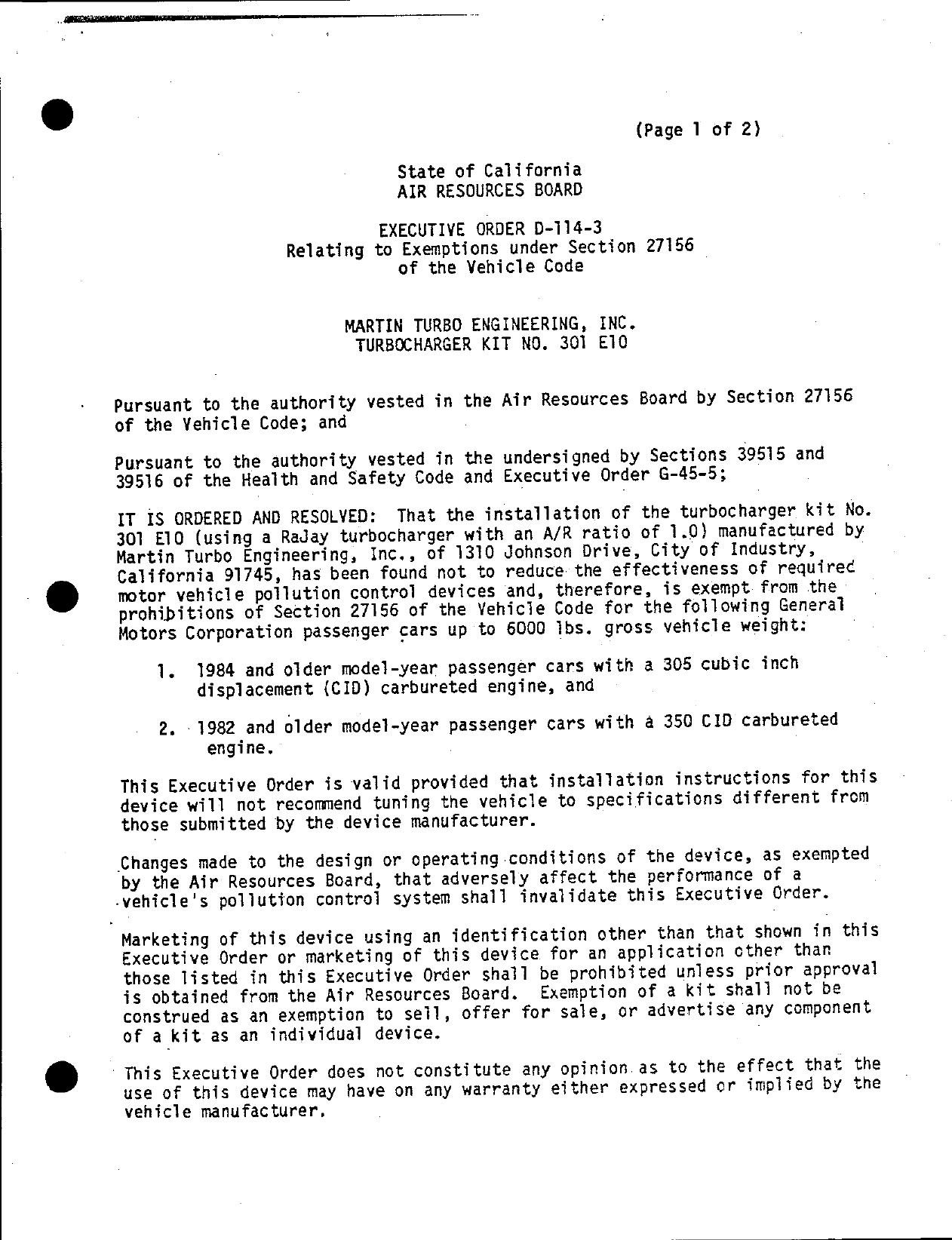

                                                          (Page 1 of 2)
                               State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—114—3
                    Relating to Exemptions under Section 27156
                                of the Vehicle Code


                         MARTIN TURBO ENGINEERING, INC.
                          TURBOCHARGER KIT NO. 301 E10


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Yehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLYED:    That the installation of the turbocharger kit No.
301 E10 (using a RaJay turbocharger with an A/R ratio of 1.0) manufactured by
Martin Turbo Engineering, Inc., of 1310 Johnson Drive, City of Industry,
California 91745, has been found not to reduce the effectiveness of required
motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the following General
Motors Corporation passenger cars up to 6000 libs. gross vehicle weight:

    1.   1984 and older model—year passengéer cars with a 305 cubic inch
         displacement {(CID) carbureted engine, and
    2. 1982 and older model—year passenger cars with & 350 CID carbureted
          engine.                   .

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating —conditions of the device, as exempted
 by the Air Resources Board, that adversely affect the performance of a
—vehicle‘s poliution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.


MARTIN TURBO ENGINEERING, INC.                     EXECUTIVE ORDER D—114—3
TURBOCHARGER KIT NO. 301 E10                            {Page 2 of 2)



THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROYAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESQURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE MARTIN TURBO ENGINEERING, INC., TURBOCHARGER KIT NO. 301 E10.

No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makesviolationpunishableasa____________
mi sdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board. No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device.    Any violation of this
    subdivision is a misdemeanor."
Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—114—2, dated April 3, 1984, is superseded and of no
further force and effect.


Executed at El Monte, California, this    /ZL/T—Aay of April, 1985.



                                         Zyhbus?>
                                         K. D. Drachand, Chief
                                         Mobile Source Division


                              STATE OF CALIFORNIA
                              AIR RESQURCES BOARD




EVALUATION OF THE MARTIN TURBO ENGINEERING, INC.‘S TURBOCHARGER KIT NO. 301
E10 FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE,.




                                March 22, 1985


                                                 Issue Date:   March 22, 1985




EVALUATION OF THE MARTIN TURBO ENGINEERING, INC.‘S TURBOCHARGER KIT NO. 301
E1O FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.




                                       by
                            Mobile Source Division
                              State of California
                              Air Resources Board
                              9528 Telstar Avenue
                              El Monte, CA 91731


(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                    SUMMARY



      Martin Turbo Engineering, Inc. of 1310 Johnson Drive, City of Industry,

California 91745, has requested an update of its existing Air Resources

Board‘s Executive Order (E.0.) No. D—114—2.   The company‘s turbocharger kit

No. 301 E10, was exempted from the prohibitions of Vehicle Code {¥.C.) Section
27156 for use on the following limited General Motors (GM) Corporation‘s
passenger cars equipped with automatic transmissions:

      1.   1984 and older model—year passenger cars with a 305 CID carbureted
           engine, and

      2.   1982 and older model—year passenger cars with a 350 CID carbureted
           engine.

      The company is requesting the update of the existing Executive Order for

the same list of limited vehicles but equipped with manual transmissions.

      Comparative data from previous tests of the Martin turbocharger kit No.

301 E10 when installed on the above specified GM‘s vehicles equipped with

automatic transmissions show emissions levels that were at or below the

baseline vehicle levels.   A review of GM‘s certification applications revealed

that the engine(s) of the specified model—year vehicle(s), whether equipped

with automatic or manual transmission, is in the same engine family.   The

staff, therefore, concludes that the Martin Turbo Engineering turbocharger kit

No. 301 E10 will not adversely affect exhaust emissions when installed on the

same engine family vehicles equipped with manual transmissions.

      The staff recommends that Martin Turbo Engineering, Inc. be granted an

updated Y.C. Section 27156 exemption as requested and that Executive Order No.

D—114—3 be issued.


                                     CONTENTS




                                                       Page Number



SUMMARY                                                      i
CONTENTS                                                    11

I.        INTRODUCTION                                       1

II.       CONCLUSION                                         1
III.      RECOMMENDATIONS                                    1
IV.       TURBOCHARGER KIT DESCRIPTION AND OPERATION         2

V.        DISCUSSION                                         3




                                         11


EVALUATION OF THE MARTIN TURBO ENGINEERING, INC.‘S TURBOCHARGER KIT NO. 301
E10 FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.

I.     INTRODUCTION

       Martin Turbo Engineering, Inc. of 1310 Johnson Drive, City of Industry,

California 91745, has requested an update of its existing Air Resources

Board‘s Executive Order (E.0.) No. D—114—2.     The company‘s turbocharger kit

No. 301 E10, was exempted from the prohibitions in Vehicle Code (V¥.C.) Section

27156 for use on the following limited General Motors (GM) Corporation‘s
passenger cars equipped with automatic transmissions:

       1.     1984 and older model—year passenger cars with a 305 CID carbureted
              engine, and

       2.     1982 and older mdde1-year passenger cars with a 350 CID carbureted
              engine.

       The company is requesting the update of the existing Executive Order for

the same list of limited vehicles but equipped with manual transmissions.

II.    CONCLUSION

       Comparative data from previous tests of the Martin turbocharger kit No.

310 E10 when installed on the specified GM‘s vehicles equipped with automatic

transmissions show emissions levels that were at or below the baseline vehicle

levels.     A review of GM‘s certification applications revealed that the

engine(s) of the specified model—year vehicle(s), whether equipped with

automatic or manual transmission, is in the same engine family.     The staff,

therefore, concludes that the Martin Turbo Engineering turbocharger kit No.

301 E10 will not adversely affect exhaust emissions when installed on the same

engine family vehicles equipped with manual transmissions.

III.      RECOMMENDATIONS

       The staff recommends that Martin Turbo Engineering, Inc. be granted an

updated V.C. Section 27156 exemption as requested and that Executive Order No.

D—114—3 be issued.


IV.     TURBOCHARGER KIT DESCRIPTION AND OPERATION

        The purpose of turbocharging is to increase the volumetric efficiency of

an engine by forcing more air into an engine than would be inspired under

naturally aspirated conditions.

        The major components of the Martin turbocharger kit No. 310 E10 are a

RaJay model No. 301 E10 turbocharger with an A/R ratio of 1.0, a replacement

Martin inlet manifold lid and exhaust manifold (right cylinder bank), a
crossover pipe, replacement secondary metering rods, and a water injection

unit.    The components are packaged with installation hardware and instructions

and sold as a kit.

        The crossover pipe routes exhaust gases from the left cylinder bank to

the right cylinder bank where all of the exhaust gases flow into the Martin

exhaust manifold.    The turbine inlet of the turbocharger mounts directly to

the exhaust manifold.    The turbine and the compressor are linked together by a

solid shaft and driven by exhaust gases.    The intake air/fuel mixture is

compressed by the compressor and returned to the intake manifold lid.

        The maximum positive manifold pressure (boost) is limited to 5 psi by a

pressure control valve positioned in the intake manifold lid.    No wastegate or

other active limiting device is used.

        Lubrication of the turbocharger is provided by a tubing from the oil

pressure sensing unit mounted on the engine block to the turbocharger bearing

housing.    Oil from the turbocharger is returned to the oil drain adapter

positioned between the fuel pump and the engine block.

        The original equipment manufacturer‘s (OEM) secondary metering rods

(Rochester Identification Code CH) in the carburetor are replaced by Martin‘s

No. 937050 metering rods which are Rochester Identification Code CJ rods.       The


applicant claims that the replacement metering rods will increase secondary

fuel delivery for proper and efficient operation of the kit.

      Water injection is employed to control NOx emissions and to suppress

detonation.   Water is drawn from a small plastic reservoir by a pump and

injected into the top of the carburetor through a nozzle.    The flow of water

is restricted by a 0.015 inch orifice ahead of the nozzle.     The pump is

activated by a vacuum switch when manifold vacuum is below 6 inches Hg.

      No modifications to the OEM tune—up specifications are required when the

turbocharger kit is installed.   All OEM emissions controls are left intact.

V.    DISCUSSION

      Martin Turbo Engineering, Inc.‘s turbocharger kit No. 301 E10,

applicable to 1984 and older model—year GM‘s 305 CID and 1982 and older 350

CID carbureted engine vehicles equipped with automatic transmission was

granted an exemption (E.0. No. D—114—2) from prohibitions of V.C. Section

27156 on April 3, 1984.   The exemption was granted on the basis that the

effectiveness of the vehicle‘s pollution control system was not reduced.

Comparative, baseline configuration versus modified (with the kit installed)

configuration, emission data from chassis dynamometer CYS—75 and HFE tests,

were used for the evaluation.

      The comparative emission test data indicate that the emissions levels of

the modified configuration with the turbocharger kit installed were at or

below the emissions levels of the baseline configuration.

      The applicant is making available kit No. 301 E10 for use on the same

model—year and displacement engines installed in the specified vehicles

equipped with manual transmission.    The applicant requested that the current

E.0. No. D—112—2 be updated to include the same list of limited vehicles but

equipped with manual transmissions.


      In response to the request, the staff reviewed past new vehicle

certification documents submitted by GM.   The review revealed that the noted
engines used in the specified vehicles equipped with manual transmissions are

in the same engine family as those in the specified vehicles equipped with

automatic transmissions.   The staff is, therefore, of the opinion that the

emissions impact of the Martin turbocharger kit No. 310 E10 on the specified

vehicles equipped with manual transmission will be the same as that on

vehicles with the same engines but equipped with automatic transmission.      As a

result, no additional testing was required.



Document Created: 2005-09-01 12:44:14
Document Modified: 2005-09-01 12:44:14

Previous E.O. D-114-2 | Previous E.O. D-113 | Next E.O. D-114-4 | Next E.O. D-115
