Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 30, 1981.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1981 and older gasoline vehicles.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-116
  • Executive Order 116 / D116
  • ARB # D-116
  • Executive Order No: D-116
  • C.A.R.B. No. D-116
  • Resolution D-116
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-116 PDF

D-116 Document:


CARB_D-116

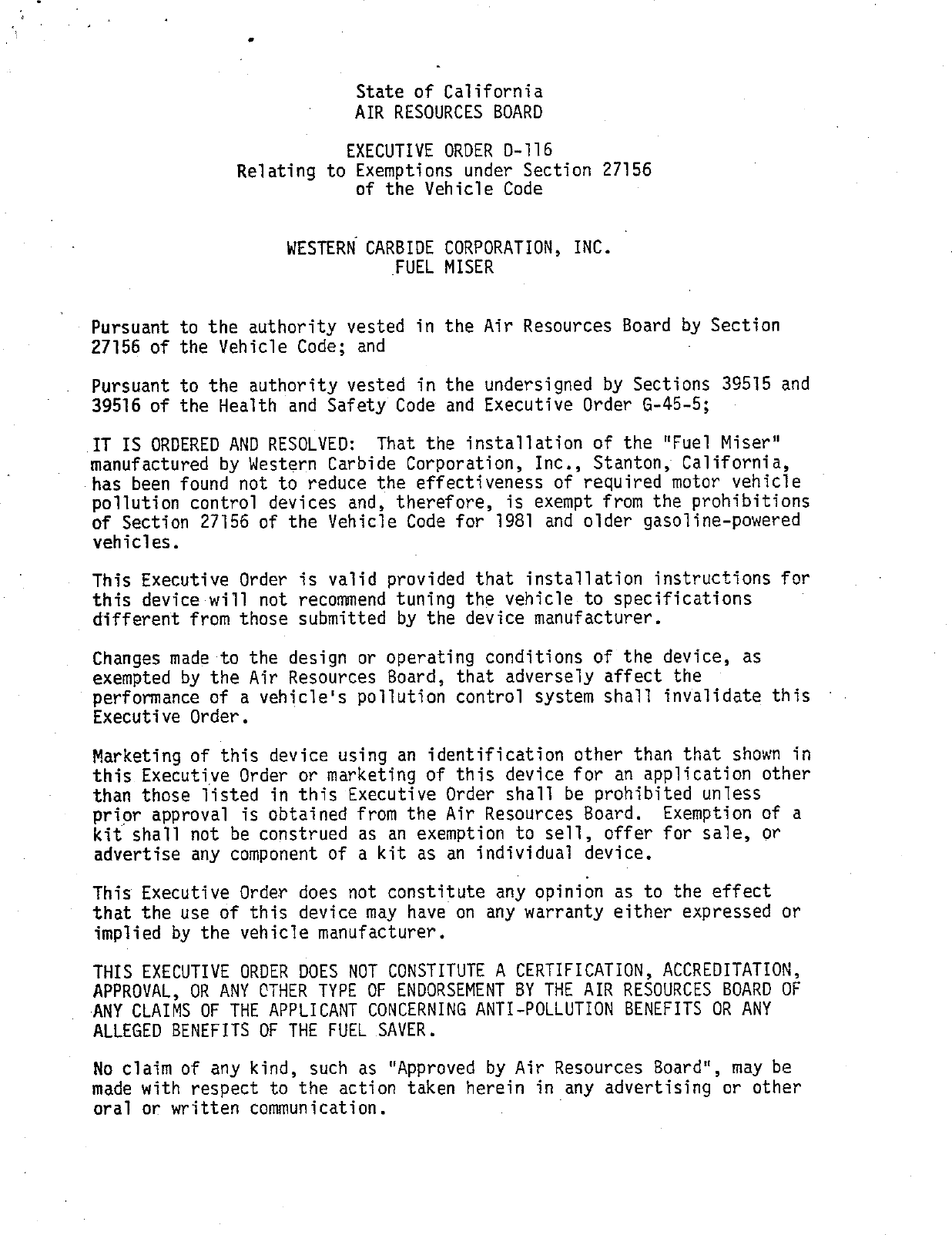

                              State of California
                              AIR RESOURCES BOARD

                          EXECUTIVE ORDER D—116
               Relating to Exemptions under Section 27156
                           of the Vehicle Code


                    WESTERN CARBIDE CORPORATION, INC. '
                               FUEL MISER


Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:     That the installation of the "Fuel Miser"
manufactured by Western Carbide Corporation, Inc., Stanton, California,
has been found not to reduce the effectiveness of required motor vehicle
pollution control devices and, therefore, is exempt from the prohibitions
of Section 27156 of the Vehicle Code for 1981 and older gasoline—powered
vehicles.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the
performance of a vehicle‘s pollution control system shall invalidate this
Executive Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.     Exemption of a
kit shall not be construed as an exemption to sell, offer for sale, or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinibn as to the effect
that the use of this device may have on any warranty either expressed or
implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY CTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE FUEL SAVER.
No claim of any kind, such as "Approved by Air Resources Board", may be
made with respect to the action taken herein in any advertising or other
oral or written communication.                  ‘


WESTERN CARBIDE CORPORATION, INC.               EXECUTIVE ORDER D—116
                                                     (Page 2 of 2)


Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a) No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless
    that device has been certified by the state board.   No person shall
     sell, offer for sale, advertise, or represent any motor vehicle
    pollution. control device as a certified device which, in fact, is
    not a certified device. Any violation of this subdivision is a
    misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he
deems advisable.                 ©                           .


Executed at El Monte, California, this iagé; day of 0         1981.




                                    /jDrachand, Chief
                                     Mobile Source Control Division


                            State of California
                            AIR RESOURCES BOARD

                               Staff Report

                             October 23, 1981

Evaluation of the Western Carbide‘s "Fuel Miser" Water Injection
System in Accordance with Section 2222, Title 13, of the California
Administrative Code.


I.    INTRODUCTION

      Western Carbide of Stanton, California, has applied for an exemption

from the prohibitions in Section 27156 of the California Vehicle Code for

an add—on device known as the "Fuel Miser" water injector.     This

exemption is being requested for all 1981 and older gasoline—fueled

engines.

      The device was evaluated by back—to—back Constant Volume Sampler

1975 (CVS—75) tests.

II.   DEVICE DESCRIPTION AND OPERATION

      The "Fuel Miser" is a vacuum—controlled water injection system.      The

major components of the system are two nozzles which mount in the spacer

plate under the carburetor, a water bag, and a control valve,

      The control valve (Figure 1) consists of a vacuum—actuated diaphragm

which is connected to a manifoid vacuum source and a "reverse taper"

needle valve which controls the water flow.     The needle is calibrated

such that no water flow occurs during idle, deceleration, and mild

acceleration.   The vaive opening is then inversely proportional to

manifold vacuum.


III. APPLICANT‘S TEST RESULTS

      The applicant submitted hot start CVS—72 data from a 1978

Datsun 280Z and cold start CVS—75 data from a 1981 Mercury Zephyr.        These

data are:

      Vehicle No. 1, 1978 Datsun 2807, 2.8L automatic transmission,

VIN HL530383338, odometer 36505:



                                 Hot Start CVS—72 Test

                               Emissions (g/mile)             Fuel Economy
                     HC               CO               NOx       mi/gal
Baseline             0.47            10.62             2.16       15.2

Device               0,.29           4.73              1.99      15.2

% Difference       —38.3            —55,5             —7.9          ——


      Vehicle No, 2, 1981 Mercury Zephyr, 3.3L automatic transmission,

VIN 1MEBP 73B 7BK 63, odometer 5018:



                                Cold Start CVS—75 Test

                             Emissions (gm/mile)              Fuel Economy
                    wC               co             NOx         mi/gal
Baseline              .29             2.58            42          17.4

Device                .26           _2.84             .45        17.0

% Difference       ~10.3           +10.1            +7.1         —2.4

IV.   DISCUSSION

      The principle of operation of the "Fuel Miser" control valve avoids

the major problem (encountered in vacuum—operated water injectors) of


flooding the engine with excessive amounts of water during low demand

periods.   Although the device is called the "Fuel Miser", no other claim

of fuel economy is being made,.

      The CVS test data indicates no significant increase in emissions or

fuel economy occurred as a result of the installation of the "Fuel Miser"

on either carburetor—equipped or fuel injected cars.

Vv.   CONCLUSION AND RECOMMENDATION

      The staff finds no evidence to indicate that the "Fuel Miser" water

injection system will have a significant adverse effect on emissions from

a motor vehicle.

      The staff, therefore, recommends the approval of Executive Order

No. D—116 exempting the “Fue] Miser" water injector from the prohibitions

of Vehicle Code Section 27156.


                             Figure 1

                    FUEL MISER CONTROL VALVE




Vacuum
Chamber



                                              ———    Water
                                          —     i    Out



                                                    Section
                                                     A—A

          Vac.                                            —            Flow
                 Water
                                                      «j@r,;i X        Orifice


                                                              /[ j~#   ~Needle
                                                              4o
                                                              # £
                                                               k




                         A       Needle
                                 Detail
