Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 30, 2006.
As of Monday, October 7th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
Stage 12004-2007 Saturn Ion Redline and 2005-2007 Chevrolet Cobalt SS vehicles equipped with a supercharged 2.0L engine.The Ecotec Supercharger Upgrade Kit, Stage 1 includes the following main parts: A set of 5.3 grams/second fuel injectors to replace the stock 4.35 grams/second injectors and a new fuel calibration that is flashed onto the stock ECU by a General Motors dealer. The new fuel calibration has no user adjustments. Maximum boost pressure produced by the Stage 1 kit is the same as stock (12.5 pounds per square inch).

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-126-16
  • Executive Order 126-16 / D126-16
  • ARB # D-126-16
  • Executive Order No: D-126-16
  • C.A.R.B. No. D-126-16
  • Resolution D-126-16
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-126-16 PDF

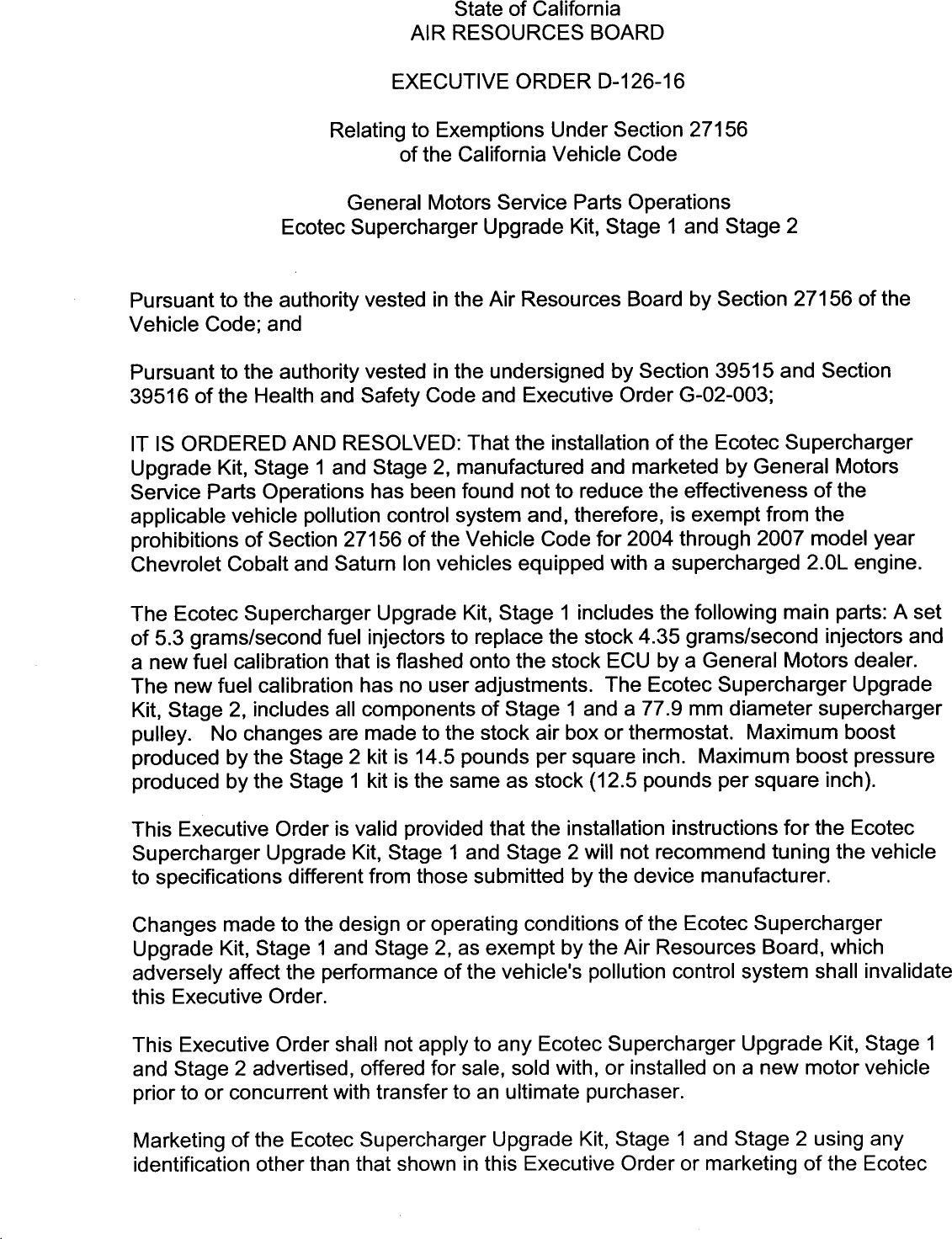

D-126-16 Document:


CARB_D-126-16

                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—126—16

                        Relating to Exemptions Under Section 27156
                                of the California Vehicle Code

                         General Motors Service Parts Operations
                Ecotec Supercharger Upgrade Kit, Stage 1 and Stage 2


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Ecotec Supercharger
Upgrade Kit, Stage 1 and Stage 2, manufactured and marketed by General Motors
Service Parts Operations has been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 2004 through 2007 model year
Chevrolet Cobalt and Saturn lon vehicles equipped with a supercharged 2.0L engine.

The Ecotec Supercharger Upgrade Kit, Stage 1 includes the following main parts: A set
of 5.3 grams/second fuel injectors to replace the stock 4.35 grams/second injectors and
a new fuel calibration that is flashed onto the stock ECU by a General Motors dealer.
The new fuel calibration has no user adjustments. The Ecotec Supercharger Upgrade
Kit, Stage 2, includes all components of Stage 1 and a 77.9 mm diameter supercharger
pulley. No changes are made to the stock air box or thermostat. Maximum boost
produced by the Stage 2 kit is 14.5 pounds per square inch. Maximum boost pressure
produced by the Stage 1 kit is the same as stock (12.5 pounds per square inch).

This Executive Order is valid provided that the installation instructions for the Ecotec
Supercharger Upgrade Kit, Stage 1 and Stage 2 will not recommend tuning the vehicle
to specifications different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the Ecotec Supercharger
Upgrade Kit, Stage 1 and Stage 2, as exempt by the Air Resources Board, which
adversely affect the performance of the vehicle‘s pollution control system shall invalidate
this Executive Order.

This Executive Order shall not apply to any Ecotec Supercharger Upgrade Kit, Stage 1
and Stage 2 advertised, offered for sale, sold with, or installed on a new motor vehicle
prior to or concurrent with transfer to an ultimate purchaser.

Marketing of the Ecotec Supercharger Upgrade Kit, Stage 1 and Stage 2 using any
identification other than that shown in this Executive Order or marketing of the Ecotec


                                           —9_


Supercharger Upgrade Kit, Stage 1 and Stage 2 for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from
the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Ecotec Supercharger Upgrade Kit, Stage 1 and Stage 2 may have on any warranty
either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on submitted emissions test data generated on a
2007 model year General Motors 2.0L supercharged Saturn lon Red Line (test group
7ZGMXVO2.0018), certified to the Low Emission Vehicle (LEV) II LEV emission
standards with the Ecotec Supercharger Upgrade Kit, Stage 2 installed. Testing
consisted of a Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental
Federal Test Procedure (SFTP USO6 and SCO3) test cycles. Results are in grams per
mile with assigned deterioration factors added to CVS—75 FTP results. Emission levels
of the modified vehicle met the applicable emission standards.

       FTP                                       CVS—75
                        NMOG              CO               NOx           HCHO
       Standard         0.075             3.4              0.05          0.015
       w/ Device        0.041             1.2              0.05          0.001

       SFTP                  USO6                             SCO3
                     NMHC+NOx             CO          NMHC+NOx             CO
       Standard         0.14              8.0            0.20              2.7
       w/ Device        0.03              2.4            0.03             0.84

This Executive Order is also based on an On—Board Diagnostic II (OBD II) test
conducted on the same test vehicle. Test data showed that the Ecotec Supercharger
Upgrade Kit, Stage 2 when installed on the vehicle did not affect the ability to perform
OBD |! monitoring.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE ECOTEC
SUPERCHARGER UPGRADE KIT, STAGE 1 AND STAGE 2.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.



             GENERAL MOTORS SERVICE PARTS OPERATIONS
    ECOTEC SUPERCHARGER UPGRADE KIT, STAGE 1 AND STAGE 2 — D—126—16


                                           —3

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this   jC         day of October 2006




                                hoes‘
                                Annette Hebert, Chief
                                Mobile Source Operations Division




             GENERAL MOTORS SERVICE PARTS OPERATIONS
    ECOTEC SUPERCHARGER UPGRADE KIT, STAGE 1 AND STAGE 2 — D—126—16



Document Created: 2006-11-01 13:27:49
Document Modified: 2006-11-01 13:27:49
