Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 19, 2010.
As of Saturday, July 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
19257230 and 192572341995 and older passenger cars and light duty truck 1 vehiclesThe LS3-6.2L V8 E-ROD Kit is a complete engine and emission control package designed to change engines from all 1995 and older passenger cars and light duty truck 1. The kit is derived from a certified 2011 Camaro LS3 engine (test group BGMXV06.2089) but with modifications to the original emission control module (ECM) calibration, exhaust system, evaporative system, and air intake system. The main components of the kit with their corresponding part numbers are listed in Attachment A. Installation of the LS3-6.2L V8 E-ROD Kit requires complete removal of the stock pre-1996 model year engine, including its exhaust and evaporative emission control system. The stock fuel tank, hoses and fuel pump are retained but needs to be reconfigured to meet the installation requirements of the LS3-6.2L V8 E-ROD Kit. The kit is equipped with a fully functioning on-board diagnostic II (OBD II) except for the evaporative system checks. The stock vehicle check engine light is retained or needs to be added for older vehicles that were not originally equipped with a check engine light in the dashboard. Exhaust system, catalytic converter and oxygen sensor must be installed in the location/orientation as prescribed in the installation instructions provided with the kit.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-126-30
  • Executive Order 126-30 / D126-30
  • ARB # D-126-30
  • Executive Order No: D-126-30
  • C.A.R.B. No. D-126-30
  • Resolution D-126-30
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-126-30 PDF

D-126-30 Document:

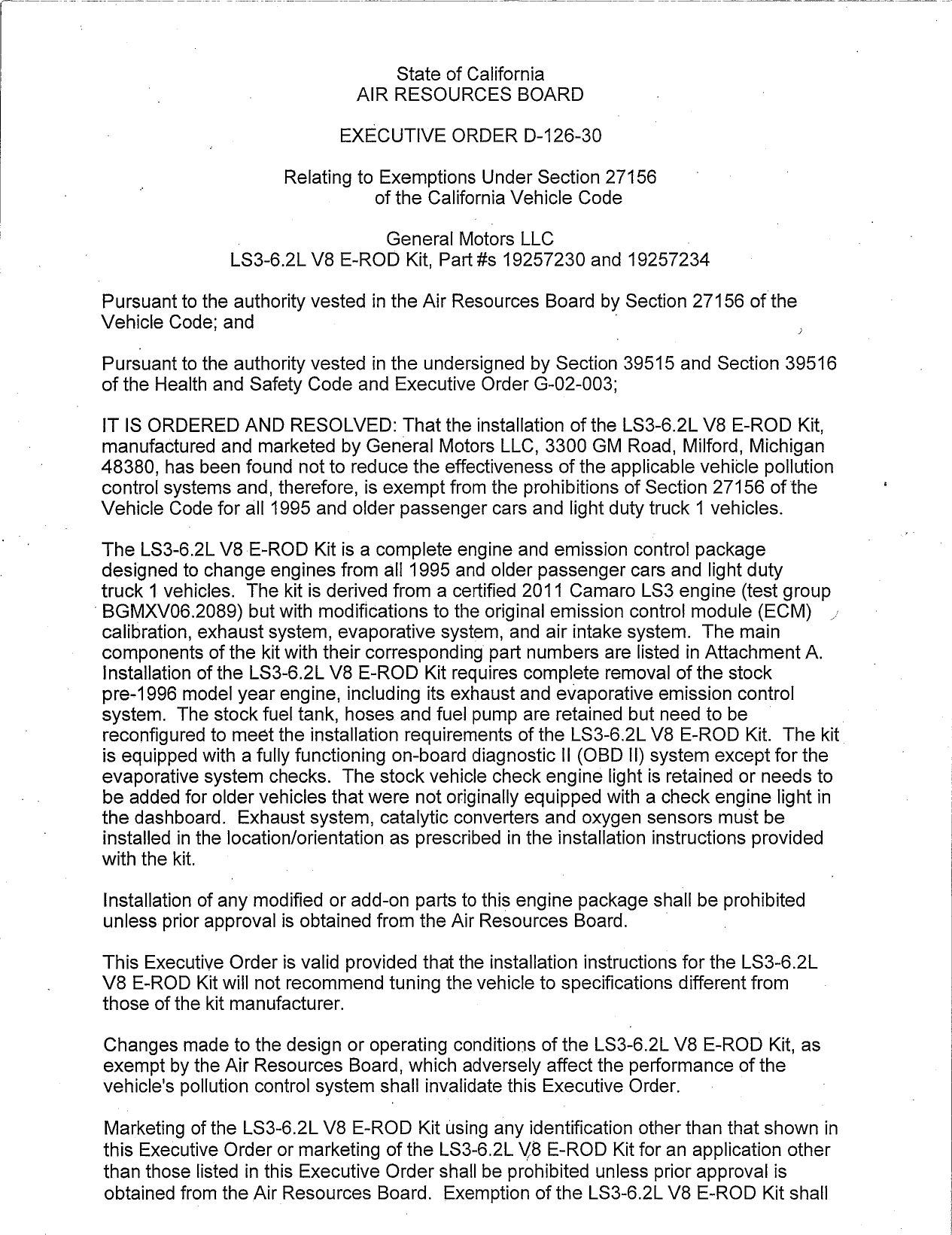

                                      State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—126—30

                       Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                  .              General Motbrs LLC                .
                 LS3—6.2L V8 E—ROD Kit, Part #s 19257230 and 19257234

Pursuant to the authority vested in the Air Resources Board by Section 27156 ofthe
Vehicle Code; and                                                                  ,

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the LS3—6.2L V8 E—ROD Kit,
manufactured and marketed by General Motors LLC, 3300 GM Road, Milford, Michigan
48380, has been found not to reduce the effectiveness of the applicable vehicle pollution
control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for all 1995 and older passenger cars and light duty truck 1 vehicles.

 The LS3—6.2L V8 E—ROD Kit is a complete engine and emission control package
 designed to change engines from all 1995 and older passenger cars and light duty
 truck 1 vehicles. The kit is derived from a certified 2011 Camaro LS3 engine (test group
©BGMXVO6.2089) but with modifications to the original emission control module (ECM)
calibration, exhaust system, evaporative system, and air intake system. The main
components of the kit with their correspondingpart numbers are listed in Attachment A.
 Installation of the LS3—6.2L V8 E—ROD Kit requires complete removal of the stock
pre—1998 model year engine, including its exhaust and evaporative emission control
system. The stock fuel tank, hoses and fuel pump are retained but need to be _
reconfigured to meét the installation requirements of the LS3—6.2L V8 E—ROD Kit. The kit
is equipped with a fully functioning on—board diagnostic II (OBD II) system except for the
evaporative system checks. The stock vehicle check engine light is retained or needs to
be added for older vehicles that were not originally equipped with a check engine light in
the dashboard. Exhaust system, catalytic converters and oxygen sensors must be
installed in the location/orientation as prescribed in the installation instructions provided
with the kit.

 Installation of any modified or add—on parts to this engine package shall be prohibited
 unless prior approval is obtained from the Air Resources Board.       |

This Executive Order is valid provided that the installation instructions for the LS3—6.2L
V8 E—ROD Kit will not recommend tuning the vehicle to specifications different from
those of the kit manufacturer.

 Changes made to the design or operating conditions of the LS3—6.2L V8 E—ROD Kit, as
 exempt by the Air Resources Board, which adversely affect the performance of the
 vehicle‘s pollution control system shall invalidate this Executive Order.

 Marketing of the LS3—6.2L V8 E—ROD Kit using any identification other than that shown in
 this Executive Order or marketing of the LS3—6.2L V8 E—ROD Kit for an application other
 than those listed in this Executive Order shall be prohibited unless prior approval is
 obtained from the Air Resources Board. Exemption of the LS3—6.2L V8 E—ROD Kit shall


                                                2.


not be construed as an exemption to sell, offer for sale, or advertise any component of the
LS3—6.2L V8 E—ROD Kit as an individual device.

This Executive Order is granted based on submitted emission test data generated on a 2004
model year Pontiac GTO with an automatic transmission, modified with the LS3—6.2L V8
E—ROD Kit with aged components. Test results showed that emission levels, with the LS3—
6.2L V8 E—ROD Kit installed, met passenger car Low Emission Vehicle II Ultra Low Emission
Vehicle (LEV II ULEV) emission standards when tested using the Cold—Start CVS—75 Federal
Test Procedure (FTP) test cycle and the Supplemental Federal Test Procedure (SFTP) test
cycle. Similar test results are expected when tested on the vehicles covered in this Executive
Order. Results from emissions testing conducted by General Motors are shown below (in
grams per mile).
                                     CVS—75 FTP                       SFTP USO6
                             NMOG     CO NOx         HCHO        NMHC+NOx CO
    Standards*               0.070    21 0.04        0.011         0.14        8.0
    Device Test 1            0.064    1.7 0.02       0.000         0.07        1.1
    Device Test 2            0.051    14 0.01        0.000         0.06       2.8
    Device Test 3            0.054    1.5 0.02       0.000         0.10 >      3.7

*LEV II ULEV CVS—75 FTP 120K emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section
2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE LS3—6.2L V8 E—ROD
KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertisingor other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.    ’                                                            .

Executed at El Monte, California, this      [   Z     day of October 2010.




                                      Annette Hebert, Chief
                                      Mobile Source Operations Division

                GENERAL MOTORS LLC — LS3—6.2L V8 E—ROD KIT — D—126—30


                                            Attachment A

                       LS3 — 6.2L V8 E—ROD KIT CONTENTS




INSTRUCTION MANUAL                          19257246    INSTRUCTION MANUAL                          19257246
EMISSIONS CERTICATION LABEL                 19258176    EMISSIONS CERTICATION LABEL                 19258176
Engine                                                  Engine
ENGINE ASM — 6.2L                           12613711    ENGINE ASM — 6.2L                .          12613711
EXHAUST MANIFOLD (LH) — included with kit   12611638    EXHAUST MANIFOLD (LH) — included with kit   12611638
EXHAUST MANIFOLD (RH) — included with kit   12611639    EXHAUST MANIFOLD (RH) — included with kit   12611639
ENGINE ELECTRICAL HARNESS                   19244808    ENGINE ELECTRICAL HARNESS                   19244808
MAP SENSOR JUMPER HARNESS                   19202598    MAP SENSOR JUMPER HARNESS                   19202598
CAM SENSOR JUMPER HARNESS                   19256607    CAM SENSOR JUMPER HARNESS                   19256607
AIR FILTER.ELEMENT                          19202661    AIR FILTER ELEMENT                          19202661

Controls                                                Controls              .
MODULE ASM—ENG CONT                         19257232    MODULE ASM—ENG CONT                         19257236
  DATA FILE—ECM ENG CALN                    19257233      DATA FILE—ECM ENG CALN                    19257237
  MODULE                                    19210737      MmopuULe                                  19210737
SENSOR ASM—HTD OxYy (POSN 2) (2)            12581966    SENSOR ASM—HTD OXY (POSN 2) (2)             12581966
SENSOR ASM—HTD OXY(POSN 3) (2)              12611165    SENSOR ASM—HTD OXY (POSN 3) (2)             12611165
MASS AIRFLOW SENSOR                         15865791    MASS AIRFLOW SENSOR                         15865791
MASS AIRFLOW SENSOR BRKT                    191866574   MASS AIRFLOW SENSOR BRKT                    19166574
ACCELERATOR PEDAL                           10379038    ACCELERATOR PEDAL                           10379038

Exhaust                                                 Exhaust
CONVERTER ASM—3WAY CTLTC (LH)               92225676    CONVERTER ASM—3WAY CTLTC (LH)               92225676
CONVERTER ASM—3WAY CTLTC (RH)               92225677    CONVERTER ASM—3WAY CTLTC (RH)               92225677
OXYGEN SENSOR MOUNTING BOSS (4)             15156588    OXYGEN SENSOR MOUNTING BOSS (4)             15156588
CLAMP — EXHAUST                             922029986   CLAMP — EXHAUST                             92202996
NUT— EXH MANIFOLD OUTLET PIPE (4 )          15032594    NUT— EXH MANIFOLD OUTLET PIPE (4 )          15032594

Evaporative            f                                Evaporative
CANISTER ASM—EVAP EMIS                      17113332    CANISTER ASM—EVAP EMIS                      17113332





Document Created: 2013-01-07 16:21:22
Document Modified: 2013-01-07 16:21:22
