Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 13, 2012.
As of Sunday, June 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
See PDFSee PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-126-33
  • Executive Order 126-33 / D126-33
  • ARB # D-126-33
  • Executive Order No: D-126-33
  • C.A.R.B. No. D-126-33
  • Resolution D-126-33
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-126-33 PDF

D-126-33 Document:

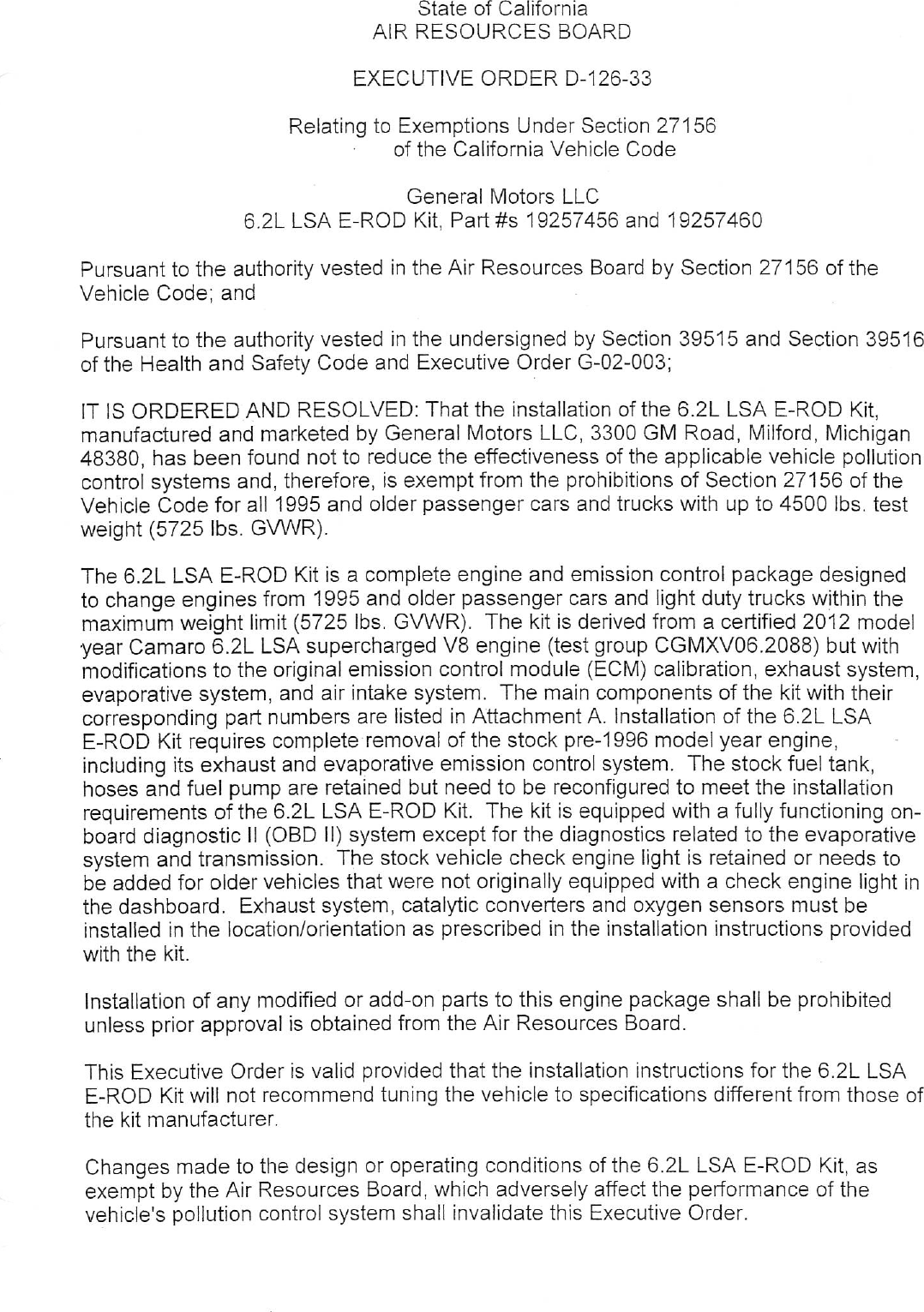

                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—126—33

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                General Motors LLC
                  6.2L LSA E—ROD Kit, Part #s 19257456 and 19257460

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive O_rder G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the 6.2L LSA E—ROD Kit,
manufactured and marketed by General Motors LLC, 3300 GM Road, Milford, Michigan
48380, has been found not to reduce the effectiveness of the applicable vehicle pollution
control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for all 1995 and older passenger cars and trucks with up to 4500 lbs. test
weight (5725 Ibs. GVWR).

The 6.2L LSA E—ROD Kit is a complete engine and emission control package designed
to change engines from 1995 and older passenger cars and light duty trucks within the
maximum weight limit (5725 lbs. GVWR). The kit is derived from a certified 2012 model
year Camaro 6.2L LSA supercharged V8 engine (test group CGMXVO6.2088) but with
modifications to the original emission control module (ECM) calibration, exhaust system,
evaporative system, and air intake system. The main components of the kit with their
corresponding part numbers are listed in Attachment A. Installation of the 6.2L LSA
E—ROD Kit requires complete removal of the stock pre—1996 model year engine,
including its exhaust and evaporative emission control system. The stock fuel tank,
hoses and fuel pump are retained but need to be reconfigured to meet the installation
requirements of the 6.2L LSA E—ROD Kit. The kit is equipped with a fully functioning on—
board diagnostic II (OBD II) system except for the diagnostics related to the evaporative
system and transmission. The stock vehicle check engine light is retained or needs to
be added for older vehicles that were not originally equipped with a check engine light in
the dashboard. Exhaust system, catalytic converters and oxygen sensors must be
installed in the location/orientation as prescribed in the installation instructions provided
with the kit.

Installation of any modified or add—on parts to this engine package shall be prohibited
unless prior approval is obtained from the Air Resources Board.

This Executive Order is valid provided that the installation instructions for the 6.2L LSA
E—ROD Kit will not recommend tuning the vehicle to specifications different from those of
the kit manufacturer.

Changes made to the design or operating conditions of the 6.2L LSA E—ROD Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.


                                             A


Marketing of the 6.2L LSA E—ROD Kit using any identification other than that shown in this
Executive Order or marketing of the 6.2L LSA E—ROD Kit for an application other than
those listed in this Executive Order shall be prohibited unless prior approval is obtained
from the Air Resources Board. Exemption of the 6.2L LSA E—ROD Kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component of the 6.2L
LSA E—ROD Kit as an individual device.

This Executive Order is granted based on submitted emission test data generated on a
1996 model year Chevrolet Impala, modified with the 6.2L LSA E—ROD Kit with aged
components. Test results showed that emission levels, with the 6.2L LSA E—ROD Kit
installed, met passenger car Low Emission Vehicle II Low Emission Vehicle (LEV II LEV)
emission standards when tested using the Cold—Start CVS—75 Federal Test Procedure
(FTP) test cycle and the Supplemental Federal Test Procedure (SFTP) test cycle. Similar
test results are expected when tested on the vehicles covered in this Executive Order.
Results from emissions testing conducted by General Motors are shown below (in grams
per mile).
                                    CVS—75 FTP                        SFTP USO6
                       °_   NMOG     CO— NOx      HCHO            NMHC+NOx CO
    Standards*              0.090    42 0.07      0.018            0.14        8.0
    Device Test 1           0.050    0.7 0.01     0.000            0.04        0.2
    Device Test 2           0.042    0.5 0.01     0.000            0.04        0.1
    Device Test 3           0.039    0.7 0.01     0.000            0.04        0.2

*LEV II LEV CVS—75 FTP 120K emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE 6.2L LSA E—ROD
KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order,
in which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt
of the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this day
                                         of June 2012.




                                     Annette Hebert, Chief
                                     Mobile Source Operatlons Division

              GENERAL MOTORS LLC — 6.2L LSA E—ROD KIT — D—126—33


                                         Attachment A




                           6.2L LSA E—ROD KIT CONTENTS



Kit P/N 19257456                                   Kit P/N 19257460
For 40 Tooth Trans Speed Signal         Part #     For 17 Tooth Trans Speed Signal         Part #
Part Description                                   Part Description

INSTRUCTION MANUAL                      19299067   INSTRUCTION MANUAL                      19299067
EMISSIONS CERTIFICATION Label           19258210   EMISSIONS CERTIFICATION LABEL           19258210


Engine                                             Engine
ENGINE ASM—6.2L LSA                     12633474   ENGINE ASM—6.2L LSA                     12633474
EXHAUST MANIFOLD (LH) — included with              EXHAUST MANIFOLD (LH) — included with
kit                                     12611638   kit                                     12611638
EXHAUST MANIFOLD (RH) — included with              EXHAUST MANIFOLD (RH) — included
kit                                     12611639   with kit                                12611639

                                        19244453                                           19244453
ENGINE ELECTRICAL HARNESS                  or      ENGINE ELECTRICAL HARNESS                  or
                                        19299544                                           19299544

AIR FILTER ELEMENT                      19202661   AIR FILTER ELEMENT                      19202661
INTERCOOLER PUMP                        13581479   INTERCOOLER PUMP                        13581479


Controls                                           Controls
MODULE ASM—ENG CONT                     19257458   MODULE ASM—ENG CONT                     19257462
  DATA FILE—ECM ENG CALN                19257459     DATA FILE—ECM ENG CALN                19257463
  MObDULE                               19210737     MODULE                                19210737
SENSOR ASM—HTD OXY (POSN 2) (2)         12581966   SENSOR ASM—HTD OXY (POSN 2) (2)         12581966
SENSOR ASM—HTD OXY (POSN 3) (2)         12611165   SENSOR ASM—HTD OXY (POSN 3) (2)         12611165
MASS AIRFLOW SENSOR                     15865791   MASS AIRFLOW SENSOR                     15865791
MASS AIRFLOW SENSOR BRKT                19166574   MASS AIRFLOW SENSOR BRKT                19166574
ACCELERATOR PEDAL                       10379038   ACCELERATOR PEDAL                       10379038


Exhaust                                            Exhaust
CONVERTER ASM—3WAY CTLTC (LH)           20941740   CONVERTER ASM—3WAY CTLTC (LH)           20941740
CONVERTER ASM—3WAY CTLTC (RH)           20941739   CONVERTER ASM—3WAY CTLTC (RH)           20941739
                                                   OXYGEN SENSOR MOUNTING BOSS
OXYGEN SENSOR MOUNTING BOSS (4)         15156588   (4)                                     15156588
CLAMP — EXHAUST                         92202996   CLAMP — EXHAUST                         92202996
NUT— EXH MANIFOLD OUTLET PIPE (4)       15032594   NUT— EXH MANIFOLD OUTLET PIPE (4)       15032594
SEAL — EXHAUST MANIFOLD (2)             92202326   SEAL — EXHAUST MANIFOLD (2)             92202326


Evaporative                                        Evaporative
CANISTER ASM—EVAP EMIS                  17113332   CANISTER ASM—EVAP EMIS                  17113332



Document Created: 2014-07-10 16:28:53
Document Modified: 2014-07-10 16:28:53

Previous E.O. D-126-32 | Previous E.O. D-125 | Next E.O. D-126-34 | Next E.O. D-127
