Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 24, 2013.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-126-35
  • Executive Order 126-35 / D126-35
  • ARB # D-126-35
  • Executive Order No: D-126-35
  • C.A.R.B. No. D-126-35
  • Resolution D-126-35
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-126-35 PDF

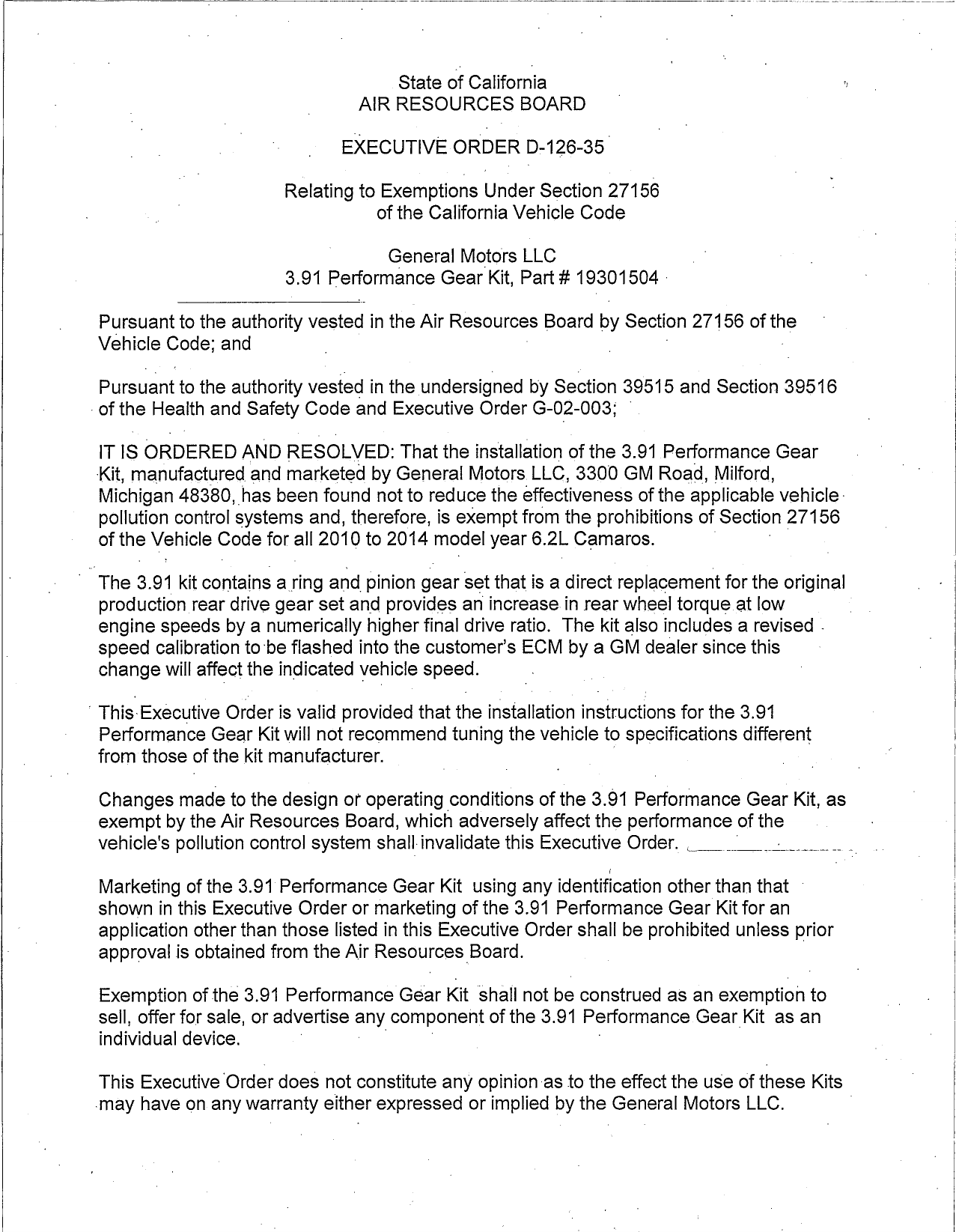

D-126-35 Document:



                                      State of California
                                 AIR RESOURCES BOARD
                               EXECUTIVE ORDER D—126—35¢

                        Relating to Exemptiohs Under Section 27156
                                   of the California Vehicle Code

                                     General Motors LLC
                        3.91 Performance Gear Kit, Part # 19301504 >

 Pursuant to the authority vestedin the Air Resources Board by Sectlon 27156 of the
 Vehicle Code; and                                                               '

  Pursuant to the authority vestedin the underSIgned by Section 39515 and Section 39516
— of the Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the 3.91 Performance Gear
Kit, manufactured and marketed by General Motors LLC, 3300 GM Road, Milford,
 Michigan 48380, has been found not to reduce the effectiveness of the applicable vehicle
 pollution control systems and, therefore, is exempt from the prohibitions of Sectlon 27156
 of the Vehlole Code for all 2010 to 2014 model year 6.2L Camaros.

 The 3 91 kit contalns a ring and pinion gear set thatis a direct replacement for the original
 production rear drive gear set and provides anincreasein rear wheel torque at low
 engine speeds by a numerically higher final drive ratio. The kit also includes a revised .
 speed calibration to be flashed into the customer‘s ECM by a GM dealer since this
 change will affect the indicated vehicle speed.

‘ This Executive Order is valid provided that the ihstallatioh instructions for the 3.91
  Performance Gear Kit will not recommend tuning the vehicle to specifications different
  from those of the kit manufacturer.                              '

 Changes made to the design or operating conditions of the 3.91 Performance Gear Kit, as
 exempt by the Air Resources Board, which adversely affect the performance of the
 vehicle‘s pollution control system shall: invalidate this Executive Order. ,  ols

 Marketing of the 3.91 Performance Gear Kit using any identification other than that —
 shown in this Executive Order or marketing of the 3.91 Performance Gear Kit for an
 application other than those listed in this Executive Order shall be prohibited unless prior
 approval is obtained from the Air Resources Board.

 Exemption of the 3.91 Performance Géar Kit shall not be construed as an exemptia'n to
 sell, offer for sale, or advertise any component of the 3.91 Performance Gear Kit as an
 individual device.

 This Executive Order does not constitute any opinion as to the effect the use of these Kits
may have on any warranty either expressed or implied by the General Motors LLC.


                                                  3.


  This Executive Order is granted based on submitted emission test data generated on a 2013
  model year Camaro, modified with the 3.91 Performance Gear Kit. Test results showed that
  emission levels, with the 3.91 Performance Gear Kit installed, met the applicable emission
. standards when tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle.
  Results from emissions testing conducted by General Motors are shown below (in grams per
  mile).                                                —
                                          CVS—75 FTP
                                    NMOG CO NOx HCHO
       Standards*                   0.070 21     0.04 0.011
       Device Test Average w/idf** 0.052 11      0.02 0.QO1

 *USEPA Bin 4, Counted as LEV II ULEV, CVS—75 FTP emissions standards, useful life.
 ** Average of 6 tests (3 manual trans and 3 auto trans)

 The Air Resources Board reserves the right in the future to review this Executive Order and
 the exemption provided herein to assure that the exempted add—on or modified part continues
 to meet the standards and procedures of Title 13, California Code of Regulations, Section
 2222, et seq.                            '

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
 RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE 3.91
 PERFORMANCE GEAR KIT.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.

 Violation of any of the above conditions shall be grounds for revocation of this order. The
 order may be revoked only after a ten—day written notice of intention to revoke the order, in
 which period the holder of the order may request in writing a hearing to contest the proposed
 revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
 and the order may not be revoked until a determinationis made after the hearing that grounds
 for revocation exist.

 Executed at El Monte, California, this       32 0/‘/ day of October 2013.



                                  D CBocarer
                                      ik White, Chief
                                  %Mfibile Source Operations Division




           GENERAL MOTORS LLC — 3.91 PERFORMANCE GEAR KIT — D—126—35



Document Created: 2014-01-28 13:46:49
Document Modified: 2014-01-28 13:46:49

Previous E.O. D-126-34 | Previous E.O. D-125 | Next E.O. D-126-36 | Next E.O. D-127
