Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 5, 2017.
As of Saturday, October 12th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-126-46
  • Executive Order 126-46 / D126-46
  • ARB # D-126-46
  • Executive Order No: D-126-46
  • C.A.R.B. No. D-126-46
  • Resolution D-126-46
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-126-46 PDF

D-126-46 Document:


CARB_D-126-46

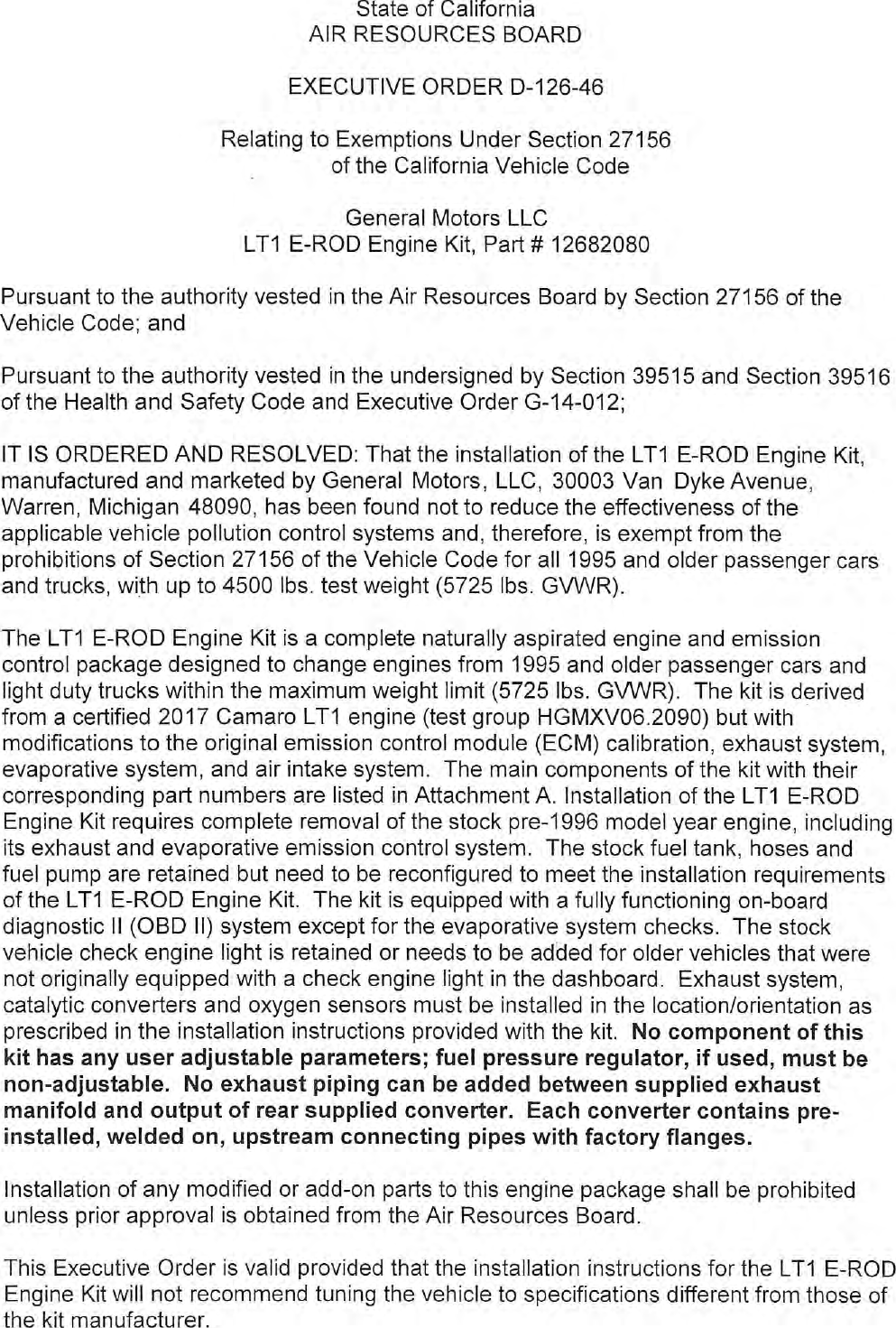

                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—126—46

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                General Motors LLC
                        LT1 E—ROD Engine Kit, Part # 12682080

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT ISs ORDERED AND RESOLVED: That the installation of the LT1 E—ROD Engine Kit,
manufactured and marketed by General Motors, LLC, 30003 Van Dyke Avenue,
Warren, Michigan 48090, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for all 1995 and older passenger cars
and trucks, with up to 4500 lbs. test weight (5725 lbs. GVWR).

The LT1 E—ROD Engine Kit is a complete naturally aspirated engine and emission
control package designed to change engines from 1995 and older passenger cars and
light duty trucks within the maximum weight limit (5725 lbs. GVWR). The kit is derived
from a certified 2017 Camaro LT1 engine (test group HGMXVO6.2090) but with
modifications to the original emission control module (ECM) calibration, exhaust system,
evaporative system, and air intake system. The main components of the kit with their
corresponding part numbers are listed in Attachment A. Installation of the LT1 E—ROD
Engine Kit requires complete removal of the stock pre—1996 model year engine, including
its exhaust and evaporative emission control system. The stock fuel tank, hoses and
fuel pump are retained but need to be reconfigured to meet the installation requirements
of the LT1 E—ROD Engine Kit. The kit is equipped with a fully functioning on—board
diagnostic II (OBD II) system except for the evaporative system checks. The stock
vehicle check engine light is retained or needs to be added for older vehicles that were
not originally equipped with a check engine light in the dashboard. Exhaust system,
catalytic converters and oxygen sensors must be installed in the location/orientation as
prescribed in the installation instructions provided with the kit. No component of this
kit has any user adjustable parameters; fuel pressure regulator, if used, must be
non—adjustable. No exhaust piping can be added between supplied exhaust
manifold and output of rear supplied converter. Each converter contains pre—
installed, welded on, upstream connecting pipes with factory flanges.

Installation of any modified or add—on parts to this engine package shall be prohibited
unless prior approval is obtained from the Air Resources Board.

This Executive Order is valid provided that the installation instructions for the LT1 E—ROD
Engine Kit will not recommend tuning the vehicle to specifications different from those of
the kit manufacturer.


                                               9:


Changes made to the design or operating conditions of the LT1 E—ROD Engine Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the LT1 E—ROD Engine Kit using any identification other than that shown in
this Executive Order or marketing of the LT1 E—ROD Engine Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board. Exemption of the LT1 E—ROD Engine Kit shall
not be construed as an exemption to sell, offer for sale, or advertise any component of
the LT1 E—ROD Engine Kit as an individual device.

This Executive Order is granted based on emission results submitted by
General Motors LLC in certifying its naturally aspirated and supercharged 2017 model
year Chevrolet Camaro and Corvette as a new vehicle (test group HGMXVO6.2090,
LEV 3 LEV 160). The final installed engine configuration, in an applicable vehicle, is the
same as the 2017 model year Camaro or Corvette, with allowed modifications as listed in
kit description. General Motors LLC‘s new vehicle certification emissions data for the
above mentioned test group are shown below in grams per mile:

                      NMOG+NOx             cCO         HCHO

Certification            0.083             0.9         0.000

Standards                0.160            4.2          0.004

Useful Life SFTP            NMOG+NOx             cCO
Emission Level
(Composite w/ df)                0.087           0.8

     Standards                   0.120 (BIN)     4.2

The certification emissions and OBD II test results submitted for new vehicle certification
have been accepted as representative of emissions in the modified configuration.
Therefore, based on the test results, the staff concludes that the General Motors LLC‘s
LT1 E—ROD Engine Kit meets the criteria for exempting general criteria parts.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE LT1 E—ROD
ENGINE KIT.



                GENERAL MOTORS LLC — LT1 E—ROD ENGINE KIT — D—126—46


                                            —3.


No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.


Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order,
in which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt
of the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this    5         day of May 2017.




             Annette Hebert, Chief
             Emissions Compliance, Automotive Regulations and Science Division




            GENERAL MOTORS LLC — LT1 E—ROD ENGINE KIT — D—126—46


                            Attachment A

          LT1 E—ROD ENGINE KIT CONTENTS

 Kit P/N 12682080
 Part Description                                   Fart#

 INSTRUCTION MANUAL

 EMISSION CERTIFICATION LABEL

 Engine
 ENGINE                                            12676216

 EXHAUST MANIFOLD (LH) — included with kit         12629728

 EXHAUST MANIFOLD (RH) — included with kit         12629729

 ENGINE ELECTRICAL HARNESS                         12677010

 OXYGEN SENSORS (FRONT)                            12655677
 OXYGEN SENSORS (REAR)                             12643708
 MASS AIRFLOW SENSOR                               22895480

 AIR FILTER (supplied by end user)

 Controls

 MODULE ASM—ENG CONT                               12677008

 Exhaust
 FRONT CONVERTER ASM—3WAY CTLTC (LH)               23463697
 (Includes connecting pipe to exhaust manifold)

 FRONT CONVERTER ASM—3WAY CTLTC (RH)               23463698
 (Includes connecting pipe to exhaust manifold

 REAR CONVERTER (LH)                               12678012
 (Includes connecting pipe to front converter)

 REAR CONVERTER (RH)                               12678011
 (Includes connecting pipe to front converter)

 ACCELERATOR PEDAL                                 10379038

 Evaporative
 CANISTER ASM—EVAP EMIS                            17113332

 No component of this kit has any user
 adjustable parameters; fuel pressure regulator,
 if used, must be non—adjustable. No exhaust
 piping can be added between supplied exhaust
 manifold and output of rear supplied converter.
 Each converter contains pre—installed, welded
 on, upstream connecting pipes with factory
 flanges.

GENERAL MOTORS LLC — LT1 E—ROD ENGINE KIT — D—126—46



Document Created: 2017-07-18 08:35:32
Document Modified: 2017-07-18 08:35:32
