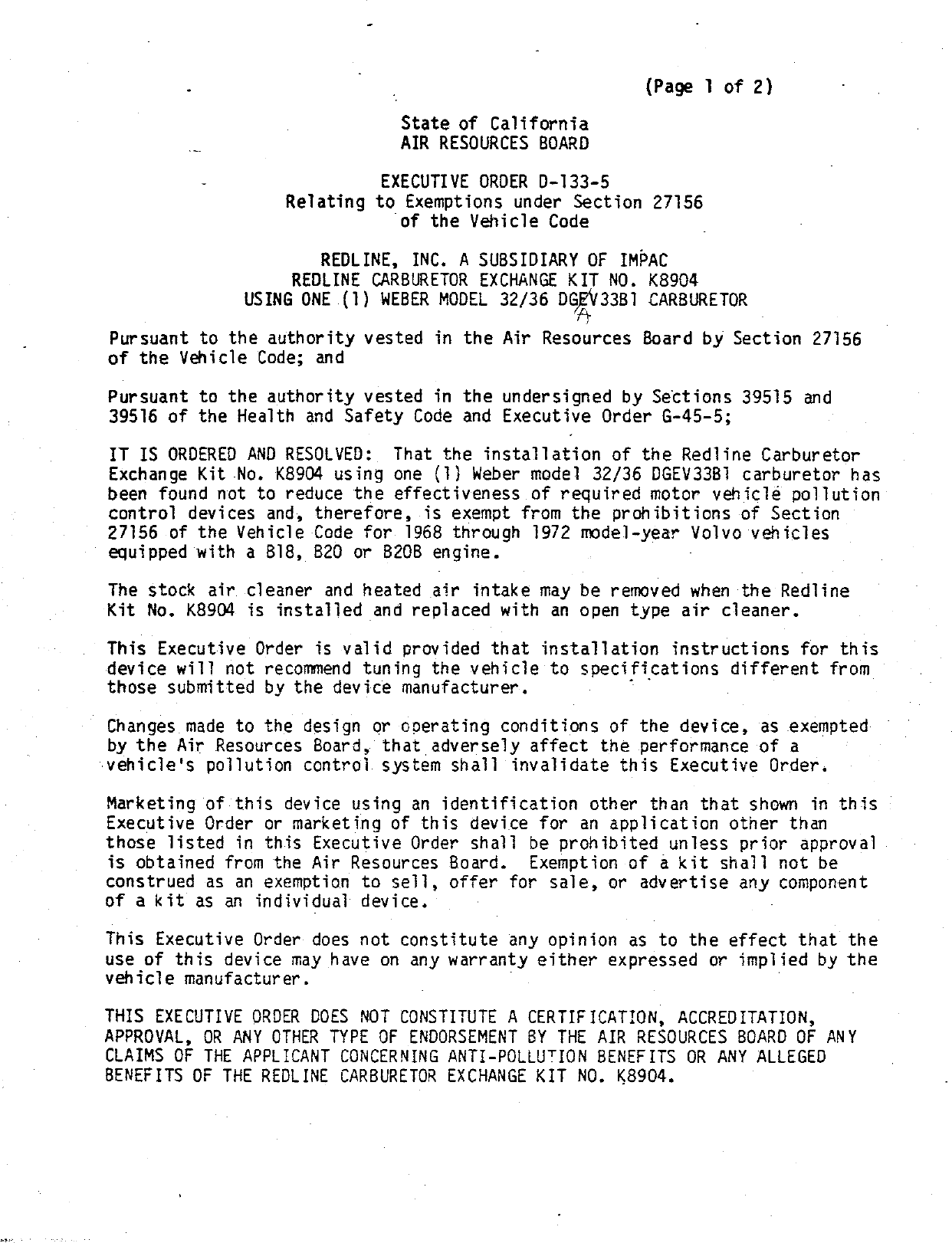

                              State of California
                              AIR RESOURCES BOARD

         —                  EXECUTIVE ORDER D—133—5
                  Relating to Exemptions under Section 27156
                             ‘of the Vehicle Code

                      REDLINE, INC. A SUBSIDIARY OF IMPAC
                   REDLINE CARBURETOR EXCHANGE KIT NO. K8904
              USING ONE (1) WEBER MODEL 32/36 D§£y3381 CARBURE TOR

Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the Redline Carburetor
Exchange Kit No. K8904 using one (1} Weber model 32/36 DGEV33B1 carburetor has
been found not to reduce the effectiveness of required motor vehiclé poliution
control devices and, therefore, is exempt from the prohibitions of Section
27156 of the Vehicle Code for 1968 through 1972 model—year Volvo vehicles
equipped with a B18, 820 or B20B engine.

The stock air cleaner and heated air intake may be removed when the Redline
Kit No. K8904 is installed and replaced with an open type air cleaner.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.               *

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board.       Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.                       '

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT 8¥ THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE REDLINE CARBURETOR EXCHANGE KIT NC. k8904.


 REDLINE, INC,                '                       EXECUTIVE ORDER D—133—5 |
                                                      (Page 2 of 2)



 No claim of any kind, such as "Approved by Air Resources Board" may be made
 with respect to the action taken herein in any advertising or other oral or
 written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
 punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

     "43644.     (a)   No person shall install, sell, offer for sale, or
     advertise, or, except in an application to the state board for
     certification of a device, represent, any device as a motor vehicle
     pollution control device for use on any used motor vehicle unless that
     device has been certified by the state board. No person shall sell,
     offer for sale, advertise, or represent any motor vehicle pollution
     control device as a certified device which, in fact, is not a certified
     device. Any violation of this subdivision is a misdemeanor."

'Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.
                                                a
                                               ,u/
Executed at El Monte, California, this        227   day of October, 1985.



                                            inies
                                           K. D. Drachand, Chief
                                           Mobile Source Division


               State of California
               AIR RESOURCES BOARD      zes




EVALUATION OF THE REDLINE CARBURETOR EXCHANGE KIT
  NO. K8904 USING ONE (1) MODEL 32/36 DGEV33B1
      WEBER CARBURETOR FOR EXEMPTION FROM THE
    PROHIBITIONS OF VEHICLE CODE SECTION 27156
     IN ACCORDANCE WITH SECTION 2222, TITLE 13
       OF THE CALIFORNIA ADMINISTRATIVE CODE




                 OCTOBER, 1985


                 EVALUATION OF THE REDLINE CARBURETOR EXCHANGE
               KIT NO. K8904 USING ONE (1) MODEL 32/36 DGEV33B1
                    WEBER CARBURETOR FOR EXEMPTION FROM THE
                  PROHIBITIONS OF VERICLE CODE SECTION 27156
                   IN ACCORDANCE WITH SECTION 2222, TITLE 13
                     OF THE CALIFORNIA ADMINISTRATIVE CODE




                                      by
                            Mobile Source Division
                              State of California
                              AIR RESOURCES BOARD
                              9528 Telstar Avenue
                              El Monte, CA 91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                     summary

      Redline, Inc., a distributor of Italian made Weber carburetors, has

applied for exemption from the prohibitions of Vehicle Code Section 27156 for

the Redline Carburetor Exchange Kit No. K8904 using one (1) Weber model 32/36

DGEV33B1 carburetor.

      The Redline Carburetor Exchange Kit replaces the original equipment S.U.

HIF6, HS or HD l—barrel carburetors or the original equipment Zenith—Stromberg

175—CD—2 1—barrel carburetors on 1968—72 model—year Volvo vehicles.     The

original equipment air cleaner is not retained in the Redline Kit

installation.    The Redline Carburetor Exchange Kit utilizes an open type air

cleaner which the staff has determined does not increase evaporative

emissions.   An anti—dieseling solenoid is installed in the idle circuit of the

Weber carburetor to prevent the engine from running on after the engine has

been shut off.

      Comparative exhaust emission tests demonstrate that the aftermarket

Redline Carburetor Exchange Kit No. K8904 using one Weber model 32/36 DG@EV33B1

carburetor does not adversely affect emissions.   Based on the results of the

tests and the evaluation of the Redline Carburetor Exchange Kit, the staff

recommends that the exemption be granted as requested for the 1968—72

model—year Volvo vehicles equipped with B18, B20 or B208 engines.


                                          CONTENTS

                                                     Number

SUMMARY                                                 i.

CONTENTS     _.                                        11.

I.     INTRODUCT ION                                    1.

I1I.   CONCLUSION                                       1.

III.      RECOMMENDATION                                1.

IV.    DEVICE DESCRIPTION                               2.

V.     EVALUAT ION PROGRAM                              3.

V1I.   DISCUSSION                                       4.



APPENDIX

       Carburetor Diagrams

                  Constant Velocity 1—Barrel          A—1

                  Weber DGEV33B1                      A—2

       Carburetor Calibration

                  Weber DGEV33B1                      B—1




                                          11.


EVALUATION OF THE REDLINE CARBURETOR EXCHANGE KIT NO. K8904 USING MODEL 32/36
DGEV33B1 WEBER CARBURETOR FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CoDE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA
ADMINISTRATIVE CODE


I.     INTRODUCTION

       Redline, Inc. of Torrance, California, a subsidiary of Imported Parts

and Accessories Corporation (IMPAC), is a distributor of Italian made Weber

carburetors.   The company has applied for exemption from the prohibitions of

Vehicle Code Section 27156 for a Carburetor Exchange Kit designated as Redline

Kit No. K8904 utilizing one (1) Weber model 32/36 DGEV33B1 carburetor.     The

Carburetor Exchange Kit is designed to replace the two (2) original equipment

manufacturer (OEM) constant velocity carburetors as found on 1968—1972

model—year Yolvo vehicles equipped with B18, B20 or B20B engines.

       This report describes the evaluation of the Redline Carburetor Exchange

Kit and the findings.

II.    CONCLUSION
       Comparative exhaust emission data and other information submitted by the

applicant demonstrated that the Redline kit using one {1) Weber model 32/36

DGEV33B1 carburetor meets the Air Resources Board (ARB) requirements for

exemption from the prohibitions of Vehicle Code Section 27156.

III.   RECOMMENDATION

       Based on the submitted comparative data of the Redline Carburetor

Exchange Kit, the staff recommends that Redline, Inc. be granted exemption

from the prohibitions of Vehicle Code Section 27156 for the Redline Carburetor

Exchange Kit No. K8904 using one (1) model 32/36 DGEV33B1 Weber carburetor for

1968—72 model—year Volvo vehicles equipped with B18, B20 or B208B engines.


IV.   DEVICE DESCRIPTION

      The Redline Carburetor Exchange Kit No. K8904 uses one (1) Weber model

32/36 DGEV33B1 carburetor to replace the two (2) OEM constant velocity

carburetors.   The OEM carburetors are of the single barrel sidedraft design;

the venturi area is automatically changed according to engine air intake.        The

amount of fuel passing through the main jet is governed by a tapered needle

which moves proportional to the engine air intake.     A choke valve and

auxiliary nozzle are used for cold starting.     Main components of the

carburetor consist of:     a float chamber, suction chamber, suction piston,

piston damper, metering needle and jet, throttle valve body, choke valve and

auxitiary nozzle (See Appendix A).

      The Weber 32/36 DGEV33B1 carburetor is a progressive two—barrel down—

draft design (see Appendix A).    The Weber carburetor uses a mechanically—
operated secondary which starts to open after the primary throttle opens

approximately 68 percent.    A diaphragm type accelerator pump is actuated by

throttle movement and injects fuel into the primary barrel.     The Weber is

fitted with an anti—dieseling valve in the idle circuit which shuts off the

fuel supply to the idle circuit whenever the ignition is switched off.     The

addition of this anti—dieseling valve upgrades the emission control of the

Volvo vehicles since the OEM carburetors were not equipped with such a

device.   The calibration of the Weber carburetor is included in Appendix B.

      The DGEY model Weber carburetor is fitted with an electric choke which

is more precise and consistent than the manual choke used on the OEM

carburetors.

      Included in the Redline kit is the Weber carburetor, intake manifold,

air cleaner, throttle linkage, and all necessary hoses, clamps and fasteners

needed to install the Weber carburetor correctly.


¥.       EVALUATION PROGRAM

         The applicant performed comparative CVS—75 exhaust emission tests at

Import Certification Laboratories in Anaheim, California.               A 1970 Volvo

equipped with a 820 engine and 4—speed manual transmission was used.                The

baseline test was performed with the OEM carburetors.               A representative

production Redline Kit No. K8904 was used for the comparative testing.                 The

results of those tests are in Table 1.


                                            Table 1

                                     Exhaust Emissions gm/mi            Fuel Economy
       Condition                HC           CO              NOx        City mi/gal

       Baseline                4.5          53.3              2.3            17.8

       Redline Kit             3.9          55.4              1.9            17.8

        A 1970 model—year vehicle was used as the test vehicle.             It would be

expected that vehicles of previous model—years would have the same degree of

performance/emissions impact as the vehicle tested when using the same Redline

Kit.

         The applicant performed comparative evaporative emissions testing to

demonstrate that the open—element air cleaner does not increase the

evaporative emissions from the Volvo vehicles.           The same 1970 Volvo was tested

using the Sealed Housing Evaporative Determination (SHED) procedures.               The

results of these tests are shown in Table 2.

                                            Table 2

                              Evaporative Emission Test Data


                                                       SHED
            Condition                      Evaporative Emissions gm/test

           BaseTine                                    12.2

           Redline Kit No. K8904                        6.0


VI.   DISCUSSION

      The applicant‘s submitted comparative emissions test data are

acceptable.   The comparative data show that the HC and NOx emissions are below

the baseline values.   The change in carbon monoxide emissions is within the

limits of test variability.   The evaporative emissions decreased by more than

50%, as compared to the baseline, with the Weber carbuetor and open type air

cleaner installed.

      The kit provides the necessary components and installation instructions

to allow the average mechanic to connect the OEM emission controls to the new

intake manifold and carburetor so that they function properly.

      This kit offers an economical alternative to the repair or replacement

of the OEM constant velocity carburetors.   Since the Volvo vehicles are

equipped with dual carburetors which require synchronization {an

adjustment/balancing procedure which requires special tools and a qualified

mechanic) on a regular basis while the single Weber does not, the vehicles

will stay in tune longer with the Weber carburetor.


                               INSTALLATION INSTRUCTIONS
                                                                                                                W
                                                                                                                caneurerons _

    READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE
    BEGINNING THIS INSTALLATION. After unpacking, examine the carburetor and
    other components for shipping damage. If any damage is found, notify shipper/
    supplier immediately.


                                      VOLVO (1968 — 1972)
                            B18, B20 and B20B Engs (Carbureted)
                            For Kits No. K8904, 8906, 52—59305
                            Using (1) Weber 32/36 DGEV—33B1
                   TOOLS AND EQUIPMENT                                              PARTS SUPPLIED WITH
                         NEEDED:                                                      INSTALLATION KiT

    Combination, box or open end wrenches (metric)                     1 — Hardware Kit
    Socket set with 12 mm socket                                       1 — intake Manifold     —
    Screwdriver (regular and Phillips)                                 1—Weber32/36 DGEV—33B1 Carburetor
    Pliers                                                             1 — Air Filter Assembly
    Gasket Scraper
    Rags                                                               Note: A new fuel filter should be instailed
    Cleaning Solvent                                                         with this kit.
    Knife

                                              TUNE—UP SPECIFICATIONS

    All tune—up specifications for the Weber Carburetor remain the same as those specified by the Factory,
    for the original unit. Emissions tune—up should be carried out by a suitably qualified Dealer or indepen—
    dent garage, using infrared gas analyzing equipment.

    NOTE: Late model vehicles fitted with Emission Contro! Systems have many vacuum lines and electri—
    cal connections in their fuel systems. It is essential when dismantling, that disconnected lines be
    identified with a corresponding number tag or label system. To establish function, locate and identify
    the source of each line.


     1. Remove the vehicle‘s gas cap.                                5. Disconnect the ignition advance vacuum line,
                                                                        from the bottom of the front carburetor.
     2. Disconnect the battery.                                          Disconnect the valve cover breather hose
                                                                         and brake assist vacuum hose from the intake
      . CAUTION: Engine should be cold before                            manifold. Remove the vapor cannister hose
        performing this step. Drain the engine cool—                     from the base of the front carburetor. Dis—
        ant from the radiator into a suitable container.                 connect the fuel line at the fuel ‘Tee‘ between
                                                                         the carbs.
      . Remove the stock air filter and attached
         hoses. (Note: Identify each hose for proper                  . Remove the stock accelerator linkage from
         re—assembly later.)                                            the bushing in the firewall to the carburetors.
                                                                         Disconnect the choke cable.




—    This is sold under the provisions of California Air Resources Board Executive Order No. D—133—5 (C.A.R.B. E.0. No. D—133—§ .
     Products with C.A.R.B. E.0. numbers are exempt from the prohibitions of Section 27156 of the California Vehicle Code.
— Performance kits so noted are legal for use on public highways in California.                                                 c
WEBER DISTRIBUTION


                                                                      14. Install the two water fittings supplied in the
           eimewate                                                          kit in the water passage of new intake mani—
                             waren nose
                              romsaten                                       fold using sealant to prevent leakage. Install
                                                                             the % inch pipe fitting supplied, in the tapped
                                                                             hole immediately above the water chamber.
                                                                             Fig. 6 Install the two stock vacuum fittings,
                                                                             saved from Step 8, in the two ports located
                                                                             on the engine side of the intake manifold.
      waternose                                                              Fig. 7 THE FITTING, WITH THE RESTRIC—
   to mrme mamroun
              waren nose
                                                                             TION IN IT MUST BE INSTALLEDIN THE
            10 enome scock                                                   PORT CLOSER TO FIREWALL.

   FIG. 4




                                                                        choue
                                                                      memmostar
                                                                                                                   raom rnont
                                                                                                                    or naine
                                                                                                                     ina. s
11. Remove the small water chamber cover and                                                                           to
                                                                           warennose
    gasket located below the thermostat housing                           to reesimmgo
                                                                             thio. s
                                                                                                                     vicuum
                                                                                                                     aoomce
    and replace with the water outlet fitting and
     new gasket supplied in the kit. Fig. 5




                                                   waree meenmostat
                                                       rousna




                                                        rrowror       15. Install the four carburetor studs supplied,
                                                         maene            into the new intake manifold using the Loctite
                                                                              supplied. Thread the 5/16—24 jam nut sup—
mmrds                                                 wewwaren                plied, onto the rod end supplied, and screw
                                          —            Rime
                                          U       se                          the rod end into the tapped boss on the
                                                 ntge to                      upper sider of the manifold casting as far as
                                           | T: whieoto
                                           I      nrae

                                                                              possible and lock it in place with the jam nut
                                                                              so that the hole is in a fore—aft direction.

                                                                      16. Install the new intake manifold on the engine.
                                                                          THE REAR OF THE THROTTLE ROD
                                                                          MUST IN INSERTED IN THE BUSHING
                                                                          IN THE FIREWALL AT THE SAME TIME
12. Clean the Cylinder Head manifold flange                               THAT THE INTAKE MANIFOLD IS IN—
     surface thoroughly taking care to PREVENT                            STALLED. Use the original nuts and washers
     FOREIGN MATTER FROM ENTERING                                         and take care to reinstall the bracket which
     THE INTAKE AND EXHAUST PORTS.                                            supports the rear end of the heater water
13. install the modified exhaust manifold using                               line.
     the new gasket supplied and the original
     nuts and washers, Reconnect the exhaust                          17. Install the Weber carburetor using the
     pipe using the new gasket supplied and the                               gasket and four nuts and washers, supplied
     original nuts.                                                           in the kit.


      S.U. HIF TYPE 1—BARREL



                                       1
                                       SET SCREW
 PISTON DAMPER



SUCTION CHAMBER
          *e~)

1D TAG




                              METERING NEEDLE
 PISTON ASSY                       ASSY




                                  122015




                               NEEDLE VALVE
                                   ASSY




ADJUSTING LEVER
RETAINING SCREW



 FLOAT

                               FLOAT SPINDLE




BOTTOM COVER
    PLATE__——~

      5.U. HIF CARBURETOROISASSEMBLY
                     A—1


      TYPICAL VIEW 32/36 DGV
ons




                    REDLINE INC.   Tho Weber Importers
              A—2


  Stage of Development          PROTO                                                           —       Date:   9—6—85

  Prototype #                   8906—1                                                   Location of #See Pump Housing
  Carburetor Model       32/36 DGEV (33B1)                     Part # 22680—172
                                  .                                                                        NA—Not Applicable
  Application:           Model   VOLVO                Year 61—72     Month                                 AF — As Factory |

                  Engine Size 818 — 820               Air Cond. — @            N           2o           e                 *
                  Transmission: Ci:)            AT


  Calibrated Parts                                                  Adjustments®


                                                                                                                          Value

 Main venturi                26/27                                  Float levelling:                *


 Auxilfary venturi           3.5 / 3.5                              with gasket (brass)                           N/A         mm


 Main jet       Prim — 140    Sec    135                            with gasket (plastic)                         N/A         mm


Qir corrector jet            Prim — 165         Sec   180           without gasket (brass)                      41 / 51       mm


  Emulsion tube              F—50    Both                           without gasket (plastic)                    35 / 51       mm


  Full power fuel bush        _A F                                  from face to carburetor bowl                    N/A       mm


  Full power air bush         A F                                   Maximum float stroke                            N/A       mm


  Power valve spring     57804—097                          Pin.


  Fuel enrichment bush        _A F          >                       Accelerating pump


  Air enrichment bush         A F                                   10 complete pump strokes


  Mixture énrichmgnt tube/hole           _A F                       delivery       8.5    To        13.5                      cn3.

‘xfliary venturi mixture enrichment bush                      N/A    Throttle opening pump                           N/A


                                                                    stroke adjustment                               N/A       mm


                                                                                                         Value

                                                        Main throttle plate adjustment

se jet           65/Pr im       50/ Sec.                lst throttle opening at start

idle air bush        175 / 70                           of 2nd one:                                 A F_     mm

irreversibility hole        N/A

idle mixture adjusting hole/bush _A F                   Dash—pot              2o   ;                     +
idle mixture bush                      N/A              Throttle opening at dash pot

Sonic idle air bush/hole               N/A              contact       .                            N/A       mm
By—pass idle air hole                  N/A                                '

By—pass idle mixture hole              N/A              Manual starter

Spark Advance hole                    .0 mm             Mechanical pull—down                                 mm

Ecr.                                  .0 mm      TL     Fast _idle                                           mm
                                       A F       TL     Pneumatic pull—down                .                 mm

                                       A F       T2     Minimum pneumatic pull—down                          mm
    ‘                                            TL     Max preumatic pull—down {half

                                                 T      choke)                                               hm

                                                        Starter rod complete                                 P.n.

                                                        Starter spring                                       Pin.

Progression slot                       N/A              Automatic starter

Throttleplate angle                    780              Starter plate clearance adjustment 1.0mm

Needle valve                           200              Mechanical pull—down            As Factory

Fuel recycle hole                      N/A              Fast idle on starter piston

                                                        Fast idle

Pump jet                               .50              Fast idle cam timing           _A F__{mm/step nr.)

Pump discharge                         .30              Pull—down lever/modular clear.                       mm

Inlet valve w/discharge pump               N/A          Minimum preumatic pull—down                  6       mm

f_nwatic bump je't                         N/A          Maximum pneumatic pull—down                  6.5     mm

_   amatic pumpadischarge                  N/A          Fixed index mark

Mechanical pump diaphragm       47407.048        P.n.   Moving index adjustment                .



Document Created: 2005-09-01 12:42:16
Document Modified: 2005-09-01 12:42:16

Previous E.O. D-133-4 | Previous E.O. D-132 | Next E.O. D-133-6 | Next E.O. D-134
