Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 6, 1984.
As of Thursday, January 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1984 and older model year vehicle, EXCEPT: (1) GM with "odd firing" V6 231 CID (2) Vehicles with rotary engine (3) Vehicles with more than 1 ignition coil

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-137-1
  • Executive Order 137-1 / D137-1
  • ARB # D-137-1
  • Executive Order No: D-137-1
  • C.A.R.B. No. D-137-1
  • Resolution D-137-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-137-1 PDF

D-137-1 Document:

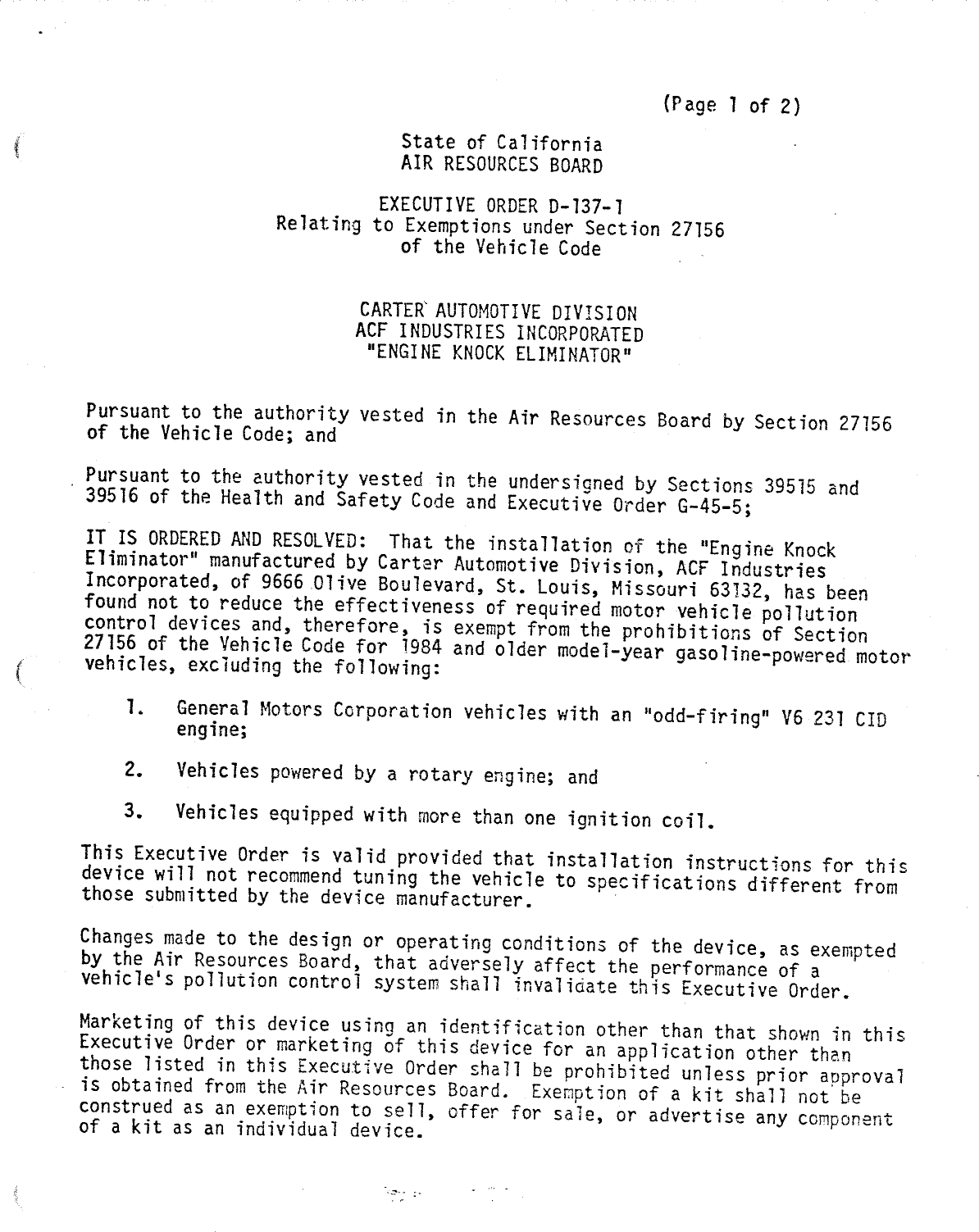

                                                          (Page 1 of 2)

                               State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—137—1
                   Relating to Exemptions under Section 27156
                               of the Vehicle Code


                          CARTER AUTOMOTIVE DIVISION
                          ACF INDUSTRIES INCORPORATED
                           "ENGINE KNOCK ELIMINATOR"


 Pursuant to the authority vested in the Air Resources Board by Section 27156
 of the Vehicle Code; and

— Pursuant to the authority vested in the undersigned by Sections 39515 and
  39516 of the Health and Safety Code and Executive Order G—45—5;

 IT IS ORDERED AND RESOLYED:   That the installation of the "Engine Knock
 Eliminator" manufactured by Cartor Automotive Division, ACF Industries
 Incorporated, of 9666 Olive Boulevard, St. Louis, Missouri 63132, has been
 found not to reduce the effectiveness of required motor vehicle pollution
 control devices and, therefore, is exempt from the prohibitions of Section
 27156 of the Yehicle Code for 1984 and older model—year gasoline—powsered motor
 vehicles, exciuding the following:

     1.   General Motors Corporation vehicles with an "odd—firing" Y¥6 231 CID
          engine;

     2.    Vehicles powered by a rotary engine; and

     3.   Vehicies equipped with more than one ignition coil.

 This Executive Order is valid provided that installation instructions for this
 device will not recommend tuning the vehicle to specifications different from
 those submitted by the device manufacturer.          |

 Changes made to the design or operating conditions of the device, as exempted
 by the Air Resources Board, that adversely affect the performance of a
 vehicle‘s poliution control system shall ifinvalidate this Executive Order.

 Marketing of this device using an identification other than that shown in this
 Executive Order or marketing of this device for an application other than
 those listed in this Executive Order shall be prohibited unless prior approval
— is obtained from the Air Resources Board. Exenption of a kit shall not be
  construed as an exemption to sell, offer for sale, or advertise any component
 of a kit as an individual device.


CARTER AUTOMOTIVE DIVISION                        EXECUTIVE ORDER D—137—]
ACF INDUSTRIES INCORPORATED                            (Page 2 of 2)
"ENGINE KNOCK ELIMINATOR"



This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE "ENGINE KNOCK ELIMINATOR".

No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor.
Section 43644 of the Health and Safety Code provides as follows:

    "43644. (a) No person shall instalil, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board. No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device. Any violation of this
    subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.


Executed at El Monte, California, this    55‘/   day of &     1984.


                                     /%//%
                                         K. D. Drachand, Chief
                                         Mobile Source Division


                                      State of California
                                      AIR RESOURCES BOARD




        EVALUATION OF CARTER AUTOMOTIVE DIVISION®S "ENGINE KNOCK ELIMINATOR" FOR
        EXEMPTION FROM THE PROHIBITIONS IN VEKHICLE CODE SECTION 27156 IN ACCORDANCE
        WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE




                                         June 4, 1984
yore.


                                                Date of Issue:   June 4, 1984




     EVALUATION OF CARTER AUTOMOTIVE DIVISION‘S "ENGINE KNOCK ELIMINATOR" FOR
     EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE
     WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE
es




                                           by
                                 Mobile Source Division

                                   State of California
                                   Air Resources Board
                                   9528 Telstar Avenue
                                   E1 Monte, CA 91731




     (This report has been reviewed by the staff of the California Air Resources
     Board and approved for publication. Approval does not signify that the
     contents necessarily reflect the views and policies of the Air Resources
     Board, nor does mention of trade names or commercial products constitute
     endorsement or recommendation for use.)


                                   sumary

      Carter Automotive Division (CAD) requested an update to the existing Air

Resources Board‘s Executive Order No. D—137.   Request made is to include the

vehicles equipped with a closed—loop (computer controlled) carburetion system

in the exemption of the "Engine Knock Eliminator" (EKE) add—on device.
      CAD has submitted data of comparative cold—start CVS—75 emission test

data generated from a 1984 Chevrolet Chevette powered by a 1.6 lTiter engine

using closed—loop carburetion system.

      Based on the comparative exhaust emission tests performed on the late

model vehicle, the staff concludes that the EKE will not have an adverse

effect on exhaust emission from vehicles equipped with closed—1loop carburetion

system.
      The staff recommends that CAD be granted an updated exemption from the

prohibitions in Vehicle Code Section 27156 for their EKE device for

installation on 1984 and older model—year gasoline—powered motor vehicles,

excluding the following:

           1.   General Motors Corporation vehicles with an "odd—firing" V6

                231 CID engine;

           2.    Vehicles powered by a rotary engine; and

           3.    Vehicles equipped with more than one ignition coil.


                                    CONTENTS




                                               Page Number



SUMMARY

CONTENTS                                            11

1.     INTRODUCTION

II.    CONCLUSION

III.   RECOMMENDATIONS

IV.    DEVICE DESCRIPTION AND OPERATION

V.     EVALUAT ION

VI.    DISCUSSION

APPENDIX

       TEST_DATA




                                          i1


EVALUATION OF CARTER AUTOMOTIVE DIVISION‘S "ENGINE KNOCK ELIMINATOR®" FOR
EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.


I.     INTRODUCTION

       Carter Automotive Division (CAD) of ACF Industries, Incorporated, 9666

Olive Boulevard, St. Louis, Missouri 63132, requested an update to the

existing Air Resources Board‘s Executive Order (E.0.) No. D—137.    Request made

is to include the vehicles equipped with a closed—loop (computer controlled)

carburetion system in the exemption of the "Engine Knock Eliminator" (EKE)

add—on device.
       CAD has submitted data of comparative cold—start CVS—75 emission test

data generated from a 1984 Chevrolet Chevette powered by a 1.6 liter engine

using closed=l]oop carburetion system.   Tests were performed under contract by

the Olson Engineering, Inc. laboratory in Huntington Beach, California.

II.    CONCLUSION

       Based on the comparative exhaust emission tests performed on the late

model vehicle, the staff concludes that the EKE will not have an adverse

effect on exhaust emission from vehicles equipped with closed—loop carburetion

system.
III.   RECOMMENDATIONS

       'Based on the above conclusion, the staff recommends that CAD be granted

an updated exemption from the prohibitions in Vehicle Code Section 27156 for

their EKE device.     Update is to include the vehicles equipped with a

closed—loop carburetion system.

       The staff also recommends that Executive Order No. D—137—1 be issued,

exempting the EKE device for installation on 1984 and older model—year
gasoline—powered motor vehicles, excluding the following:


           1.      General Motors Corporation vehicles with an "odd—firing" V6

                   231 CID engine;

           2.      Vehicles powered by a rotary engine; and

           3.      Vehicles equipped with more than one ignition coil.

IV.   DEVICE DESCRIPTION AND OPERATION

      The EKE is an add—on device which senses engine detonation and

electronically retards ignition timing to eliminate detonation.     The major

components of the EKE are a detonation sensor and an electronic control unit.

The components are packaged with installation hardware and instructions and

sold as a kit.

      The detonation sensor has a 3/8" standard threaded stud designed to be

bolited directly to any existing vacant 3/8"—16 threaded hole in the intake

manifold or cylinder head where there is no interference with throttle or

choke mechanism.     The sensor senses engine vibratton and generates an

electrical signal to the electronic control unit.     The knock sensor consists

of an amplifier and a discriminator.     The amplifier amplifies the intensity of

the vibration for signal generation; whereas, the discriminator will discrete

engine noise/vibration interference from engine detonation, thus, generating a

volitage signal only under engine detonation conditions.

      The electronic control unit is a transistorized module which interprets

voltage signals from the knock sensor (during detonation} to retard ignition

timing until detonation is eTiminated.     Once detonation is ceased, the

ignition timing is slowly returned to OEM specification.      The amount of retard ¥——
is proportional to the strength and frequency of the engine knock.       Although

the maximum retard is about 15 degrees, the actual amount of retard is only

enough to eliminate engine knock.     CAD technicians claim that the retard


control response (time required to retard timing by 15 degrees) is 0.5
seconds, and advance control response (time required to forward ignition

timing to OEM specification, up to 15 degrees) is 3.8 seconds.   Ignition
retardation is accomplished through the control unit by delaying the

termination of current to the ignition coil and, thus, the ignition timing.

      The control unit contains a four—, six—, and eight—cylinder rotating

selector to accommodate all engine sizes.

V.    EVALUATION

      CAD submitted data of comparative (without and with the device installed

on a test vehicle) cold—start CVS—75 emission tests.   The tests were performed

on a 1984 Chevrolet Chevette powered by a 1.6 liter engine using a closed—loop

carburetion system.   A summary of the test results is shown in the Appendix.

VI.   DISCUSSION

      CAD‘s comparative data (shown in the Appendix) indicate that their EKE

device did not have an adverse effect on exhaust emissions from the vehicle

tested.


APPENDIX


                                 CAD‘s Emission Test Data
lc




                 Evaluation of CAD‘s "Engine Knock Eliminator"

                                  1984 Chevrolet Chevette
                                     Cold—Start CVS—75




                                                                  Fuel
                    ___        Exhaust Emissions (g/mi)           Economy
     Test Mode            HC                CO__            NOx    (mpg)
     Baseline         0.24                  1.8             0.7    26.47
     BaseTine         0.23              _   2.3             0.6    26.01
       Average        0.24                  7.0             C.6      .

     Device           0.18                  1.7             0.6    26.09
     Device           0.22                  2.3             0.5    25.90
       Average        0.720                 7.0             0.6      .



Document Created: 2005-09-01 12:42:05
Document Modified: 2005-09-01 12:42:05

Previous E.O. D-137 | Previous E.O. D-136 | Next E.O. D-137-2 | Next E.O. D-138
