Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 6, 1984.
As of Tuesday, October 15th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
98981982 Supra

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-140-1
  • Executive Order 140-1 / D140-1
  • ARB # D-140-1
  • Executive Order No: D-140-1
  • C.A.R.B. No. D-140-1
  • Resolution D-140-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-140-1 PDF

D-140-1 Document:

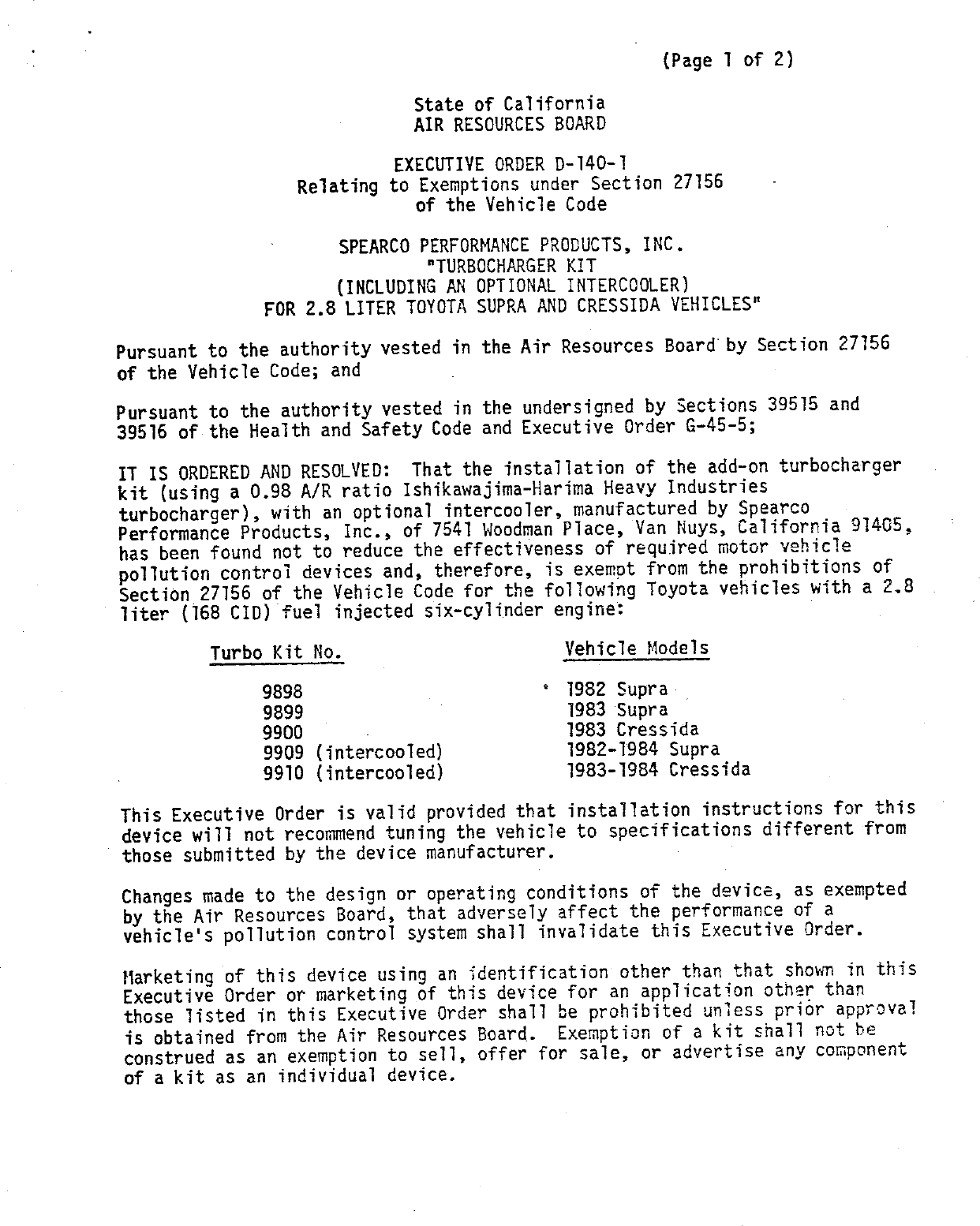

                                                           (Page 1 of 2)
                                State of California
                                AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—140—1
                     Relating to Exemptions under Section 27156
                                 of the Vehicle Code

                     SPEARCO PERFORMANCE PRODUCTS, INC.
                              "TURBOCHARGER KIT
                     (INCLUDING AN OPTIONAL INTERCOQOLER)
              FOR 2.8 LITER TOYOTA SUPRA AND CRESSIDA VEKICLES"

Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:     That the installation of the add—on turbocharger
kit (using a 0.98 A/R ratio Ishikawajima—Harima Heavy Industries
turbocharger), with an optional intercooler, manufactured by Spearco
Performance Products, Inc., of 7541 Woodman Place, Yan Nuys, California 91405,
has been found not to reduce the effectiveness of required motor vehicle
pollution control devices and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the following Toyota vehicles with a 2.8
liter (168 CID) fuel injected six—cylinder engine:

         Turbo Kit No.                        Vehicle Models

              9898                          * 1982 Supra
              9899                            1983 Supra
              9900                             1983 Cressida
              9909 (intercooled)               1982—1984 Supra
              9910 (intercooled)               1983—1984 Cressida

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an jdentification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board.    Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.


 SPEARCO PERFORMANCE PRODUCTS, INC.                  EXECUTIVE ORDER D—140—1
                                                     (Page 2 of 2)




 This Executive Order does not constitute any opinion as to the effect that the
 use of this device may have on any warranty either expressed or implied by the
 vehicle manufacturer.

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
  APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD DF ANY
. CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
  BENEFITS OF THE SPEARCO ADD—ON TURBOCHARGER KIT FOR 2.8 LITER TOYOTA SUPRA AND
  CRESSIDA VEHICLES.

 No claim of any kind, such as "Approved by Air Resources Board" may be made
 with respect to the action taken herein in any advertising or other oral or
 written communication.

 Section 17500 of the Business and Professions Code makes untrue or misleading
 advertising unlawful, and Section 17534 makes violation punishable as a
 misdemeanor.

 Section 43644 of the Health and‘Safety Code provides as follows:

     "43644.    (a)   No person shall install, sell, offer for sale, or advertise,
     or, except in an application to the state board for certification of a
     device, represent, any device as a motor vehicle pollution control device
     for use on any used motor vehicle unless that device has been certified by
     the state board. No person shall sell, offer for sale, advertise, or
     represent any motor vehicle pollution control device as a certified device
     which, in fact, is not a certified device.     Any violation of this
     subdivision is a misdemeanor."

 Any apparent violation of the conditions of this Executive Order will be
 submitted to the Attorney General of California for such action as he deems
 advisable.
                                               /A
 Executed at El Monte, California, this           day of February, 1984.


                                          //%144
                                          K. D. Drachand, Chief
                                          Mobile Source Division


                             STATE OF CALIFORNIA

                             AIR RESOURCES BOARD




EVALUATION OF SPEARCO PERFORMANCE PRODUCTS, INC.‘S ADD—ON TURBOCHARGER KIT
WITH AN OPTIONAL INTERCOOLER FOR 2.8 LITER TOYOTA SUPRA AND CRESSIDA VEHICLES
FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.




                              FEBRUARY 1, 1983


                                      Date of Issue:   February 1, 1983



EVALUATION OF SPEARCO PERFORMANCE PRODUCTS, INC.‘S ADD—ON TURBOCHARGER KIT
WITH AN OPTIONAL INTERCOOLER FOR 2.8 LITER TOYOTA SUPRA AND CRESSIDA VENICLES
FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CoDE.




                                      by
                            Mobile Source Division

                             State of California
                             Air Resources Board
                             9528 Telstar Avenue
                             El Monte, CA 91731



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commerical products constitute
endorsement or recommendation for use.)


                                     SUMMARY



      Spearco Performance Products, Inc. has requested an exemption from the

prohibitions in Vehicle Code Section 27156 for a series of their add—on

turbocharger kits, with an optional intercooler, for installation on 1982
through 1984 Toyota Supra and Cressida vehicles with a 2.8 lTiter (168 CID)

six—cylinder fuel injected engine.

      Based on the results from comparative exhaust emission tests performed

by Spearco at an independent Taboratory on a 1984 Toyota Supra, and from

confirmatory tests performed by the ARB on the same vehicle, the staff

concludes that Spearco‘s turbocharger kit (with and without the optional
intercooler) evaluated will not adversely affect exhaust emission from

vehicles for which exemption is requested.

     The staff recommends that Spearco Performance Products, Inc. be granted

an exemption as requested and that Executive Order D—140—1 be issued.


                                 CONTENTS



                                                    Page Number



SUMMARY

CONTENTS                                                 i1

1.     INTRODUCTION

II.    CONCLUSION

III.   RECOMMENDATIONS

IV.    TURBOCHARGER KIT DESCRIPTION AND OPERATION

¥.     TURBOCHARGER KIT EVALUATION

VI.    DISCUSSION



APPENDICES



       APPLICATION LIST

       TEST RESULTS




                                     i1


EVALUATION OF SPEARCO PERFORMANCE PRODUCTS, INC.‘S ADD—ON TURBOCHARGER KIT
WITH AN OPTIONAL INTERCOOLER FOR 2.8 LITER TOYOTA SUPRA AND CRESSIDA VEKICLES
FOR EXEMPTION FROM THE PROHIBITIONS IN VEKICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.

1.     INTRODUCTION

       Spearco Performance Products, Inc., of 7541 Woodman Place, Yan Nuys,

California 91405, has requested an exemption from the prohibitions in Vehicle

Code Section 27156 for a series of their add—on turbocharger kits.       The

turbocharger kits, which have an optional intercooler, are intended for
installation on 1982 through 1984 Toyota Supra and Cressida vehicles with a

2.8 liter (168 CID) fuel injected six—cylinder engine.       The Tist of kits and

their applications is shown in the Appendices.

       Spearco has submitted data from comparative (stock baseline versus

turbocharged with and without the intercooler installed) emission tests

conducted on a 1984 Toyota Supra at FCI International Testing Lab., in Santa

Ana, California.       Confirmatory tests were conducted on the same vehicle at the

Air Resources Board (ARB) laboratory in El Monte, California.
II.       CONCLUSION

       Based on the results from comparative exhaust emission tests performed

by Spearco at an independent Taboratory on a 1984 Toyota Supra and from

confirmatory tests performed by the ARB on the same vehicle, the staff

concludes that Spearco‘s turbocharger kits {with and without the optional
intercooler) evaluated will not adversely affect exhaust emission from

vehicles for which exemption is requested.

III.   RECOMMENDATIONS

       The staff recommends that Spearco be granted an exemption for their

add—on turbocharger kits as requested and that Executive Order D—140—1 be

issued.


IV.   TURBOCHARGER KIT DESCRIPTION AND OPERATION

      The original equipment manufacturer (OEM) exhaust manifold is replaced

by a Spearco manifold.    The turbine inlet mounts directly to the replacement

exhaust manifold.     The turbine, driven by exhaust gases, is Tinked to the

compressor by a solid shaft.     Intake air is routed from the air flow meter to

the compressor by the compressor inlet pipe.     It is then compressed and routed

into the intake plenum through the cross—over pipe.     Exhaust gases from the

turbine is routed to the catalytic converter via the exhaust downpipe.

      Lubrication and cooling of the turbocharger is provided by a steel

braided line from a tap into the main oil galley.     Oi1 from the turbocharger

is returned to the ol pan.

      Maximum positive pressure (boost) is limited to 5 psi by a wastegate

internally mounted in the housing of the turbocharger.     The wastegate is

preset so that boost pressure cannot exceed 5 psi.     In addition to the
internal wastegate, a separate intake blow—off valve is included to relieve

pressure at 7 psi in the event that the wastegate malfunctioned.

      The kit also includes a fuel enrichment device.     The device connects to
the intake manifold and coolant temperature sensor.     When boost pressure

reaches 4 psi, the device increases the electrical resistance of the

temperature sensor.    This increase in electrical resistance dictates the

vehicle‘s computer to increase the fuel flow through the injector nozzles,

thus enriching the fuel charge during boost conditions above 4 psi.

      An electronic spark retard module is employed to suppress detonation

during boost conditions or heavy lToad operations.    The module utilizes a

sensor, mounted on the intake manifold or cylinder head, to detect

detonation.   When detonation is detected, the module electronically retards

the spark until detonation is eliminated.


       An optional air/liquid intercooler system is also available from Spearco

for installation on these vehicles.     An intercooler core casting replaces the

compressor discharge cross—over casting pipe in the standard turbocharger

kit.   Liquid is circulated through this core by a separate pump actuated by

boost pressure.     When the pump is triggered, the circulation goes through the

intercooler core and through a coil mounted in front of the vehicle which is

exposed to ambient air flow.     This ambient air flow cools the fluid which is

then circulated to the intercooler core, thereby cooling the compressed air

before it enters the engine.

       No modifications to the OEM tune—up specifications are required when the

turbocharger kit is installed.     All OEM emission controls are left intact.

V.     TURBOCHARGER KIT EVALUATION

       A 1984 Toyota Supra vehicle with a 2.8 liter fuel—injected six—cylinder

engine was used for testing.     The dynamometer inertia weight and loading used

was 3375 Tbs. and 10.1 hp, respectively.

       Testing conducted by FCI International Testing Lab, under contract for

Spearco, consisted of a series of cold—start CYS—75 tests to determine exhaust

emissions in the unmodified (baseline) and turbocharged (without and with the

intercooler) configurations for comparison.     The ARB conducted confirmatory

tests at the El Monte laboratory.     A summary of the test results is tabulated

in the Appendices.

V1I.   DISCUSSION

       The applicant requested an exemption of an add—on turbocharger kit

applicable to 1982 Supra, and 1982 through 1984 Supra and Cressida Toyota

vehicles with a 168 CID engine.     The applicant is also offering an optional

intercooler system compatible with the turbocharger kit.     <In order to


demonstrate compliance with the requirements for the exemption, comparative

emissions tests were performed in order to compare unmodified (baseline)

exhaust emissions to the turbocharged configurations, without and with the

intercooler system functioning.

      Both sets (Spearco‘s and ARB‘s) of comparative (baseline versus
turbocharged/not intercooled and baseline versus turbocharger/intercooled)

exhaust emission test data show that when the turbocharger kit (with or

without the intercooler) was installed, CO and NOx emissions were

significantly reduced, while HC were not adversely affected.   This reduction

in CO and NOx emissions can be attributed to the additional ambient air

injected into the engine by the compressor, thus Teaning the fuel charge and

lowering combustion temperature.   The data also shows that the intercooler

system had no effect on exhaust emissions under the CVS test conditions.


APPENDICES


                   TURBOCHARGED KITS APPLICATION



Turbo Kit No.                    Vehicle Models

    9898                         1982 Supra
    9899                         1983 Supra
    9900                         1983 Cressida
    9909 (intercooled)           1982—1984 Supra
    9910 (intercooled)           1983—1984 Cressida


                                       Table 1

                       Spearco‘s Exhaust Emission Test Data
                      Evaluation of Spearco Turbocharger Kit
                                 1984 Toyota Supra
                                 Cold—Start CVS—75



                                                                 Fuel Economy
                               Exhaust Emission (g/mi)                (mpg)
Test Mode                     THC         co       Nox         City           Highway
Stock/Baseline                 0.27       3.5      0.6         18.3            23.3
Stock/Baseline                 0.31.      3.5      0.5         18.0             ——
                     Avg.      0.29       3.5      0.6         18.2            23.3



Turbocharged                  0.31        1.8      0.2         16.9            21.6
({not intercooled)
Turbocharger                   0.27       1.4      0.2         17.8             ——
{not intercooled)
                     Avg.      0.29       1.6      0.2         17.4            21.6



Turbocharged                  0.26        1.4      0.2         16.8             ——
{intercooled)


                                     Table 2

                       ARB‘s Exhaust Emission Test Data
                    Evaluation of Spearco Turbocharger Kits
                               1984 Toyota Supra
                               Cold—Start CVS—75



                                                                Fuel Economy
                             Exhaust Emission (g/mi)                 (mpg)
Test Mode                    THC        CO         NOX        City           Highway

Stock/Baseline               0.37       7.2        0.5        18.0           27.1
Stock/Baseline               0 .40      7.2        0.6        17.9           27.3

                    Aug.     0.39       7.2        0.6        18.0           27.2



Turbocharged                 0.27       2.5        0.3        18.1           26.9
{intercooled)

Turbocharged                 0.35       3.5        0.2        18.0           25.5
{intercooled)
                    Avg.     0.31       3.0        0.2        18.1           26.2



Turbocharged                 0.28       3.3        0.2        17.7           26.6
{not intercooled)



Document Created: 2005-09-01 12:43:43
Document Modified: 2005-09-01 12:43:43

Previous E.O. D-140 | Previous E.O. D-139 | Next E.O. D-140-2 | Next E.O. D-141
