Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 31, 1985.
As of Friday, September 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1983-1986 Ford vehicles powered by a 6.9L International Harvester heavy-duty diesel engine

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-140-10
  • Executive Order 140-10 / D140-10
  • ARB # D-140-10
  • Executive Order No: D-140-10
  • C.A.R.B. No. D-140-10
  • Resolution D-140-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-140-10 PDF

D-140-10 Document:

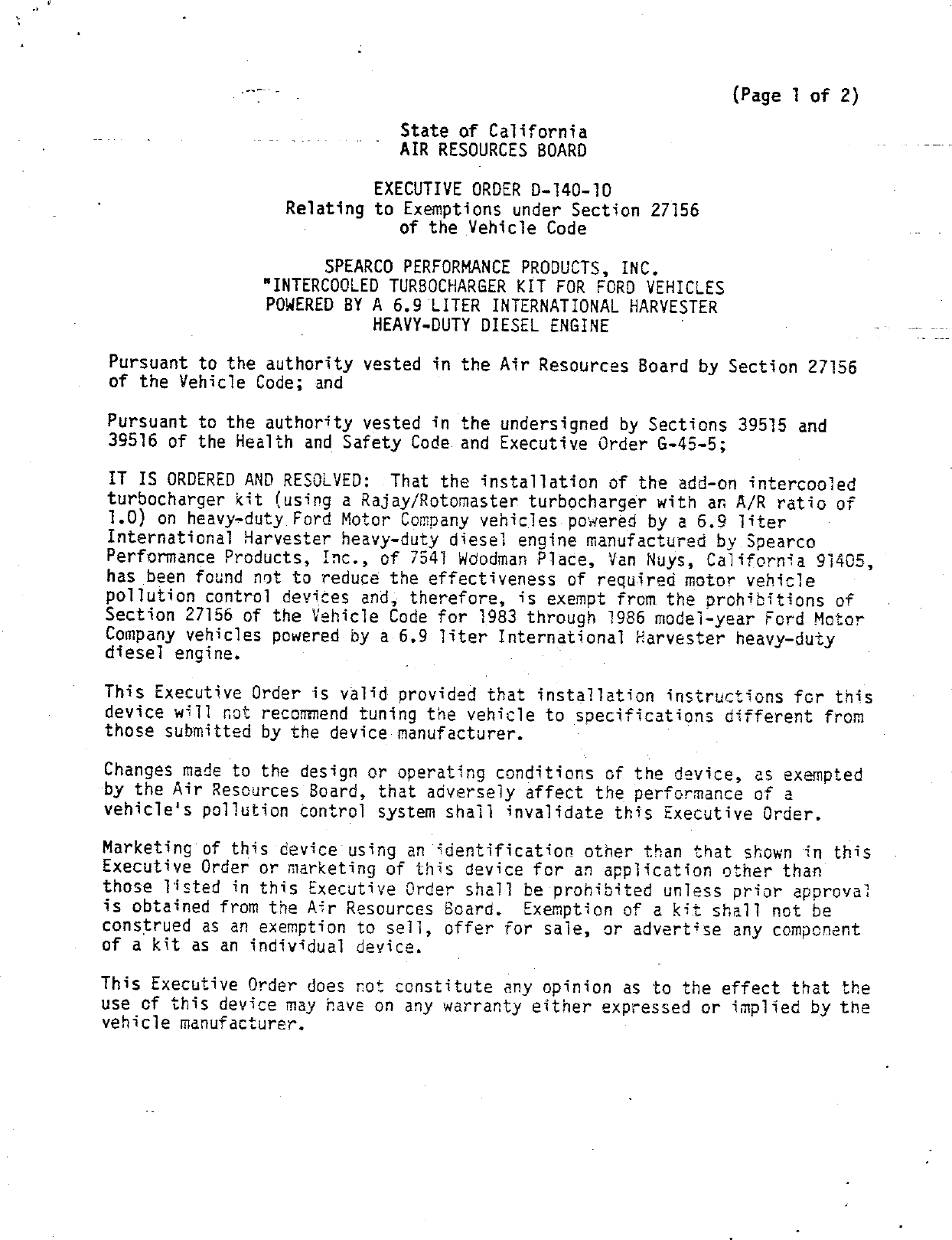

             n e                                                   (Page 1 of 2)

                              State of California
                              AIR RESOURCES BOARD

                            EXECUTIVE ORDER D—140—10
                   Relating to Exemptions under Section 27156
                              of the Vehicle Code

                       SPEARCO PERFORMANCE PRODUCTS, INC.
                 "INTERCOOLED TURBOCHARGER KIT FOR FORD VEHICLES
                 POWERED BY A 6.9 LITER INTERNATIONAL HARVESTER
                             HEAVY—DUTY DIESEL ENGINE       |                      e
Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESQOLVED: That the installation of the add—on intercooled
turbocharger kit {using a Rajay/Rotomaster turbocharger with an A/R ratio of
1.0) on heavy—duty Ford Motor Company vehicles powered by a 6.9 liter
International Harvester heavy—duty diesel engine manufactured by Spearco
Performance Products, Inc., of 7541 Woodman Place, Yan Nuys, California 91405,
has been found not to reduce the effectiveness of required motor vehicle
pollution control devices and, therefore, is exempt from the prohibitions of
Section 27156 of the Yshicle Code for 1983 through 1986 modeli—year Ford Motor
Company vehicles powered by a 6.9 liter International Harvester heavy—duty
diesel engine.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Soard, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Ordar does not constitute ény opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.


SPEARCO PERFORMANCE PRODUCTS, INC.                        EXECUTIVE ORDER D—140—10
                                                          (Page 2 of 2)



THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESQURCES 8OARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE SPEARCO PERFORMANCE PRODUCTS, INC. INTERCOOLED TURBOCHARGER
KIT FOR INSTALLATION ON FORD MOTOR COMPANY VEHICLES POWERED BY A 6.9 LITER
INTERNATIONAL HARVESTER HEAVY—DUTY DIESEL ENGINE.

No claim of any kind, such as "Approved by Air Resources Bbard" may be made
with respect to the action taken here1n in any advertising or other oral or
written communication.                     >

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor.

Section 43644 of the Healith and Safety Code provides as follows:.

    "43644.    ({a)   No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution contrsl device
    for use on any used motor vehicle unless that device has been certified by
    the state board. No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device. Any violation of this
    subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—140—9, dated October 11, 1985, is superseded and of no
further force and effect.

                                                  n
Executed at E1 Monte, California, this       5/    day of December, 1985.




                                            Ateny
                                          K. D. Drachand, Chief
                                          Mobile Source Division


                          State of California
                          AIR RESOURCES BOARD




  EVALUATION OF SPEARCO PERFORMANCE PRODUCTS, INC.‘S ADD—ON INTERCOOLED
TURBOCHARGER KIT FOR INSTALLATION IN FORD MOTOR COMPANY VEHICLES POWERED
     BY A 6.9 LITER INTERNATIONAL HARVESTER HEAVY—DUTY DIESEL ENGINE




                             December, 1985


                                                                   December, 1985




     EVALUATION OF SPEARCO PERFORMANCE PRODUCTS, INC.‘S ADD—ON INTERCOOLED
   TURBOCHARGER KIT FOR INSTALLATION IN FORD MOTOR COMPANY VEHICLES POWERED
        BY A 6.9 LITER INTERNATIONAL HARVESTER HEAVY—DUTY DIESEL ENGINE




                                        by
                             Mobile Source Division

                              State of California
                              Air Resources Board
                              9528 Telstar Avenue
                              E1 Monte, CA 91731

(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication,.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                       SUMMARY



      Spearco Performance Products, Inc. has requested an update to the

existing Air Resources Board‘s Executive Order (E.0.) No. D~—140—9 which

exempted Spearco‘s intercooled turbocharger kit from the prohibitions in

California Vehicle Code Section 27156.     The update request is to include 1986

model—year Ford Motor Company vehicles powered by a 6.9 liter International

Harvester heavy—duty diese?l engine.
      Spearco has previously submitted data from'comparative (stack baseline

versus turbocharged) emission tests conducted on a 1984 Ford F—350XL

heavy—~duty diesel truck.

      Based on the results from comparative exhaust emission tests previously

performed by Spearco, and that the 1986 vehicles for which exemption update

has been requested are carry—overs from the 1985 models which, in turn, are

carry—overs from the 1984 models, the staff concludes that Spearco‘s

intercooled turbocharger kit will not adversely affect exhaust emissions from

vehicles for which exemption has been requested.

      The staff recommends that Spearco be granted an exemption update for

their add—on intercooled turbocharger kit for installation on 1983 through

1886 model—year Ford Motor Company vehicles powered by a 6.9 liter

International Harvester heavy—duty diesel engine.    The staff also recommends

that Executive Order D~140—10 be issued.


                                     CONTENTS




                                                    Page Number



SUMMARY

CONTENTS                                                 11

I.     INTRODUCTION

II.    CONCLUSION

III.   RECOMMENDATIONS

IV.    TURBOCHARGER KIT DESCRIPTION AND OPERATION

V.     TURBOCHARGER KIT EVALUATION

VI.    DISCUSSION




                                       11


         EVALUATION OF SPEARCO PERFORMANCE PRODUCTS, INC.‘S ADD—ON INTERCOOLED
       TURBOCHARGER KIT FOR INSTALLATION IN FORD MOTOR COMPANY VEHICLES POWERED
            BY A 6.9 LITER INTERNATIONAL HARVESTER HEAVY—DUTY DIESEL ENGINE

1.        INTRODUCTION

          Spearco Performance Products, Inc., of 7541 Woodman Place, Van Nuys,

California 91405, has requested an update to the existing Air Resources Board‘s

Executive Order (E.0.) No. D—140—9 which exempted Spearco‘s intercooled

turbocharger kit from the prohibitions in California Vehicle Code Section

27156.     The update request is to include 1986 model—year Ford Motor Company

vehicles powered by a 6.9 liter International Harvester heavy—duty diesel

engine.

         Spearco has previously submitted data from comparative {stock baseline

versus turbocharged) emission tests conducted on a 1984 Ford F—350XL

heavy—duty diesel truck at FCI International Testing Laboratory in Santa Ana,

California.

I1I.      CONCLUSION

         Based on the results from comparative exhaust emission tests previously

performed by Spearco at an independent laboratory on a 1984 Ford F—350X%L

truck, and that the 1986 vehicles for which exemption update has been

requested are carry—overs from the 1985 models which, in turn, are carry—overs

from the 1984 models, the staff concludes that Spearco‘s intercooled

turbocharger kit will not adversely affect exhaust emissions from vehicles for

which exemption has been requested.

III.     RECOMMENDATIONS

         The staff recommends that Spearco be granted an exemption update for

their add—on intercooled turbocharger kit for installation on 1983 through

1986 model—year Ford Motor Company vehicles powered by a 6.9 liter

International Harvester heavy—duty diesel engine.     The staff also recommends

that Executive Order D—140—10 be issued.


IV.   TURBOCHARGER KIT DESCRIPTION

      The purpose of turbocharging an engine is to increase the volumetric

efficiency of an engine by forcing more air into the engine than it would take

in under non—turbocharged OEM conditions.     An intercooler manifold is added to

reduce the temperature of the compressed intake air going into the engine.

      The major components of the Spearco intercooled turbocharger kit are a

1.0 A/R ratio Rajay/Rotomaster turbocharger, an exhaust manifold to

turbocharger adaptor, an intercooler manifold, and an intake manifold bonnet.

The components are packaged with installation hardware and instructions and

sold as a kit.

      The OEM exhaust manifold (left bank) is replaced by the Spearco exhaust

manifold to turbocharger adaptor.     The turbine inlet mounts directly to the

replacement exhaust manifold.     Intake air is routed from the air cleaner

assembly to the compressor.     Compressed air is then piped through the

intercooler manifold into the engine.

      For optimum performance of the turbocharger kit, the fuel pump is

recalibrated for increased fuel delivery,     Spearco recommends that the fuel

delivery rate be increased by 12%.    This can be accomplished by rotating the

adjusting screw 150°.

      Maximum positive manifold pressure (boost) is limited to 10 psig by the

size of {and the speed of exhaust flow through ) the turbine housing.      No

wastegate or other active boost limiting device is used.

      Lubrication and cooling of the turbocharger is provided by oil hosed

from the oil pressure sending unit.     Oil from the turbocharger is returned to

the ol pan.

      All OEM emission controls are left intact.


V.    TURBOCHARGER KIT_EVALUATION

      Evaluation of the Spearco add—on intercooled turbocharger kit consisted

of comparative (without and with the kit installed on the test vehicle)

exhaust emission test previously performed on a 1984 Ford F~350XL.          The

exhaust emission tests were performed according to the adopted "Criteria for

Evaluation of Add—On Parts and Modified Parts; Criteria for Testing

Aftermarket Turbochargers".

      A summary of the data from comparative tests is shown in Table 1.

                                      Table 1

                         Spearco‘s Emission Test Data
            Evaluation of Spearco‘s Add—On Intercooled Turbocharger
                              Steady—State Tests

                                            Exhaust Emissions (ppm)
           Mode                      HC               CO              NOx

      Baseline Idle                 200              140               22
      Turbo Idle                    110              140               33

      Baseline 20 mph               510              977               95
      Turbo 20 mph                  403              870               44

      Baseline 30 mph               380              803               99
      Turbo 30 mph                  320              733               43

      Baseline 40 mph               200              420              102
      Turbo 40 mph                  203              403               33

      Baseline 50 mph               290              581              141
      Turbo 50 mph                  235              458               40

      Baseline 55 mph               305              587              161
      Turbo 55 mph                  245              468               53

VI.    DISCUSSION

      The data in Table 1 indicates that exhaust emissions are lower with the

turbocharger kit than without the kit, except a slight increase in oxides of

nitrogen (NOx) emissions during idie.       In general, the data demonstrates

compliance with the requirements for the exemption.

      Due to limited resources, ARB did not perform confirmatory tests.


                                          Lo3 —



Document Created: 2005-09-01 12:41:31
Document Modified: 2005-09-01 12:41:31

Previous E.O. D-140-9 | Previous E.O. D-139 | Next E.O. D-140-11 | Next E.O. D-141
