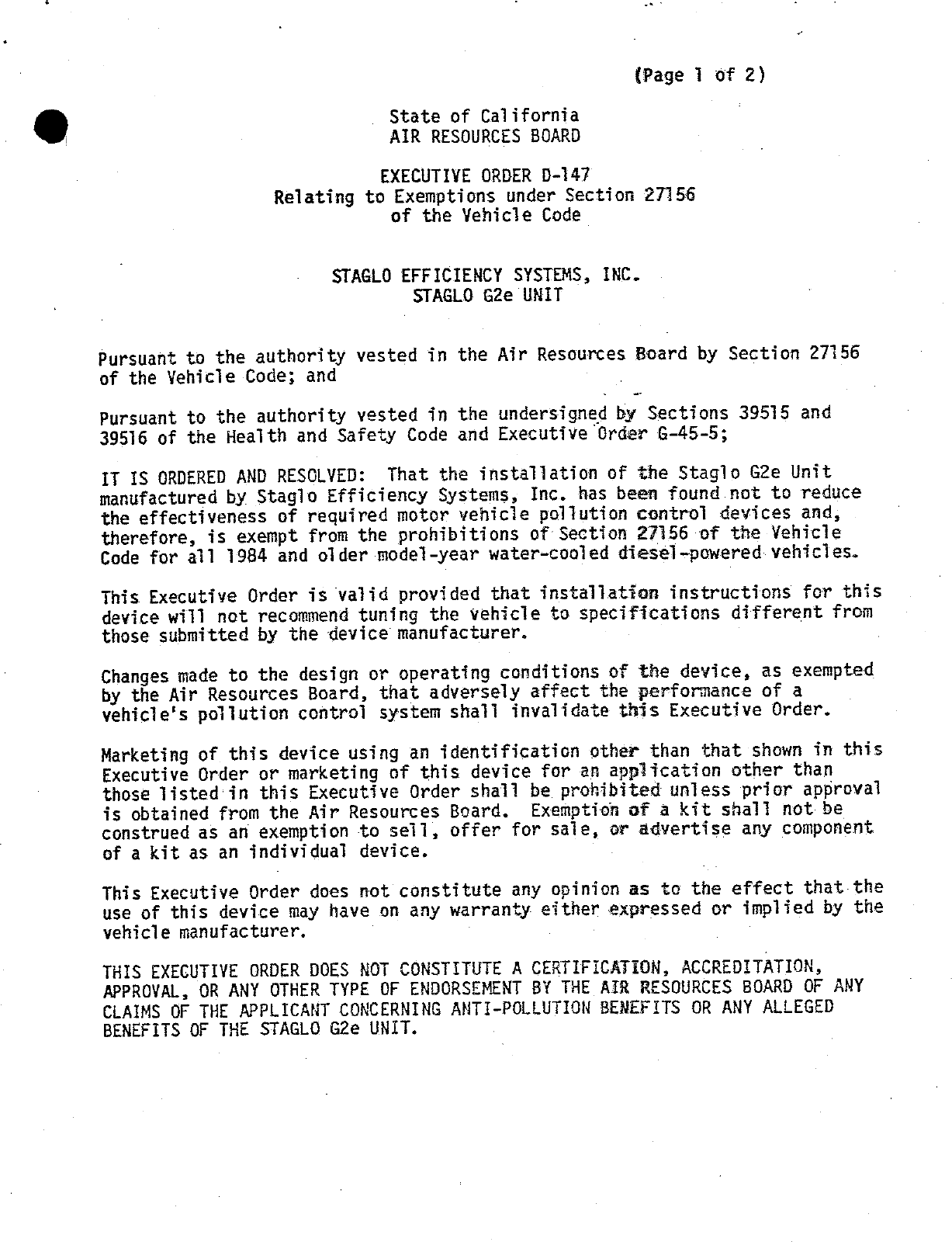

                             State of California
                             AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—147
                  Relating to Exemptions under Section 27156
                              of the Vehicle Code


                       STAGLO EFFICIENCY SYSTEMS, INC.
                               STAGLO G2e UNIT


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the ¥ehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the Staglo GZe Unit
manufactured by Staglo Efficiency Systems, Inc. has been found not to reduce
the effectiveness of required motor vehicle poliution control davices and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
Code for all 1984 and older model—year water—cooled diesel—powered vehicles.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board.   Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranfiy either expressed or implied by the
vehicle manufacturer,

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT 8Y THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE STAGLO GZe UNIT.


STAGLO EFFICIENCY SYSTEMS, INC.                     EXECUTIVE ORDER D— 147
       STAGLO GZe UNIT                              (Page 2 of 2?)




No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advert1sxng or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    po11ut10n control device for use on any used motor vehicle unless that
    device has been certified by the state board.     No person shall sell,
    offer for sale, advertise, or represent any motor vehicle pollution
    control device as a certified device which, in fact, is not a certified
    device, Any violation of this subdijvision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.


Executed at El Monte, California, this [7day of September, 1984.



                                        PMet_
                                        K  D. Drachand, Chief
                                        Mobile Source D1v1suon


                             State of California
                             AIR RESOURCES BOARD




EVALUATION OF THE STAGLO EFFICIENCY SYSTEMS, INC.‘S STAGLO GZe UNIT FOR
EXEMPTION FROM THE PROKIBITIONS IN VEKICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.




                                September 1984


                                              Issue Date:   September 1984


EVALUATION OF THE STAGLO EFFICIENCY SYSTEMS, INC.‘S STAGLO GZe UNIT FOR
EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.




                                      By

                            Mobile Source Division


                              State of California
                              Air Resources Board
                              9528 Telstar Avenue
                          El Monte, California 91731




{This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
content necessarily reflect the view and policies of the Air Resources Board,
nor does mention of trade names or commercial products constitute endorsement
or recommendation for use.)


                                     summary

      Staglo Efficiency Systems, Inc. of 411 S. Main Street, Osceola, Ilowa

50213, submitted an application for exemption from the prohibitions in Section

27156 of the California Yehicle Code for the corporate‘s "Staglo GZe Unit"
device.   The app]icant has requested that exemption be granted for

installation of this device on all 1984 and older model—year water—cooled

diesel—powered motor vehicles.

      The device is a simple heat exchanger utilizing engine coolant and an

electrical heater to heat up the fuel supply to the engine for easy start up

in cold weather.

      The staff, based on engineering principle, evaluated the device and
determined that the installation of a fuel heater in series with the diesel
engine fuel system will not adversely affect the performance of factory

equipped emission control systems.   The staff recommends that the Air

Resources Board {ARB) exempt the "Staglo GZe Unit" device from the

prohibitions in Vehicle Code Section 27156 and that Executive Order D—147 be
issued, allowing the installation of the "Staglo GZ2e Unit" device on all 1984
and older model—year water—cooled diesel—powered vehicles.


                                TABLE OF CONTENTS




                                                    Page Number



SUMMARY

CONTENTS                                                 11



1.     INTRODUCT ION

II.    CONCLUSION

III.   RECOMMENDATION

IV.    SYSTEM DESCRIPTION AND OPERATION

V.     DISCUSS ION


APPENDIX

       A.,   FLOW DIAGRAM AND INSTALLATION

               INSTRUCTIONS




                                     11


                                State of California
                                AIR RESOURCES BOARD


EVALUATION OF THE STAGLO EFFICIENCY SYSTEMS, INC.‘S STAGLO GZe UNIT FOR
EXEMPTION FROM THE PROHIBITIONS IN VEKICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE.

1.    INTRODUCTION
      Staglo Efficiency Systems, Inc. of 411 S. Main Street, Osceola, Ilowa

50213, submitted an appliéation for exemption from the prohibitions in Section

27156 of the California Vehicle Code for the corporate‘s "Staglo GZe Unit"
device.     Vehicle Code Section 27156 prohibits the installation of any device

or mechanitsm which reduces the effectiveness of required emission control

systems on any California certified vehicles.     This code also authorizes the

Air Resources Board (ARB) to exempt a device from the prohibitions if it can

be demonstrated that the device, upon installation on the engine, will not

adversely affect the performance of existing emission control systems.       The

applicant has requested that the exemption be granted for the installation of

this device on all 1984 and older model—year water—cooled diesel—powered

vehicles.

II.   CONCLUSION

      The staff evaluated the device and found that the "Staglo 62e Unit"

device will not have a significant adverse effect on emissions from 1984 and

older model—year    water—cooled diesel—powered motor vehicles.     The applicant

has agreed to the request of the ARB to remove the claims of "Cuts Emissions

By Up To 78%" in the company‘s sales brochures.       The ARB also advised the

applicant that the company should be prepared to substantiate the increased

fuel economy claims by valid Taboratory tests.


III.    RECOMMENDATION

       Based upon engingering evaluation made on a sample device, production

blue—prints, and technical data submitted by the applicant, the staff

recommends that the ARB exempt the "Staglo G2e Unit" device from the

prohibitions of Vehicle Code Section 27156 and that Executive Order D—147 be

issued, allowing the installation of the "Staglo GZ2e Unit" device on all 1984

and older model—year water—cooled diesel—powered motor vehicles in California.

IV.    SYSTEM DESCRIPTION AND OPERATION

       The "Staglo GZe Unit" device is a heat exchanger manufactured from a

5/8" diameter x 15‘—0" long copper tubing helically coiled in a 4" x 4" x 16"

case made of mild steel.     Attached to each end of the case, is a 5/8" hose

fitting to accommodate the circulation of engine coolant through the case,.

Also, two 5/8" compression fittings are mounted on one of the end plates to

hold the coiled copper tubing in place and at the same time work as fuel inlet

and outlet connectors.     On the other end plate, a single phase electrical

heater rated at 300—Watts, 110—¥Volts and 60—hertz is installed for overnight

fue! heating as a quick—starting aid.     Two pairs of half—brackets with rubber

pads are use to secure the device in the engine compartment.

       Figure 1 ({Appendix A) shows a typical flow diagram.   The device is

mounted between the fuel tank and the fuel filter.     Installation of this

device in a fuel system of a diesel—engine equipped vehicle is done by

connecting the inlet and outlet fittings to the hot engine coolant supply line

and back to the engine line.    Temperature of the incoming engine coolant is

determined by the engine thermostat rating (about 180°F).     The two ends of the

copper coil of the device are connected, such that one to the fuel supply

coming from the storage tank and the other to the fuel filter lines,.


      Without the "Staglo GZ2e Unit" device the temperature of the fuel
supplied to the engine is dependent upon the ambijent temperature.     If the

vehicle is exposed to sub—zero weather temperature, then the fuel stored in

the fuel storage tank will be at the same sub—zero temperature.      Diesel—fuel

at this temperature tends to congeal.   Very poor engine starting will result

causing more unburned fuel to be blown out of the exhaust pipe.      For cold

starts with the "Staglo G2e Unit" device, the   diesel—fuel from the fuel tank
is routed into the heat exchanger where it absorbs heat energy from an

electrical heater rated at 300—Watts, 110—¥olts and 60—Hertz which is inserted

in the device for overnight fuel heating.

V.    D1SCUSSION

      The applicant submitted several customer testimonials including a copy

of laboratory particulate test results on their "Staglo G2e Unit" conducted by

Corning.Laboratories, Inc. of Cedar Falls, Ilowa 50613.   The testimonials are

very subjective; they were not used in the ARB‘s evaluation of the device.

      The Staff, based on engineering principles, evaluated the device and

determined that the installation of a fuel heater, such as the "Staglo GZe

Unit" device in series witfi the diesel engine fuel system will not adversely

affect the performance of factory equipped emission control systems.


APPENDIX


                                                                     A PPENDIX A
      Installation Instructions for StaGlo Fuel Saver
                              Installation of the StaGlo Fuel Saver unit is relatively
                              simple if you follow instructions carefully.                                    *

     gcafion of the Unit                                               Single Filter System
                                                                                                                    —                            Tank


                                                                              <pes
                                                                                C——
                                                                                       Fiiter                     G2R
     For single filter systems, mount the StaGlo G2ZE Fuel
     Saver between the fuel tank and the fuel filter, but as                                         4
     close as possible to the fuel filter.                                            Insulate ———~

     For dual filter systems, the StaGlo Fuel Saver should be
     located as near the closest fuel filter to the pump as
     possible.                                           .            Dual Filter System
     The StaGlo Fuel Saver‘s out—going fuel line should be
     wt:lll ifixilsulated to eliminate cold weather clogging of the                    2nd                a               1st                     Tank
     fo        ter.                                                                   Fitter         C282                Filter           j
     Be sure to allow adequate space for visual spot check—
     ing of the lines.
                                                                                 L insulate
     Also, in choosing a mounting location, take other
     maintenance requirements into account. Be sure to                                1st            2nd                                         Tank
     mount the unit so as not to restrict normal maintenance                          Filter         Fidter             G2R
     access.
                                                                              —pC——>—reC—
                                                                               A     ’ _
                                                                                keew__—_— insulate

                                                                             FIG. 1




2. Mounting the StaGlo G2ZE unit
 A   The StaGlo G2E unit can be boited directly to the
     body of the frame with a 14 20 machine bolts with
     lock washer and nut.

     If necessary, a separate mounting bracket or plate
     {not included) can be designed to permit special
     location advantages. Be sure to consult mainten—
                                                                                Fuet Line
     ance personnel who will be required to work around
     the unit if using this option.                 .                _ Water (Out)

     While welding the unit has its advantages, it is not
     recommended.

     Before placing the StaGlo G2E unit in the mounting
     brackets, apply the foam tape padding to brackets
     as shown.                                                                                                                        Water in


                                                     Foam                                                                      Heater unit can be wired
                                                                                                                               to operate with block or
                                                     Pags
                                                                                                                               radiator heater or
                                                                                                                               plugged into 120V power
                                                                                                              Framé            separately.
                                                   Bottom Bracket    wis                                      or Bady
                                                  mounting holes
                                                  Altach to frame o t body

                                         Mount as rea‘d
                                         W vie20 x T% F.H,
                                         M. SW/AL.W. & nut.

                             Frame or Body
                                                                             FIG. 2


                                                                APPENDIX A
                                                     Water outlet to return to any                              Fasten Brackets
3 . WaterLin            Connections                  point in the system               Fue! line into unit      w/ 220 re‘s
                                                                  '                    does not requre          L W & Nuot
                                                                                       insulation

 'I‘hegGlo Fuel Saver unit accepts standard %4"" pipe           Fuel line out of the unit
 thread fittings (supplied with unit).                          must be insulated.


   Note: You must be drawing 180 F water into the unit.
   Water temperatures must be constant.

   First, connect the high water jacket line to the engine
   cooling system. Be sure to connect on the side of the
   thermostat. (A ‘*Y"‘ fitting (not supplied) can be used if
   required.)                                                                                                         Water line from block
                                                                                                                     or water pump must       be
   Be sure to insulate this line to retain maximum heat
                                                                                                                     insulated.
   from the engine to the StaGlo G2E Fuel Saver unit. Be
   careful to avoid line contact damage from the exhaust
   manifold or other disassociated parts.

   Connecting the StaGlo Fuel Saver water outlet to the
   low side of the water jacket (this line need not be
   insulated).




4. Fuel Line Connection                                                                                              cLo G28 UNIT


   Do not remove or adjust fittings. They are pressure
   tested.
                                                                                            Fuel Line Fitting
                                                                                            from unit




                                                                      FIG. 4



   Priming the StaGlo G2E unit                                                 StaGio
                                                                               unit
   gfi not remove any lines between the pump and the
      er.


   Allow the engine to run at 1600 RPM for 10 to 20
   minutes.
                                                                           Water
   Loosen the fitting between the filter and the GZE                       inlet
   StaGlo unit and pressurize the primary tank.

   A manual pump attachment to the StaGlo G2ZE unit
   will draw fuel through the unit.
                                                                                                         ’\
                                                                                      potis recormmendeéd that a water temperature sensor
                                                                                         and gauge beutilized during the priming process to
                                                                                         be sure that the G2ZE unit water temperature is
                                                                                         correct.


                                                                      FIG. 5



Document Created: 2005-09-01 12:45:22
Document Modified: 2005-09-01 12:45:22

| Previous E.O. D-146 | Next E.O. D-147-1 | Next E.O. D-148
