Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 16, 1984.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1974 and older originally equipped with heated air and retrofitted with exhaust headers

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-149
  • Executive Order 149 / D149
  • ARB # D-149
  • Executive Order No: D-149
  • C.A.R.B. No. D-149
  • Resolution D-149
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-149 PDF

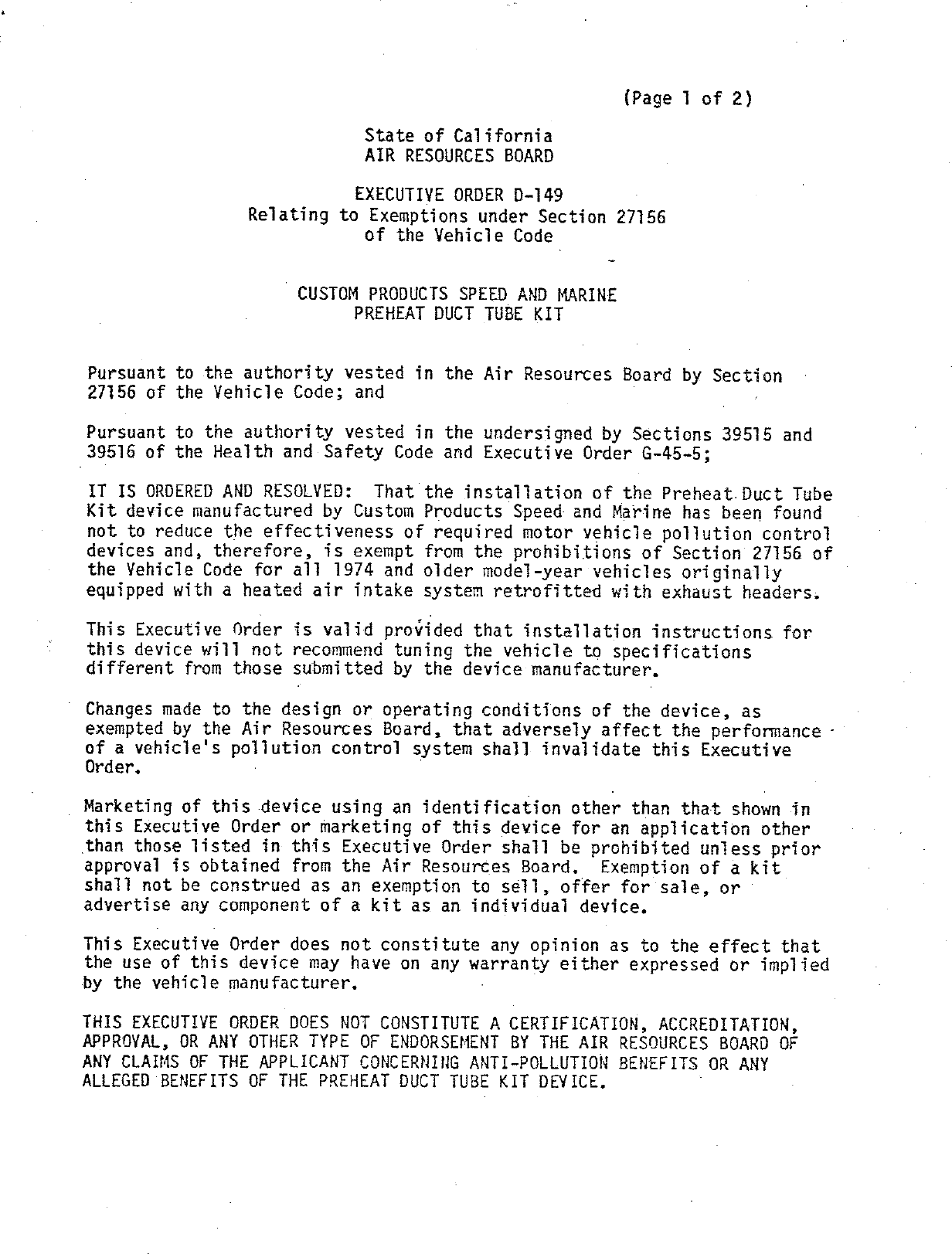

D-149 Document:



                                                          (Page 1 of 2)

                                State of California
                                AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—149
                 Relating to Exemptions under Section 27156
                             of the Yehicle Code


                     —CUSTOM PRODUCTS SPEED AND MARINE
                            PREKHEAT DUCT TUBE KIT


 Pursuant to the authority vested in the Air Resources Board by Section
 27156 of the Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Sections 39515 and
 39516 of the Health and Safety Code and Executive Order G—45—5;

 IT IS ORDERED AND RESOLYED:     That the installation of the Preheat. Duct Tube
 Kit device manufactured by Custom Products Speed and Marine has been found
 not to reduce the effectiveness of required motor vehicle pollution control
 devices and, therefore, is exempt from the prohibitions of Section 27156 of
 the Y¥ehicle Code for all 1974 and older model—year vehicles originally
 equipped with a heated air intake system retrofitted with exhaust headers.

 This Executive Order is valid pro&fded that installation instructions for
 this device will not recommend tuning the vehicle to specifications
 different from those submitted by the device manufacturer.

~ Changes made to the design or operating conditions of the device, as
 exempted by the Air Resources Board, that adversely affect the performance
 of a vehicle‘s poliution control system shall finvalidate this Executive
 Order.

 Marketing of this device using an identification other than that shown in
 this Executive Order or marketing of this device for an application other
 than those listed in this Executive Order shall be prohibited unless prior
 approval is obtained from the Air Resources Board. Exemption of a kit
 shall not be construed as an exemption to sell, offer for sale, or
 advertise any component of a kit as an individual device.

 This Executive Order does not constitute any opinion as to the effect that
 the use of this device may have on any warranty either expressed or implied
 by the vehicle manufacturer.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
 ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
 ALLEGED BENEFITS OF THE PREHEAT DUCT TUBE KIT DEYVICE.


CUSTOM PRODUCTS SPEED AND MARINE                      EXECUTIVE ORDER D—149
PREHEAT DUCT TUBE KIT                                  (Page 2 of 2)




No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.                              _

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644. (a} No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    poliution control device for use on any used motor vehicle unless that
    device has been certified by the state board.  No person shall sell,
    offer for sale, advertise, or represent any motor vehicle poliution
    control device as a certified device which, in fact, is not a certified
    device. Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.                       2C

                                                 f
Executed at El Monte,.California, this     625       day of November, 1984.



                                         77///7/&%//&                         |
                                         K. D. Drachand, Chief
                                         Mobile Source Division


                           State of California
                           AIR RESOURCES BOARD




EVALUATION OF CUSTOM PRODUCTS SPEED AND MARINE‘S PREKEAT DUCT TUBE KIT
DEVICE FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156
IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA
ADMINISTRATIVE CODE.




                              October 1984


                                            Issue Date:   October 1984




EVALUATION OF CUSTOM PRODUCTS SPEED AND MARINE‘S PREHEAT DUCT TUBE KIT
DEVICE FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156
IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA
ADMINISTRATIVE CODE.




                                   by
                         Mobile Source Division
                          State of California
                           Air Resources Board
                           9528 Telstar Avenue
                           E1 Monte, CA 91731




(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication. Approval does not signify
that the content necessarily reflects the view and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommendation for use.)


                                  summary


        Custom Products Speed and Marine of 27933 Adon Avenue, Canyon

Country, CA 91351, submitted an application for exemption from the

 prohibitions in Section 27156 of the California Vehicle Code for the

bcompany's Preheat Duct Tube Kit device.    The applicant has requested that

exemption be granted for the installation of this device on all 1974 and

older model—year vehicles originally equipped with a heated air intake

system and retrofitted with exhaust headers.    This device is intended to

replace the function of the original equipment manufacturer‘s (OEM) hot

air duct and stove when the OEM exhaust manifold is replaced by exhaust

headers,

       The staff evaluated the device and found that the Preheat Duct

Tube Kit device will not have a significant adverse effect on emissions

from 1974 and older mode1-yeaf vehicles retrofitted with exhaust headers.

       The staff, therefore, recommended that the ARB issue Executive

Order D—149, allowing the installation of the Preheat Duct Tube Kit

device on all 1974 and older model—year vehicles originally equipped with

a heated air intake system retrofitted with exhaust headers.


                                 TABLE OF CONTENTS




                                                     Page Number

SUMMARY                                                   i

CONTENTS                                                  11



1.        INTRODUCTION

II.       CONCLUSION

III.      RECOMMENDATION

IV.       SYSTEM DESCRIPTION

V.        DISCUSSION



APPENDICES

          A.    INSTALLATION INSTRUCTION
                                                         o




          B.   FLOW TEST DESCRIPTION
                                                         o




          C.    SALES BROCHURE
                                                         0




       D.      HEAT BOX DETAIL
                                                         C




          E.    FLOW AREA CALCULATION
                                                         w


                            State of California
                            AIR RESOURCES BOARD



EVALUATION OF CUSTOM PRODUCTS SPEED AND MARINE‘S PREKEAT DUCT TUBE KIT
DEVICE FOR EXEMPTION FROM THE PROHIBITIONS IN VEKICLE CODE SECTION 27156
IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA
ADMINISTRATIVE CODE


1.    INTRODUCTION

      Custom Products Speed and Marine of 27933 Adon Avenue, Canyon

Country, CA 91351, submitted an application for exemption from the

prohibitions in Section 27156 of the California Vehicle Code for the

company‘s "Preheat Duct Tube Kit" device.   Vehicle Code Section 27156

prohibits the installation of any device or mechanism which reduces the

effectiveness of required emission control systems on any California

certified vehicle.   This code also authorizes the Air Resources Board

(ARB) to exempt a device from the prohibitions if it‘can be demonstrated

that the device, upon installation on the engine, will not adversely

affect the performance of existing emission control systems.   The

applicant has requested that the exemption be granted for the installation

of this device on all vehicles requiring heated air supply system.

II.   CONCLUSION

      The staff evaluated the device and found that the "Preheat Duct Tube
Kit" device will not have a significant adverse effect on emissions from

the vehicles originally equipped with a heated air intake system which was

connected to the OEM exhaust manifold.


III.   RECOMMENDATION

       Based upon engineering evaluation made on a sample device, sales

brochure and technical data submitted by the applicant, the staff recommends

that the ARB exempt the "Preheat Duct Tube Kit" device from the prohibitions

of Vehicle Code §ection 27156 and that Executive Order D—149 be issued,

allowing the installation of "Preheat Duct Tube Kit" device on all 1974 and

‘earlier model—year vehicles retrofitted with exhaust headers and originally

equipped with a heated air intake system which was connected to the OEM

exhaust manifold.

IV.    SYSTEM DESCRIPTION

       The Preheat Preheat Duct Tube Kit device consists of a fabricated heat

box, two mounting stainless steel clamps, and a 17—in. long light aluminum

flex tubing, with its diameter properly selected to match the air cleaner‘s

original stove pipe attachment.   The heat box, which is the heart of this kit,

was formed (Figure 2 of Appendix A ) from 1/32 inch thick sheet metal.     It

measures 7/8 inch high, 2 inches wide and 3—1/2 inches long.     A 1—1/2 inch

diameter by 7/8 inch long, 3/32 inch wall thickness steel tube is welded at

the center of the heat box to accommodate one end of the aluminum flex tubing;

the other end of the tubing is connected to the air cleaner.     The heat box is

fastened on one of the header pipes.   Air in the engine compartment is drawn

into the air cleaner through a 2.38 square inches opening* between the heat

box and the header pipe during cold engine starting operation.




*See the air flow area calculation on Appendix D, pp. 8—9.


          This device was designed to duplicate the function of the OEM system to

 enhance the formation of a homogeneous fue]-air mixture in its gaseous state

 and to hasten the combustion process during cold engine starting operation.

 ¥.       DISCUSSION

          The ambient air from the engine compartment is conveyed through the heat

 box, flex tubing, and air cleaner to the carburetor where it is mixed with the

 fuel.    This air/fuel mixture then goes into the intake manifold and is

 distributed to each cylinder.     The minimum cross—sectional flow area of this

 device is 2.38 square inches compared to the OEM‘s 1—1/2 square inches.        The

 air passing through the heat box gains heat by conduction, convection and

 radiation from the surfaces of hot engine parts including the exhaust header

 pipes.     The temperature of the inlet air to the engine during engine cold

 starting operation is anticipated to be equal or higher than that with the OEM

 heat riser system.    The use of the device for maintaining good cold start

 engine performance, therefore, does not seem to have any adverse effect on

 exhaust emissions from 1974 and older vehicles retrofitted with exhaust

'headers.


APPENDICES


                                         —   g   —
                                       *YINY37I ¥IV 3HL 40 IHVLNI
                    1YIHJH4 IHL 40 WOLLOY ONY X08 IWYIH 40 dOL 3HL
                     Ol 1I HIWLLY GNY HL9N3T 3HL OL 3gnLt L3NGd LNQ
                                         € IUN9I4
                     ———
                       x09 1v3H                      _ 2                   |
                                                                                  a#




          *Cv¥3H 3HL OL I1¢ISSOd SY
385010 SY M30v3H OL X09 LY3H dWy72                                   *32IS LIX 434044 193738
                ? FUN9I4                                                       I IJUN91I4
                                                                             3ZIS
                                                                 L93%40) 404 343H IMNSVIW
                                                     3NY379
                                                      — . UIV,
                                     LTY 38NL L30QG Ly3H34d
                                  404 NOLLONYLSNI NQLLYVTIWLSNI
                                             ¥ XIQN1dd¥


7OA            |             t=   0   o        APPENDECB
                            Cuaestom Peoducts Seevice
                                  HELIARC WELDING METAL FABRICATIONS                E®I1V ED
                                          (805) 251—3636 OR 252.2573            rRECE




  Mr. Crispin de la Cruz
  Staff Engineer
  Air Resources Board
  9528 Telstar Avenue
  El Monte          91731

  Dear Mr. Crispin de la Cruz,

  We mounted a stock T.A.C. type air cleaner from a 350 C.I.D.
  chevrolet on a superflow flow bench, through inlet nozzel we
  took a baseline reading at 1 1/2" water and flow rate 100 C.F.M.,
  then with vacuum pump actuated the T.A.C. value to simulate
  cold start mode:           Results through stock 350 C.I.D. manifold with
  preheat stove (factory unit)               the flow at 1        1/2" water was 30 C.F.M.
  we also tested flow at 5" water flow 52 C.F.M.. Our preheat ducts
  tube kit installed on same air cleaner and as instalied on head—
  ers at   1       1/2" water flow 35 C.F.M., at 5" water flow 63 C.FP.M..




                                                            Very truly yours,



                                                          uxtbZz
                                                            Donald A. Fee
                                                            President (Owner)


                                  ce C                 %              m   T n Songtm


C[f Lc 111C                                  °APPENDIX C ;       ..                 allle
   #/ ~Phone Orders\      .« Introduction off r to our .                            >     «Mail Orders
/’;«[—(805) 251—3636 ) New Line of Custom Built Product                                 27949 Adon Ave.
     {805) 251—9809                               —                            \_   Canyon Country, CA
5s                         .             .                  e                               91351
              |                      1%".& 2" — Kit #101
                                 "11" — Kit #102, Fabrication




                      :Emission Control Duct Tube Kit
           'T*Replaces lost or missing preheat tube assemblies on
           *—Rheader—equipped and most stock vehicles with
            ;. T.AC. type Air Cleaner ~_ _                   L

                               :2 Kits cover most cars and trucks
                                   ‘‘Foreign and Domestic                  _




                                                       ul

     :Replacement Duct also.available,18" x 1%".or18" x2", $1:50 ea.... ..—
                   WHY SEND YOUR CUSTOMER SOMEWHERE ELSE!                                            '

                           Incr as            YOUR Profits!!!
                               Call For Stocking Dealer Prices!!
      $20.95           '                                                                   s98.05
       Your Cost                                      —7—                                    L ist


             HEAT BOX
             DPEZALL




                                                                        2_ H
         NOTE:                .




                                                                               Q XICNId4dY
              ALL MATERIALS ArE
             __SHEET MEJTALSC §7TD.
              MILD STEEL)EXCEPT
             ~WHEAL SPECIFIED .


                                                            PLAN




                                       1—%2a" p
                                       Tuse




   8ople                                    n
     {h                           _|              |            ~_
   l4                       _VA              p        |   L 3—/2
      d                                               T
   eg                              SADE. ELEVATIO         SECTION_A:A
HEADER
TUBE
SLHOUET T4


                         APPEMNMD!IX         E


         Careceui4riOn or TyE FLOW AREA T4R oueH

                        TAE      HEAT BOX
Héom yes          PAECEDNG              prawis, APPE»MCX DJ,     p.

       2 #       m\m\     incb                   W = 4    inch
       b\u       \VN‘    \an                     L =   W\\\.N\&nxmh
       b"        \\$\ \3fism


4LSQ:

       \\\NWsO or a SEEMENT               /s :


        A = A*CesB — DVRA* D*
                                   £
        Aiz= \QNWQMLW ~ o v R*— d *
Anwo

       A ércerewsar              +857

        4.   =     \\\N


Aariv Prhou wE riaurke, THE TOrAL                         Ark. Fiovw seEA   185 .

       A, 2(A, — 4. +A43)
       x?%m\i Cos \\NQ jlw

             _— m\&p Cos !
                 N.                      W\*v Z2  ‘"R)—G)]
             +[x CG2)]} :
        ku.u            2.3 %           Square inch es ,


                                         — 4 —



Document Created: 2005-09-01 12:45:04
Document Modified: 2005-09-01 12:45:04

| Previous E.O. D-148 | Next E.O. D-149-1 | Next E.O. D-150
