Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 18, 1987.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
510-9517408-11986-1988 Chevrolet/ GMC light-duty trucks powered by a GMC 2.8L V6 gasoline fuel-injected engineReplace fuel-injectors with GM part #17111694, replace ECM PROM with K. F. Industries #KF-18 PROM, and add a spring loaded door to the OEM air-cleaner assembly.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-150-2
  • Executive Order 150-2 / D150-2
  • ARB # D-150-2
  • Executive Order No: D-150-2
  • C.A.R.B. No. D-150-2
  • Resolution D-150-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-150-2 PDF

D-150-2 Document:

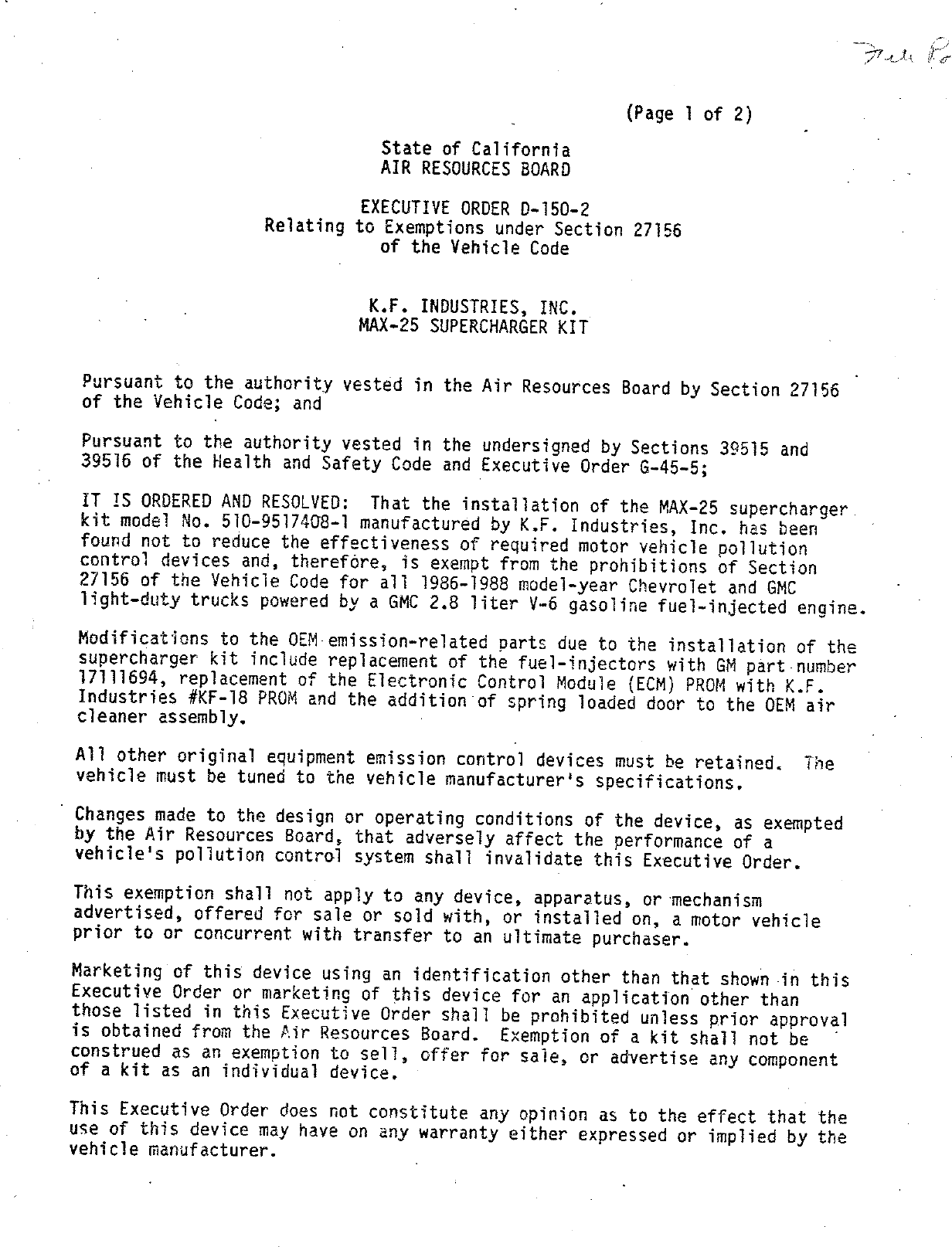

                                                        {Page 1 of 2)
                               State of California
                               AIR RESQOURCES BOARD

                             EXECUTIVE ORDER D—150—2
                   Relating to Exemptions under Section 27156
                               of the Vehicle Code


                              K.F. INDUSTRIES, INC.
                             MAX—25 SUPERCHARGER KIT


 Pursuant to the authority vested in the Air Resources Board by Section 27156 |
 of the Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Sections 39515 and
 39516 of the Health and Safety Code and Executive Order G—45—5;

 IT IS ORDERED AND RESQOLVED: That the installation of the MAX—25 supercharger
 kit mode! No. 510—9517408—1 manufactured by K.F. Industries, Inc. has been
 found not to reduce the effectiveness of required motor vehicle pollution
 control devices and, therefore, is exempt from the prohibitions of Section
 27156 of the Vehicle Code for ali 1986—1988 model—year Chevrolet and GMC
 light—duty trucks powered by a GMC 2.8 liter V—6 gasoline fuel—injected engine.

 Modifications to the OEM— emission—related parts due to the installation of the
 supercharger kit include replacement of the fuel—injectors with GM part number
 17111694, replacement of the Electronic Control Module {ECM) PROM with K.F.
 Industries #KF—18 PROM and the addition of spring loaded door to the OEM air
 cleaner assembly.

 All other original equipment emission control devices must be retained.     The
 vehicle must be tuned to the vehicle manufacturer‘s specifications.

— Changes made to the design or operating conditions of the device, as exempted
  by the Air Resources Board, that adversely affect the performance of a
  vehicle‘s poliution control system shall invalidate this Executive Order.

 This exemption shall not apply to any device, apparatus, or mechanism
 advertised, offered for sale or sold with, or installed on, a motor vehicle
 prior to or concurrent with transfer to an ultimate purchaser.

 Marketing of this device using an identification other than that shown in this
 Executive Order or marketing of this device for an application other than
 those listed in this Executive Order shall be prohibited unless prior approval
 is obtained from the Air Resources Board.   Exemption of a kit shall not be       _
 construed as an exemption to sell, offer for sale, or advertise any component
 of a kit as an individual device.

 This Executive Order does not constitute any opinion as to the effect that the
 use of this device may have on any warranty either expressed or implied by the
 vehicle manufacturer.


K.F. INDUSTRIES, INC                                                      .
MAX—25 Supercharger Kit                             EXECUTIVE ORDER D—150—2 .
                                                    {Page 2 of 2)




THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE MAX—25 SUPERCHARGER KIT.

No claim of any kind, such as “Approved’by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, ‘represent, any device as a motor vehicle poliution contrel device
    for use on any used motor vehicle unless that device has been certified by
    the state board.     No person shall sell, offer for sale, advertise, or
   represent any motor vehicle pollution control device as a certified device
   ‘which, in fact, is not a certified device. Any viciation of this
   subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executed at E1 Monte, Cal1f0rn1a, this            day of September, 1887.



                                      jpzms
                                         K. D. Drachand, Chief
                                         Mobile Source Division


                   State of California
                   AIR RESOURCES BOARD




EVALUATION OF K. F. INDUSTRIES, INC.‘s MAX—25 SUPERCHARGER
  KIT FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE
      SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
      TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE




                     September, 1987


                                           Date of Issue:   September, 1987




          EVALUATION OF K. F. INDUSTRIES, INC.‘s MAX—25 SUPERCHARGER
            KIT FOR EXEMPTION FROM THE PROKIBITIONS IN VEHICLE CODE
                SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
                TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE




                                      by
                            Mobile Source Division

                              State of California
                              AIR RESOURCES BOARD
                              9528 Telstar Avenue
                              El Monte, CA 91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                        summany
          K. F. Industries, Inc. (KFI) has applied for exemption from the
    prohibitions in Vehicle Code Section 27156 for their MAX—25 supercharger kit

    designed for 1986—1988 model—year Chevrolet and GMC light—duty trucks powered

    by a 2.8 liter V—6 gasoline fuel—injected engine.

‘         Based on the results from comparative exhaust emissions tests performed

    by K. F. Industries, at an independent laboratory, on a 1987 GMC S$15 4x4

    pick—up truck and from confirmatory tests performed at the Haagen—Smit

    Laboratory, the staff concludes that the K. F. Industries, Inc. MAX—25

    supercharger kit will not adversely affect emissions from the vehicles

    described above.

          The staff recommends that K. F. Industries, Inc. be granted an exemption

    as requested and that Executive Order D—150—2 be issued.


                                      CONTENTS



                                                 Page Number

SUMMARY                                               1
CONTENTS                                             11

I.     INTRODUCTION                                   1

II.    CONCLUSION                                     1

III.      RECOMMENDATIONS                             1
IV.    SUPERCHARGER KIT DESCRIPTION                   1

V.     SUPERCHARGER KIT EVALUATION                    3
VI.    DISCUSSION                                     4

APPENDIX

       Installation Instructions                     A—1

       PROM Applications/Part Numbers               A—2

       Identification and Warning Labels            A—3




                                        1 11


EVALUATION OF K. F. INDUSTRIES, INC.‘S MAX—25 SUPERCHARGER KIT FOR EXEMPTION
FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION
2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE

1.     INTROBUCTION

       K, F, Industries, Inc., (KFI) of Sun Valley, California 91353, has

requested an exemption from the prohibitions in Vehicle Code Section 27156 for

their MAX—25 supercharger kit.     The supercharger kit is designed for

installation on 1986—1988 model—year Chevrolet and GMC light—duty trucks

powered by a 2,.8 liter V—6 gasoline fuel—injected engine.

       KFI has submitted data from comparative (stock baseline vs. supercharged)

emissions tests conducted on a 1987 GMC S—15 4x4 pick—up truck at Import

Certification Laboratories, Inc., Orange, California,.    Confirmatory tests were

conducted on the same vehicle at the Haagen—Smit Laboratory in El Monte,

California.

IL.    CONCLUSION

       Based on the results from comparative exhaust emissions tests performed

by KFI, at an independent laboratory on a 1987 GMC S—15 4x4 pick—up truck, and

from confirmatory tests performed by the ARB on the same vehicle, the staff

concludes that KFI‘s supercharger kit will not adversely affect exhaust

emissions from the vehicles described above.

III.      RECOMMENDATIONS

       The staff recommends that KFI be granted an exemption for their add—on

MAX—25 supercharger kit and that Executive Order D—150—2 be issued,

IV.,   SUPERCHARGER KIT DESCRiPTION

       The MAX—25 Supercharger Kit has been specifically designed for

installation on the 1986—1988 GMC 2.8 liter, V—6 gasoline fuel—injected

engine.     The kit operates in conjunction with the OEM throttle body


fuel—injection and the emission control systems already certified with the

stock engine.    All the necessary hardware and supplies are included‘"in the

kit.    Some of the OEM parts are removed and discarded to be replaced by custom

parts supplied with the kit.    A complete manual describing the parts, and

step—by—step installation procedures is supplied with the kit {see Appendix 1).

        The supercharger (Model No. 510—9517408—1) is belt driven at 2.0 times

the speed of the engine which provides 5 psig of boost at 5000 rpm.    To

provide additional fuel to maintain proper air—fuel ratios during boost

conditions, larger fuel injectors are installed in the OEM throttle body.       A

spring loaded door is added to the air cleaner assembly to allow for

additional air flow during boost conditions.

        The Electronic Control Module (ECM) PROM is replaced with a KFI PROM

which calibrates the ECM to perform in conjunction with the supercharger.       All

functions of the ECM are maintained, however, they are slightly modified by

the KFI PROM.    Cold—start, EGR control, fuel control, and spark control are

modified to maintain acceptable emissions from the supercharged vehicle.      The

KFI PROMs are identified by the OEM GM part numbers they replace and the

designation "KF—18" (see Appendix 2).

        A noticeable power improvement is achieved and driveability remains

good.    Fuel economy is slightly reduced but emissions remain at or below

baseline levels.

        In addition to the standard kit identification label required by the ARB

for exempted aftermarket parts, KFI will supply an additional sticker to be

attached to the ECM stating that the PROM has been changed so that if there is

a PROM failure the KFI PROM must be installed instead of the OEM PROM which

may cause engine damage if used in conjunction with the supercharger (see

Appendix 3).


V.       SUPERCHARGER KIT EVALUATION

         A 1987 GMC S—15 4x4, light—duty pick—up truck with a 2.8 liter, V—6

gasoline fuel—injected engine was used for the evaluation of the supercharger

kit.     The dynamometer inertia weight and loading used were 4000 Ilbs. and 11.8

hp, respectively.

         Comparative emissions tests conducted by Import Certification

Laboratories, Inc. for KFI and by the ARB, consisted of back—to—back

cold—start CVS—75 emissions tests and hot—start Highway Fuel Economy tests.

These tests were used to determine exhaust emissions in the unmodified

(baseline) and supercharged (device installed) configurations for comparison.

A summary of the test results is shown below:

                           Exhaust Emissions Test Results
                        On A 1987 GMC S—15 4x4 Pick—Up Truck

A.     Applicants Test Results

                             Exhaust Emissions (gm/mi}          Fuel Economy (mpg)
       Test Mode       HC         CO     NOx    Highway NOx     City       Highway

       BaseTine       0.31       6.23    0.55       0.10        16.8        26.3
       Device         0.25       5.50    0.48       0.06        13.8        23.7

B.     Confirmatory Test Results

       Baseline       0.26       5.40    0.71      0.14         16.9        26.7
                      0.26       4.86    0.72      0.15         17.2        26.3
            Average   0.26       5.13    0.72      0.15         17.1        26.5

       Device         0.27       6155    0.51      0.07         14.4        23.7
                      0.22       3.97    0.54      0.09         14.4        23.5
                      0.26       5.97    0.42      0.07         14.3        23.6
            Average   0.25       5.50    0.49      0.08         14.4        23.6


California Standards:        HC = 0.39; CO = 9.00; NOx = 1.00
                             {all in grams per mile).


VI.   DISCUSSION

      The results of the exhaust emissions tests performed on the test vehicle

show no signifiant increase in emissions due to the installation of the

supercharger kit.   KFI has fulfilled the requirements for the exemption and

therefore Executive Order D—150—2 should be issued.


          gT TRICK RRPLCATIHEOA        \A—2   CRIMBERAIDE          PEOR   NO.   LM CBOMUTROLLECE
ABB   SICZBR)
 caum _  000.W/AT MDB Za¢                      73G5
                                                oss%ACASN.7365 ASN               16040| 332.
      S      TL 229C u/T mos                   TGLS §SC 73465 RS N                icoe0332.
            uq CaLliE            £                 834% ASN
      34L BB     STL(ZREREY    t&/mT (ML'Z     7360 PX            2360 ASM                  ;
  mi—3)}" aiik callG                             OB ASN                          120 e031G
 AL—es sFl 28E M/mt(ML—2                       gqratuBEw 7354 ASL                   enz
      mL—~3} sose s4ee 372 CMIF 4|             o340 Asi                          120603371
      BL—B8 s108 282 w/At[mDbs)                    T349 PP       73449 ASJ
_ IZwa(Exc eaur)                                                                 le0e0 343
 BsBB Sin&(O¥l@.S2) w/ MT MC—q                 7345 EK           T345 ASD             it0co 347
      mTa FED_ zw4                                 ©348 ASD                                             j
  so&gsp sri(22sg crmtrlimi2                   7383 SL           1383 ATA             16040 3504
      mL—3} NmM—8 ExmetT                       O3SZ ATR                                6      f
  SwP® 5T i (2.22) w/AT (MO 2)                     ‘O35L ARELQ                        iL0G£03255
      ELA (EXC CAE NMS EXP)
      B1T—80 Ti (@.82)W/NT MDS                 |             m     ul                           .
      (exe cmur nms EXP)                       ora6 RRW                               16020332
  BL—BD S1DB(D3)(2.BP})W/MT __                |> orG% ASK 1314 §3                     rLoco 362
.‘ We c _m 73) ailr zuw g 2 5|                   n3 t4 hSX _                          ,
  s®F3A T—4{(GPC) WD/RT (MD—P) .               6R7L ASP                                             ;   C
  (EXC CauUF NM EXP)                                                                  10040 3G
  8GBE 51 (Z.3PYW/NT (Mb—3) FED                    O370 RSD                                                 ,
      RLT (EXE NM& EXP)                            ‘                                  iG0£A3T
  SL—A8 TA(ZSP) W/MT (ML—2?) FED               0370 AS A                                  .
  ALT (Exe nNMS EXP)                                                                  ““mfifl,
  SBLBB STA(2.8P) 19/MT (ML—Z2 ML                  0375 ASA
  adar 422 3732 FED ALT(EXC N                                                         1LO 40373
BGL B8 Sri(2.52) wmr(m j —4q                   730 RF 73Wf ARZ                                17
 MJB) CBDLLE                                  0378 ARZ O4f51 FJ N                     “"050:3
B4L—80 s’r—i(zee)w/nr(mbe,\                   1424 ED 132L AEY                        iLALO180
 LRLIE 8 EXPORT                _&              0 sez ReYy                                           v
  &6         StTAi (2.8P) w/mr(md q                4143 ETL                       —       dre
      m T3) Ec3 FED ALT                                                               12060325
 Bo—BT STi 2182 W/MT (MCG                      702 RCL T02 BCX                        16040 385
  nr\'r:s) Feb air(exe nms EkKP)|             or8sc ARX —
            ST—L(G@.P@e) W/mT M3 (4:1E}        4liGGS RECS                            150744@4
            4) aLt (na C E ca (Exc nnas EKA
  88 441 33A 202 WAMT MA
                    omm                            4L10 RCIX®G                              14 GLB
 a73P(ETA) 3.082 (BUC) CENRPECA                                                       100                       '
 w¥


        A2T TEUELEK IAPPL.(GM—T(DN           ZLZAIBRRATOR           PROM   NDO,.   6 M EBONTEOLLE:

BA S—1 (1()(2.82} at (ML3) PALIF |            4LG75 ARCITC
                                                                                       146014 G 74
fiN £2)             y    &
     1(@PBW/AT (mo&a)rD (m\a)                 4L3% AZCHT
          ne(EC3 ExE NmS Expoet                   |                                    140 T4 634 .
88 m.oaPr)»/mrimila)3m2GT4)|                          aco0 h&HK Z
  —          r               ol                                                        1L0 74GSB
  aa4zre(cuoret» nmtkaOQ(Exe Exropt] _                                                        198
 88 §L(2.8P)
          8  /AT(M D Ay enur .         « 4640                AETH                      .   renvaces
   (n a 2).                    ies#
»o a ie (O3\kee) wzm‘(moe,)                  Afe41 5‘ ALCHX                        =
   ZWW4 ECC (Nma Exrort)                *                                              11074044
a B;TL(OE.SQ 2.82
              . G/RNT(MDES)
                         B                   4717 AC M                                     i4074 776
   Fep (nAa) AaALT(NAG)                                                                            4
BB Ti /M@S&GPWD/ hT (MDA FED|                 468O RCITY D
    (masy ar(nad{Exe nmoe Expoer)                                                          100 T4 C 71B
2Bé& Ti(z.S82) Wwiwmt (FML—Z). 2nLLe          4L15 ACTC.                                    ;   ’
 _(ne 2c                                                            .                  16074674
25 TL F.ePp/u/aAtT (mo—s\'aaurf               4LGA5 ACIFE                              10074 484
  (NGe        _              i«
&LBB aT—1i 282 G/NT m Z20E633                7335 Pb T335 ASA                              i2re442.
~ N§&     3422 2737 FEO (NRS ALT     (RL)     —                 .
ou—      28 sri(zg2) w/mT (me4 im 73)        ©3s2.L APXK 4143 FIL                          drra5AlL
_FED ALT —(EXC NM &)                          7302 PC          1307 AEX                        ’
BL—8B 3—1 (ZAP) W/AMT(ML—3) FED               7a40 eS           T340 ME                    12254843
        BLT (BX%C NML EXKP)
PL—BB H(GoP)W/M(IMOR)
             A4       EG3                     7247 2PB          7247 APW                   AZ2IP5 44
 ({EXCc eaUF NMS EX®SET)                                                                      O
Pl«*B% TA {2.2BP}LW0/MT(ML—2)FED             7340 RT           1240 RSR                    1229543
  ALT (EXC. NM BP EXPDPT}
Ple—8B$ Ti (2.80 w/AT(moe)(ccx                7364 SH           1364 ASP                   1229 5 45
  CALF N ME EXPOPT)                                .
BT—ee TL 2.82 tJ/RNT MD 8 (Et|                1r47kB 1247 het                          12225
                                                                                          ~ 44
    ZCALLF NMSLS EXC)

        ~ NAS    ———       EEDEPAL—ENMSSIONG
         ~ NR L ———        i EMSSIGAA MLL ALTUTUODES
           N R—2 :——        EWALIONS        CALIE 10 0 —~
           6T 4 ——     _    3 JS     .BKEL ZATIO
           &GU b——           S42     —~RXEL RARTIO


              VE HICMEL   RPPLLLRKTLION COOE
‘LOQE.              QLISLEIPTION
 3—L         TWO (WDMEGEL DEWS
 T—1         FOUuR LusMEEL NRLVE
 oT—L
 3 108 O3     FLEETSIDE PILCLK tiP
 E63         PL&LCKL ULP BODQY
 Z 44        CAB & 2KNMKLS ORNLY
 CRLLF      CRLLIEDRNIA _EMLSSLON S
  FED       FEDNEPAL (44 STAE) EMLSSIODNS
  RLT        HL ALTHLDE EMSSIPRS
  ML—2       TEARNSNMISSION . 5    SPEED
  M L— 3     T ERN SMSSIOGN   54— SPEED
  M E4       TEANS MESIOM 4        SPEED (REFG H60PNEC)
  M —13       TEANSMSSIONA 4 areeo (LESGZIAU)Y          _
  MO—8        TPRNS ML SS.0N 7160 24 AALORELWE
  N M—8
  MO2        TRRNSM OA


o e
             LRENING
  THE COMPUTER PROM IN THIS $/T TRUCLK
  HAS REEN REPLALED RY ONE THNT
_ SupPPOETS THE LK SUPERCUNRL EP
   AND MEETS THE BMISSIAA EEALIREMENTS
   FOR. TH|S LLLHKT DUTY TMULK. REPLAREE —
                                             Wls
   ‘MENT OF TMS PCOM MUKST RE bWITH
    A DUPLELZATE UMIT FUPNISHED BY K.E
    IND, drf 1TS AUTHEEIZLED SULOPPLIERPS
                 C M   LAhBLE
——A C ————-]
 CM 16040 332
 14465 504 KFA8        %Lz
_ _PPOMLABLE :



Document Created: 2005-09-01 12:41:56
Document Modified: 2005-09-01 12:41:56

Previous E.O. D-150-1 | Previous E.O. D-149 | Next E.O. D-150-3 | Next E.O. D-151
