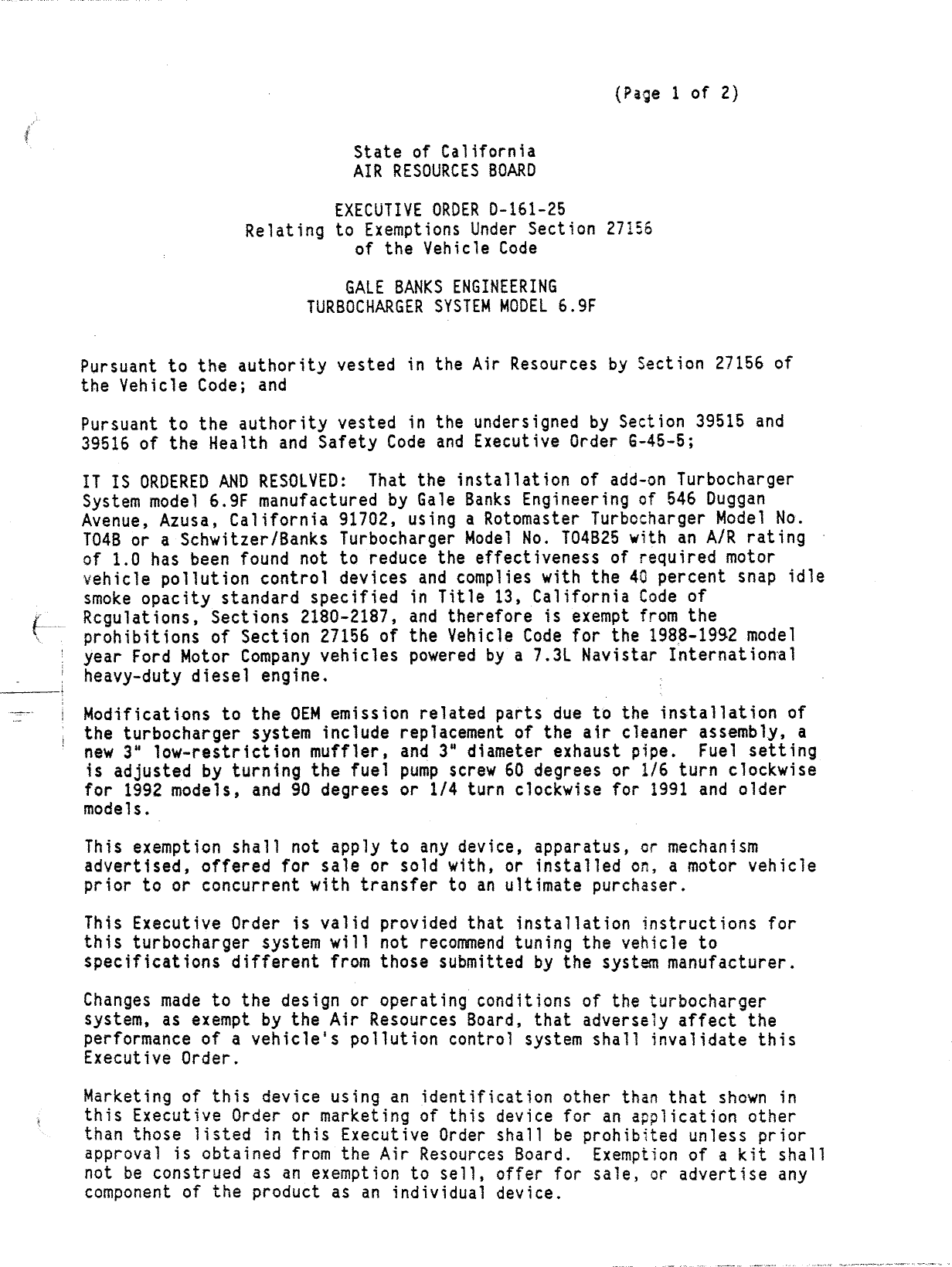

                               State of California
                               AIR RESOURCES BO0ARD

                             EXECUTIVE ORDER D—161—25
                    Relating to Exemptions Under Section 27156
                               of the Vehicle Code

                              GALE BANKS ENGINEERING
                          TURBOCHARGER SYSTEM MODEL 6.9F


Pursuant to the authority vested in the Air Resources by Section 27156 of
the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and
39516 of the Health and Safety Code and Executive Order §—45—5;

IT IS ORDERED AND RESOLVED: That the installation of add—on Turbocharger
System model 6.9F manufactured by Gale Banks Engingering of 546 Duggan
Avenue, Azusa, California 91702, using a Rotomaster Turbocharger Model No.
TO4B or a Schwitzer/Banks Turbocharger Model No. T04B25 with an A/R rating
of 1.0 has been found not to reduce the effectiveness of required motor
vehicle pollution control devices and complies with the 48 percent snap idle
smoke opacity standard specified     in Title 13, California Code of
Regulations, Sections 2180—2187,     and therefore is exempt from the
prohibitions of Section 27156 of     the Vehicle Code for the 1988—1992 model
year Ford Motor Company vehicles     powered by a 7.3L Navistar International
heavy—duty diesel engine.                                      .

Modifications to the OEM emission related parts due to the installation of
the turbocharger system include replacement of the air cleaner assembly, a
new 3" low—restriction muffler, and 3" diameter exhaust pipe. Fuel setting
is adjusted by turning the fuel pump screw 60 degrees or 1/6 turn clockwise
for 1992 models, and 90 degrees or 1/4 turn clockwise for 1991 and older
modeis.

This exemption shall not apply to any device, apparatus, sor mechanism
advertised, offered for sale or sold with, or installed or, a motor vehicle
prior to or concurrent with transfer to an ultimate purchaser.

This Executive Order is valid provided that installation instructions for
this turbocharger system will not recommend tuning the vehicle to
specifications different from those submitted by the system manufacturer.

Changes made to the design or operating conditions of the turbocharger
system, as exempt by the Air Resources Board, that adversely affect the
performance of a vehicle‘s pollution control system shall invalidate this
Executive Order .

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of a kit shall
not be construed as an exemption to sell, offer for sale, or advertise any
component of the product as an individual device.


GALE BANKS ENGINEERING                              EXECUTIVE ORDER D—161—25
TURBOCHARGER SYSTEM MODEL NO. 6.9F                    {Page 2 of 2)


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BCARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE GALE BANKS ENGINEERING‘S TURBCCHARGER SYSTEM MODEL 6.9F FOR
INSTALLATION ON 1988—1992 FORD MOTOR COMPANY VEHICLES POWERED BY A 7.3L
NAVISTAR INTERNATIONAL HEAYY—DUTY DIESEL ENGINE.
No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communications.

Violation of any of the above conditions shall be grounds for revocation of
this order,. The order may be revoked only after ten day written notice of
intention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation.   If a
hearing is requested, it shall be held within ten days of receipt of the
request and the order may not be revoked untl] a determination after hearing
that grounds for revocation exist.

Executed at E1 Monte, California, this /f‘/ga’y of May, 1992.


                                      .B Summerfield
                                     Assistant Division Chief
                                     Mobile Source Division


                           State of California
                           AIR RESOURCES BOARD




EVALUATION OF GALE BANKS ENGINEERING‘S ADD—ON TURBOCHARGER SYSTEM MODEL 6.9F
      FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156
              IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                 May, 1992


                             State of California
                             AIR RESOURCES BOARD




EVALUATION OF GALE BANKS ENGINEERING‘S ADD—ON TURBOCHARGER SYSTEM MODEL 6.9F
     FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156
             IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                        by

                           Mobile Source Division
                             State of California
                             Air Resources Board
                              9528 Telstar Avenue
                            El Monte,   CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board,   nor does the mention of trade names or commercial products constitute
endorsement or recommendation for use.)


| sttis,.




                                              SUMMARY




                Gale Banks Engineering (Banks)   has requested an update to Executive

            Order D—161—17, which exempts their Turbocharger System Model 6.9F from the

            prohibitions in Vehicle Code Section 27156, to include the 1992 model year

            Ford Motor Company vehicles powered by a 7.3L Navistar International heavy—

            duty diesel engine.

                 The 1992 model year 7.3L Navistar International heavy—duty diesel

            engine is carried over from the previous year for which an exemption has

            been granted. In addition, smoke opacity tests conducted at Gale Banks shows

            that the add—on turbocharger system will have no adverse effect on exhaust

            emissions from the engine for which the exemption update is requested.

                 The staff recommends that Banks be granted an update as requested and
mm




            that Executive Order D—1651—25 be issued.
i


                               TABLE OF CONTENTS




                                                      Page Number



SUMMARY

—«CONTENTS                                                 ii

I.           INTRODUCTION                                   1

II.          CcoNCLUSION                                    1

III.         RECOMMENDATION                                 1

IV.          TURBOCHARGER KIT DESCRIPTION AND OPERATION     1

             DBISCUSSION                                    2




                                       ii


         EVALUATION OF GALE BANKS ENGINEERING‘S ADD—ON TURBOCHARGER SYSTEM MODEL 6.9F
              FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156
                       IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                                CALIFORNIA CODE OF REGULATIONS
         I.    INTRODUCTION

               Gale Banks Engineering (Banks) of 546 Duggan Avenue, Azusa, California

         91702, has requested an update to Executive Order (E.0O.) D—161—17 to include

         the 1992 model year Ford Motor Company vehicles powered by a 7.3L Navistar

         International heavy—duty diesel engine.     The E.0. D—l61—17 currently exempts

         Bank‘s Turbocharger System Model 6.9F from the prohibitions of Vehicle Code

         (VC) Section 27156 for 1988—1991 model year Ford Motor Company vehicles

         powered by a 7.3L Navistar International heavy—duty diesel engine.

         II.    CONCLUSION

               Since the 1992 model year 7.3L Navistar International heavy—duty diesel

         engine is carried over from the previous year for which an exemption has
(f9m.,




         been granted and the snap—idle test results indicate that smoke opacity of

         the modified vehicle was less than the 40 percent standard, the staff

         believes that the add—on turbocharger system will have no adverse effect on

         exhaust emissions from the engine for which the exemption update is

         requested.

         III. RECOMMENDATIONS

               The staff recommends that Banks be granted an exemption for the add—on

         turbocharger system model 6.9F for 1988—1992 model year Ford Motor Company

         vehicles powered by a 7.3L Navistar International heavy—duty diesel engine

         and that Executive Order D—161—25 be issued.

         IV.   TURBOCHARGER KIT DESCRIPTION AND_OPERATION

               The purpose of the Banks turbocharger system is to increase the power

         output of the engine by compressing the intake charge to pressures above

         that of the atmosphere.   This increased pressure allows a greater charge

         density to enter the combustion chamber and increase the volumetric

                                              —~1—


efficiency of the engine.    The maximum fuel delivery is slightly increased

to maintain proper air—fuel ratios when the turbocharger is providing

positive manifold pressure (boost).    Maximum positive manifold pressure is

limited to 7 psi by the size of the turbine and the compressor.    The maximum

engine speed is reqgulated by the original equipment manufacturer (OEM)   fuel

injection governor.    Controlling the maximum engine speed also controls the

maximum engine turbine speed and corresponding boost pressure.

     The major components of the kit include a 1.0 air ratio (A/R)

Rotomaster Model No. TO4B or a Schwitzer/Banks Model No. TO4B2S

turbocharger, custom intake and exhaust tubing, air cleaner assembly,

brackets, hoses and the hardware nécessary to complete the installation.

Modification to the OEM emission related parts due to the installation of

the turbocharger system include replacement of the air cleaner assembly and

replacement of the OEM exhaust system with a 3" diameter exhaust system.       To

meet the newly implemented opacity standard of 40 percent,   Banks has

modified the compressor wheel from a U trim compressor wheel to an H3 trim

compressor wheel.     Also, the fuel setting is reduced five (5) percent for

1992 models by turning the fuel pump adjustment screw 60 degrees (1/6 turn

clockwise},   instead of the 90 degrees (1/4 turn clockwise) adjustment for

the previous models.

v.   BISCUSSION

     The applicant is making the add—on Turbocharger System Model 6.9F

available for 1992 model year Ford Motor Company vehicles powered by a 7.3L

Navistar International heavy—duty diesel engine.     Certification documents

show that the 1992 model year 7.3L Navistar International heavy—duty diesel

engine is carried over from the previous year for which the turbocharger

system has been exempted.     Previous testing of the turbocharger showed no

adverse affect on exhaust emissions.     However, starting with the 1992 model

                                       —2«—


     year heavy—duty diesel vehicles, snap—idle smoke opacity testing was

     required pursuant to California Code of Reqgulations (CCR) Section 2182,

     Heavy—Duty Diesel Vehicle Smoke Opacity Test Procedures.    The overall smoke

     opacity could not exceed 40 percent as required by the CCR Section 2182    (c).

     In the past, Gale Banks through the Specialty Equipment Manufacturers

     Association (SEMA),   claimed that the current aftermarket turbocharged

     configuration could not meet the 40 percent opacity standard because

     turbochargers do not kick—in immediately upon engine start up.     Thus, during

     transient periods, air is momentarily restricted even though fuel is

     increased,   causing an increase in peak smoke.   To meet the 40 percent

     opacity standard, Banks modified the turbocharger system to use a new

     Schwitzer or Garrett H3 trim compressor wheel (part numbers 166198 and

     408105—5371 respectively).    The H3 trim compressor wheel reduces the
m




     response time (boost to fuel) of the turbocharger which has a favorable

     impact on particulate emissions as well as meeting the 40 percent opacity

     standard.    The new trim compressor wheel does not change the overall

     characteristics of the turbocharger.     Furthermore, the fuel setting for 1992

     model year California certified engines is reduced five (5) percent due to

     the snap idle test requirements.    Since the H3 trim wheel does not change

     the overall characteristics of the turbocharger and the fuel adjustment (90

     degrees or 1/4 turn clockwise) of previous model years represent the ‘worst

     case‘ condition, no additional emission testing (other than the smoke

     opacity test) was required.    The applicant claims no other modifications to

     the system are necessary for installation on 1992 model year applicable

     vehicles.

          Smoke opacity testing was conducted at the Gale Banks Engineering

     facility using a 1991 Ford Super—Duty truck powered by a 7.3L Navistar
on




     International heavy—duty diesel engine to determine if the vehicle with the

                                            —3—


turbocharger installed is within the 40 percent standard.   Bank‘s opacity

readings are shown below.




                    Snap—Idle Smoke Opacity Test Results




                                 22%, 23%, 22%




The snap—idle test results indicate that smoke opacity of the modified

vehicle was less than 40 percent.    This demonstrates that the addition of

the Gale Banks Turbocharger System Model 6.9F will not have an adverse

effect on emissions for 1988—1992 Ford Motor Company vehicles powered by a

7.3L Navistar International heavy-duty diesel engine for which the exemption

was requested.

     Banks has submitted all the required information and fulfilled the

requirements for an exemption.



Document Created: 2005-09-01 12:40:23
Document Modified: 2005-09-01 12:40:23

Previous E.O. D-161-24 | Previous E.O. D-160 | Next E.O. D-161-26 | Next E.O. D-162
