Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 28, 1992.
As of Sunday, December 9th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1989-1992 model-year motorhomes with gorss vehicle weight (GVW) of 14,000 lbs. or greater powered by a Ford 7.5 liter (460 CID) EFI gasoline engine and utilizing the Ford or Oshkosh chassis.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-161-27
  • Executive Order 161-27 / D161-27
  • ARB # D-161-27
  • Executive Order No: D-161-27
  • C.A.R.B. No. D-161-27
  • Resolution D-161-27
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-161-27 PDF

D-161-27 Document:

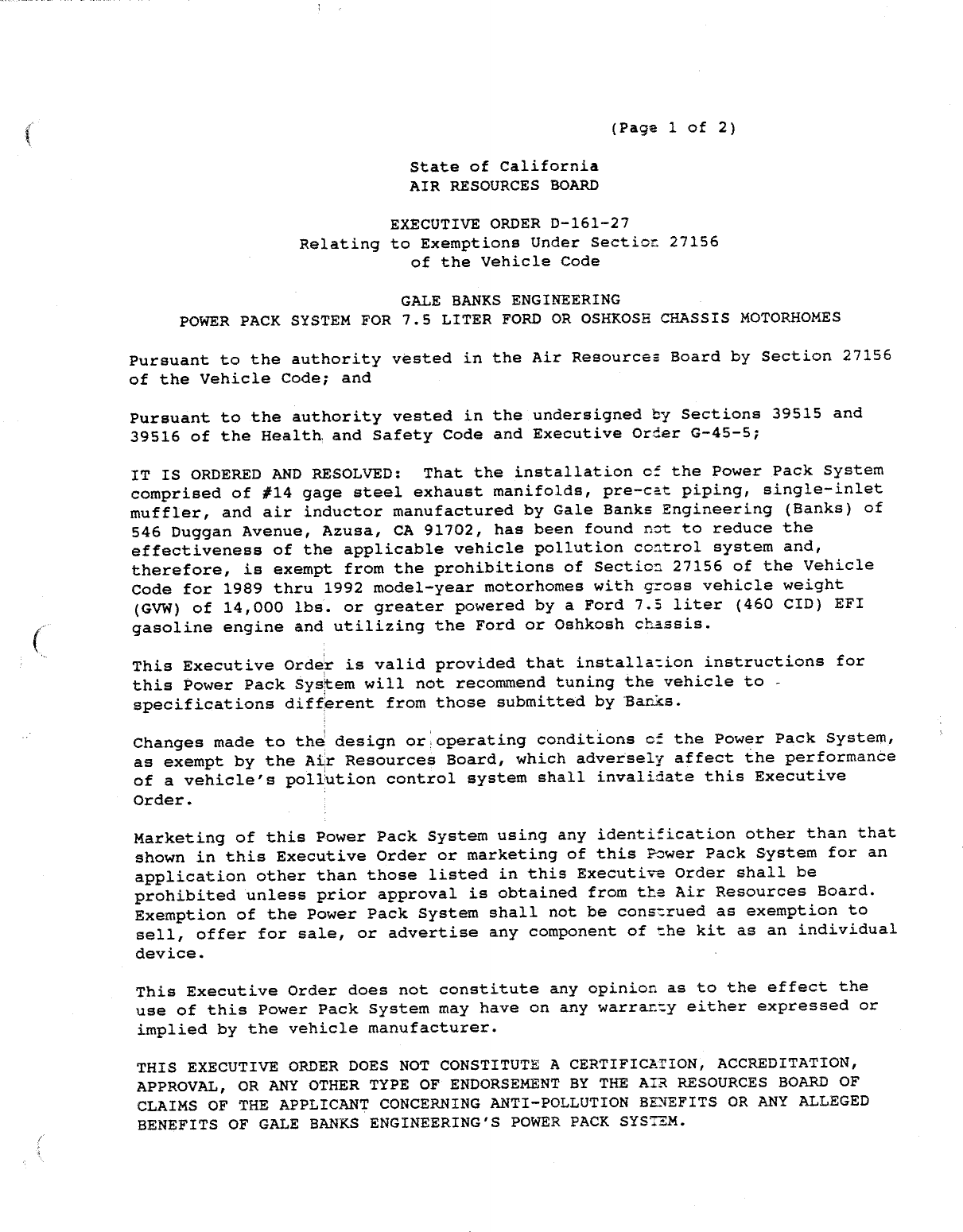

                                                              (Page 1 of 2)
Li




                                        State of California
                                       AIR RESOURCES BOARD


                                      EXECUTIVE ORDER D—161—27
                         Relating to Exemptions Under Sectior 27156
                                    of the Vehicle Code

                                   GALE BANKS ENGINEERING
             POWER PACK SYSTEM FOR 7.5 LITER FORD OR OSHKOSH CHASSIS MOTORHOMES

     Pursuant to the authority vested in the Air Resources Board by Section 27156
     of the Vehicle Code;       and

     Pursuant to the authority vested in the undersigned by Sections 39515 and
     39516 of the Health and Safety Code and Executive Orfer G—45—5;

     IT IS ORDERED AND RESOLVED:  That the installation cof the Power Pack System
     comprised of #14 gage steel exhaust manifolds, pre—cat piping, single—inlet
     muffler, and air inductor manufactured by Gale Banks Engineering (Banks) of
     546 Duggan Avenue, Azusa, CA 91702, has been found not to reduce the
     effectiveness of the applicable vehicle pollution comtrol system and,
     therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
     Code for 1989 thru 1992 model—year motorhomes with gross vehicle weight
     (GVW) of 14,000 lbs. or greater powered by a Ford 7.5 liter (460 CID) EFI
     gasoline engine and utilizing the Ford or Oshkosh chassis.

     This Executive Orde? is valid provided that installation instructions for
     this Power Pack System will not recommend tuning the vehicle to —
     specifications different from those submitted by Banks.

     Changes made to the design or.operating conditions of the Power Pack System,
     as exempt by the Air Resources Board, which adversely affect the performance
     of a vehicle‘s pollution control system shall invalidate this Executive
     Order .            :

     Marketing of this Power Pack System using any identification other than that
     shown in this Executive Order or marketing of this Power Pack System for an
     application other than those listed in this Executive Order shall be
     prohibited unless prior approval is obtained from the Air Resources Board.
     Exemption of the Power Pack System shall not be construed as exemption to
     sell,    offer for sale,    or advertise any component of the kit as an individual
     device.

     This Executive Order does not constitute any cpinion as to the effect the
     use of this Power Pack System may have on any warrarty either expressed or
     implied by the vehicle manufacturer.

     THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICZRTION, ACCREDITATION,
     APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIX RESOURCES BOARD OF
     CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
     BENEFITS OF GALE BANKS ENGINEERING‘S POWER PACK SYSTZM.


    CALE BANKS ENCINEERING                                  EXEC—TIVE ORDER D—161—27
    POWER PACK SYSTEM                                       (Page 2 of 2)


    No claim of any kind, such as "Approved by the Air Resources Board" may be
    made with respect to the action taken herein in any advertising or other
    oral or written communication.

    Violation of any of the above conditions shall be grcunds for
    revocation of this order.  The order may be revoked cnly after a ten day
    written notice of intention to revoke the order, in which period the holder
    of the order may request in writing a hearing to cormmest the proposed
    revocation.  If a hearing is requested, it shall be teld within ten days of
    receipt of the request and the order may not be revorzed until a
    determination after hearing that grounds for revocation exist.
i                                              nf_/?::_
    Executed at El Monte,    California,   this ~         day of ipril,   1992.


                                                /              «7




                                                                l Y
                                               /'«f’?%/m ~            C /(,*'L
                                               R. B. Summerfileld
                                               Assistant Division Chief
                                               Mobile Source Division




fosa n sntoane
p


                                 State of California
                                 AIR RESOURCES BOARD




         EVALUATION OF GALE BANKS ENGINEERING‘S POWER PACK SYSTEM FOR EXEMPTION
            FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE
           WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS
Fmmact




                                       April 1992


                           State of California
                           AIR RESOURCES BOARD




  EVALUATION OF GALE BANKS ENGINEERING‘S POWER PACK SYSTEM FOR EXEMPTION
     FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE
    WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




                                      by
                          Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          E1 Monte, CA 91731—2990




{(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                  SUMMARY


     Gale Banks Engineering (Banks) has applied for an exemption from the

prohibitions in Vehicle Code Section 27156 for their add—on Power Pack

System designed for 1989—92 model—year motorhomes with a gross vehicle

weight (GVW) of 14,000 lbs. or greater powered by a 7.5 liter Ford EFI

gasoline engine on either a Ford or Oshkosh chassis.

     Banks has submitted a completed application and all the required

information as well as temperature test data which shows that the Power Pack

System will not adversely affect the emissions of the applicable 1989—92

motorhomes .

     The staff recommends that Banks be granted an exemption for their

add—on Power Pack System and that Executive Order D—161—27 be issued.


                         LE
                               SNOILYVMLSNT11I 1LNTNOdWO3]
                              NOTILINHILSNI NOTLVIIYVLSNI
                                                XIQN3JAdV         *IA
   2     NOISSNISIQ QNY NOILYVNTIWVAI W31SAS X3¥4 MIMO0d            *A
                                             NOI1LdI49$3G0        *AI
                                         NOILYQNIWWODT%         OC‘II1
                                              NOISNTINO3          *II
                                            NOTILINUGULNTI          *I
    L1                                                       SIN3LNO03
                                                              A YVWWNS
Joquny obrq
                                                                         ce‘




                  SLN3LN0Q] 40 118¥v1


      EVALUATION OF GALE BANKS ENGINEERING‘S$ POWER PACK SYSTEM FOR EXEMPTION
         FROM THE PROHIBITIONS OF VEKICLE CODE SECTION 27156 IN ACCORDANCE
        WITH SECTION 2323, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS

I.      INTRODUCTION

        Gale Banks Engineering (Banks) of 546 Duggan Avenue, Azusa, California

91702, has applied for exemption from the prohibitions of Vehicle Code

Section 27156 for their add—on Power Pack System designed for 1989—92 model—

year motorhomes with a gross vehicle weight (GYVW) of 14,000 lbs. or greater

powered by a 7.5 liter Ford EFI gasoline engine on either a Ford or Oshkosh

chassis.

        Banks has submitted a completed application and all the required

information as well as comparative temperature test data.

II.     CONCLUSION

        Based on the submitted information and the temperature test data

performed on a 1990 7.5 liter gasoline—powered motorhome (GVW greater than

14,000), the staff concludes that the installation of the Banks‘ Power Pack

System will not adversely affect the emissions on the applicable 1989—92

motorhomes .

III. RECOMMENDATIONS

        The staff recommends that Banks be granted Executive Order D—161—27 for

use of the Power Pack System on 1989—92 model—year motorhomes with a gross

vehicle weight (GYVW) of 14,000 1bs. or gréater powered by a 7.5 liter Ford

EFI gasoline engine on either a Ford or Oshkosh chassis.

IV.     DESCRIPTION

        The purpose of the Banks Power Pack System is to enhance the engine‘s

power and fuel efficiency through the reduction of restrictions in the

intake and exhaust system.      The Power Pack System consists of exhaust

                                         —~1—


manifolds, pre—catalyst piping, and ram air inductor.

      The exhaust system consists of tubular exhaust manifolds "headers"

constructed out of #14 gage steel, ¥—pipe assembly, low restriction muffler,

and a low restriction tail pipe.    As with the original equipment

manufacturer‘s (OEM) exhaust system, the main function of the Banks Power

Pack System is to route exhaust gases from the two exhaust manifolds of the

engine into the catalytic converter prior to the muffler.    Each cylinder has
a 1.5" diameter tube that combines with the adjacent tubes into a 2.5"

diameter connector.    On each side of the engine, these two 2.5" connectors

feed directly into the ¥—pipe where they cutput as one pipe into the

catalytic converter.     The Banks‘ ¥—pipe houses the oxygen sensor similar to

the OEM.     The Power Pack System also includes an air inductor, which uses a

flex hose and a boot type funnel located at the grill to naturally induce

lower temperature intake air.     Installation of the Banks Power Pack System

does not alter the OEM location of the catalyst, oxygen sensor, or air

injection.

V¥.   POWER PACK SYSTEM EVALUATION AND DISCUSSION

      New vehicle certification of Ford powered motorhomes that Banks has

requested exemption on required the use of an engine dynamometer due to

their weight classification.     Since Banks sells only a small volume of Power

Pack systems applicable to this application and the cost of testing on an

engine dynamometer is prohibitive, Banks requested that an exemption be

granted based on data from temperature testing instead of engine emission

testing which was accepted by the ARB for their exemption of heavy—duty

motorhomes powered by General Motors engines.

      A 1990 Starcraft Motorhome powered by a Ford 7.5 liter EFI engine was
                                       _2.


used as the test vehicle.     Testing consisted of sampling the catalyst inlet

exhaust temperature at various engine RPMs in the baseline and modified

configuration.    ARB staff reviewed the setup, checked the calibration, and

observed the testing during baseline and modified temperature data

acquisition.     Results are listed in Table 1.


                                     Table 1

                      Exhaust Temperature at Catalyst Inlet

Engine         Temperature        Temperature       Temperature      Percent
RPM            Factory Exh.       Power Pack         Change           Change

4000           1475               1452              —23              —1.6%

3500           1463               1383              —80              —5.5%

3000           1450               1401              —49              —3.4%

2700           1411               1383              —28               —2.0%


       The Power Pack temperature test data and the stock temperature test

data submitted by the applicant varied no greater than 5.5 percent in

exhaust temperature.     Furthermore, a decrease in temperature of this

percentage will not have any additional impact on catalyst deterioration.

Based on these results, the staff concludes that the installation of the

Banks Power Pack System will not have an adverse effect on the exhaust

emissions of the affected vehicles.      The Gale Banks Engingering submitted

all the required information and fulfilled the requirements for exemption.


Appendix


                                                                    FAX {[818} 334—3078
      Gale Ranks Engineering   546
                                 DugganAvenue Az:uaa California §1702   [(8186)}864§—98605




                                    BANKS POWERPACK
                              INSTALLATION INSYRUCTIONS
                                :  FOR 460 FORD EFTI
                           IN OSHKOSH/JOHN DEERE AND FORD
                             MOTORHKHOME CHASSIS PLATFORM


 1. Raise vehicle on sultable h01st jacks, or ramps.                            Disconnect
battery. _            ;

 2. Remove tailpipe assembly from the muffler rearward.

 3. Remove muffler frdm catalytic converter.

 4. Disconnect catalytic converter air injection piping from
converter and at rubber hose connections on feed piping on engine.
Remove piping assemblies.  Save all clamps and hardware.

 S . DisconneCt cxygen?sensor wire at oxygen sensor .

 6. Unbolt catalytic converter at converter inlet flange.                               Remove
converter.                         :

 7.    Remove headpipe assembly from exhaust manifolds.

 8.     Disconnect       sparkplug      wires    at       sparkplugs.       Label   wires     to
assist in re—installation.

 9. Remove sparkplug heat shields.

10. Disconnect EGR va}ve feed tube from fitting at rear of left
hand exhaust manifold.                             .

i1; Remove exhaust manifolds                 from engine.          Unbolt Lgnltlon 0011
bracket and Gdipstick tube bracket as required.                         ‘

12. Clean cylinder head exhaust flange surfaces of any rust or
carbon. Install the Banks PowerPack exhaust manifolds. RE—install
ignition coil bracket.    Use 3/8 — 16 x 1 inch 12 point bolts
supplied.                         i                   .

13.    Re—install       spark Plug heat         shiselds      and dipstick      tube.        Use
spacers supplied to relocate these components.

                                  |i
                                   I


14. Re—install air injection tube assemblies. It will be necessary
to cut one air injection tube to provide clearance to the exhaust
manifold. Cut the tube 6 inches from the most forward bend. Join
the tube halves with the l inch I.D. silicone hose and two NO. 16
hose clamps, provided.

15.   Install     the    PoWerPack     "Y"#—pipe      assembly   to    the    exhaust
manifolds.      Use two donut gaskets, provided, between the manifold
outlets and "Y‘—pipe flanges.

16. Carefully remove the oxygen sensor from the original head pipe
assembly and re—install in the PowerPack "Y" pipe.   Reconnect the
wiring.

17. Re—connect the EGR valve exhaust feed tube to the bung on the
left hand PowerPack exhaust manifold.
18. Re—install the caialytic converter on "Y‘—pipe flange.                    Use new
gasket   provided.        Re—connect     the    air    injection      tubes   to   the
catalytic converter. |
19. Install the Powerpack muffler to the catalytic converter.                      The
stainless steel adapter and extension pipe, supplied, mount between
the   converter    and    nuffler.      Note    the    alignment      notch   on   the
adapter.     Use one 2     1/2     inch and 3   inch U—clamp to complete the
assembly .                 :

20. Attach the existing front muffler hanger bracket to the 3—inch
U—clamp to support the front of the nuffler.

21. Install the PowerPack tailpipe assembly.               Use existing hangers
in vehicle to support tailpipe.

22. Install heat shield, provided, on left frame rail, adjacent to
engine, to provide heat protection to hyd@raulic lines in the
vicinity.                  ‘

23. Remove vehicle from ramps or hoist. Remove plastic air intake
silencer from air inlet hoses between air filter assembly and
engine.              |                   .

24, Using a hacksaw,lcut the tapered sections off the silencer as
shown in the illustration.    Re—install the silencer in the air
intake hoses using the original clamps.

25.   Remove the air cleaner housing cover.                  Replace the factory
paper element with the low restriction K&N filter element provided.

26. Reconnect spark plug wires and battery cables.                    Replace spark
plug wires and distributor cap if condition looks marginal.
                               |


      27. Start vehicle and allow engine to warm up.    Listen for any
      exhaust leaks.   Test drive vehicle to locate possible leaks or
      ratties.   Re—tighten clamps or reposition tubing slightly if
      necessary to eliminate leakts and rattles.

      NOTE: The exhaust sysfem.will smoke upon initial start up. This is
      because grease used in the tube bending process will burn off the
      ~inside of the tublng as it warms up.


                           ; TUNE UP SPECIFICATIONS

      Use all factory tune up specifications.    No tune up changes are
      required with the Banks PowerPack.




'}C


BANMKS POWERPALK
460 PoRD &A MOTZOLHQMES
                      A/R
                                                                    @AYEN SBENMSQR
                                                            E         BUNG
                                                                                     BAMKS POWERLACE
                                                                                     EXLIACLST" MAMEFOLOS
                                     A         |       w.   @ f
                               carair mtc conmverrem   /’5@\                 +
                                                             Cowyvilta/Ela
                                                   \"/
                3" ¢7— erame
        AEXTZENB TLUOE _
3% o— ecamP
          m



Document Created: 2005-09-01 12:44:00
Document Modified: 2005-09-01 12:44:00

Previous E.O. D-161-26 | Previous E.O. D-160 | Next E.O. D-161-28 | Next E.O. D-162
