Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 15, 2001.
As of Monday, December 9th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1999 ?¢ through 2001 model-year Ford trucks equipped with the 7.3L turbo-diesel engineThe Git-Kit includes the following main components: Tailpipe, muffler, and an engine calibration module. The Stinger includes the following main components: A K&N style air filter to be installed in the stock air filter housing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, tailpipe, muffler, and an engine calibration module. The Stinger-Plus includes the following main components: A K&N style air filter to be installed in the stock air filter housing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, the 1.15 A/R stock turbine housing is replaced with a 1.0 A/R turbine housing, tailpipe, muffler, and an engine calibration module. The PowerPack includes the following main components: A K&N style air filter to be installed in the stock air filter housing, a replacement intercooler, a replacement intake plumbing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, the 1.15 A/R stock turbine housing is replaced with a 1.0 A/R turbine housing, tailpipe, muffler, and an engine calibration module.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-161-61
  • Executive Order 161-61 / D161-61
  • ARB # D-161-61
  • Executive Order No: D-161-61
  • C.A.R.B. No. D-161-61
  • Resolution D-161-61
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-161-61 PDF

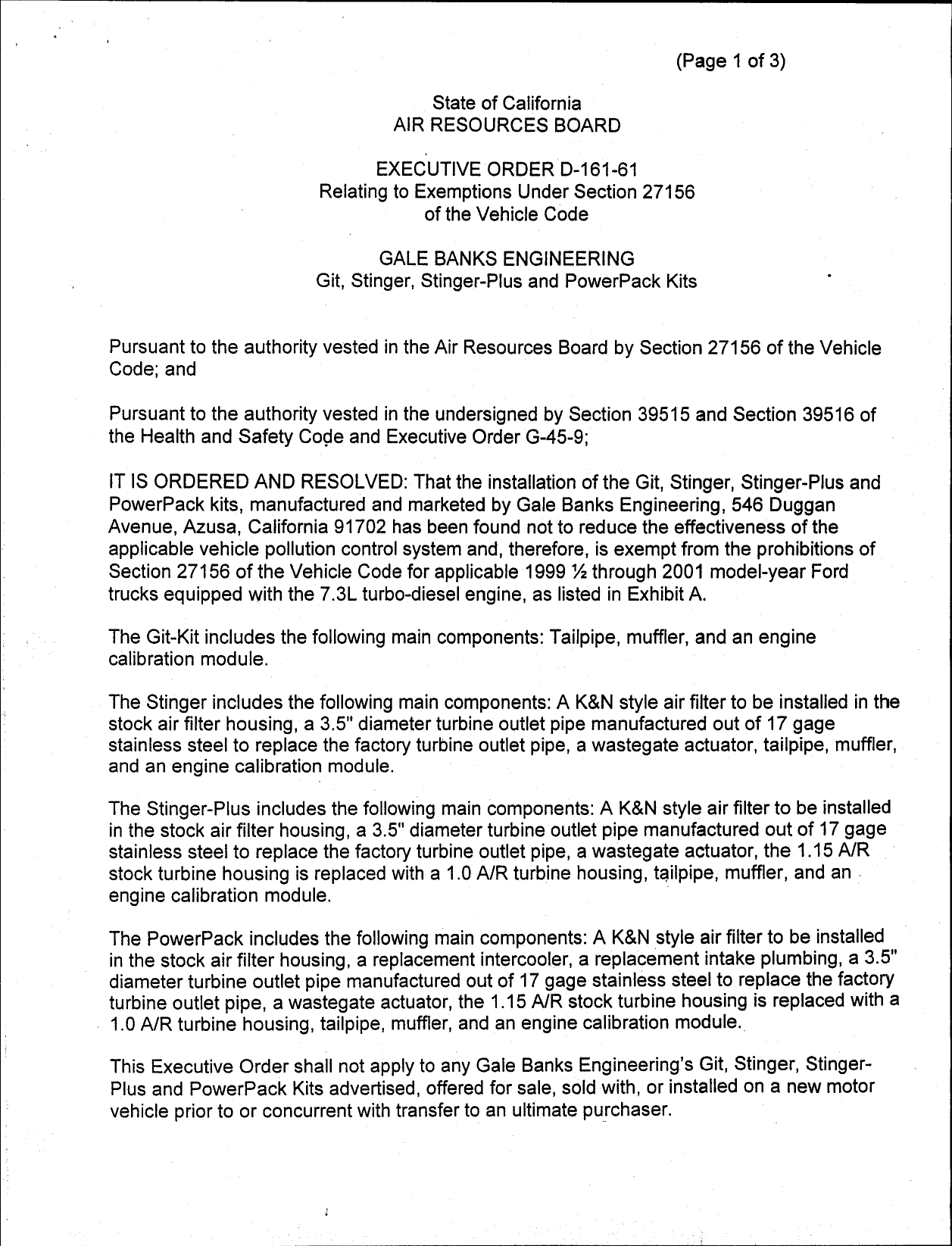

D-161-61 Document:


CARB_D-161-61

                                                                          (Page 1 of 3)

                                         State of California
                                     AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—161—61
                           Relating to Exemptions Under Section 27156
                                        of the Vehicle Code

                                    GALE BANKS ENGINEERING
                           Git, Stinger, Stinger—Plus and PowerPack Kits


 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
 Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
 the Health and Safety Code and Executive Order G—45—9;                                    |

 IT IS ORDERED AND RESOLVED: That the installation of the Git, Stinger, Stinger—Plus and
 PowerPack kits, manufactured and marketed by Gale Banks Engineering, 546 Duggan
 Avenue, Azusa, California 91702 has been found not to reduce the effectiveness of the
 applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
 Section 27156 of the Vehicle Code for applicable 1999 % through 2001 model—year Ford
 trucks equipped with the 7.3L turbo—diesel engine, as listed in Exhibit A.

 The Git—Kit includes the following main components: Tailpipe, muffler, and an engine
 calibration module.

 The Stinger includes the following main components: A K&N style air filter to be installed in the
 stock air filter housing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage
 stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, tailpipe, muffler,
 and an engine calibration module.

 The Stinger—Plus includes the following main components: A K&N style air filter to be installed
 in the stock air filter housing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage
 stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, the 1.15 /R _
 stock turbine housing is replaced with a 1.0 A/R turbine housing, tailpipe, muffler, and an .
 engine calibration module.                                             |

 The PowerPack includes the following main components: A K&N style air filter to be installed
 in the stock air filter housing, a replacement intercooler, a replacement intake plumbing, a 3.5"
 diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory
 turbine outlet pipe, a wastegate actuator, the 1.15 A/R stock turbine housing is replaced with a
—1.0 A/R turbine housing, tailpipe, muffler, and an engine calibration module.

 This Executive Order shall not apply to ahy Gale Banks Engineering‘s Git, Stinger, Stinger—
 Plus and PowerPack Kits advertised, offered for sale, sold with, or installed on a new motor
 vehicle prior to or concurrent with transfer to an ultimate purchaser.


GALE BANKS ENGINEERING                                          EXECUTIVE ORDER D—161—61
Git, Stinger, Stinger—Plus and PowerPack Kits                   (Page 2 of 3)



This Executive Order is valid provided that the installation instructions for the Git, Stinger,
Stinger—Plus and PowerPack Kits will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Git, Stingef, Stinger—Plus and
PowerPack Kits, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Git, Stinger, Stinger—Plus and PowerPack Kits using any identification other
than that shown in this Executive Order or marketing of the Git, Stinger, Stinger—Plus and
PowerPack Kits for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the
Git, Stinger, Stinger—Plus and PowerPack Kits shall not be construed as exemption to sell,
offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Git,
Stinger, Stinger—Plus and PowerPack Kits may have on any warranty either expressed or
implied by the vehicle manufacturer.                     .

This Executive Order is granted based on submitted emnissions test data which showed that
the PowerPack kit, did not adversely affect tailpipe emissions during comparative Cold Start
505 Federal Test Procedures. Results of the baseline and modified emission levels are listed
below. A 2000 Ford F—350 with a 7.3L diesel engine, and certified to the low emission vehicle
(LEV) emission standards was used as the test vehicle.

                   HC     CO        NOx       PM                Opacity
Baseline          0.57      1.6     7.4      0.150          _   9.0%
Modified >        0.43      1.5     7.4      0.115              16.9%

Difference        —0.14    —0 1%~   0.0      —0.035

Test results during comparative Cold Start 505 Federal Test Procedure showed that exhaust
emissions of the vehicle with the PowerPack kit installed did not cause exhaust emissions to
exceed the baseline emissions by more than the allowed limits of 10 percent or 0.1 grams per
mile on hydrocarbon (HC) and oxides of nitrogen (NOx), 15 percent or 1.0 grams per mile
carbon monoxide (CO), and 15 percent or 0.03 grams per mile on PM as specified in the
"Procedures for Exemption of Add—On and Modified Parts." Opacity test results which were
generated using the highest reading on the Smoke Opacity Test were below the 40 percent
standard.

This Executive Order is also based on the On Board Diagnostic II (OBD II) testing conducted
on the same vehicle. Test data showed that the PowerPack when installed on the vehicle did
not affect the vehicle‘s ability to perform its OBD II monitoring.


' ,GALE BANKS ENGINEERING                                        EXECUTIVE ORDER D—161—61
 Git, Stinger, Stinger—Plus and PowerPack Kits                  (Page 3 of 3)



 _ In addition to the foregoing, the ARB reserves the right in the future to review this Executive
   Order and the exemption provided herein to assure that the exempted add—on or modified part
. continues to meet the standards and procedures of Title 13, California Code of Regulations,
 Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
 RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF GALE BANKS
 ENGINEERING‘S GIT, STINGER, STINGER—PLUS AND POWERPACK KITS.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.

 Violation of any of the above conditions shall be grounds for revocation of this order. The
 order may be revoked only after a ten—day written notice of intention to revoke the order, in
 which period the holder of the order may request in writing a hearing to contest the proposed
 revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
 and the order may not be revoked until a determination is made after the hearing that grounds
 for revocation exist.




                                       /4
 Executed at El Monte, California, this    [J74day o




                                          R. B. Summeffield, Chief
                                          Mobile Source Operations Division


                                        Exhibit A


  PN     AEBLIQAI.IQ_N
 47140    1999.5 F—250/350 AUTO GITKIT, FIF2/3, NSU2, NVK2/3
 47141    1999.5 F—450/550 AUTO GIT—KIT, AGD2/3, CNH2/3, FHP2    .
  47142 1999.5 F—250/350 MAN GIT—KIT, ATA2,B1S2,DAC2,QWL2,ZHL1
  47143   1999.5 F—450/550 MAN GIT—KIT, NBD2, VXY2
  47145   2000 F—250/350 AUTO GIT—KIT, NVK4, ZYS5          T
  47146   2000 F—450/550 AUTO GIT—KIT, CNH4, FHP3
  47147   2000 F—250/350 MAN GIT—KIT, ATA3, DAC3
  47148 2000 F—450/550 MAN GIT—KIT, VXY3/4
  47150 1999.5 F—250/350 AUTO STINGER, FIF2/3, NSU2, NVK2/3
  47151 1999.5 F—450/550 AUTO STINGER, AGD2/3, CNH2/3, FHP2
  47152 1999.5 F—250/350 MAN STINGER, ATA2,BIS2,DAC2,QWL2
  47153 1999.5 F—450/550 MAN STINGER, NBO2, VXY2
  47154   1999.5 F—250/350 AUTO STINGER, FIF2/3, NSU2, NVK2/3
  47155   1999.5 F—450/550 AUTO STINGER, AGD2/3, CNH2/3, FHP2
  47156   1999.5 F—250/350 MAN STINGER, ATA2,B1S2,DAC2,QWL2,ZHL1
  47157   1999.5 F—450/550 MAN STINGER, NBD2, VXY2
  47160 — 1999.5 F—250/350 AUTO STINGER—PLUS, FIF2/3, NSU2, NVK2/3
© 47161   1999.5.F—450/550 AUTO STINGER—PLUS, AGD2/3, CNH2/3, FHP2
  47162 1999.5 F—250/350 MAN STINGER—PLUS, ATA2,B1S2,DAC2,QWL2
  47163 1999.5 F—450/550 MAN STINGER—PLUS, NBO2, VXY2
  47165 2000 F—250/350 AUTO STINGER, NVK4, ZYS5
  47166 2000 F—450/550 AUTO STINGER, CNH4, FHP3
  47167 2000 F—250/350 MAN STINGER, ATA3, DAC3
  47168 2000 F—450/550 MAN STINGER, VXY3/4
  47180 2000 F—250/350 AUTO STINGER—PLUS, NVK4, ZYS5
  47181   2000 F—450/550 AUTO STINGER—PLUS, CNH4, FHP3
  47182 2000 F—250/350 MAN STINGER—PLUS, ATA3, DAC3
  47183 2000 F—450/550 MAN STINGER—PLUS, VXY3/4
  47190 1999.5 F—250/350 AUTO STINGER—PLUS, FIF2/3, NSU2, NVK2/3
  47191   1999.5 F—450/550 AUTO STINGER—PLUS, AGQ2/3, CNH2/3, FHP2
  47192 1999.5 F—250/350 MAN STINGER—PLUS, ATA2,BIS2,DAC2,QWL2, ZHL1
  47193 1999.5 F—450/550 MAN STINGER—PLUS, NBO2, VXY2
  47200 2000 F—250/350 AUTO GIT—KIT, AXDO0/1, HQNO, MRTO, UKNO/1
  47202 2000 F—250/350 MAN GIT—KIT, HMROA, XPC4
  47204 2000 F—250/350 AUTO GIT—KIT, CNHS, NVKS
  47205 2000 F—250/350 AUTO STINGER, AXDO0/1, HQNO, MRTO, UKNO/
  47207 2000 F—250/350 MAN STINGER, HMRO/A1, XPC4
  47209 2000 F—250/350 AUTO STINGER, CNHS, NVKS
  47210 2000 F—250/350 AUTO STINGER—PLUS, AXDO0/1, HQNO, MRTO UKNO/1
  47212 2000 F—250/350 MAN STINGER—PLUS, HMRO/A1, XPC4         ‘
  47214 2000 F—250/350 AUTO STINGER—PLUS, CNHS, NVKS
  47221   2000 EXCURSION AUTO STINGER, AXDO0/1, UKNO/A
  47222 2000 EXCURSION AUTO STINGER—PLUS, AXDO0/1, UKNQ/1
  47223 2000 EXCURSION AUTO POWERPACK, AXDO/1, UKNO/1
  47225 2000 EXCURSION AUTO STINGER, NVK4, ZYSS5
  47226 2000 EXCURSION AUTO STINGER—PLUS.NVK4, ZYS5
  47227 2000 EXCURSION AUTO POWERPACK, NVK4, ZYSS


                                      Exhibit A


  47234   1999.5 F—250/350 AUTO POWERPACK, FIF2/3, NSU2, NVK2/3
  47235   1999.5 F—450/550 AUTO POWERPACK, AGD2/3, CNH2/3, FHP2
  47236   1999.5 F—250/350 MAN POWERPACK, ATA2,BIS2,DAC2,QWL2z
  47237   1999.5 F—450/550 MAN POWERPACK, NBD2, VXY2
  47238   1999.5 F—250/350 AUTO POWERPACK, FIF2/3, NSU2, NVK2/3
  47239   1999.5 F—450/550 AUTO POWERPACK, AGD2/3, CNH2/3, FHP2
  47240   1999.5 F—250/350 MAN POWERPACK, ATA2,B1S2,0AC2,QWL2, ZHL1
  47241   1999.5 F—450/550 MAN POWERPACK, NBD2, VXY2
  47242   2000 F—250/350 AUTO POWERPACK, NVK4, ZYSS5
  47243   2000 F—450/550 AUTO POWERPACK, CNHA4, FHP3
  47244   2000 F—250/350 MAN POWERPACK, ATA3, DAC3
  47245   2000 F—450/550 MAN POWERPACK, VXY3/4
  47246   2000 F—250/350 AUTO POWERPACK, AXDO/1, HQNO, MRTO, UKNO/A
_ 47248   2000 F—250/350 MAN POWERPACK, HMRO/M1, XPC4
 47250    2000 F—250/350 AUTO POWERPACK, CNHS, NVKS
 47260    2001 F—250/350 AUTO GIT—KIT, BKA1, NMCA1, PMT1
 47261    2001 F—250/350 AUTO STINGER, BKA1, NMC1, PMT1
 47262    2001 F—250/350 AUTO STINGER—PLUS, BKA1, NMC1, PMT1
 47263    2001 F—250/350 AUTO POWERPACK, BKA1, NMC1, PMT1
 47264    2001 F—250/350 AUTO GIT—KIT, BKAZ, NMC2, PMT2
 47265    2001 F—250/350 AUTO STINGER, BKAZ, NMC2, PMT2
 47266    2001 F—250/350 AUTO STINGER—PLUS, BKA2, NMC2, PMT2
 47267    2001 F—250/350 AUTO POWERPACK, BKA2Z, NMC2, PMT2
 47268    2001 EXCURSION AUTO STINGER, EBM1
 47269    2001 EXCURSION AUTO STINGER—PLUS, E8BM1
 47270    2001 EXCURSION AUTO POWERPACK, EBM1
 47271    2001 EXCURSION AUTO STINGER, EBM2
 47272    2001 EXCURSION AUTO STINGER—PLUS, EBM2
 47273    2001 EXCURSION AUTO POWERPACK, EBM2



Document Created: 2005-09-01 12:43:21
Document Modified: 2005-09-01 12:43:21
