Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 25, 2002.
As of Monday, November 4th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
1999 ?¢ through 2001 model-year Ford trucks equipped with the 7.3L turbo-diesel engineThe Git-Kit includes the following main components: Tailpipe, muffler, and an engine calibration module. The Stinger includes the following main components: A K&N style air filter to be installed in the stock air filter housing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, tailpipe, muffler, and an engine calibration module. The Stinger-Plus includes the following main components: A K&N style air filter to be installed in the stock air filter housing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, the 1.15 A/R stock turbine housing is replaced with a 1.0 A/R turbine housing, tailpipe, muffler, and an engine calibration module. The PowerPack includes the following main components: A K&N style air filter to be installed in the stock air filter housing, a replacement intercooler, a replacement intake plumbing, a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless steel to replace the factory turbine outlet pipe, a wastegate actuator, the 1.15 A/R stock turbine housing is replaced with a 1.0 A/R turbine housing, tailpipe, muffler, and an engine calibration module.
47464 POWERPACK2000-01 EXCURSION

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-161-64
  • Executive Order 161-64 / D161-64
  • ARB # D-161-64
  • Executive Order No: D-161-64
  • C.A.R.B. No. D-161-64
  • Resolution D-161-64
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-161-64 PDF

D-161-64 Document:


CARB_D-161-64

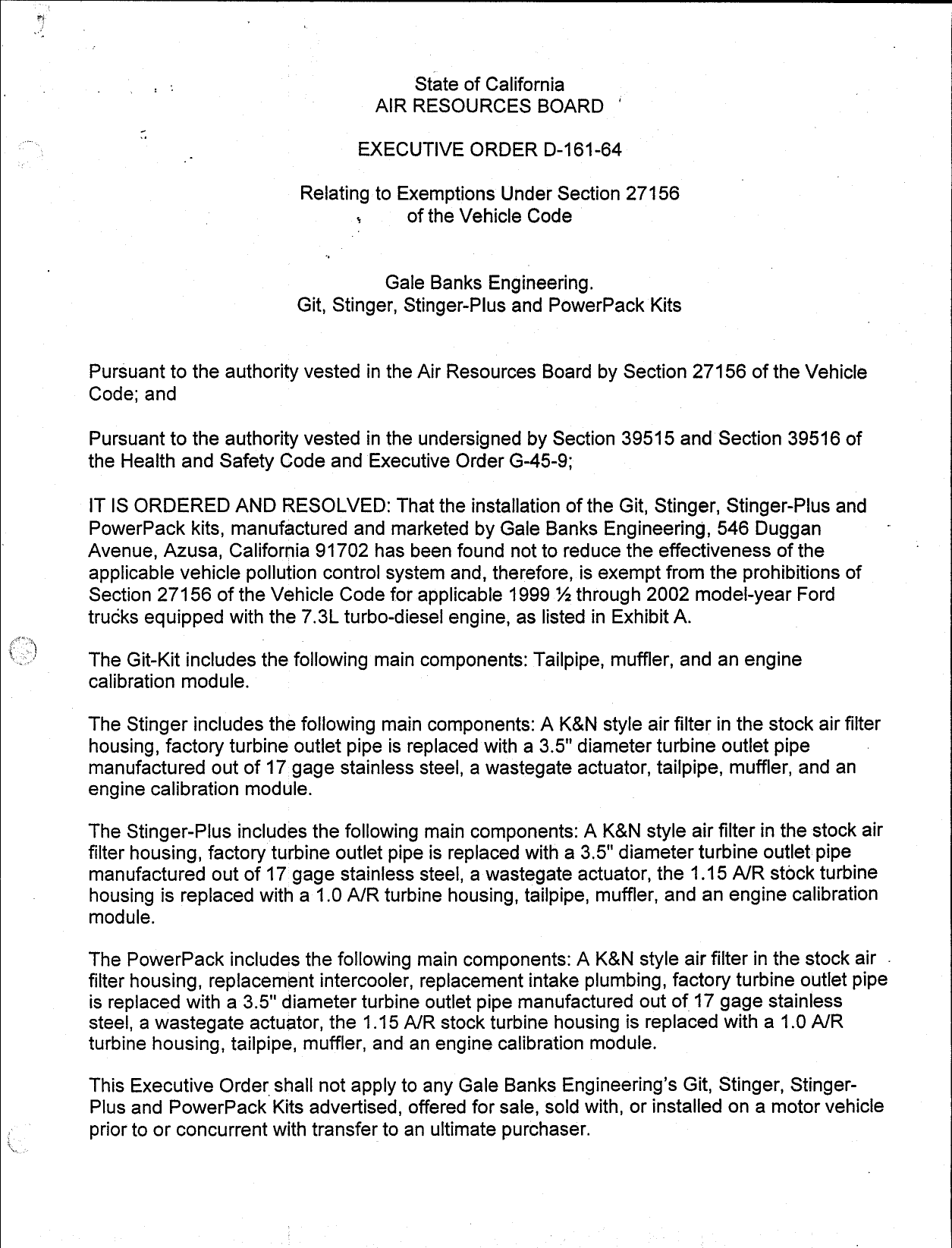

                                       State of California |
                                   AIR RESOURCES BOARD /
                                 EXECUTIVE ORDER D—161—64

                          Relating to Exemptions Under Section 27156
                                 s     of the Vehicle Code


                                    Gale Banks Engiheering.
                         Git, Stinger, Stinger—Plus and PowerPack Kits


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Git, Stinger, Stinger—Plus and
PowerPack kits, manufactured and marketed by Gale Banks Engineering, 546 Duggan
Avenue, Azusa, California 91702 has been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for applicable 1999 % through 2002 model—year Ford
trucks equipped with the 7.3L turbo—diesel engine, as listed in Exhibit A.

The Git—Kit includes the following main components: Tailpipe, muffler, and an engine
calibration module.

The Stinger includes the following main components: A K&N style air filter in the stock air filter
housing, factory turbine outlet pipe is replaced with a 3.5" diameter turbine outlet pipe
manufactured out of 17 gage stainless steel, a wastegate actuator, tailpipe, muiffler, and an
engine calibration module.

The Stinger—Plus includes the following main components: A K&N style air filter in the stock air
filter housing, factory turbine outlet pipe is replaced with a 3.5" diameter turbine outletpipe
manufactured out of 17 gage stainless steel, a wastegate actuator, the 1.15 A/R stock turbine
housing is replaced with a 1.0 A/R turbine housing, tailpipe, muffler, and an engine calibration
module.

The PowerPack includes the following main components: A K&N style air filter in the stock air .
filter housing, replacement intercooler, replacement intake plumbing, factory turbine outlet pipe
is replaced with a 3.5" diameter turbine outlet pipe manufactured out of 17 gage stainless
steel, a wastegate actuator, the 1.15 A/R stock turbine housing is replaced with a 1.0 A/R
turbine housing, tailpipe, muffler, and an engine calibration module.

This Executive Order shall not apply to any Gale Banks Engineering‘s Git, Stinger, Stinger—
Plus and PowerPack Kits advertised, offered for sale, sold with, or installed on a motor vehicle
prior to or concurrent with transfer to an ultimate purchaser.


                                                 27—


This Executive Order is valid provided that the installation instructions for the Git, Stinger,
Stinger—Plus and PowerPack Kits will not recommend tuning the vehicle to spemficatlons
different from those of the vehicle manufacturer.

Changes made to the design or, operating conditions of the Git, Stinger, Stinger—Plus and
PowerPack Kits, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Git, Stinger, Stinger—Plus and PowerPack Kits using any identification other
than that shown in this Executive Order or marketing of the Git, Stinger, Stinger—Plus and
PowerPack Kits for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the
Git, Stinger, Stinger—Plus and PowerPack Kits shall not be construed as exemption to sell,
offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Git,
Stinger, Stinger—Plus and PowerPack Kits may have on any warranty either expressed or
implied by the vehicle manufacturer.

This Executive Order is granted based on emissions test data which showed that the worst
case kit, PowerPack, did not adversely affect tailpipe emissions during comparative Cold Start
505 Federal Test Procedures. Results of the modified test and the baseline emission levels
are listed below. A 2000 Ford F—350 with a 7.3L diesel engine, and certified to the low
emission vehicle (LEV) emission standards was used as the test vehicle.

                   HC       CO     NOx        PM                Opacity
Stock             0.57      1.6     7.4       0.150             9.0%
PowerPack         0.43      1.5    7.4        0.115             16.9%

Difference        —0.14    —0.1    0.0       —0.035

Test results showed that tailpipe emissions during comparative Cold Start 505 Federal Test
Procedure with the PowerPack installed on the vehicle did not cause exhaust emissions to
exceed the baseline emissions by more than the allowed limits of 10 percent or 0.1 grams per
mile on hydrocarbon (HC) and oxides of nitrogen (NOx), 15 percent or 1.0 grams per mile
carbon monoxide (CO), and 15 percent or 0.03 grams per mile on PM as specified in the
"Procedures for Exemption of Add—On and Modified Parts." Opacity test results which were
generated using the highest reading on the Smoke Opacity Test were below the 40 percent
standard.

This Executive Order is also based on the On Board Diagnostic II (OBD I1) testing conducted
on the same vehicle. Test data showed that the PowerPack when installed on the vehicle did
not affect the vehicle‘s ability to perform its OBD 11 monitoring.




     GALE BANKS—GIT, STINGER, STINGER—PLUS AND POWERPACK KITS—D—161—64


                                               —3.


In addition to the foregoing, the ARB reserves the right in the future to review this Executive
  Order and the exemption provided herein to assure that the exempted add—on or modified part
  continues to meet the standards and procedures of Title 13, California Code of Regulations,
. Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF GALE BANKS
ENGINEERING‘S GIT, STINGER, STINGER—PLUS AND POWERPACK KITS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication. .

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executive Order D—161—61, dated March 2001, is superseded and of no further force and
effect.                                                             .

Executed at El Monte, California, this 2§"’ day of March 2002.




                                   AIIe:EE.yons, Chief
                                   New Vehicle/Engine Programs Branch




   GALE BANKS—GIT, STINGER, STINGER—PLUS AND POWERPACK KITS—D—161—64


                                                            Exhibit A


Kit                                               ication

POWERPACK        2000—01 EXCURSION
STINGER PLUS     2000—01 EXCURSION
STINGER          2000—01 EXCURSION
POWERPACK        1999.5—02 F250/350 AUTO
POWERPACK        1999.5—02 F25Q0/350 MAN
POWERPACK        1999.5—02 F450/550 AUTO
POWERPACK        1999.5—02 £450/550 MAN
STINGER PLUS     1     .5 02 F250/350 AUTO

                 cCO (O (O O (D (D© (D (O (D (G
STINGER PLUS     1     .5 02 F250/350 MAN
STINGER PLUS     1     .5 02 F450/550 AUTO
STINGER PLUS     1     5 02 F450/550 MAN
STINGER          1     .5 82 E250/350 AUTO
STINGER          1     .5 2 £250/350 MAN
STINGER          1     .8 0 2 £450/550 AUTO
STINGER          1     .5 0 2 F450/550 MAN
GIT KIT          1     .5 02 F250/350
GIT KIT          1     .5—02 F450/550
POWERPACK        2001 F250/350 MAN
STINGER PLUS     2001 F250/350 MAN
POWERPACK        1999.5 F250/350 AUTO
POWERPACK        1999.5 F250/350 MAN
POWERPACK        1999.5 F450/550 AUTO
POWERPACK        1999.5 F450/550 MAN
STINGER PLUS —   1999.5 F250/350 AUTO
STINGER PLUS     1 999.5 F250/350 MAN
STINGER PLUS     19 99.5 F450/550 AUTO
STINGER PLUS     19 9 9.5 E450/550 MAN
STINGER          19 99.5 F250/350 AUTO
STINGER          19 99.5 E250/350 MAN
STINGER          19 99. 5 FE45Q0/550 AUTO
STINGER             99. F450/550 MAN
                 1999.5
