Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 7, 2003.
As of Sunday, August 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
47401 GIT-KIT1999-2003 F-450/550The Git-Kit includes the following main components: Tailpipe, muffler, Ottomind Power Module, and a zener diode that is used with the MAP sensor.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-161-69
  • Executive Order 161-69 / D161-69
  • ARB # D-161-69
  • Executive Order No: D-161-69
  • C.A.R.B. No. D-161-69
  • Resolution D-161-69
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-161-69 PDF

D-161-69 Document:



                                                                                         l

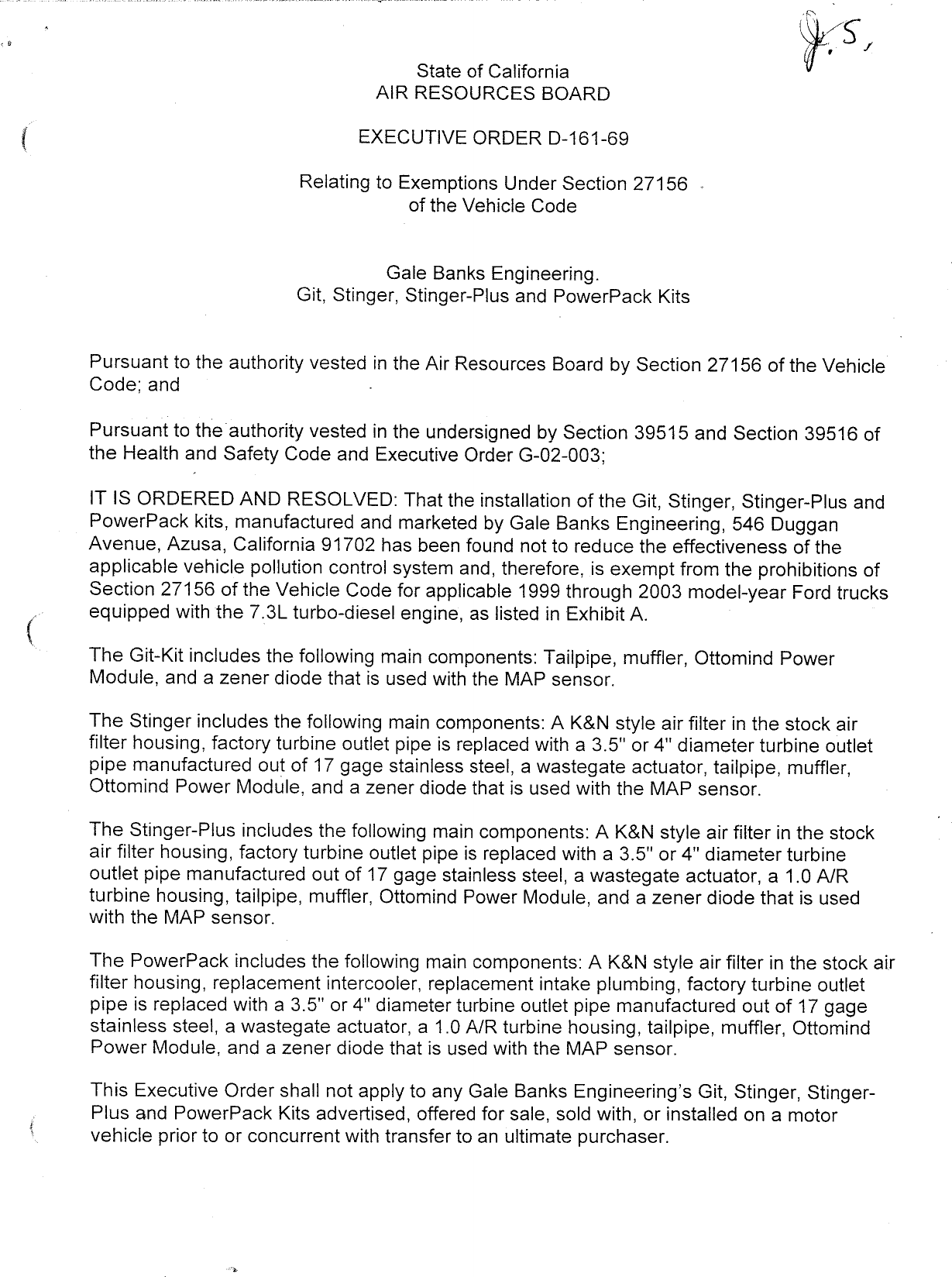

                                        State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—161—69

                         Relating to Exemptions Under Section 27156 —
                                      of the Vehicle Code


                                    Gale Banks Engineering.
                         Git, Stinger, Stinger—Plus and PowerPack Kits


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and                       —

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Git, Stinger, Stinger—Plus and
PowerPack kits, manufactured and marketed by Gale Banks Engineering, 546 Duggan
Avenue, Azusa, California 91702 has been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for applicable 1999 through 2003 model—year Ford trucks
equipped with the 7.3L turbo—diesel engine, as listed in Exhibit A.

The Git—Kit includes the following main components: Tailpipe, muffler, Ottomind Power
Module, and a zener diode that is used with the MAP sensor.

The Stinger includes the following main components: A K&N style air filter in the stock air
filter housing, factory turbine outlet pipe is replaced with a 3.5" or 4" diameter turbine outlet
pipe manufactured out of 17 gage stainless steel, a wastegate actuator, tailpipe, muffler,
Ottomind Power Module, and a zener diode that is used with the MAP sensor.

The Stinger—Plus includes the following main components: A K&N style air filter in the stock
air filter housing, factory turbine outlet pipe is replaced with a 3.5" or 4" diameter turbine
outlet pipe manufactured out of 17 gage stainless steel, a wastegate actuator, a 1.0 A/R
turbine housing, tailpipe, muffler, Ottomind Power Module, and a zener diode that is used
with the MAP sensor.

The PowerPack includes the following main components: A K&N style air filter in the stock air
filter housing, replacement intercooler, replacement intake plumbing, factory turbine outlet
pipe is replaced with a 3.5" or 4" diameter turbine outlet pipe manufactured out of 17 gage
stainless steel, a wastegate actuator, a 1.0 A/R turbine housing, tailpipe, muffler, Ottomind
Power Module, and a zener diode that is used with the MAP sensor.

This Executive Order shall not apply to any Gale Banks Engineering‘s Git, Stinger, Stinger—
Plus and PowerPack Kits advertised, offered for sale, sold with, or installed on a motor
vehicle prior to or concurrent with transfer to an ultimate purchaser.


                                                2.


This Executive Order is valid provided that the installation instructions for the Git, Stinger,
Stinger—Plus and PowerPack Kits will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Git, Sti’nger, Stinger—Plus and
PowerPack Kits, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Git, Stinger, Stinger—Plus and PowerPack Kits using any identification other
than that shown in this Executive Order or marketing of the Git, Stinger, Stinger—Plus and
PowerPack Kits for an application other than thoseé listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the
Git, Stinger, Stinger—Plus and PowerPack Kits shall not be construed as exemption to sell,
offer for sale, or advertise any component of the kit as an individual device. —

This Executive Order does not constitute any opinion as to the effect the use of the Git,
Stinger, Stinger—Plus and PowerPack Kits may have on any warranty either expressed or
implied by the vehicle manufacturer.

This Executive Order is granted based on emissions test data which showed that the worst
case kit, PowerPack, did not adversely affect tailpipe emissions during comparative Cold
Start 505 Federal Test Procedures. Results of the modified test and the baseline emission
levels are listed below. A 2000 Ford F—350 with a 7.3L diesel engine, and certified to the low
emission vehicle (LEV) emission standards was used as the test vehicle.

                   HC       CO      NOx        PM                Opacity
Stock              0.57     116    7.4        0.150              9.0%
PowerPack          0.43     1.5    7.A        0.115              16.9%

Difference         —0.14    —0.1    0.0       —0.035

Test results showed that tailpipe emissions during comparative Cold Start 505 Federal Test
Procedure with the PowerPack installed on the vehicle did not cause exhaust emissions to
exceed the baseline emissions by more than the allowed limits of 10 percent or 0.1 grams
per mile on hydrocarbon (HC) and oxides of nitrogen (NOx), 15 percent or 1.0 grams per mile
carbon monoxide (CO), and 15 percent or 0.03 grams per mile on PM as specified in the
"Procedures for Exemption of Add—On and Modified Parts." Opacity test results which were
generated using the highest reading on the Smoke Opacity Test were below the 40 percent .
standard.

This Executive Order is also based on the On Board Diagnostic I! (OBD II) testing conducted
on the same vehicle. Test data showed that the PowerPack when installed on the vehicle
did not affect the vehicle‘s ability to perform its OBD 11 monitoring.

       #




     GALE BANKS—GIT, STINGER, STINGER—PLUS AND POWERPACK KITS—D—161—69


                                                —3—


The ARB reserves the right in the future to review this Executive Order and the exemption
provided herein to assure that the exempted add—on or modified part continues to meet the
standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF GALE BANKS
ENGINEERING‘S GIT, STINGER, STINGER—PLUS AND POWERPACK KITS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order maybe revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that
grounds for revocation exist.

Executive Order D—161—64, dated March 2002, is superseded and of no further force and
effect.               ‘

Executed at El Monte, California, this   éfl'l    day of March 2002.




                                   Alle,;?f?yons, Chief
                                   Mobile Source Operations Division




     GALE BANKS—GIT, STINGER, STINGER—PLUS AND POWERPACK KITS—D—161—69


                                                  Exhibit A


Part NO   System         Application
   47401 GIT—KIT         1999—2003 F—450/550
   47411 STINGER         1999 F—450/550 Auto
   47413 STINGER         1999 F—450/550 Man
   47416 STINGER—PLUS    1999 F—450/550 Auto
   47418 STINGER—PLUS    1999 F—450/550 Man
   47421 POWERPACK       1999 F—450/550 Auto
   47423 POWERPACK       1999 F—450/550 Man
   47431 STINGER         1999   (early)   F—450/550   Auto
   47433 STINGER         1999   {early)   F—450/550   Man
   47436 STINGER—PLUS    1999   (early)   F—450/550   Auto
   47438 STINGER—PLUS    1999   (early)   F—450/550   Man
   47441 POWERPACK       1999 {early) F—450/550 Auto
   47443 POWERPACK       1999 (early) F—450/550 Man
   47451 STINGER:        1999 (late)—2003 F—450/550 Auto
   47453 STINGER         1999 (late)—2003 F—450/550 Man
   47456 STINGER—PLUS    1999 (late)—2003 F—450/550 Auto
   47458 STINGER—PLUS    1999(late)—2003 F—450/550 Man
   47461 POWERPACK       1999 (late)—2003 F—450/550 Auto
   47463 POWERPACK       1999 (late)—2003 F—450/550 Man
   47510 GIT—KIT         1999—2003 F—250/350
   47515 STINGER         1999 F—250/350 Auto
   47517 STINGER         1999 F—250/350 Man
   47520 STINGER—PLUS    1999 F—250/350 Auto
   47522 STINGER—PLUS    1999 F—250/350 Man
   47525 POWERPACK       1999 F—250/350 Auto
   47527 POWERPACK       1999 F—250/350 Man
   47530 STINGER         1999 (early) F—250/350 Auto
   47532 STINGER         1999 (early) F—250/350 Man
   47535 STINGER—PLUS    1999 (early) F—250/350 Auto
   47537 STINGER—PLUS    1999 (early) F—250/350 Man
   47540 POWERPACK       1999 (early) F—250/350 Auto
    47542 POWERPACK      1999 (early) F—250/350 Man
    47545 STINGER        1999 (late)—2003 F—250/350 Auto
    47547 STINGER        1999 (late})—2003 F—250/350 Man
    47549 STINGER        2000—2003 Excursion
    47550 STINGER—PLUS   1999 (late)—2003 F—250/350 Auto
    47552 STINGER—PLUS    1999 (late}—2003 F—250/350 Man
    47555 POWERPACK      1999 (late)—2003 F—250/350 Auto
    47557 POWERPACK      1999 (late)—2003 F—250/350 Man
    47567 STINGER—PLUS   2001—2003 F—250/350 Man (275—hp rated, w/ cat)
    47569 STINGER—PLUS   2000—2003 Excursion
    47572 POWERPACK       2001—2003 F—250/350 Man (275—hp rated, w/ cat)
    47574 POWERPACK       2000—2003 Excursion
