Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 19, 1987.
As of Thursday, June 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
No. 6.2G1982-1987 model-year Chevrolet/GMC heavy-duty vehicles powered by a 6.2 liter General Motors heavy-duty diesel engine.Modifications to the OEM emission-related parts due to the installation of the turbocharger kit include a new air cleaner assembly, a new 3" low-restriction muffler and 3" diameter exhaust pipe.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-161-7
  • Executive Order 161-7 / D161-7
  • ARB # D-161-7
  • Executive Order No: D-161-7
  • C.A.R.B. No. D-161-7
  • Resolution D-161-7
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-161-7 PDF

D-161-7 Document:

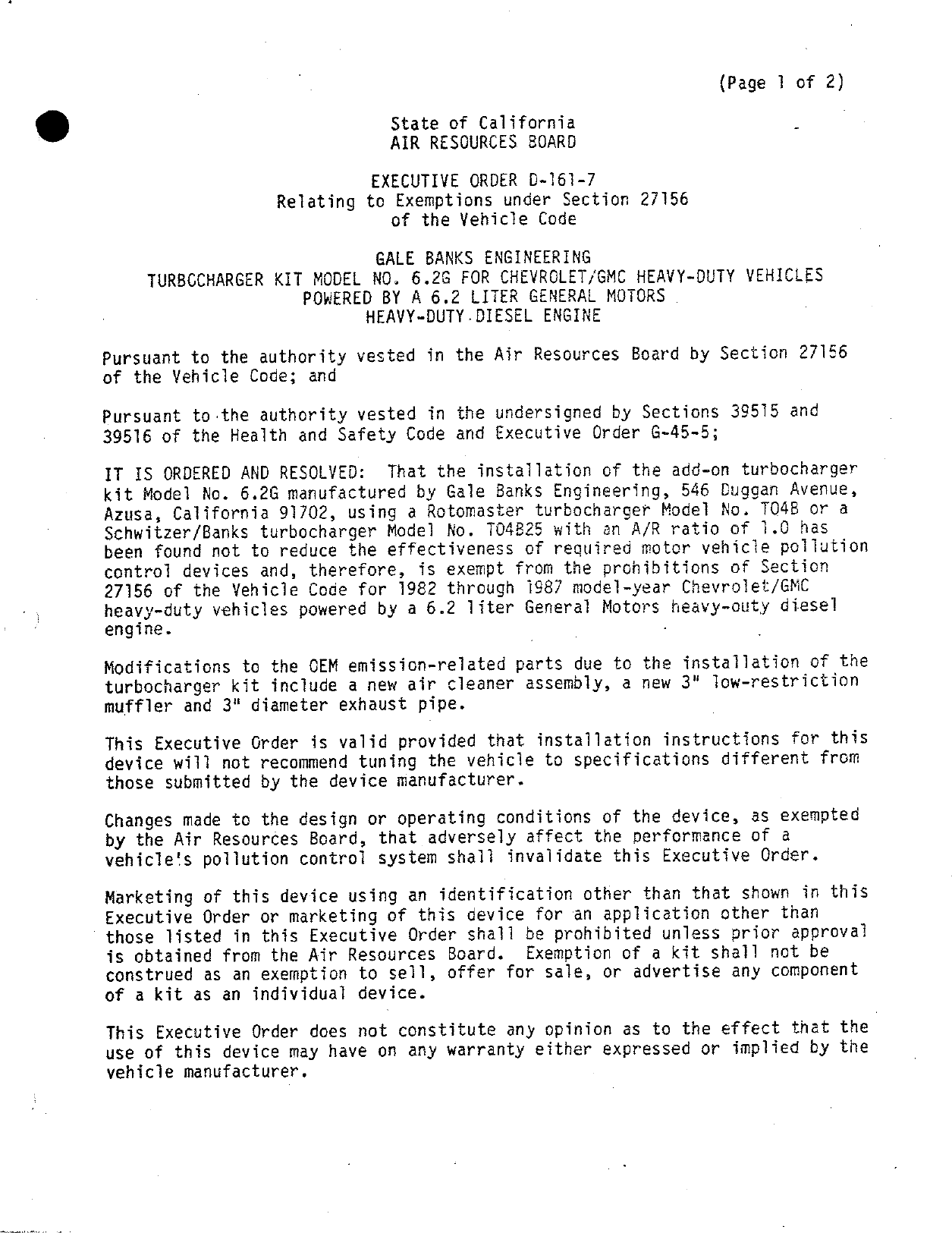

                                                                {Page 1 of 2)

                              State of California
                              AIR RESOURCES BOARD

                            EXECUTIVE ORDER D—161—7
                  Relating to Exemptions under Section 27156
                              of the Vehicle Code

                           GALE BANKS ENGINEERING
    TURBCCHARGER KIT MODEL NO. 6.2§ FOR CHEVROLET/GMC HEAVY—DUTY VEHICLES
                    POWERED BY A 6.2 LITER GENERAL MOTORS
                          HEAVY—DUTY.DIESEL ENGINE

Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLYED:   That the installation of the add—on turbocharger
kit Model No. 6.2G manufactured by Gale Banks Engineering, 546 Duggan Avenue,
Azusa, California 91702, using a Rotomaster turbocharger Model No. TO4B or a
Schwitzer/Banks turbocharger Model No. TO4B25 with an A/R ratio of 1.0 has
been found not to reduce the effectiveness of required motor vehicle pollution
control devices and, therefore, is exempt from the prohibitions of Section
27156 of the Yehicle Code for 1982 through 1987 model—year Chevrolet/GMC
heavy—duty vehicles powered by a 6.2 liter General Motors heavy—outy diesel
engine.                                                  .

Modifications to the CEM emission—related parts due to the installation of the
turbocharger kit include a new air cleaner assembly, a new 3" low—restriction
muffler and 3" diameter exhaust pipe.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the'
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.


GALE BANKS ENGINEERING                      ,            EXECUTIVE ORDER D—161—7
                                                         (Page 2 of ?)



THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE GALE BANKS ENGINEERING TURBOCHARGER KIT MODEL NO. 6.2G FOR
INSTALLATION ON CHEVROLET/GMC VEHICLES POWERED BY A 6.2 LITER GENERAL MOTORS
HEAVY—DUTY DIESEL ENGINE.

No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertxs1ng or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   ({a)   No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board.     No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device. Any violation of this
    subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—161—3, dated October 23, 1986, is superseded and of no
further force and effect.


Executed at El Monte, California, this     Z%Z/5r~aay of October, 1987.




                                         K. D. Drachand, Chief
                                         Mobile Source Division


                     State of California
                    AIR RESOURCES BOARD




EVALUATION OF GALE BANKS ENGINEERING‘S ADD—ON TURBOCHARGER KiT
       MODEL NO. 6.2G FOR INSTALLATION IN CHEVROLET/GMC
          HEAVY—DUTY VEHICLES POWERED BY A 6.2 L1TER
           GENERAL MOTORS HEAVY—DUTY DIESEL ENGINE
     FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE
        SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
       TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CoDE




                       October, 1987


       EVALUATION OF GALE BANKS ENGINEERING‘S ADD—ON TURBOCHARGER KIT
              MODEL NO. 6.2G FOR INSTALLATION IN CHEVROLET/GMC
                 HEAVY—DUTY VEKHICLES POWERED BY A 6.2 LITER
                  GENERAL MOTORS HEAVY—DUTY DIESEL ENGINE
            FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE
              "SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
              TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE




                                    .by

                           Mobile Source Division

                            State of California
                            AIR RESOURCES BOARD
                            9528 Telstar Avenue
                            EJ Monte, CA 91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                          SUMMARY                                    *



           Gale Banks Engineering (Banks) has requested an update to Executive

    Order D~161~3, which exempts their turbocharger kit mode! No. 6.2G for 1982—

    1987 model—year‘Chevrolet/GMC heavy—duty vehicles powered by a 6.2       liter

    General Motors heavy—duty diesel engine.~       They have requested that a

    turbocharger unit manufactured by an additional source (Schwitzer/

    Banks) be also exempted.

           Based ofi the following:       (1) comparative compressor performance maps

    submitted by Banks   indicating that the two turbochargers have simllar

    operating characteristics;    (2)   the fact that both turbochargers have an A/R

    ratio of 1.0; and (3)    test data from previous comparative exhaust emission

    tests performed for exempting the kit, the staff concludes that the Banks

‘   turbocharger k{t mcdél   No. 6.2G using the Schwitzer/Banks turbocharger wili

    not adversely affect exhaust emissions from 1982—1987 model—year

    Chevrolet/GMC heavy—duty vehicies powered by a 6.2 liter General Motors

    heavy—duty diese! engine.


                                      CONTENTS




                                                            Page Number

     MMARY                                                       I

CONTENTS                                                        DT

1 ..         INTROBUCT ION                   +                   1

Pi.                NCLUS   1ON                                   1

LH .         RECOMMENDAT L ONS                                   2

1v.        TURBQQHARQER KIT DESCRIPTION AND OPERATION            2

V.            I            1ON                                   2

APPEND 1      CE                                        ©        4

             COMPRESSOR MAPS                                     5




                                        E4


EVALUATION OF GALE BANKS ENGINEERING‘S ADD—ON TURBOCHARGER KIT MODEL NO. .
6.2G FOR INSTALLATION IN CHEVROLET/GMC HEAYY—DUTY VEHICLES POWERED BY A 6.2
LITER GENERAL MOTORS HEAVY—DUTY DIESEL ENGINE FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WiTH SECTION 2222,
TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE



1.     JNTRODUCTION

       Gale Banks Engineering (Banks) of 546 Duggan Avenue, Azusa,

California 91702,         has requested an update to the existing Air Resources

Board Executive Order         (E.0.) D—161—3 dated October 23, 1986.   E.0. D—161—3

exempted the Bank‘s turbocharger kit mode! No. 6.2G from the prohibitions             in

Vehicle Code Section 27156 for 1982—1987 model—year Chevrolet/GMC heavy—duty

vehicies powered by a 6.2 liter General Motors heavy—duty diesel enéine,

The applicant has requested that a turbocharger unit         (the major component of

the kit) manufactured by an additional        source (Schwitzer/Banks) be also

exempted.      This would give Banks the freedom to procure turbocharger units

from two sources when assembling the kits for saile.

[E.         NCLUS   ION

       Based on the following:          (1) comparative compressor performance maps

submitted by Banks         Indicating that the two turbochargers have similar

operating characteristics; (2) the fact that both turbochargers have an A/R

ratio of 1.0; and (3)        test data from previous comparative exhaust emission

tests perférmed for exempting the kit, the staff conciudes that the Banks

turbocharger kit mode! No. 6.2G using the Schwitzer/Banks turbocharger wil|

not adversely affect exhaust emissions from 1982—1987 model—year

Chevrolet/GMC heavy—duty vehicles powered by a 6.2 liter General Motors

heavy—duty diesel engine.


LEH.     RECOMMENDAT IONS                                                                    =

          The staff recommends that Banks be granted an update as requested,

and that Executive Order D—161—7 be issued.

lV.<        RBOCHARGER KIT DESCRIPTION AND           OPERATION

          The purpose of the Banks turbocharger klt              is to increase the power

outpuf of the engine by           Iincreasing   Its volumetric eff?ciency.    This    is

accomplished by compressing the            intake charge to pressures above that of the

atmosphere.        The   increased pressure allows a greater charge density to enter

the combustion chamber providing more oxygen for combustion.                 The maximum

fue!    delivery    is siightly     increased   in order to maintain proper air—fuel

ratios with the increased air flow from the turbocharger when it                 is

providing positive manifold pressure (boost).

         The major components of the kit           Include a 1.0 A/R ratio Rotomaster

model   No. TO4B or a Schwitzer/Banks Model No. TO4B2§5 turbocharger, custom

Intake gnd exhaust tubing, air cleaner assembly, brackets, hoses and the

hardware necessary to complete the installation.

         Maximum positive manifold pressure is limited to 10 psi by the size

of the turbing and the compressor.              The maximum engine speed     is regulated by

the OEM fuel       injection governor which       is not modified by the     installation of

the kit.    Therefore, by controlling maximum engine speed, maximum turbine

speed and corresponding boost pressures are also contrdlled.

         No OEM emission controls are removed or disconnected when the

turbocharger kit         is   installed.

v.       D1SCUsSS ION

         Banks has submitted compressor performance maps of both Rotomaster

Mode! No. TO4B and Schwitzer/Banks mode! No. TO4B2S turbochargers.                    Both


turbochargers are designed to have an A/R ratio of 1.0 (critical parameter).

The compressor maps indicate that the two turbochargers have similar

operating characteristics.   A copy of the compressor maps   is appended.


APPENDICES


                                  Ssch AUZEE                                                                             p=958.rokpaCCC
                                                                                                                         1=302.6K (29.4°C)
                                                                                                                         correction ractons:
                          COMPRESSOR PERFORMANCE MAP                                                                      g:/202.6K
 .                                                                                            89995. Ti; 2                RPM=RPM test/ /8
                                      ©                                            4.0
      titie : _ROTORMASTER                  yope. 1248
      om 124                                 ewo 28995                          58 /
      s/n                                    pare _11/11/86                      .
      prage ey CE"_rtest stano 2=..rest no.___
      wheeu pmy 104238                      csto.omn 42                      36
      TIP WIDTH ,e‘ 248                    0.0. _2 738                         /
      CONT. R.                            IND, DiA     2. 182           34
      c.cover on 284228 cere. y S                                         _/
      oier. 00. 382__wiory 182         [
      carieration oate _ 117 11/86 3.2/
      CONTOUR ]géEAR%rngE;B;w“a%                                                                           s
      more RotG—yaster—r948                                 #0 /                       pualraly & 6‘:'52
      APPR. B%flc_DATE_ZA'_/_E:iE                                                                                N
                          #

      28                                                                                           ,4/
o                                                                                             F1
=%                                                                                       //
o                                                                                         a ho. 8a6.[7
                                                                                         Tz
d                                                                        118 }g;fir"‘*"*\ g4A."
&     24                                                                                                   \
8                                                                        /                                          60
                                                                         —                                          X

0
g:.   2.2.                                                 /41     /                      ~

                                                                               5. * ast
_4
<a    2.0
                                              ax|* eLcR &led
6                                                     /                                             S
~
e     1.   18                                        [47                                              Ne{:"
>                                     9y       %           hs.4 67 7 f;b'z
1)                                           /                     "C          \63’ 7
iJ    ].6
T
1.                                    +
                                              5.0—|—a
                                             ~1gO¢ re          e
                                                                                          s3.}
a                         B4H }9             <——|E4*_g6—                   alg
3: 14                         7                              79 \;3\
 f              SAk   esa loh ht h os)
                       e——SEOEz                                    &           habs
                                                                               ~aP
                                                                                  :
                                                           \           3“3-?



       ‘                          |
      1.0             4           6              12          16            20        24             28         32        36     48      44
                                  ennmmatTmmn saamne mm                                   ie       IAVGC   m


                                                              3           leaa        m gphhy ne.                                                               STANDARD CONDiTH

                                                             Schuwitzer                                                                                         p=95.70kPa
                                                                                                                                                                1=302.6K (28.4°C)
                                                                                                                                                                CORRECTION FACTO
                                                  COMPRESSOR PERFORMANCE MAP                                                                                    e:m/soz.ex.
                                                                                                                         OYL: 4174. DAT                         RPMSAPMiest/V8
                                                                                           L                   40                                                                   ;
                                     TiTLE _SCHWITZER/BANKS mopg,              _ 104325                                                                                             |
                                     P/N                   gyo 82976                                        58 /
                                     s/Nn                  pare _2—24— 983                                  3
                                     pree ey 486_rest stano 4B_teEst no. _2
                                     wheeu on 2                    csTo.p/n 2_____ 3.6/
                                     np wiory 8. 868               o.p 2. 889                           f
                                     cont r. 2» 222
                                                 3
                                                            imo. pia, 8.3 P28 34
                                     c.cover Pn          CSTG.P/N                /
                                     pirr. o.p, 582wipy, P88___                 /
                                     carieration pare  _ A _ — 2 —cs_ 32
                                     CONTOUR CLEARANCE _                      /
                                     NOTE                                         30 /                                                     onl
                                                                                      *                                                BiP=/ u;g       o
                                     APpR. By              Date                                                 rpli=: pespor| *A§ _‘do. 2
                                                                                                                                  [#               * g{. +
                                     2.8                                                                                     /z                            2’
COMPRESSOR TOTAL PRESSURE K. L4 10




                                                                                                                        7"                                           *
                               @                                                                               —pmanlzsg>                                        ‘
 w




                                                                                          (/                            _                          g2—
                                                                                                            g. 4 Thke‘                             *
                                     22                                       aie| s2° (§2— P                                  ag."
                                      *                            Ipodbks" |             *

                                                                                                                                         ;?A. 3
                                     20                                   ol
                                                                          3+              igle
                                                                                      b-p\?        ,ur;\b.u              j

                                                            dzois $R "Cf —r— dP"
                                                                    fGlste                                                   ;?A'S
                                     1.8
                                                       googa         $—__\P—4 t ol                                  5
                                     16                       /
                                                                                                    &
                                                                                                            .‘QJ
                                                                                                               3.




                                      ‘4          a   .%%.5¢'        _:’.M.?                                            )?“'
                                          Alsstpp :f ——x—=f—glc—if*+
                                             *     }         *|~—gL  &Q.Q
                                                                                 2¥


                                                 ql‘.’g)   -E""q     a                         tQ,’S
                                           4d105.A DL )0‘poxp 6                                X

                                      108         7          3           TS           16            BE              OB         B§           3B              SE           8     OJ
                                                            CORRECTED MASS FLOW. MYG/AB Thkeaje s im



Document Created: 2005-09-01 12:40:52
Document Modified: 2005-09-01 12:40:52

Previous E.O. D-161-6 | Previous E.O. D-160 | Next E.O. D-161-8 | Next E.O. D-162
