D-171-7 Document:

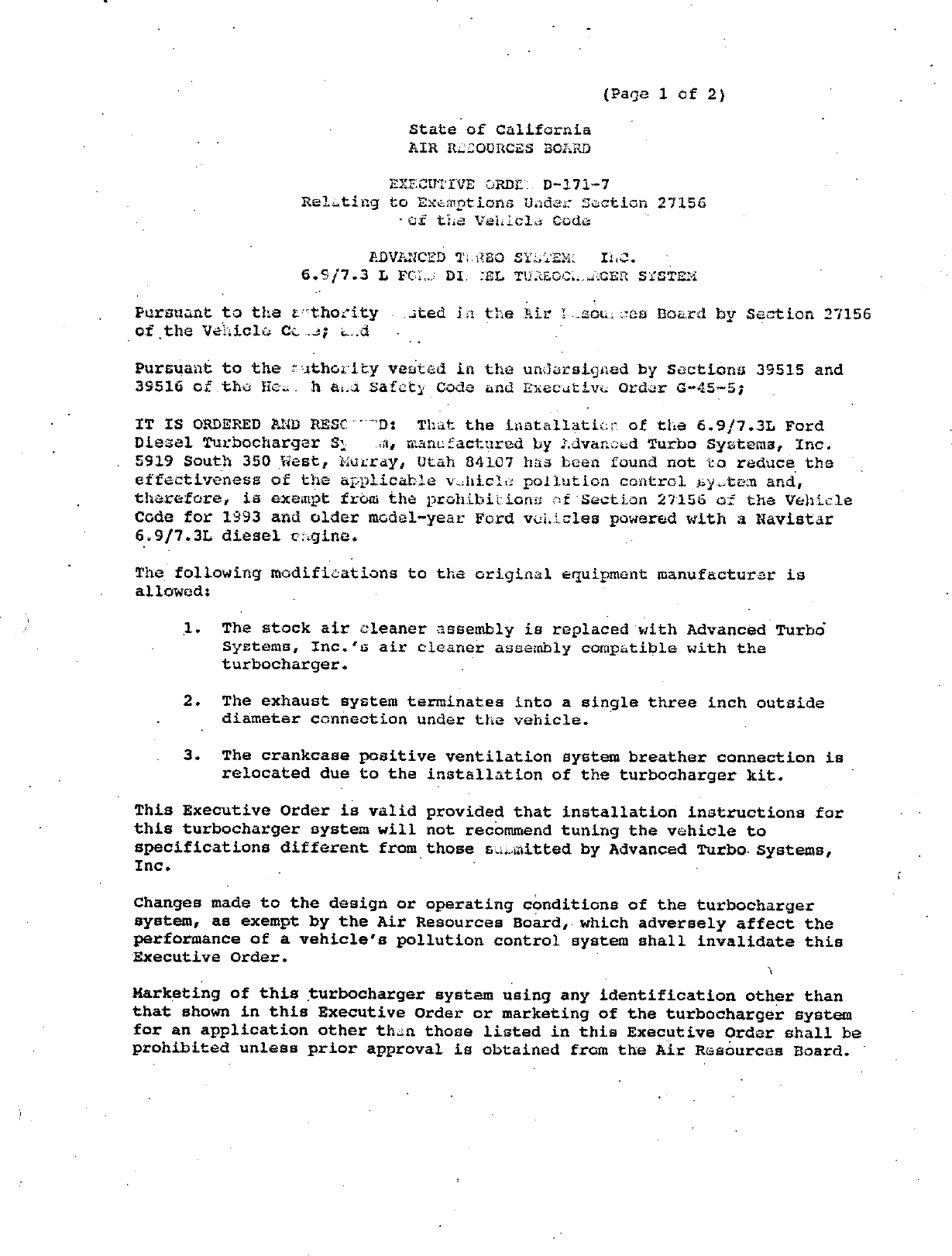

                                                          (Page 1 of 2)

                                State of California
                                AIR RLCZOURCES BOARD

                              EXECUTIVE ORDE       D—17i—7
                    Relating to Exemptions Under Section 27156
                              <of the Vehulole Code

                           ARDVANCED TorBo s¥syEk         Inc.
                     6.9/7.3 L FCLJ DL       ISL TVUAEOC.ACER    SYSTEN


Pursuant to the ecthority .     sited in the Rir !455u‘wea Board by Section 27156
_of the Velhicle Coula; id

Pursuant to the suthority vested in the unjersiqned by Sections 39515 and
39516 of the Hew.     h aid Safety Code and Executive Order G—4§—5;

IT IS ORDERED AND RESC®   :o That the installatics of the 6.9/7.3L Ford
Diesel Turbocharger S;   m, manufactured by Mdvanced Turbo Systems, Inc.
5919 South 350 West, Murray, Utah 84107 has been found not to reduce the
effectiveness of the applicable vohicle pollution control sy_tem and,
therefore, is exempt from the prohibition   f£ Section 27156 of the Vehicle
Code for 1993 and older model—year Ford v   sles powered with a Navistar
6.9/7.3L diesel cugine.

The following modifications to the original equipment manuf@cturer is
allowed:

        1.   The stock air cleaner assembly is replaced with Advanced Turbo
             Systems, Inc.‘s air cleaner assembly compatible with the
             turbocharger.

        2.   The exhaust system terminates into a single three inch outside
             diameter connection under the vehicle.

        3.   The crankcase positive ventilation system breather connection is
             relocated due to the installation of the turbocharger kit.

This Executive Order is valid provided that installation instructions for
this turbocharger system will not recommend tuning the vehicle to
 specifications different from those sulmitted by Advanced Turbo. Systems,
 Inc.                                    '

Changes made to the design or operating cbnditiona of the turbocharger
system, as exempt by the Air Resources Board, which adversely affect the
performance of a vehicle‘s pollution control system shall invalidate this
Executive Order.                                '                .

Marketing of this turbocharger system using any identification other than
that shown in this Executive Order or marketing of the turbocharger system
for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board.


 ADVANCED TURBO SYSTEMS, INc.                          EXECUTIVE ORDER D~171—7
 TURBOCHARGER SYSTEM                           .       (Puge 2 of 2)

 This Executive Ordsr does not constitute any opinion as to the effect the
 use of the turbocharger system may have on any warranty either expressed or
 implied by the vehicle manufacturer.

 THIS EXECUTIVE ORDER DOES HOT CONSTITUTE A CEREIFICATION, ACCREDITATICN,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES DOARD OF
 CLAIMS OF THE APPLICANT CONCZRLING ANTI—POLLUTIDN BBNEFITS OR ANY ALLEGED
 BENEFITS OF RDVANCED TURBO SYSTEMS, INC.‘S 6.9/7.3L FOLD DIECSEL TURBOCHARGER
 SYSTEM.

No claim of any kind, such ag "Approved by the Air Resources Board" may be
 made with respect to the action taken hvrexn in any advertising or other
 oral or written communication.

Violation of any of the above conditions shall be grounds for
revocation of this order.    The order may be revoked only after ten day
written notice of intention to revoke the order, in which period the holder
of the order may request in writing a hesring to contest the proposed |
revocation.    If a hearing is requosied, it shall be held within ten days of
receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.
             .                              w2        .
Executed at El Monte,   California,   this   é al   day of June,   1993.




                                             Asgistant Division Chief
                                             Mobile Source Division


                           State of California
                           AIR RISOURCES    BOARD




     EVALUATION OF ADVANCED TURL SYSTEMS INC.‘S 6.9/7.3L FOLkO DIBSEL
 TURBOCHARCER   SYSTEM FOR RXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27155 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA
                            CODH OF RECULATIONS




                                June 1993


                            State of california
                            AIR RESCURCES BOARD




      EVALUATIOGN OF ADVANCUD TURBO SYSTEMS INC.‘S 6.9/7.3L FORD DIESEL
   TURBCCHRARGER SYSTEM FC   LXEMPTION FROK /HE PROHIBITIONS OP VEHICLE CODE
 SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLEB 13, OF THE CALIFORNIA
                             CopE OPF RECULATIONS




                                     by
                           Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          El Monte, CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                       SUMNARY



          Advanced Turbo Systems,   Inc.   (ATS) of §919 South 350 West, Murray, Utah

84106, has applied for an exemption from the probibitions in Section 27156 of

the California Vehicle Code (VC) for the ATS 6.9/7.3L Ford Diesel Turbocharger

System.     The ATS 6.9/7.3L Ford Diesel Turbocharger System is designed for

installation on 1993 and older model year Ford trucks. powered by Navistar 6.9L

and 7.3L diesel engines.

          ATS subfiitted a completed application ;nd other required information, as

wgll as results from snap—idle tests performed at the-Air Resources Board

Haagen Smit Laboratory, El Monte, California on a 1993 Ford F—350 powered by a

Navistar 7.3 liter engine, in accordance with Section 2182, Title 13,

_California Code of Regulations.

          Based on the submitted information and an engineering evaluation based

on similarity to previously exempted ATS turbo kits, the staff concludes that

the ATS 6.9/7.3L Ford‘Diesel Turbocharger Systém will not adversely affect

exhaust emissions from vehicles for which an exemption is requested.

          The staff recomménds that Advanced Turbo Systems Inc.‘s 6.9/7.3L Ford

Diesel Turbocharger System be granted an exemption as requested and that

Executive Order D—171—7 be issued.


                                                             Page Number




SUMMARY                                                            i
contenNts                                                         14
1.        rapropucrron          -                .       .         i
II.    conCcLusIoNn                                                1
III.   RECOMMENDATION                        -       .             1
Iv.    ATS TURBOCHARCER SYSTEM DESCRIPTION                       2
v.     prscusston .                 ’                              3




                                        i1


 EVALUATION OF ADVANCED TURBO SYSTEh: INC.‘S 6.9/7.3L FORD DIESEL TURBOCHARGER
    SYSTEM EXEMPTION FROM THE PROHIBIYIONS OF VEHICLE CODE SECTION 27156 IN
 ACCORDANCE WITH SECTION 2222, TITLRE 13, OF THE CALIPORNIA CODE OF REGULATIONS


1.        INTRODUCTION
          Advanced Turbo Systems Inc.    (R...:) of £919 South 350 West, Murray, Utah

841(4, has applied for an exemption from the prohibitions in Section 27156 of

the California Vehicle Code (VC         for their 6.9/7.3L Ford Dlwsei Turbocharger

System.     The ATS 6.9/7.3L Ford Eilesel Turbocharger System is desiqued for

installation on 1993 and older model , ar Ford trucks powersd by a Navistar 6.9

liter or 7.3 liter heavyeduty diesel engine.

          ATS submitted a completed application and other required inform "ion, as

well as results from snap—idle tests performed at the Air Resources Board‘s

Haagen Smit Laboratory in El Monte, California, in accordsnce with Section

2182, Ti le 13, California Code of Regulations.



II.       CONCLUSTONS

          Based on the submitted information and an engineering evaluation, the

staff concludes that the ATS 6.9/7.3L Ford Diesel Turbocharger System will not

adversely effect exhaust emissions from vehicles for which an exemption is

requested.




III.   RECOMMENDATION

       The staff recommends that Advanced Turbo Systems,       Inc.,   be granted an

exemption for their 6.9/7.3L Ford Diesel Turbocharger System for installation

on 1993 and older model—year Ford trucks powered by Navistar 6.9 or 7.3 liter

heavy duty diesel engines.     The staff also recommends that Executive Order

D—171—7 be issued.


IV.    6.8/7.31 FORD DIESEL TURBOCH}T.GER SYSTRM DRSCRIPTION

       The purpose of the ATS turbocharger kit is to increase the power output

of the engine by increasing its volumetric efficiency.     This is accomplished by

compressing the intake charge to pxessutesiabove that of the atmosphere.       The

increase in pressure allows a groster chirge density to enter the combustion

chamber, providing more oxygen for combustion.     The maximum fuel delivery is

slightly increased in order to maintain proper air—fuel ratios with the

increased air flow from the turbocharger when it is providing positive manifold

pressure (boost).

       The major components of the kit include a .82 A/R ratio Garrett

Airesearch Model Ho. TC4303, a modified air filter, a turbo wastegate valve,

and the hardware and exhaust piping required to install the kit on the vehicle.

The wastegate valve operates by diverting some exhaust gas from‘the turbine

when the maximum desirable boost is obtained.     The original equipment crankcase

positive ventilation system breather connection is relocated due to the

turbocharger installation.   A complete air cleaner assemfily is supplied with

the system to répléce the stock air cleaner assembly.     The exhaust system

supplied with the kit terminates in a single three inch outside diameter

connection under the vehicle.   No other emission—related components are removed .

or disconnected when the turbocharger is installed.

       Maximum boost is limited by the size of the turbine ana compressor.        The

maximum engine speed is regulateé by the OEM fuel injection governor which is
not modified by the installation of the kit.     Therefore, by controlling maximum

engine speed, maximum turbine speed and the corresponding boost are also

controlled.


       V.   DISCUSSION

       Advanced Turbo Systems, Inc. has requestefi that the 6.9/7.3 L Ford

Diesel Turbocharger System be exempted for 1993 model year Ford trucks poweréd

by 6.9 or 7.3 liter heavy—duty diesel engines.     The 6.9/7.3 L Ford Diesel

Turbocharger System is similar to the ATS turbo kit, which is currently

exempted under Executive Order Number D—lél-s.      The only difference between

the fiwo.turbocharger kits is that the 6.9/7.3L Ford Diesel Turbocharger System

is equiéped with a wastegate.   The wastegated version is identical to the non—

wastegated version except that a smaller turbine inlet is used,    increasing the

velocity of the éxhaqst gases entering the turbine.     This improves the response

ofi the turbocharger and reduces ihe time hetfieen the opening of the throttle

and‘the turbocharger reaching operating speed.     The reduction of turbo lag time

could decrease hydrocarbon and particulate emissions by reducing the duration

of the oxygen shortage.   The difference in turbo lag time between the standard

turbo kit and the wastegated turbo kit is not sufficient to increase the

combustion temperature.   For this reéson, the staff has determined that the

oxides of nitrogen emissions will not be increased.     In addition, the 6.9/7.3L

Ford Diesel Turbocharger System is the same turbocharger system certified on

the Navistar turbocharged 7.3L engine.     Based on the information provided to us

by the ATS, the wastegate will not significantly change the emissions

characteristics of the turboéharger kit.

       $nap—Idle tests were conducted at the Air Resources Board‘s Haagen Smit

Laboratory in El Monte, California on a 1993 Ford F—350 pick—up truck equipped

with a Navistar 7.3 liter engine and the turbocharger system installed.     The

results of the snap~idle test performed are shown in Table 1 on the next page.


                                       Table 1



                               SNAP—IDLE TEST RESULTS

                           (Advanced Turbo Systems, Inc.)



                        Snap—Idle Smoke Opacity Test Results




                                   2%, 2%, 2%, 4%




       These results show that the modified vehicle emissions do not exceed the

40% opacity standard.    This further demonstrates that the addition of the ATS

6.9/7.3L Ford Diesel Turbdcharger kit will not have an adverse effect on

emissions for 1993 and older model year Ford trucks equipped with Navistar 6.9

and 7.3 liter heavy duty diesel engines.    ATS submitted all of the required

information and fulfilled the requirements for an exemption.



Document Created: 2005-09-01 12:45:00
Document Modified: 2005-09-01 12:45:00

Previous E.O. D-171-6 | Previous E.O. D-170 | Next E.O. D-171-8 | Next E.O. D-172
