Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 27, 2003.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
D763-3302, D763-3300, D763-3312,1995 BMW M3 3.0L 6cylIncludes replacement air flow meter with larger bore for greater air flow at wide open throttle and mounting components.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-176-18
  • Executive Order 176-18 / D176-18
  • ARB # D-176-18
  • Executive Order No: D-176-18
  • C.A.R.B. No. D-176-18
  • Resolution D-176-18
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-176-18 PDF

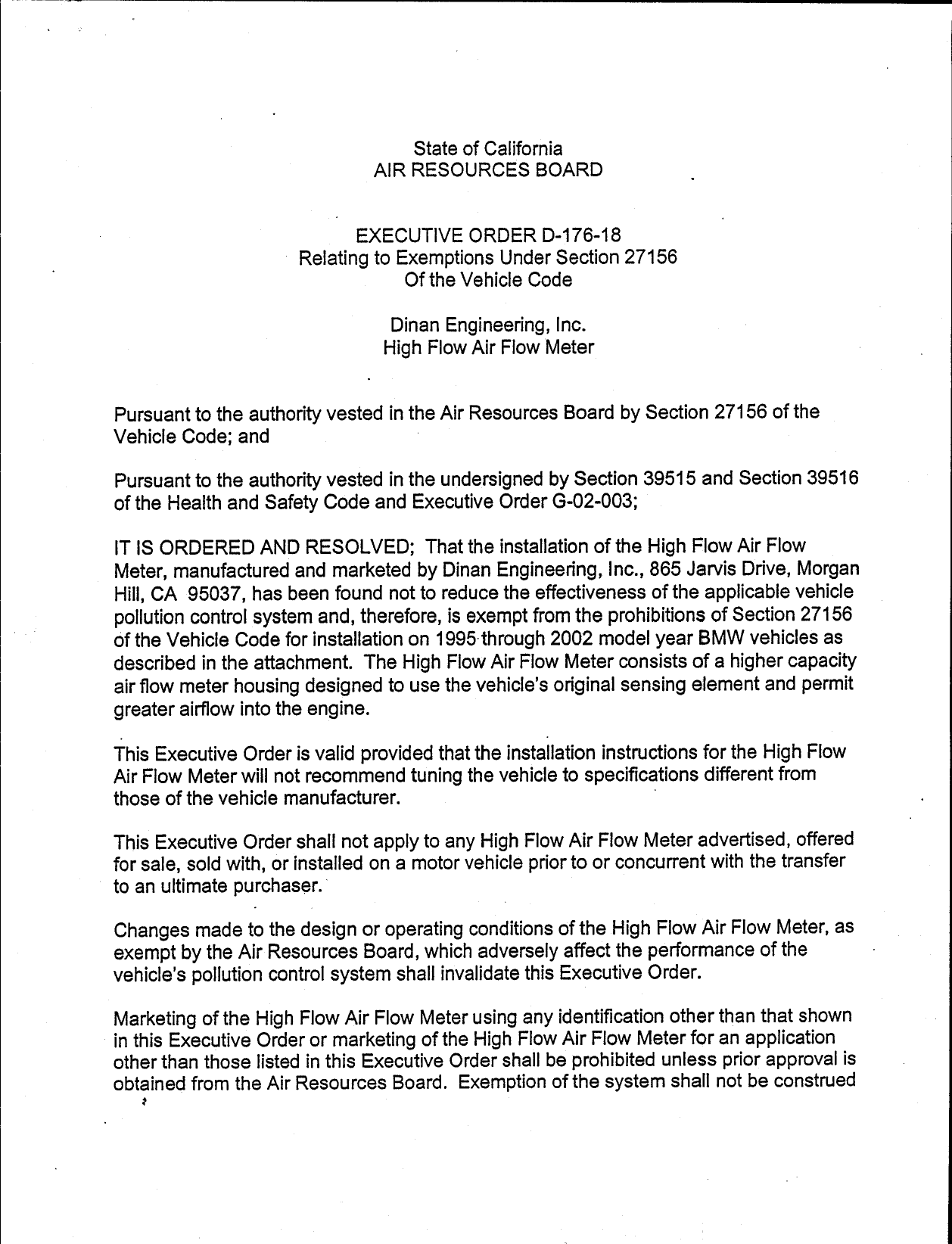

D-176-18 Document:



                                      State of California
                                  AIR RESOURCES BOARD


                                EXECUTIVE ORDER D—176—18
                       _ Relating to Exemptions Under Section 27156
                                      Of the Vehicle Code

                                    Dinan Engineering, Inc.
                                   High Flow Air Flow Meter


 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
 of the Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED; That the installation of the High Flow Air Flow
 Meter, manufactured and marketed by Dinan Engineering, Inc., 865 Jarvis Drive, Morgan
 Hill, CA 95037, has been found not to reduce the effectiveness of the applicable vehicle
 pollution control system and, therefore, is exempt from the prohibitions of Section 27156
 of the Vehicle Code for installation on 1995through 2002 model year BMW vehicles as
 described in the attachment. The High Flow Air Flow Meter consists of a higher capacity
 air flow meter housing designed to use the vehicle‘s original sensing element and permit
 greater airflow into the engine.

 This Executive Orderis valid provided that the installation instructions for the High Flow
 Air Flow Meter will not recommend tuning the vehicle to specificat|ons different from
 those of the vehicle manufacturer.

 This Executive Order shall not apply to any High Flow Air Flow Meter advertised, offered
 for sale, sold with, or installed on a motor vehicle prior to or concurrent with the transfer
~ to an ultimate purchaser

 Changes made to the design or operating conditions of the High Flow Air Flow Meter, as
 exempt by the Air Resources Board, which adversely affect the performance of the
 vehicle‘s pollution control system shall invalidate this Executive Order.

 Marketing of the High Flow Air Flow Meter using any identification other than that shown
 in this Executive Order or marketing of the High Flow Air Flow Meter for an application
 other than those listed in this Executive Order shall be prohibited unless prior approval is
 obtained from the Air Resources Board. Exemption of the system shall not be construed
    ¢


as exemption to sell, offer for sale, or advertise any component of the kit as an individual
device.                                                               |

This Executive Order does not constitute any opinion as to the effect that the use of the
High Flow Air Flow Meter may have on any warranty either expressed or implied by the
vehicle manufacturer.                                                                     —

—This Executive Order is granted based on the following emissions test data from a Cold
Start CVS Federal Test Procedure performed on a 2002 model year BMW 5407 certified
to the LEV standards in the modified condition. The test results, in grams per mile with
the deterioration factors applied, are listed below.

        2002 BMW 5401             TEST             NMOG       CO       NOx   HCHO
                                  Standard         0.075      3.4     0.2    0.015
                                  Modified         0.055       0.1    0.1    0.001

Results from the emission tests showed that vehicle emissions with the High Flow Air
Flow Meter installed did not exceed the exhaust emissions standard for the vehicle.

This Executive Order is also based on the On—Board Diagnostic II (OBDIl) testing
conducted on the same test vehicle. Test data showed that the High Flow Air Flow
Meter when installed on the vehicles did not affect the vehicle‘s ability to perform its
OBDIIl monitoring.

In addition to the foregoing, the ARB reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF DINAN
ENGINEERING‘S HIGH FLOW AIR FLOW METER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising of other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the:proposed revocation. If a hearing is requested, it shall be held within ten days of



       DINAN ENGINEERING, INC.— HIGH FLOW AIR FLOW METER — D—176—18


receipt of the request and the order may not be revoked until a determination is made,
after the hearing, that grounds for revocation exist.

Executed at El Monte, California, this Z7‘ day of January 2003.




                                 Alleff Lyons, Chief
                                 Mobile Source Operations Division




      DINAN ENGINEERING, INC.— HIGH FLOW AIR FLOW METER — D—176—18



Document Created: 2005-09-01 12:45:20
Document Modified: 2005-09-01 12:45:20
