Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 8, 1992.
As of Tuesday, June 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
D800-75001988-1992 BMW 750i/750iL - Automatic TransmissionThe following modifications are incorporated into the kit in order to allow its installation on the vehicles: 1. Stock air cleaner is replaced with a smaller air cleaner. 2. New Intake plumbing is installed. 3. PCV is re-located 4. New evaporative canister is installed in a different location of BMW model 750iL only. 5. New exhaust manifolds installed. 6. New head pipes installed.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-176-3
  • Executive Order 176-3 / D176-3
  • ARB # D-176-3
  • Executive Order No: D-176-3
  • C.A.R.B. No. D-176-3
  • Resolution D-176-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-176-3 PDF

D-176-3 Document:

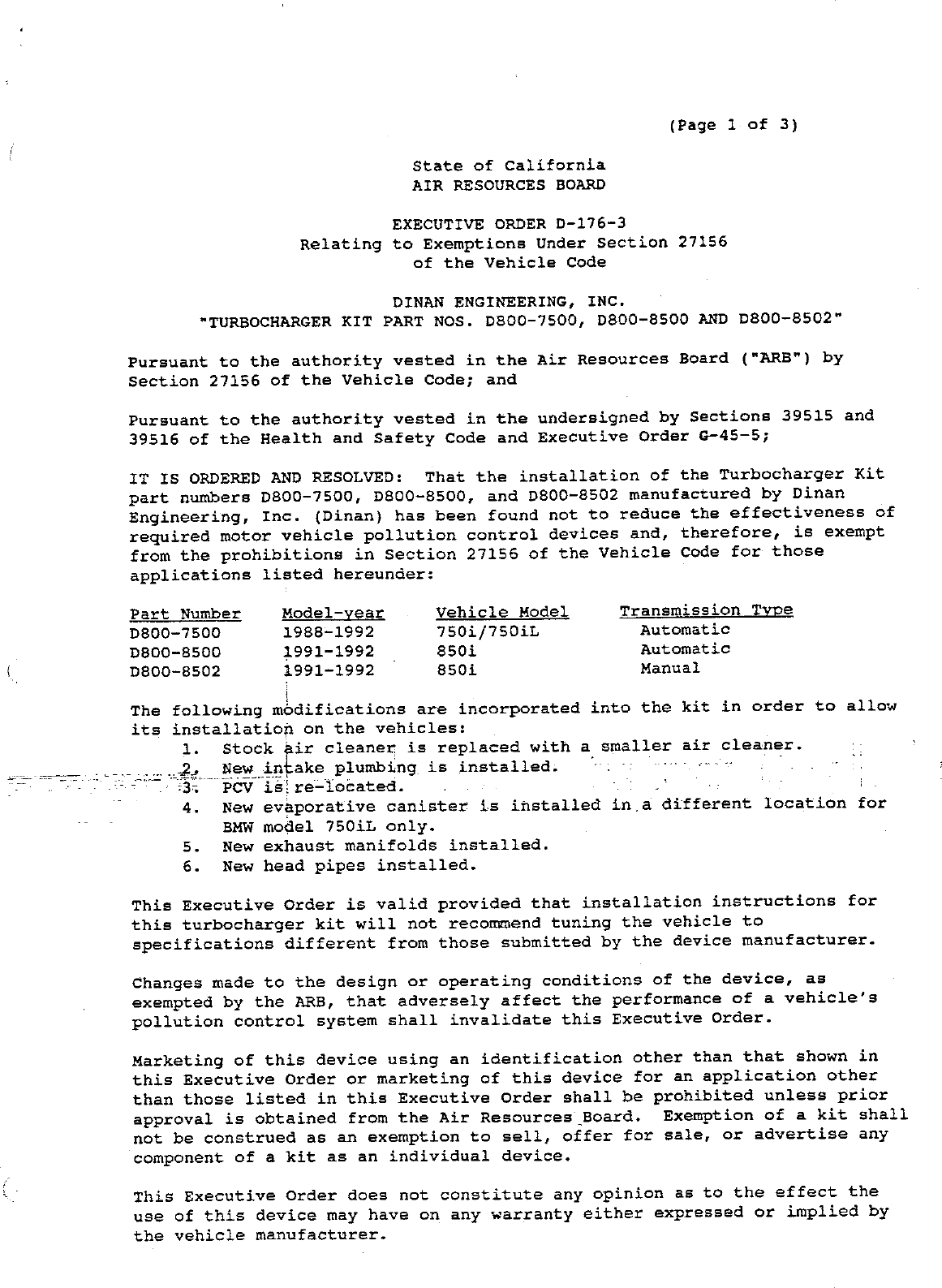

                                                            (Page 1 of 3)

                                 State of California
                                 AIR RESOURCES BOARD


                               EXECUTIVE ORDER D—176—3
                     Relating to Exemptions Under Section 27156
                                of the Vehicle Code

                             DINAN ENGINEERING, INC.
          "TURBOCHARGER KIT PART NOS. D800—7500, D800—8500 AND D800—8502"

Pursuant to the authority vested in the Air Resources Board ("ARB") by
Section 27156 of the Vehicle Code;      and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order §—45—5;

IT IS ORDERED AND RESOLVED:  That the installation of the Turbocharger Kit
part numbers D800—7500, D800—8500, and D800—8502 manufactured by Dinan
Engineering, Inc. (Dinan} has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt
from the prohibitions in Section 27156 of the Vehicle Code for those
applications listed hereunder:

Part Number       Model—year       Vehicle Model       Transmission Type
D800—7500         1988—1992        750i/750iL            Automatic
D800—8500         1991—1992        8501                  Automatic
D8O0—8502         1991—1992        8504                  Manual
               }
The following medifications are incorporated into the kit in order to allow
its installation on the vehicles:
     1.  Stock Air cleaner is replaced with a smaller air cleaner.
         New intake plumbing is installed.       :      «+~
           "PCVis{ re—located.
           New   evaporative canister is installed in a dlfferent location for
           BMW   model 750iL only.
     5.    New   exhaust manifolds installed.
     6.    New   head pipes installed.

This Executive Order is valid provided that installation instructions for
this turbocharger kit will not recommend tuning the vehicle to
specifications different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the ARB, that adversely affect the performance of a vehicle‘s
pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.  Exemption of a kit shall
not be construed as an exemption to sell, offer for sale, or advertise any
component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the
use of this device may have on any warranty either expressed or implied by
the vehicle manufacturer.


 DINAN ENGINEERING, INC.                             EXECUTIVZ ORDER D—176—3
 "TURBOCHARGER KIT PART NOS. D800—7500,              (Page 2 sf 3)
 DSOO—8500, AND D800—8502"




 This Executive Order is granted based on results from ecissions tests
 conducted in accordance with Cold—Start CVS—75 Federal Test Procedure.
 However, the ARB finds that reasonable grounds exist for believing that use
 of some components of the kit may adversely affect emissions of motor
 vehicles when operating under conditions outside the parameters of the
 previously prescribed test procedures.  Accordingly, the ARB reserves the
 right to conduct additional emission tests, in the future, as such tests are
 developed, that will more adequately measure emissions from all cycle
 phases.   If such test results demonstrate that the Turbocharger Kit
 adversely affects emissions during off—cycle conditions {defined as those
 conditions which are beyond the parameters of the Cold—Start CVS—75 Federal
 Test Procedure), this Executive Order shall be effectively rescinded as of
 the date the test results are validated.  Further, if such test results or
 other evidence provides the ARB with reason to suspect that the Turbocharger
 Kit will affect the durability of the emission control system, Dinan
 Engineering,   Inc.   shall be required to submit durability data to show that
 the durability of the vehicle emission control system is not, in fact,
 affected and/or that the add—on or modified part demonstrates adequate
 durability.

 In addition to the foregoing, the ARB reserves the right in the future to
 review this Executive Order and the exemption provided Lerein to assure that
 the exempted add—on or modified part continues to meet the standards and
 procedures of Title 13, California Code of Regulations section 2222 et seq.
 and any future amendments thereto.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
  PPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RZSOURCES BOARD OF ANY
~CLAINSOF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLECED
 BENEFITS OF DINAN ENGINEERING, INC.‘S TURBOCHARGER KIT PART NUMBERS D800—
 7500, D800—8500, AND D800—8502.                            M

 No claim of any kind, such as "Approved by the Air Resources Board" may be
 made with respect to the action taken herein in any advertising or other
 oral or written communication.

 Section 17500 of the Business and Professions Code makes untrue or
 misleading advertising unlawful, and Section 17534 makes violation
 punishable as a misdemeanor.

 Section 43644 of the Health and Safety Code provides as follows:

      "43644,   (a)  No person shall install, sell, offer for sale, or
      advertise, or, except in an application to the state board for
      certification of a device, represent, any device as a motor vehicle
      pollution control device for use on any used motor vehicle unless that
      device has been certified by the state board.  No person shall sell,
      offer for sale, advertise, or represent any motor vshicle pollution
      control device as a certified device which,     in fact,   is not a certified
      device.   Any violation of this subdivision is a misdemeanor."


    DINAN ENGINEERING, INC.                              EXECUTIVE ORDER D—176—3
'   "TURBOCHARGER KIT PART NOS. DBOO—7500,               (Page 3 of 3)
    D80O0—8500, AND D800—8502"


    Any apparent violation of the conditions of this Executive Order may result
    in its rescission or submission to the Attorney General of California for
    such action as he deems advisable.

    Executed at El Monte, California, this   ;     day       January, 1992.




                                             Mobile Source Division


                                State of California
                               AIR RESOURCES BOARD




       EVALUATION OF DINAN ENGINEERING, INC.‘S TURBOCHARGER KIT PART NUMBERS
      D&800—7500, D800—8500, AND D800—8502 FOR EXEMPTION FROM THE PROHIBITIONS
     IN VEHICLE CODE SECTION 27156 AND TITLE 13, SECTION 2222, CALIFORNIA CODE
                                    OF REGULATIONS




                                  January,   1992
~~


   EVALUATION OF DINAN ENGINEERING, INC.‘S TURBOCHARGER KIT PART NUMBERS
  DB00—7500, D800—8500, AND D800—8502 FOR EXEMPTION FROM THE PROHIBITIONS
 IN VEHICLE CODE SECTION 27156 AND TITLE 13, SECTION 2222, CALIFORNIA CODE
                               OF REGULATIONS




                                     by
                           Mobile Source Division

                            State of California
                            AIR RESOURCES BOARD
                            9528 Telstar Avenue
                          El Monte, CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                       SUMMARY




          Dinan Engineering, Inc.    (Dinan}) of 81 Pioneer Way, Mountain View,

California 94041 has applied for an exemption from the prohibitions in

Vehicle Code Sections 27156 and 38391 for their Turbocharger Kit part

numbers D800—7500,    D800—8500,   and D800—8502 for installation on the

following model—year BMW 5.0L vehicles:

Part Number      Model—year         Vehicle Model           Transmission Type

D800—7500        1988—1992          7501/750iL              Automatic

D800—8500        1991—1992          8501                    Automatic

D800—8502        1991—1992          8501                    Manual

The Turbocharger kit consists of Warner/Ishi turbocharger model RHBS2/5T—

503,   new larger capacity fuel injectors,       Turbotronics IiI ECU Prom,

Turbotronics V Fuel Enrichment, new air cleaner, new intake plumbing, air—

to—air intercooler,    new PCV tubing, new evaporative canister for BMW model

750iL, electronic ignition control computer, Turbotronics III ignition

timing prom, new exhaust manifold, and new head pipes.

         Test results from an independent laboratory, using available cycles

under the Federal Test Procedure (FTP), showed that emissions from the test

vehicle did not exceed California new vehicle certification standard with

the Dinan‘s Turbocharger Kit installed.      Based on the data submitted by the

applicant,   staff recommends that the exemption be granted as requested and

that Executive Order D—176—3 be issued.


                                CONTENTS

                                           Number

SUMMARY                                       i

CONTENTS                                     ii

I.         INTRODUCTION                       1

II.        CONCLUSTION                        1

III.       RECOMMENDATION                     2

IV.        DEVICE DESCRIPTION                 2

v.         DEVICE EVALUATION                  3




                                   i1


   EVALUATION OF DINAN ENGINEERING, INC.‘S TURBOCHARGER KIT PART NUMBERS
  D800—7500, D800—8500, AND D800—8502 FOR EXEMPTION FROM THE PROHIBITIONS
IN VEHICLE CODE SECTION 27156 AND TITLE 13, SECTION 2222, CALIFORNIA CODE
                               OF REGULATIONS




I.      INTRODUCTION

        Dinan Engineering,    Inc.   (Dinan) of 81 Pioneer Way, Mountain View,

California 94041 has applied for an exemption from the prohibitions in

Vehicle Code Sections 27156 and 38391 for their Turbocharger Kit part

numbers D800—7500, D8O0—8500, and D800—8502 for installation on the

foliowing model—year BMW 5.0L vehicles:

Part Number    Model—year            Vehicle Model       Transmission Type

D800—7500      1988—1992             750i/750i1L         Automatic

D800—8500      1991—1992             8501                Automatic

D800—8502      1991—1992             8501                Manual

The Dinan Turbocharger Kit consists of Warner/Ishi turbocharger model

RHBS2/5T—503, new larger capacity Bosch Motronic electronic fuel injection,

Turbotronics III Prom, Turbotronics V electronic fuel enrichment computer,

new smaller air cleaner, new intake plumbing, air—to—air intercooler, new

PCV tubing, new evaporative canister for BMW 750iL only,      an electronic

ignition control computer, Turbotronics III ECU ignition prom, new exhaust

manifold, and new head pipes.

II.     CONCLUSION

        Results from tests conducted at Milton Roy Company in Orange,

California, showed that emissions from the test vehicle did not exceed

California‘s new vehicle certification standards with the Dinan‘s

Turbocharger Kit installed.     Due to time constraints, the Air Resources

Board (ARB) could not perform confirmatory testing on the test vehicle.

Based on the low emission levels from the independent laboratory testing,

staff concludes that the installation of fhe Dinan‘s Turbocharger Kit will

not reduce the effectiveness of the emission control systems of the

applicable vehicles.


This conclusion is also based on the available test cycles under the Federal

Test Procedure.

III.      RECOMMENDATION

          The staff recommends that the exemption be granted as requested and

that Executive Order No. D—176—3 be issued, permitting the advertisement,

sale and installation of the Turbocharger Kit on vehicles shown above.

Iv.       DEVICE DESCRIPTION

          The purpose of the Dinan turbocharger kit is to increase the power

output of the 5.0L BMW engine by compressing the intake air charge to a

pressure above that of the atmosphere,     and thereby increasing the volumetric

efficiency of the engine.      This is accomplished by using exhaust gas to spin

a turbine which in turn spins a compressor.     Compression of the intake air

increases its charge density providing more oxygen for combustion.      The

increased air flow requires more fuel in order to maintain the proper

air/fuel ratio for optimum combustion.      In order to better manage the demand

for extra fuel, Dinan uses larger capacity fuel injectors; Turbotronics III,

a modified electronic control unit (ECU) prom program to re—curve the fuel

injection and ignition systems; and Turbotronics V, an electronic fuel

enrichment computer to provide proper fuel delivery under boost conditions.

          The Warner/Ishi turbocharger used by Dinan in their kit is of the

radial flow type with area ratio (A/R) of 0.59; area of throat of 2.46

square inches; and distance from centroid area to center of vortex of 2.75

inches.    The turbocharger achieves a maximum boost pressure of 10 psi with

the stock engine‘s 9:1 compression ratio.


        Other modifications to the vehicle‘s emission control system are:

(1) Replacement of stock air cleaner with smaller air cleaner due to space

limitation,    (2) Installation of new intake plumbing to accommodate the

intercooler,    (3)   Installation of an air—to—air intercooler between the

turbocharger and intake manifold to reduce the intake charge temperature,

(4} Re—routing the PCV to a new location to prevent exposure to boost

pressure,   (5) Replacing the evaporative canister in 750iL BMW with another

canister of the same storage capacity and relocating it using new hoses with

the appropriate length,      (6) An electronic ignition control computer and a

new detonation sensor are used to prevent detonation,      (7) A modified ECU

prom program (Turbotronics III) is used to re—curve the ignition system to

match the requirements of the turbocharged engine,      (8) Installation of new

exhaust manifolds, and (9)     Installation of new head pipes.

v.      DEVICE EVALUATION

        The aéplicant has submitted test results conducted at Milton Roy

Company, an independent test laboratory,     in Orange, California.   One CVS—75

test was conducted on a 1990 BMW 750iL powered by a 5.0L engine.      All BMW

models included in the application have the same emission standards and are

equipped with the same emission control system as the test vehicle.

        According to the literature submitted by Dinan, the turbocharger

boost begins at engine speed of 1600 RPM.      In order to determine if the

turbocharger would cause any adverse effect on the emissions control system

during boost, the test vehicle was driven for twenty miles to bring it to

full operating temperature.      Following the mileage accumulation, a steady—>

state test similar to the Smog Check was conducted at 2500 RPM.


Emissions from both tests were compared with new vehicle certification

standard and the Smog Check standard for the test vehicle model—year.

                               CVS—75 Test Results
                       {Milton Roy Company Laboratory)
                         THC            co            NOx
Standard                0.41            0.7          0.7   .
Turbocharger kit        0.334           2.833        0.142
Deterioration Factor    1.021           1.077        1.339
D.F. adjusted           0.341           3.051        0.190

                   Steady—state Test Results at 2500 RPM
                      (Milton Roy Company Laboratory)

                              HC                co
Standard                 220 ppm             1.2%
Turbocharger Kit           5 ppm             0.04%


Due to time constraints, the ARB could not perform confirmatory testing with

the Dinan Turbocharger Kit.        The exemption of the Turbocharger Kit is

therefore based on the test results from Milton Roy Company which showed

that the device did not produce any adverse effect on the test vehicle.



Document Created: 2005-09-01 12:42:54
Document Modified: 2005-09-01 12:42:54

Previous E.O. D-176-2 | Previous E.O. D-175 | Next E.O. D-176-4 | Next E.O. D-177
