Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 28, 1992.
As of Sunday, March 24th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1991-1993 BMW M5 with 3.5L gasoline engine 1984-1988 BMW M5 and M6 with 3.5L gasoline enginesIncludes crankshaft, pistons, rings, and PROM

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-176-6
  • Executive Order 176-6 / D176-6
  • ARB # D-176-6
  • Executive Order No: D-176-6
  • C.A.R.B. No. D-176-6
  • Resolution D-176-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-176-6 PDF

D-176-6 Document:

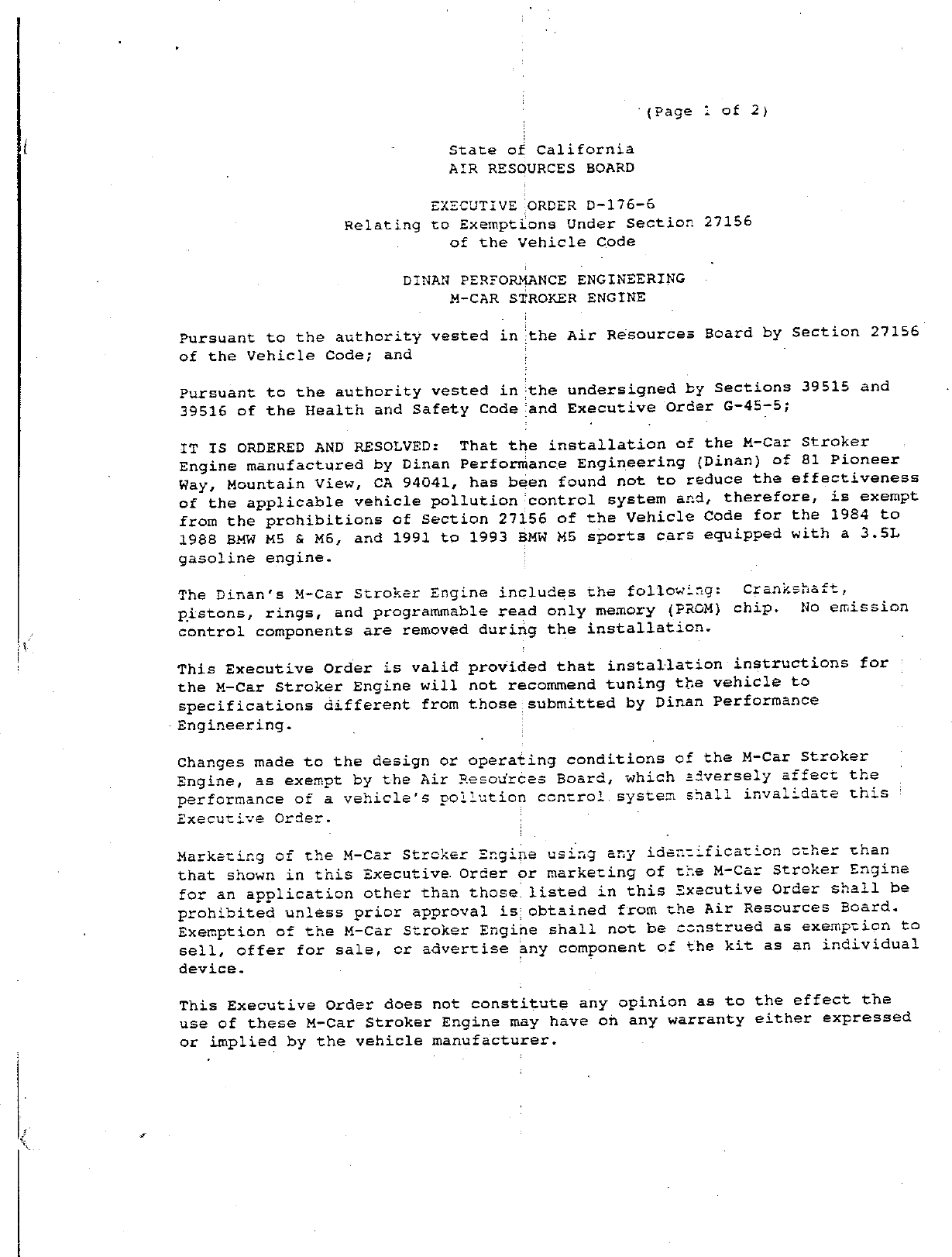

                                                        ©(Page i of 2)

                         c        State of California
                                 AIR RESOURCES BOARD

                                EXZECUTIVE ORDER D—176—6
                    Relating to Exemptions Under Section 27156
                               of the Vehicle Code

                             DINAN PERFORMANCE ENGINEERING
                                  M—CAR STROKER ENGINE

 Pursuant to the authority vested in the Air Resources Board by Section 27156
 of the Vehicle Code;   and

 Pursuant to the authority vested in the undersigned by Sections 39515 and
 39516 of the Health and Safety Codeand Executive Order G—45—5;

 IT IS ORDERED AND RESOLVED:   That the installation of the M—Car Stroker
 Engine manufactured by Dinan Performance Engineering (Dinan) of 81 Pioneer
 Way, Mountain View, CA 94041, has been found not to reduce the effectiveness
 of the applicable vehicle pollution control system and, therefore,      is exempt
 from the prohibitions of Section 27156 of the Vehicle Code for the 1984 to
 1988 BMW MS5 & M6, and 1991 to 1993 BMW MS sports cars equipped with a 3.5L
 gasoline engine.

 The Dinan‘s M—Car Stroker Engine includes the following:   Crankshaft,
 pistons, rings, and programmable read only memory ({PROM) chip.  No emission
 control components are removed during the installation.

This Executive Order is valid provided that installation instructions for
the M—Car Stroker Engine will not recommend tuning the vehicle to
specifications different from those submitted by Dinan Performance
—Engineering.

Changes made to the design or operating conditions of the M—Car Stroker
Engine, as exempt by the Air Resources Board, which siversely affect the
performance of a vehicle‘s pollution control system shall invalidate this
Executive Order.

Marketing of the M—Car Stroker Engine :Sl“g any idenzification other than
that shown in this Executive Order or marketing of the M—Car Stroker Engine
for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is: obtained from the Air Resources Board.
Exemption of the M—Car Stroker Englne shall not be construed as exemprion to
sell, offer for sale, or advertise any component of the kit as an individual
device.

This Executive Order does not constitute any opinion as to the effect the
use of these M—Car Stroker Engine may have on any warranty either expressed
or implied by the vehicle manufacturer.


                                                             DER D—176—6




THIS                                                    , ACCREDITATION,
“PROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE A      sOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION B     TS OR ANY ALLEGED
BENEFITS OF DINAN PERFORMANCE ENGINEERING‘S M—CAR STRCZZR ENGINE.

No claim of any kind, such as "Approved by the Air Rez   rces Board" may be
made with respect to the action taken herein in any a<    tising or other
oral or written communication.

Violation of any of the above conditions shall be grounis for
revocation of this order.  The order may be revoked c    after ten day
written notice of intention to revoke the order, in w     period the holder
of the order may request in writing a hearing to contes: the proposed
revocation.  If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoke: until a
determination after hearing that grounds for revocatic~ exist.
                                          C
Executed at El Monte, California, this        day of October, 1992.




                                    R.   B/Summerfield
                                   ‘Assistant Divisic
                                   ‘Mobile Source Di


                           State of California
                           AIR RESOURCES BOARD




               EVALUATION OF DINAN PERFORMANCE ENGINEERING‘S
        M—CAR STROKER ENGINE FOR EXEMPTION FROM THE PROHIBITIONS OF
VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                               October 1992


                           State of California
                           AIR RESOURCES BOARD




               EVALUATION OF DINAN PERFORMANCE ENGINEERING‘S
        M—CAR STROKER ENGINE FOR EXEMPTION FROM THE PROHIBITIONS OF
VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                  +
                                      by

                           Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          El Monte, CA     91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. ‘Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                  SUMMARY




       Dinan Performance Engineering (Dinan)} of 81 Pioneer Way, Mountain View,

CA 94041, has applied for an exemption from the prohibitions in Section 27156

of the California Vehicle Code (VC) for the M;Car Stroker Engine.    The M—Car

Stroker Engine is designed for installation on 1984 to 1988 BMW M5 & M6, and

1991 to 1993 BMW MS sports cars equipped with a 3.5LAgasoline engine.

       Dinan submitted a completed ap?lication and other required information,

as well as emissions test data performed at the Milton Roy Company in Orange,

California.

       Based on the submitted informatgon, and emissions testing conducted at

the Milton Roy Company and confirmed by the Air Resources Board, the staff .

concludes that the Dinan‘s M—Car Stroker Engine will not adversely affect

exhaust emissions from the vehicles for which an exemption is requested.

       The staff recommends that Dinan Performance Engineering, be granted an

exemption as requested and that Executive Order D—176—6 be issued.


                                  TABLE OF CONTENTS




                                                                           Page Number




SUMMARY                                            A       .       c             i

CONTENTS                                                                        1i

I.        INTRODUCTION                                         i                 1

II.       CONCLUSION                                                             1

III.      RECOMMENDATION                       .       v               .         1

IV.       M—CAR STROKER ENGINE DESCRIPTION                                       1

v.        DISCUSSION OF THE M—CAR STROKE;R ENGINE                                2

          APPENDIX                                                               4

             Parts List                                                          5




                                          ii


                    EVALUATION OF DINAN PERFORMANCE ENGINEERING‘S
             M—CAR STROKER ENGINE FOR EXEMPTION FROM THE PROHIBITIONS OF
     VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13,    OF THE
                            CALIFORNIA CODE OF REGULATIONS



I.        INTRODUCTION

          Dinan Performance Engineering (Dinan)-of 81 Pioneer Way, Mountain View,

CA 94041, has applied for an exemptifin from the prohibitions in Section 27156

of the California Vehicle Code (VC) for the M—Car Stroker Engine.        The M—Car

Stroker Engine is designed for installation on 1984 to 1988 BMW MS & M6, and

1991 to 1993 BMW MS5 sports cars equipped w;th a 3.5L gasoline engine.

          Dinan submitted a completed application and other required information,

as well as emissions test data perfogmed at the Milton Roy Company in Orange,

California.

11.       CcoNCLUSTONS
          Based on the submitted information, and emissions testing conducted at

tfie Milton Roy Company and confirmed by the Air Resources Board, the staff

concludes that the Dinan‘s M—Car Stroker Engine will not adversely affect

exhaust emissions from the vehicles for which an exemption is requested.


III.      RECOMMENDATION

          The staff recommends that Dinan Performance Engineering, be granted an

exemption for their M—Car Stroker Engine designed for installation on 1984 to

1988 BMW MS & M6, and 1991 to 1993 BMW M5 sports cars equipped with a 3.5L

gasoline engine.         The staff élso recommends that Executive Order D~176—6 be

issued.

IV.       M—CAR STROKER ENGINE DESCRIPTION

          The purpose of the M—Car Stroker Engine package is to increase rear

wheel horse power and torque by altering the design characteristics of the

                                            —1—


crankshaft, pistons, rings, and programmable read'only memory (PROM) chip.

The new crankshaft is designed to provide an additional 6 mm increase in the

stroke of the piston.     Increasing the stroke requires Dinan to install

specially designed forged aluminum pistons with high performance rings.             Table

1 compares the stock engine to the M—Car stroger Engine.as provided by Dinan

Performance Engineering.     Dinan sells the M—Car Stroker Engine package as a

short—block assembly (engine block minus the cylindef heads) with the modified

crankshaft, pistons, and rings already assembled.             Other components in the M—

Car short block assembly are either reconditioned or new OEM parts.             The new

PROM incorporated with the M-Car.package differs from the OEM PROM in ignition

timing and fuel.     The PROM tables are.éltered to compensate for the changes

made to the engine and the recommendation of premium fuel.

                                         Table 1.

                          Stock                    .     Modified

Diéplacement              3453 co                        3798 cc

Bore                      93.4 mm                        93.6 mm

Stroke                    84.0 mm                        92.0 mm

Compression Ratio    .    9.8 to 1   °                   10.2 to 1

Peak Horsepower           256 HP         ‘               328 HP

         Any additional components which are not part of the original short block

assembly are removed and installed on the Dinan short block assembly using the

supplied gaskets.     No adjustménts are required during the installation.

         V.   DISCUSSION OF THE M—CAR STROKER ENGINE

         Dinan Performance Engineering, has requested that the M—Car Stroker

Engine be exempted for 1984 to 1988 fiMw MS5 & M6, and 1991 to 1993 BMW MS5 sports

cars equipped with a 3.5L gasoline engine.             A 1990 BMW M—5 with a 3.5L engine

                                             ~2~


was used for testing.    Dinan performed testing at the Milton Roy Company with

the vehicle emissions compared against emission standards.                            The inertia weight

was set at 4000 lbs. and 7.7 hp.

        The results of the exhaust emissions test performed at the Milton Roy

Company are shown in Table 2.                              .

                                             Table 2

                                    CVs—75 TBST RESULTS

                                {Milton Roy Company)

                                              HC       _       co             NOx

                                                     (grams/mile)

              Device                          6.19             1.60       _   0.24

              Standard                        0.39             7.0    '       0.7



        Confirmatory testing was conducted at the Air Resources Board‘s Haagen—

Smit.   Results are shown is Table 3.

                                             Table 3

                                    CVs—75 TEST RESULTS

                                      ° {Haagen—Smit)

                                         ‘    e                co             NoOx

                                                     (grams/mile)

              Device                          0.345            1.50           0.287

              Standard          .             0.39             7.0            0.7

        These results show that the emissions of the modified vehicle do not

exceed the vehicle‘s emissions standards.

        Dinan Performance Engineering submitted all of the required information

and fulfilled the requirements for an exemption.

                                               ~3—


APPENDIX


 Modified parts list: 91 > US MS

 Quantity        DINAN Part Number           Description

                D512—0310                  . _Billet Crankshaft 92mm
——




                DS12—0200                   Forged aluminum pistons
— C y




        sets    0520—0200                   High—Performance ring
                D903—0440                   ‘Calibration PROM



Modified parts list: 84—88 Euro MS and M6

Quantity         DINAN Part Number           Description

 1               0512—0300                   Billet Crankshaft S2mm
 6               DS512—0200                  Forged aluminum pistons
 6 sets          0520—0200                   High—Performance rings
   1             ©303—0600                   Calibration PROM


 Modified parts list: 87—88 US MS and MG

  Quantity       DINAN Part Number           Description

   1             DSs12—0300                  Billet Crankshaft 32mm
   6             D512—0200                   Forged aluminum pistons
   6 sets        ‘D520—0200                  High—Performance rings
    1            D903—0500                   Calibration PROM



Document Created: 2005-09-01 12:41:24
Document Modified: 2005-09-01 12:41:24

Previous E.O. D-176-5 | Previous E.O. D-175 | Next E.O. D-176-7 | Next E.O. D-177
