Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 15, 2007.
As of Thursday, June 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2007 and 2008 model year Honda Fits with a 1.5L engine.The HKS Bolt-On Turbo Kit consists of a Garrett T25 turbocharger assembly that is rated at a maximum boost of 6.0 psi. The kit also includes an open element air filter, intake tubing, exhaust manifold, intercooler, and a fuel management unit. The fuel management unit is installed in series to the ECU and has a connector that plugs into the OBD II port.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-186-27
  • Executive Order 186-27 / D186-27
  • ARB # D-186-27
  • Executive Order No: D-186-27
  • C.A.R.B. No. D-186-27
  • Resolution D-186-27
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-186-27 PDF

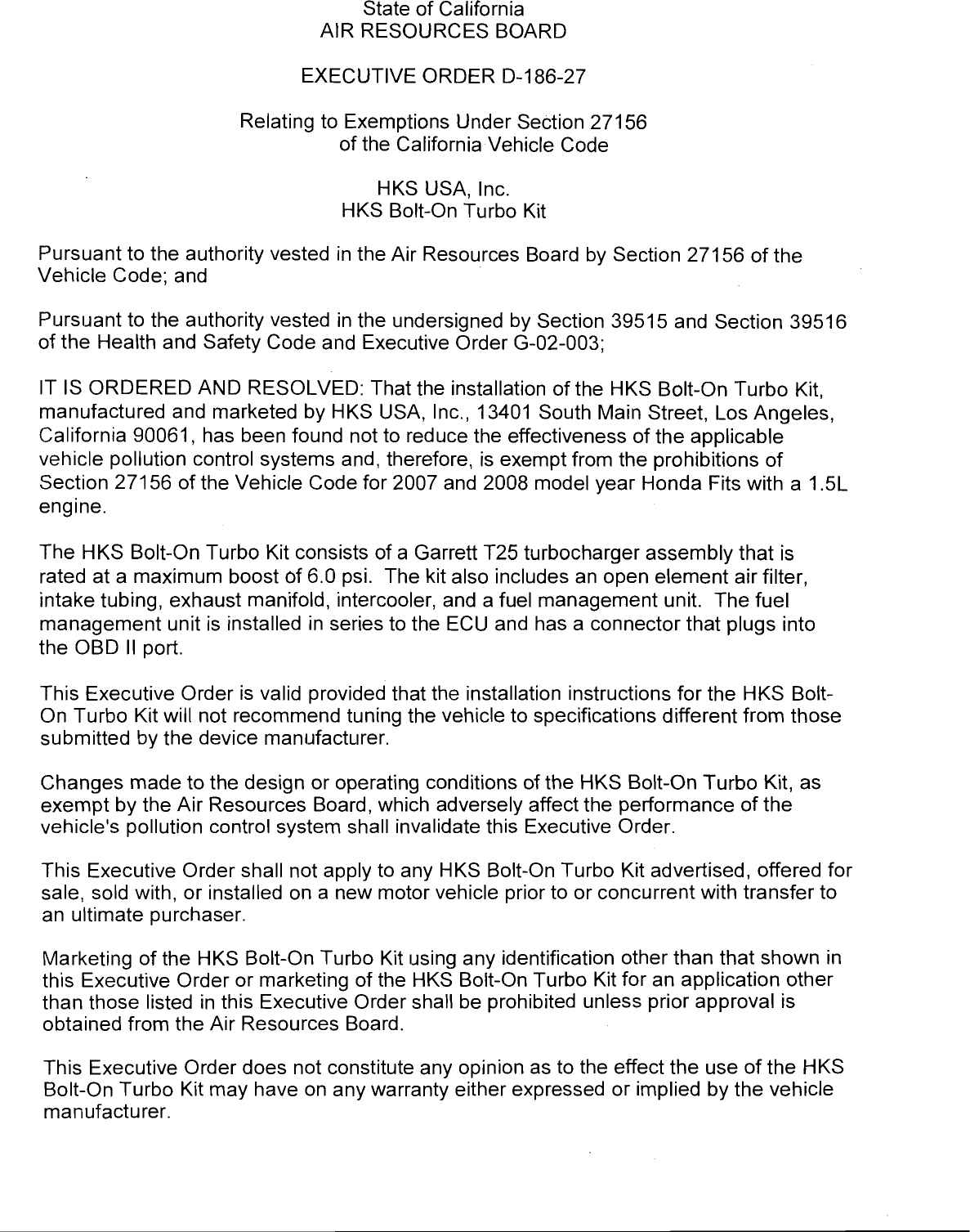

D-186-27 Document:



                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D-186-27

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                    HKS USA, Inc.
                                  HKS Bolt-On Turbo Kit

Pursuant to the authority vested in the Air Resources Board by Section 271 56 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That the installation of the HKS Bolt-On Turbo Kit,
manufactured and marketed by HKS USA, Inc., 13401 South Main Street, Los Angeles,
California 90061, has been found not to reduce the effectiveness of the applicable
vehicle pollution control systems and, therefore, is exempt from the prohibitions of
Section 271 56 of the Vehicle Code for 2007 and 2008 model year Honda Fits with a 1.5L
engine.

The HKS Bolt-On Turbo Kit consists of a Garrett T25 turbocharger assembly that is
rated at a maximum boost of 6.0 psi. The kit also includes an open element air filter,
intake tubing, exhaust manifold, intercooler, and a fuel management unit. The fuel
management unit is installed in series to the ECU and has a connector that plugs into
the OBD II port.

This Executive Order is valid provided that the installation instructions for the HKS Bolt-
On Turbo Kit will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the HKS Bolt-On Turbo Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle's pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any HKS Bolt-On Turbo Kit advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the HKS Bolt-On Turbo Kit using any identification other than that shown in
this Executive Order or marketing of the HKS Bolt-On Turbo Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the HKS
Bolt-On Turbo Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.


This Executive Order is granted based on submitted emission test data generated on a
2007 model year 1.5L Honda Fit certified to the Low Emission Vehicle II Low Emission
Vehicle (LEV II LEV) emission standards and modified with the HKS Bolt-On Turbo Kit.
Test results showed that emission levels, with the HKS Bolt-On Turbo Kit installed, met
the applicable emission standards when tested using the Cold-Start CVS-75 Federal
Test Procedure (FTP) and the Supplemental Federal Test Procedure (SF-TP US06)
test cycles. Boost pressure was measured at 4.3 psi. during the F-TP and 5.1 psi.
during the SFTP US06. Examination of the OBD II system showed the HKS Bolt-On
Turbo Kit did not affect OBD II system operation. Results from emission testing
conducted at California Environmental Engineering, Santa Ana, California are listed
below in grams per mile with deterioration factors applied.

   2007 model year Honda Fit           CVS-75 FTP
                                 NMOG     CO     NOx              HCHO
   Standards                     0.075    3.4    0.05             0.015
   Device Test                   0.061    0.4    0.05             0.001



   Standards 4k
   Device

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add-on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECU1-IVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BEhIEFITS OR ANY ALLEGED BENEFITS OF THE HKS BOLT-ON
TURBO KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten-day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this     /5a day of April 2008.




                                    Annette Hebert, chi& '
                                    Mobile Source Operations Division



                  HKS USA, INC. - HKS BOLT-ON -TURBO KIT - D-186-27



Document Created: 2008-05-09 12:23:51
Document Modified: 2008-05-09 12:23:51
