Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 17, 1991.
As of Thursday, August 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
5010EC-11026L1987-1988 Toyota Supra Turbo (7MG-TE) 3.0 L (183 CID) 1987-1991 Toyota Supra (7MGT) 2.0L (183 CID)

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-186-3
  • Executive Order 186-3 / D186-3
  • ARB # D-186-3
  • Executive Order No: D-186-3
  • C.A.R.B. No. D-186-3
  • Resolution D-186-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-186-3 PDF

D-186-3 Document:



                                                             (Pags 1 of 2?)

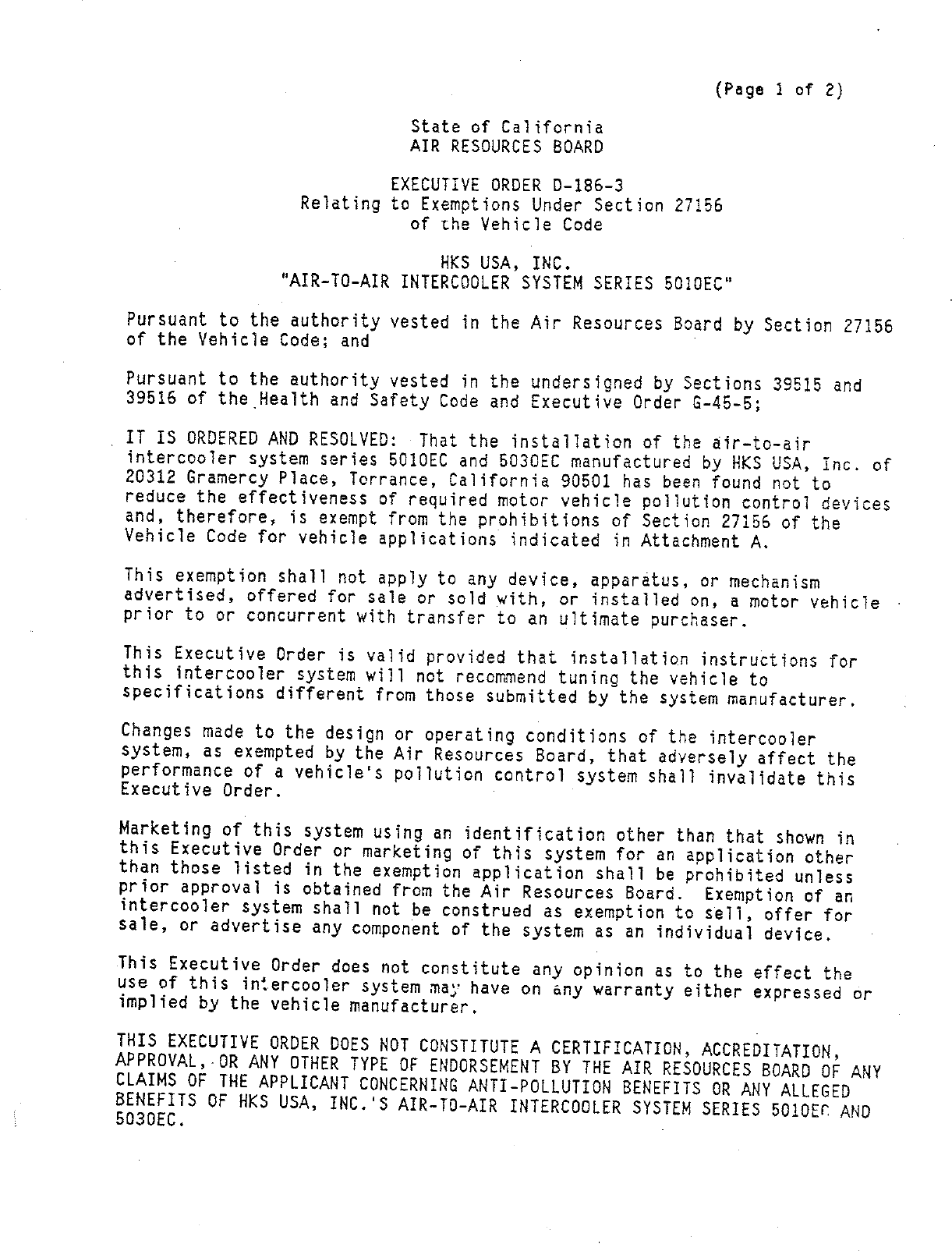

                              State of California
                              AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—186—3
                    Relating to Exemptions Under Section 27156
                               of the Vehicle Code

                                HKS USA, INC.
                "AIR—TO—AIR INTERCOOLER SYSTEM SERIES 5010EC"

 Pursuant to the authority vested in the Air Resources Board by Section 27156
 of the Vehicle Code; and                                ‘

 Pursuant to the authority vested in the undersigned by Sections 39515 and
 39516 of the Health and Safety Code and Executive Order G—45—5;

—IT IS ORDERED AND RESOLYED: That the installation of the air—to—air
 intercooler system series 5010EC and 5030EC manufactured by HKS USA, iInc. of
 20312 Gramercy Place, Torrance, California 90501 has been found not to
 reduce the effectiveness of required motor vehicle pollution control devices
 and, therefore, is exempt from the prohibitions of Section 27156 of the
 Vehicle Code for vehicle applications indicated in Attachment A.

 This exemption shall not apply to any device, apparatus, or mechanism
 advertised, offered for sale or sold with, or installed on, a motor vehicle
 prior to or concurrent with transfer to an ultimate purchaser.

 This Executive Order is valid provided that installation instructions for
 this intercooler system will not recommend tuning the vehicle to
 specifications different from those submitted by the system manufacturer.

 Changes made to the design or operating conditions of the intercooler
 system, as exempted by the Air Resources Board, that adversely affect the
 performance of a vehicle‘s poliution control system shall invalidate this
 Executive Order.

 Marketing of this system using an identification other than that shown in
 this Executive Order or marketing of this system for an application other
 than those listed in the exemption application shall be prohibited unless
 prior approval is obtained from the Air Resources Board. Exemption of an
 intercooler system shall not be construed as exemption to sell, offer for
 sale, or advertise any component of the system as an individual device.

 This Executive Order does not constitute any opinion as to the effect the
 use of this infercooler system may have on any warranty either expressed or
 implied by the vehicle manufacturer.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, .OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
 CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
 Eggg;éTS OF HKS USA, INC.‘S AIR—TO—AIR INTERCOOLER SYSTEM SERIES SO10EC AND


HKS USA, INC.            —                               EXECUTIVE ORDER D—186—3
"AIR—TO—AIR INTERCOOLER SYSTEM                           {Page 2 of 2)
SERIES 5010EC"



No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

   "43644, {a) No person shall install, sell, offer for sale, or advertise,
   or, except in an application to the state board for certification of a
   device, represent, any device as a motor vehicle pollution control device
   for use on any used motor vehicle unless that device has been certified
   by the state board.  No person shall sell, offer for sale, advertise, or
   represent any motor vehicle poliution control device as a certified
   device which, in fact, is not a certified device.  Any violation of this
   subdivision is a misdemeanor."

Any apparent viclation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order D—186—1, dated June 23, 1989,        is superseded and of no
further force and effect.

Executed at El Monte, California, this    / 7.   d      f September, 1991.




                                         R.B./Summerfield
                                         Assistant Division Chief
                                         Mobile Source Division


                                  ATTACHMENT "A"                         (Page 1 of 2)




      List vehicle makes, model yeurs, engine displecements and syeiums that urs
compatible with the devics, and for which examption is requeated. Specify the
correct devica model for sach vehicle.                                     —


 KS    Part   N     M      ~Yes       Make            /    ng                     3       {(1.C



SQ10EC—11@26L       1987—1988         Toyota    Supra Turbe (TMG—TE)            3.0,183

SsQ10EC—12721J      1985—1987         Toyota    440 PU Turbo (22R—TE)          .72.4,144

So10EC—12821J       1985—1987         Toyota    } Runner Turbe (22R—TE)         2.4, 144

SfliQEC-}ZZZIJ       1985—1987         Toyota    2U0 PU ;urbo C2ZRR—TE)          2.4,144

SQ10EC—24046H       1984—1996         Nissen    300ZX Turbo (VG30ET)            3.0,181

So10EC—24046L       1987              Nissan    300ZX Turbo (VG30ET)            B.G,Xél

SOIQEC-;4447H      1984—1386          Nissen    2005X Turbo (CA1GET)            1.8,110

SQ10EC—24243E      1981—1983          Nissan    2802X Turbe (L28ET)             2.8,.168

Sdqi0ECc—470706    1983               Mitsub    Starion Turbo (ES4BT)           2.6, 156

5010EC—47070H      1984—1987          Mitsub    Starion ES/LE (6S548T)          2.6, 156

S010EC—47070H      1984—1387          Dodge/    Conquest Turbe (6§54§6T)        2.6, 156
                                      Plymth/
                                     Chrysler

SQ10EC~47171J      1985—1986         Mitsub     Mirage Turbo (G32Z68T)          1.6, 98

SQ10EC~47171J      1985—1986         Dodge/     éolt Turbo (63281)              1.6, 98
                                     Plymth

SQ10EC~47171L      1987—1988         Mitsub     Mirege Turbo (§32BT)            1.6, 98 >

SQ10EC—47171L      1987;1988          Dodge/    Colt Turbe (§328T)              1.6,98
                                     Plymth

5SC10EC~—58383¢    1986—1987         Mazda      626 6T Turbo (FE Turbo)} —     2.0,122


                                               ATTACHMENT "A"                               (Page 2 of 2)




       List vehicle names, model years, engine displacements and systems thai are
       compatible with the device, and for which exemption is requested. Specify the correet
       device model for each vehicle.

HKS Part No.          Years           Make            Moda{ (Engine}                  Disp,. L (C1)

5010EC—11026L         1987—1991       Toyota          Supra {7MGT)                    3.0 (183)

5010EC—24046M         1968            Nissan          200ZX (VG30ET)                  3.0 (181)
5010EC—24751P         1990—1991       Nissan          300ZX (VG30DETT)                3.0 (181)
5010EC—58182K         1986—1988       Mazda          RAxX—7 (13B1)                   1.3 (80)
5010EC—58182N         1989—1991       Mazda          RX—7 (1387)                     1.3 (80)
5030EC—58585M *       1988—1891       Mazda          MX—68 (F2T)                     2.2 (194)
5030EC—58985M *       1988—1991       Ford           Probe (F2T)                     2.2 (134)


      * Please note that part numbers 5030EC—58585M £:5080EC—58985M are intercooler plumbing or tube
       upgrades only and do not include a new intercooter core as in all 5010EC systems.

                                                        s


                          State of California
                          AIR RESOURCES BOARD




EVALUATION OF HKS USA, INC.‘S AIR—TO—AIR INTERCOOLER SYSTEM FOR EXEMPTION
    FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 AND TITLE 13,
               CALIFORNIA CODE OF REGULATIONS, SECTION 2222




                            September, 1991


EVALUATION OF HKS USA, INC.‘S AIR—TO—AIR INTERCOOLER SYSTEM FOR EXEMPTION
     FORM THE PROHIBI%IONS IN VEKHICLE CODE SECTION 27156 AND TITLE 13,
               CALIFORNIA CODE OF REGULATIONS, SECTION 2222




                                      by
                           Mobile Source Division

                            State of California
                            AIR RESOURCES BOARD
                            9528 Telstar Avenue
                          E1 Monte, CA 91731—2990



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                   SUMMARY


        HKS USA, Inc. (HKS) of 20312 Gramercy Place, Torrance, California

90501 has applied for an update to Executive Order (E.0.) No. D—186—1 for

their intercooler system series 5010EC to include the turbocharged vehicles

shown in the appendix.   The vehicles are equipped with original equipment

manufacturer (OEM) turbocharger.   The intercooler system was previously

granted an exemption from the prohibitions in Vehicle Code (VC) Section

27156 in the Executive Order D—186 and then updated in E.0. D—186—1 at the

request of the applicant as new turbocharged vehicles compatible with the

intercooler system became available.

        Based on previous comparative data collected in the evaluation of

the exhaust emissions impact of several add—on intercooler kits and staff‘s

engineering evaluation, staff believes that the HKS‘s air—to—air intercooler

system will not adversely affect exhaust emissions from vehicles for which

the exemption is requested.   The staff recommends that the update be granted

as requested.


                                                    Num

SUMMAR                                              i
CONTENTS                                           ii
I.       INIRODUCTION                               1
II.      CONCLUSTON                                 1
III.     RECOMMENDATION                             1
IV.      DESCRIPIION                                1
v.          cUssIO                                  2
         APPENDIX
         List of Vehicles included in the update   A—1




                                    11


 EVALUATION OF HKS USA, INC.‘S AIR—TO—AIR INTERCOOLER SYSTEM FOR EXEMPTION
    FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 AND TITLE 13,
                CALIFORNIA CODE OF REGULATIONS, SECTION 2222


I.          RO       0

        HKS USA, Inc. (HKS) of 20312 Gramercy Place, Torrance, California

90501, has applied for an update of Executive Order (E.0.) No. D—186—1 for

their intercooler system to include turbocharged vehicles listed in the

appendix.   All vehicles shown in this update request are factory

turbocharged but are not equipped with intercoolers.

II.     CONCLUSION
        Previous comparative tests to determine the emission impact of

different add—on intercooler kits as well as staff‘s engineering evaluation

showed that the installation of intercoolers on turbocharged vehicles will

not adversely affect exhaust emissions from such vehicles.       Based on the

above, staff concludes that the HKS intercooler kit will not reduce the

effectiveness of the pollution control system of the application vehicles

listed in the appendix.

III.    RECOMMENDATION
        The staff recommends that the exemption update be granted as

requested and that Executive Order No. D—186—3 be issued, permitting the

advertisement, sale and installation of the intercooler kit.

IV.     DEVICE_DESCRIPTION
        The purpose of the intercooler is to increase the density of the

intake air/fuel charge of a turbocharged engine by reducing the temperature

of the charge air.       Higher charge density results in possible increase in

horsepower and volumetric efficiency for a given engine speed.

        The major components of the HKS air—to—air intercooler kit are:

aluminum heat exchanger, pressure pipes, cadmium plated brackets, silicone

rubber connector hoses, hose clamps, compressor by—pass valve, silicone

rubber vacuum and blow—by hases.


They are packaged with other installation hardware and instructions and sold

as a kit or system.   The system is designed to suit an individual vehicle by

using different tubing lengths, diameter, and bends.

         The HKS air—to—air intercooler system heat exchanger is mounted in

the frontal area of the vehicles‘ air stream.   It is spliced into the

original intake air plumbing between the turbocharger compressor and the

intake manifold throttle body.   During boost conditions, compressed air,

normally 230 degrees F to 240 degrees F, is cooled to 130 degrees F by the

HKS intercooler core before being delivered to the engine.   Some HKS

intercooler systems incorporate a compressor by—pass valve which routes the

compressor discharge directly into the compressor intake under deceleration.

This arrangement prevents impeller deceleration between gear shifts and

reduces shock waves in intercooler plumbing and core.

.        DISCUSSION
         HKS air—to—air intercooler is similar in design as other

manufacturers‘ systems that have been exempted by the Air Resources Board'

(ARB).   Performance analysis that were previously submitted to the ARB by

other manufacturers of similar system indicated that typical thermal

efficiency of a turbocharger intercooler system ranges between 40% and 84%.

Based on predicted efficiency of a heat exchanger on previous air

temperature measurements of other exempted intercoolers installed and tested

on vehicles, and on a review of the device theory of operation, the staff

has concluded that the use of an intercooler would not adversely affect

vehicle emissions or result in the degrading of a vehicle‘s driveability.

         In addition, it is staff‘s opinion that the combustion temperature

will be reduced as a result of cooler intake charge with the use of the air—

to—air intercooler system.


This reduction in combustion temperature will reduce the formation of NOx

gases in the combustion chamber, resulting in less NOx exhaust emissions.

Based on the above, staff determined that no testing was required for the

purpose of exempting the intercooler from the prohibitions in VC Section

27156.


APPENDIX


         List vehicle names, model years, engine displacements and systems that are
         compatible with the device, and for which exemption is requested. Specify the correct
         device model for each vehicle.

(@ps reane             Years          Make           Mode{ (Engine)               Disp. L (C1)
  5010EC—11026L.       1987—1991      Toyota         Supra (ZMGT)                 3.0 (183)
  50102C—24046M        1988           Nissan        3007X (VG30ET)                3.0 (181)
  501020—24751P        1990—1991      Nissan        300ZX (VG30DETT)              3.0 (181)
  5010EC—58182K        1986—1988      Mazda         RX—7 (1387)                   1.3 (80)
  5010EC—58182N        1989—1991      Mazda         RX—7 (138B7)                  1.3 (80)
  5030EC—58585M *      1988—1991      Mazda         MX—6 (F2T)                    2.2 (134)
 5030EC—58985M *       1988—1991      Ford          Probe (F2T)                   2.2(134)

        * Please note that part numbers 5030EC—58585M &5030EC—58985M are intercooter plumbing or tube
          upgrades only and do not include a new intercooler core as in all 5010EC systems.

                                                       a


                             . ATTACHMENT "A"                        (Page 1 of 2)




   List vehicle mekes, model years, engine displucements end systems that erw
compatible with the device, and for which exemption is requested. Specify the
correct device model for wach vehicle.                                .


HKS Part No      Mogel—Yearns     Make       Model/Enpins                           Man.        (1.¢1)



SG10EC—11G26L    1987—1988        Toyota     Supra Turbo (TMG—TE)                   3.0,183

SQ1iGEC—12721J   1985—1987         Toyota    4W0 PU Turbo (2ZR—TE)         ~2.4,144

§5010EC—12821]   1985—1987        Toyota     4 Runner Turbe (Z2R—TE)            2.4, 144

SQiQEC-XZZZIJ    1985—1987        Toyota     2W0 PU ?urbo C22R—TED              2.4,144

5Q10EC—24046H    1994—1986        Ni ssan    3007X Turbo {VG3OET)               3.0,181

SO10EC—24046L    1987             Nissan     3007X Turbo {V630ET)               3.0,101

SGXQEC—;44¢7H    1984—1386        Nissan     2005X Turbe (CALGET)               1.8,110

5Q10EC—24243€    1981—1983        Nissan     2802X Turbe (L2ZBET}               2.8,168

‘SG10EC~470706   1983             Mitsub     Starion Turbé CGS4BT)              2.6, 156

S010EC—47070H    1984—1987        Mitsub     Starion ES/LE (§548T)              2.6, 156

SQ10EC—47070H    1984—1987        Dodge/     Conquest Turbo (6§48T)             2.6, 156
                                  Plynth/
                                  Chrysler

5010EC—47171J    1985—1986        Mitsub     Mirage Turbo (6328T)

SQ10EC—47171J    1985—1986        Dodge/     Colt Turbo (632BT)                          , 98
                                                                                     &
                                                                               i—




                                  Plymth

SQ1BEC—4717IL    1987—1988        Mitsub     Mirage Turbo (§32BT)               1.6, 98

SQ10EC—47171L    i987—1988        Dodge/     Colt Turbo (§32BT)                 1.6, 98
                                  Plymth

5C10EC—583§3K    1986—1987        Mazda      626 6T Turbe (FE Turbo)
                                                                                L
                                                                                         bo
                                                                                         no
                                                                          bo
                                                                                &


                                             ATTACHMENT "A"                             (Page 2 of 2)




       List vehicle names, model years, engine displacements and systems that are
       compatible with the device, and for vx‘(hich exemption is requested. Specify the correct
       device model for each vehicie.

HKS Part No.         Years           Make           Mode] (Engine}                Disp. L (C1)

5010EC—11026L.       1987—1991      Toyota          Supra (ZMGT)                  3.0 (183)

5010EC—24046M        1988           Nissan         300ZX (VG3OET)                 3.0 (181)
5010EC—24751P        1990—1991      Nissan         300ZX (VG30ODETT)              3.0 (181)

5010EC—58182K        1986—1988      Mazda          RX—7 (1387)                    1.3 (80)
5010EC—58182N        1989—1991      Mazda          RX—7 (13BT)      '             1.3 (80)
5030EC—58585M *      1988—1991      Mazda          MX—6 (F2T)                     2.2 (134)

5030EC—58985M *      1988—1991      Ford           Probe (F2T)                    2.2 (134)


      * Please note that part numbers 5030EC—§58585M £55030EC—58985M are intercooler plumbing or tube
        upgrades only and do not include a new intercooler core as in all 5010EC systems.



Document Created: 2005-09-01 12:39:35
Document Modified: 2005-09-01 12:39:35

Previous E.O. D-186-2 | Previous E.O. D-185 | Next E.O. D-186-4 | Next E.O. D-187
