Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 15, 1998.
As of Tuesday, July 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
970000 series>>>> See Rems>>>> See RemsNon-OBD2 , see list of exempted catalytic converters

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-193-18
  • Executive Order 193-18 / D193-18
  • ARB # D-193-18
  • Executive Order No: D-193-18
  • C.A.R.B. No. D-193-18
  • Resolution D-193-18
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-193-18 PDF

D-193-18 Document:

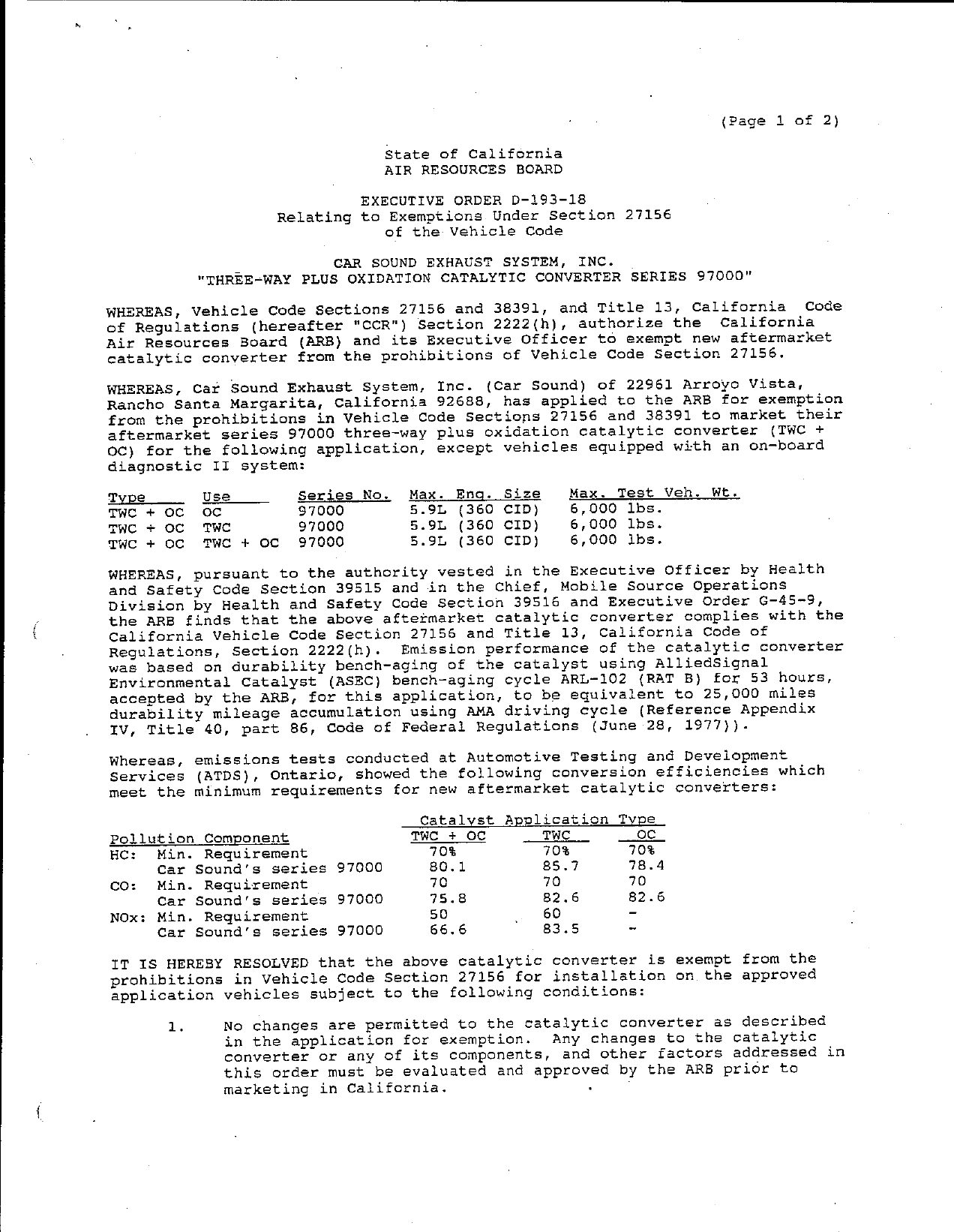

                                                                                     (Page 1 of 2)

                                         State of California
                                       AIR RESOURCES       BOARD

                                    EXECUTIVE     ORDER D—193—18
                          Relating to Exemptions Under Section 27156
                                         of the Vehicle Code

                  _          CAR SOUND EXHAUST SYSTEM, INC.
              "THREE—WAY PLUS OXIDATION CATALYTIC CONVERTER SERIES 97000"

WHEREAS, Vehicle Code Sections 27156 and 38391,                   and Title 13,   California   Code
of Regulations (hereafter "CCR") Section 2222(h), authorize the                      California
Air Resources Board         (ARB)   and its Executive Officer to exempt new aftermarket
catalytic converter from the prohibitions of Vehicle Code Section 27156.

WHEREAS,      Car Sound Exhaust System,       Inc.   (Car Sound)      of 22961 Arroyo Vista,
Rancho Santa Margarita, California 92688,              has applied to the ARB for exemption
from the prohibitions in Vehicle Code Sections 27156 and 38391 to market their
aftermarket series 97000 three—way plus oxidation catalytic converter (TWC +
OC) for the following application, except vehicles equipped with an on—board
diagnostic II system:

Type           Use          Series No.     Max. Eng. Size          Max. Test Veh.   Wt.
TWC + Oc       oC           27000          5.9L (360 CID)          6,000 lbs.
TWC + OC       TWC          97000          5.9L (360 CID)          6,000 lbs.
TWC + OC       TWC + oc     97000          5.9L (360 CID)          6,000 lbs.

WHEREAS,      pursuant to the authority vested in the Executive Officer by Health
and Safety Code Section 39515 and in the Chief, Mobile Source Operations
Division by Health and Safety Code Section 39516 and Executive Order G—45—9,
the ARB finds that the above aftermarket catalytic converter complies with the
California Vehicle Code Section 27156 and Title 13,                   California Code of
Regulations, Section 2222(h).  Emission performance of the catalytic converter
was based on durability bench—aging of the catalyst using AlliedSignal
Environmental Catalyst (ASEC) bench—aging cycle ARL—102 (RAT B) for 53 hours,
accepted by the ARB, for this application, to be equivalent to 25,000 miles
durability mileage accumulation using AMA driving cycle (Reference Appendix
IV, Title 40, part 86, Code of Federal Regulations (June 28, 1977)).

Whereas, emissions tests conducted at Automotive Testing and Development
Services (ATDS), Ontario, showed the following conversion efficiencies which
meet the minimum requirements for new aftermarket catalytic converters:

                                            Catalyst Application Type
Pollution Component                        TWC + 0C      TWC       oc
HC:    Min.    Requirement                   70%             70%         70%
      Car     Sound‘s series 97000           80.1            85.7        78.4
CO:    Min.    Requirement                   70              70          70
      Car     Sound‘s series 97000           75.8            82.6        82.6
NOx: Min. Requirement                        50        _     60          —
      Car Sound‘s series 97000               66.6            83.5        ~

IT IS HEREBY RESOLVED that the above catalytic converter is exempt from the
prohibitions in Vehicle Code Section 27156 for installation on the approved
application vehicles subject to the following conditions:

       1.       No changes are permitted to the catalytic converter as described
                in the application for exemption.  Any changes to the catalytic
                converter or any of its components, and other factors addressed in
                this order must be evaluated and approved by the ARB prior to
                marketing in California.


CAR SOUND EXHAUST SYSTEM, INc.                  EXECUTIVE ORDER D—193—18
"TWC + 0C SERIES 97000"                         (Page 2 of 2)


            Marketing of the catalytic converter using identifications other
            than those shown in the exemption application,         and in this
            Executive Order,   or marketing of the catalytic converter for
            application other than the ones shown in this Executive Order
            shall be prohibited unless prior approval is obtained from the
            ARB.—   Exemption of this product shall not be construed as an
            exemption to sell, offer for sale, or advertise any components of
            the catalytic converter as individual devices.

            Any oral or written references to this Executive Order or its
            content by Car Sound Exhaust System, Inc., its principals, agents,
            employees, distributors, dealers, or other representatives must
            include the disclaimer that the Executive Order or the exemption
            it provides is not an endorsement or approval of any emission
            reduction claims for the catalytic converter and is only a finding
            that the catalytic converter is exempt from the prohibitions of
            Vehicle Code Section 27156.

            Car Sound Exhaust System, Inc. installation instructions for the
            new catalytic converter must conform to requirements in Paragraphs
            I and IX of California Evaluation Procedures for New Aftermarket
            Non—Original Equipment Catalytic Converters.

            Upon installation,   the catalytic converter must carry a
            manufacturer‘s warranty for 25,000 miles on the substrates and
            50,000 miles or five years on the shell and end pipes.

            Car Sound Exhaust System, Inc. must conduct testing as outlined in
            the ARB letter dated June 25, 1998, and the test data must be
            generated and submitted to the ARB in accordance with the schedule
            stipulated in Car Sound‘s letter dated June 26,            1998.

Violation of any of the above conditions shall be grounds for revocation of
this order.  The order may be revoked only after ten day written notice of
intention to revoke it, during which period the holder of the order may
request in writing a hearing to contest the proposed revocation.               If a hearing
is requested, it shall be held within ten days of receipt of the request, and
the order may not be revoked until a determination is made, after the hearing,
that grounds for revocation exist.

Executed at El Monte,   California,   this




                                         R.B.   Summerfield,   Chief
                                        Mobile Source Operations Division


                                  State of California
                                 AIR RESOURCES     BOARD




     EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC.‘S SERIES 97000 NEW AFTERMARKET
           THREE—WAY PLUS OXIDATION CATALYTIC CONVERTER FOR EXEMPTION FROM
            THE PROHIBITIONS IN VEHICLE CODE SECTION 27156, AND TITLE 13,
                    CALIFORNIA CODE OF REGULATIONS SECTION 2222(h)




                                       July 1998




                                            by

                          Mobile Source Operations Division
                              Aftermarket Parts Section
                                 9528 Telstar Avenue
                               El Monte,   CA    91731—2990




(This report has been reviewed by the staff of the California Air Resources Board and
approved for publication.  Approval does not signify that the contents necessarily
reflect the views and policies of the Air Resources Board, nor does mention of trade
names or commercial products constitute endorsement or recommendation for use.)


                                           SUMMARY



           Car Sound Exhaust System,   Inc.   (Car Sound)   of 22961 Arroyo Vista,   Rancho

Santa Margarita, California 92688, has applied for an exemption of their new series

97000 aftermarket three—way plus oxidation catalytic converter (TWC + OC) from the

prohibitions in Vehicle Code Sections 27156,     in accordance with California regulations

on new aftermarket catalytic converters.      The two test catalysts were aged using

AlliedSignal Environmental Catalyst (ASEC‘s) bench—aging cycle, ARL—102       (RAT B)    for 53

hours.   Each converter can contains two substrates of ceramic monolith type.         The     »

front and rear substrates are coated with palladium and rhodium in 5:1 ratio.           The new

catalytic converter may be installed on TWC + OC, TWC,       and OC vehicles powered by an

engine of 5.9L or less,   and having an equivalent test weight of 6,000 lbs. or less.

           Emissions data submitted by the applicant show that the catalytic converter

meets the requirements of Vehicle Code Section 27156 and Title 13, California Code of

Regulations, Section 2222(h) for the stated applicatipn.        Based on the above, the

staff recommends that the exemption be granted as requested and that Executive Order

D—193—18 be issued.


                            CONTENTS

                                       Page Number

       SUMMARY                               i

       CoNTENTS                             ii

       INTRODUCTION

II.    CONCLUSION

III.   RECOMMENDATION

Iv.    DEVICE DESCRIPTION

v.     DEVICE EVALUATION




                               11


       EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC.‘S SERIES 97000 NEW AFTERMARKET
             THREE—WAY PLUS OXIDATION CATALYTIC CONVERTER FOR EXEMPTION FROM
              THE PROHIBITIONS IN VEHICLE CODE SECTION 27156, AND TITLE 13,
                       CALIFORNIA CODE OF REGULATIONS SECTION 2222(h)


I.          INTRODUCTION

            Car Sound Exhaust System,        Inc.           (Car Sound)    of 22961 Arroyo Vista, Rancho

Santa Margarita,   California 92688,     has applied for an exemption from the prohibitions

in Vehicle Code Section 27156 for their new series 97000 aftermarket three—way plus

oxidation catalytic converter (TWC + OC) in accordance with California regulations on

new aftermarket catalytic converters.          The ceramic monolith substrates of the new

catalyst were manufactured by AlliedSignal Environmental Catalyst (ASEC).                            The new

aftermarket catalyst is intended for the following vehicle application:


Converter Type     Converter Use     PN/Series                  Max.    Eng.     Max.   Veh.
                                                    —           Size             Test Wt.
TWC + 0C           TWC + 0C          97000              .       5.91             6,000 lbs.
TWC + OC           TWC               97000                      5. 9L            6,000 lbs.
TWC + OC           oC                97000                      5.91             6,000 lbs.


Car Sound intends to market the new TWC + OC as a replacement for catalytic converters

on applicable vehicles whose manufacturers‘                   warranty has expired and the need for

replacement of the original equipment manufacturer                      (OEM)    catalytic converter has been

established and documented.        Excluded from the application are those vehicles equipped

with an On—Board Diagnostic System II         (OBD—1I1I).

II.         CONCLUSION

           The applicant has submitted all the required information,                           and based on the

applicant‘s submitted exhaust emissions test data,                      the staff concludes that the new

aftermarket catalyst meets the criteria set forth in Vehicle Code Section 27156,                            and

Title 13, California Code of Regulations,                   Section 2222(h) for the stated application.

III.       RECOMMENDATION

           Staff recommends that the exemption be granted as requested and that

Executive Order No. D—193—18 be issued, permitting the advertisement,                           sale, and

installation of the new aftermarket catalyst on applicable vehicles.

Iv.    '   DEVICE DESCRIPTION

           Car Sound‘s new aftermarket TWC + 0C is designed to use oval ceramic

monolith substrates.     The front and rear substrates are coated with palladium and

rhodium in 5:1 ratio.    Each substrate measures 4.75 inches along the major axis, 3.15

inches along the minor axis,    and.1.93 inches in length,                      and has a volume of 24.6

cubic inches.    Alumina coating was used as the washcoat for the catalyst.                          The

substrates are contained in outer 409 stainless steel shell with Fiberfrax XPE paper


or intumescent mat,        to prevent vibration and exhaust by—pass.                      The shell is sealed by

seam weld,     and bushings are attached by arc welding.                      Aluminized soft steel hgat

shield is spot—welded to the upper and bottom sides of the converter to protect

vehicle underbody from excessive heat,.and prevent materials on the ground from diréct

contact with the catalyst shell.            The catalyst may be sold as a unit with installation

instructions or may be used in customized direct fit exhaust application.                                It is also

sold with a warranty for 25,000 miles on the substrates,                         and five years or 50,000

miles on the container or shell, and the end pipes.

v.            DEVICE EVALUATION

              Car Sound submitted data from testing conducted by Automotive Testing and

Development Services        (ATDS),   Ontario,    California.           The test catalysts were aged by

AlliedSsignal Environmental Catalyst using their ARL—102                        ("RAT B") bench—aging cycle

for 53 hours.      The test catalysts were shipped directly to ATDS where the emissions

tests were conducted for three—way plus oxidation                (TWC + OC)             application using a 1989

Dodge B250 Cargo Van 5.9L at the equivalent test weight                         (ETW)    of 6,000 lbs.     Three—way

{TWC)    application tests were conducted on a 1994 Dodge Ram 2500 Pickup Truck 5.9L at

its certification ETW of 7,500 lbs.              The oxidation catalyst application tests were

conducted on a 1988        Dodge B350 Van 5.9L at the RTW of 6,000 lbs.                       Although Car Sound

elected to conduct the TWC application test at the ETW of 7,500 lbs., they were

informed, prior to start of testing that the TWC application will still be limited to

$.9L/6,000 lbs., the limits to which the catalyst was aged.                             The test vehicles for TWC

+ OC and OC applications were ballasted in order to achieve the required ETW of 6,000 |

pounds.       The test catalysts were labeled as 94AM4 and S4AA5.                        Testing consisted of

two cold—start CVS—75 with a simulator             ("dummy" catalyst),              followed by two cold—start

CVs—75 for each of the test catalysts.              The test results for the catalyst are shown

below:

                                         ATDS,   Ontario,    California

                                                   TWC + 0C

                Simulator      Cat I4AA4           Cat Y4AA5                  Conv. Eff.
                Average        Average             Average        ~_—         Average
#C   (g/mi)       2.758          0.546               0 .548                    80.1%
cCO (g/mi)       36.022          8.816               8.588                     75.8%
NOx (g/mi)        2.884          1.012               0.910                     66.6%

          j                                           TWC
HC   (g/mi)       2.324         0.332                0.332               10    85.7%
co   (g/mi)      26.474         5.151                4.029                     82.6%
NOx (g/mi)         6.308         1.182               0.894                     83.5%

                                                       oc
HC   (g/mi)       3.028         0.636                0.671                     78. 4%
co   (g/mi)      27.020         4.292                5.068                     82.6%
                                                      ~2~


The above catalyst duplicates Car Sound‘s series 94000 TWC + OC,   which was

manufactured and bench—aged by Johnson Matthey.   However,   series 97000 is manufactured

with only one half the loading of platinum on series 94000.    Although the above test

results show that series 97000 meet the minimum requirements of the California

regulations on new aftermarket catalytic converters,   the ARB wants to further

investigate whether the performance of the catalyst was solely influenced by the

washcoat technology used by AlliedSignal.   For this reason, the ARB has requested Car

Sound to conduct further testing in order to determine the role of the bench—aging

cycle.   Due to time constraints, the ARB was unable to conduct confirmatory testing on

the new series 97000 TWC + Oc.



Document Created: 2005-09-01 12:42:54
Document Modified: 2005-09-01 12:42:54

Previous E.O. D-193-17 | Previous E.O. D-192 | Next E.O. D-193-19 | Next E.O. D-194
