Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 24, 1990.
As of Friday, August 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
NOT LEGAL FOR SALE OR INSTALLATION AFTER 12/31/08

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-193-2
  • Executive Order 193-2 / D193-2
  • ARB # D-193-2
  • Executive Order No: D-193-2
  • C.A.R.B. No. D-193-2
  • Resolution D-193-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-193-2 PDF

D-193-2 Document:

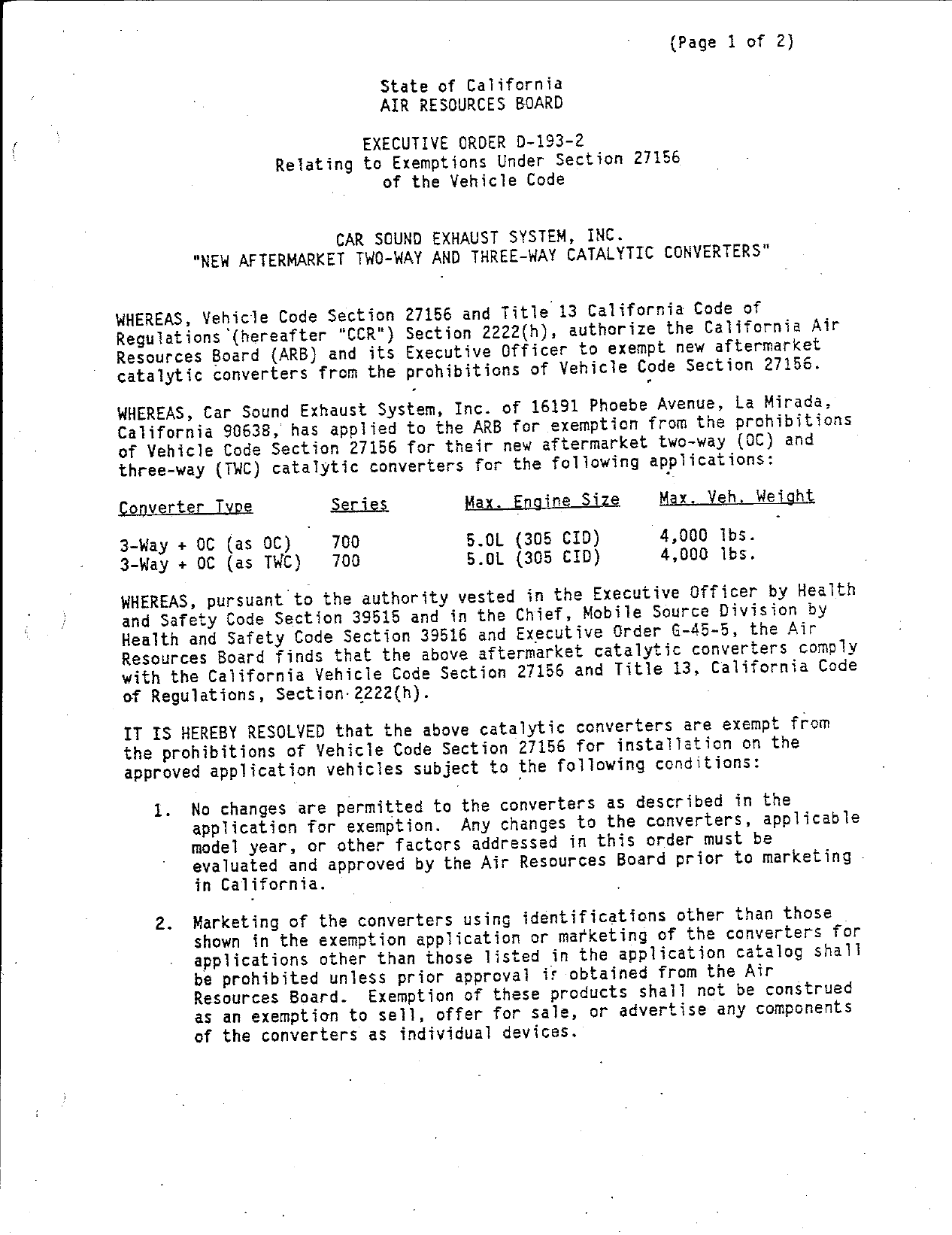

                                                              {Page 1 of 2)

                                State of California
                                AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—193—2
                  Relating to Exemptions Under Section 27156
                                of the Vehicle Code


                        CAR SOUND EXHAUST SYSTEM, INC.
         "NEW AFTERMARKET TWO—WAY AND THREE—WAY CATALYTIC CONVERTERS®"


WHEREAS, Vehicle Code Section     27156 and Title 13 California Code of
Regulations ‘(hereafter "CCR")    Section 2222(h), authorize the California Air
Resources Board (ARB) and its     Executive Officer to exempt new aftermarket
catalytic converters from the     prohibitions of Vehicle Code Section 27156.

WHEREAS, Car Sound Exhaust System, Inc. of 16191 Phoebe Avenue, La Mirada,
California 90638, has applied to the ARB for exemption from the prohibitions
of Vehicle Code Section 27156 for their new aftermarket two—way (OC) and
three—way {TWC) catalytic converters for the following app1ications:

Comverter Type         Series           Max. Engine Size    Max. Y¥eh. Weight

3—Way + OC (as OC) -   700              5.0L (305 CID)      4,000 1bs.
3—Way + OC (as TWC)    700              5.0L (305 CID)      4,000 1bs.

WHEREAS, pursuant to the authority vested in the Executive Officer by Health
and Safety Code Section 3951§ and in the Chief, Mobile Source Division by
Health and Safety Code Section 39516 and Executive Order G—45—5, the Air
Resources Board finds that the above aftermarket catalytic converters comply
with the California Vehicle Code Section 27156 and Title 13, California Code
of Regulations, Section 2222(h}.

IT IS HEREBY RESOLVED that the above catalytic converters are exempt from
the prohibitions of Yehicle Code Section 27156 for installation on the
approved application vehicles subject to the following conditions:

   1.   No changes are permitted to the converters as described in the
        application for exemption. Any changes to the converters, applicable
        model year, or other factors addressed in this order must be
        evaluated and approved by the Air Resources Board prior to marketing
        in California.

   2.   Marketing of the converters using identifications other than those
        shown in the exemption application or marketing of the converters for
        applications other than those listed in the application catalog shall!
        be prohibited unless prior approval is obtained from the Air
        Resources Board. Exemption of these products shall not be construed
        as an exemption to sell, offer for sale, or advertise any components
        of the converters as individual devices.


CAR SOUND EXHAUST SYSTEM, INC.                      EXECUTIVE ORDER D—193—2
"NEW AFTERMARKET TWO—WAY AND THREE—WAY             (Page 2 of 2)
CATALYTIC CONYVERTERS®"                      ‘



   3.   Any oral or written references to this Executive Order or its content
        by Car Sound Exhaust System, Inc., its principals, agents, employees,
        distributors, dealers, or other representatives must include the
        disclaimer that the Executive Order or the exemption it provides is
        not an endorsement or approval of any emissions reduction claims for
        the catalytic converters and is only a finding that the converters
        are exempt from the prohibitions of Vehicle Code Section 27156.

Violation of any of the above conditions shall be grounds for revocation of
this order. The order may be revoked only after ten day written notice of
intention to revoke it, during which period the holder of the order may
request in writing a hearing to‘ contest the proposed revocation. If a
hearing is requested, it shallbe held within ten days of receipt of the
request, and the order may not be revoked until a determination is made,
after the hearing, that grounds for revocation exist.


Executed at El Monte, California, this   2¢".day of   January, 1990.


                 C                        //Z%flaéza
                                         K. D. Drachand, Chief
                                         Mobile Source Division


                             State of California
                             AIR RESOURCES BOARD




        EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. NEW AFTERMARKET 700
         SERIES CATALYTIC CONVERTER FOR EXEMPTION, FOR 2—WAY AND 3—WAY
     APPLICATIONS, FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 AND
           TITLE 13, CALIFORNIA CODE OF REGULATIONS, SECTION 2222(h)




Fa




                                January, 1990
l


      EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. NEW AFTERMARKET 700
        SERIES CATALYTIC CONVERTER FOR EXEMPTION, FOR 2—WAY AND 3—WAY
   APPLICATIONS, FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 AND
         TITLE 13, CALIFORNIA CODE OF REGULATIONS, SECTION 2222(h)




                                     by
                           Mobile Source Division

                            State of California
                            AIR RESOURCES BOARD
                            9528 Teistar Avenue
                            E1 Monte, CA 91731



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                  SUMMARY



        Car Sound Exhaust System, Inc. (Car Sound) of 16191 Phoebe Avenue,

La Mirada, California 90638, has applied for exemption to use their new 700

series aftermarket three—way plus oxidation (TWC + OC) catalytic converter

for oxidation (OC) or two—way and three—way (TWC) applications, under the

California regulations for new aftermarket catalytic converters.   Car Sound

plans to use the converter for oxidation and three—way applications on

vehicles up to 5.0 liters and 4000 lbs.

        Emissions data submitted show that the catalytic converter meets the

requirements of Vehicle Code Section 27156 and Title 13, California Code of

Regulations, Section 2222(h) for the stated applications.   Based on the

above, the staff recommends that the exemption be granted as requested.


                                    CONTENTS

                                               Page        mber

SUMMARY
CONTENTS                                              11

I.        INTROBUCTION
II.        CONCLUSION

II1I.      RECOMMENDATION

IV.        DEVICE DESCRIPTION

v.           ¥I       VALUATIO

           APPENDIX                               A—1

          Aging and Test Vehicles Parameters




                                       11


         EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. NEW AFTERMARKET 700
          SERIES CATALYTIC CONYVERTER FOR EXEMPTION, FOR 2—WAY AND 3—WAY
       APPLICATIONS, FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 AND
            TITLE 13, CALIFORNIA CODE OF REGULATIONS, SECTION 2222(h)


I.          NTRODUCTION

           Car Sound Exhaust System, Inc. {Car Sound) of 16191 Phoebe Avenue,

La Mirada, California 90638, has applied for an exemption to use their new

aftermarket 700 series three—way plus oxidation (TWC + OC) catalytic

converter, for oxidation and three—way applications, in accordance with the

California regulations on new aftermarket catalytic converters.     The

intended converter applications are shown befow:

Type                      Series No.       Engine Size       Max. Veh. Wt.

0C                        700              5.0L (305 CID)    4000 lbs

TWC                       700              B.OL (305 CID)    4000 Tbs


II.        CONCLUSION

           The applicant has submitted all the required information and based

on the submitted exhaust emissions test data, the staff concludes that the

catalytic converter meets the criteria set forth in Vehicle Code Section

27156 and Title 13, California Code of Requlations, Section 2222(h) for the

stated applications.

III.         COMMENDATION >

           The staff recommends that the exemption be granted as requested and

that Executive Order No. D—193—2 be issued, permitting the advertisement,

sale and installation of the new aftermarket catalytic converter as

oxidation and three—way converters on vehicles up to 5.0 liters and 4000

lbs.


        DEVICE    DESCRIPTION

        The Car Sound three—way plus oxidation substrates are coated with

platinum, palladium and rhodium with no air injection incorporated between

the reducing and oxidizing substrates.       The substrates are enclosed in an

outer shell or container of stainless steel.        The converter uses materials

and construction similar to the original equipment manufacturers.          The

catalytic converter is sold with installation instructions and kits as shown
in the application catalog.        It is also sold with a warranty for two years

or 25,000 miles on the substrates and five years or 50,000 miles on the

container or shell.

¥.        VICE     EVALUATIO

        Car Sound submitted test data on the catalytic converter.          The tests

were conducted by Automotive Testing and Development Services, Inc. (ATDS),

Huntington Beach, California.        The mileage accumulation and test vehicle

parameters for the converter applications are shown in the appendix.             Two

CVS—75 emission tests were conducted on each of the test vehicles with the

converter installed and two CVS—75 tests were conducted with exhaust

backpressure simulator.        The same test procedure was used for both the

oxidation and the three—way applications.       The tests were conducted

following the accumulation of 25,000 miles on each of the two test

converters.

        The vehicles used in the accumulation of 25,000 miles had an engine

displacement of 5.0 liters and vehicle weight of 4000 Ibs.        Exemptiofi for

each converter application is limited to vehicles up to 5.0 liters and 4000

lbs. in order to conform to the "worst case" requirement of the California

regulations.     The test results and conversion efficiencies for the oxidation

and three—way applications are shown below:


                           Oxidation (OC) Application

            Simulator       Converter 1      Converter 2   Average Efficiency

HC (g/mi)      2.118          0.252          0.272          87.6%
CO {g/mi)      27.866         0.1734         0 .862         97.2%


                            hree—way   {TW     licatio

HC (g/mi)      2.463          0.189          0 .194         92.2%
CO (g/mi)   16.416            1.287          1.364          92.0%
NOx(g/mi)      1.743          0.541          0.592          67.4%
All of the conversion efficiencies meet the requirements of the California

regulations.     The staff based the evaluation of the new aftermarket

catalytic converter on the information submitted by Car Sound and on test

data from Automotive Testing and Development Services, Inc.


                                              APPENDIX



                A                         B                           C                      D
     Converter Type         Aging     Veh. Parameters|       Test Veh. Parameters!       Series   No.

1.   TWC + OC         la. 5.0L            4000 lbs.      1 5.7L      4000 lbs.       1 700

     (as 0C)          lb.      5.0L       4000 lbs.      |                           1

2.   TWC + OC         1        Same as 1B                [ 5.0L      4000 Ibs.       [ 700
     (as.TWC)         1                                  I                           I


                                State of California
                                AIR RESOURCES BOARD
~*~




           EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. 300/500 SERIES NEW
          AFTERMARKET THREE—WAY PLUS OXIDATIQON CATALYTIC CONVERTER WITH TWO
      PRECATALYSTS FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION
         27156 AND TITLE 13, CALIFORNIA CODE OF REGULATIONS, SECTION 2222(h)




                                    April, 1990


      EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. 300/500 SERIES NEW
     AFTERMARKET THREE—WAY PLUS OXIDATION CATALYTIC CONVERTER WITH TWO
 PRECATALYSTS FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION
    27156 AND TITLE 13, CALIFORNIA CODE OF REGULATIONS, SECTION 2222(h)




                                      by
                           Mobile Source Division

                            State of California
                            AIR RESOURCES BOARD
                            9528 Telstar Avenue
                            E1 Monte, CA 91731



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)



Document Created: 2005-09-01 12:42:55
Document Modified: 2005-09-01 12:42:55

Previous E.O. D-193-1 | Previous E.O. D-192 | Next E.O. D-193-3 | Next E.O. D-194
