Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 12, 2008.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
1998-2003 model year Honda vehicles, 2004-2005 model year Honda S2000 vehicles. 1997-2008 model year Ford vehicles, 1997-2008 model year GM vehicles, 2003 through 2007 model year Nissan/Infiniti 350Z, G35, FX35 vehicles equipped with a 3.5L, and 5.6L Titan. 2007 Nissans with engine family 7NSXV03.5GAE are excluded. See PDFThe Supercharger System for Ford Vehicles includes the following main parts: Centrifugal supercharger, intercooler (optional), supercharger by-pass valve, air intake tubing, open element air cleaner, ECU upgrade, mass air flow sensor housing, and replacement high flow fuel pump and fuel injectors. The stock radiator thermostat is retained. The breather hose may be replaced with an SAE30R9 rated hose. Installation on 2005 model year V8 Mustangs built on or before April 30, 2005 must retain the stock hydrocarbon adsorber in the air intake system. The Supercharger System for General Motors Vehicles includes the following main parts: Centrifugal supercharger, intercooler (optional), supercharger by-pass valve, replacement high flow fuel injectors, air intake tubing, and reprogramming of the vehicleÔÇÖs computer. The stock air filter housing and radiator thermostat are retained. The breather hose may be replaced with an SAE30R9 rated hose. On 2000 through 2003 model year vehicles, fuel or vacuum lines may be modified and an SAE30R9 rated hose will be supplied for these modifications.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-195-22
  • Executive Order 195-22 / D195-22
  • ARB # D-195-22
  • Executive Order No: D-195-22
  • C.A.R.B. No. D-195-22
  • Resolution D-195-22
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-195-22 PDF

D-195-22 Document:


CARB_D-195-22

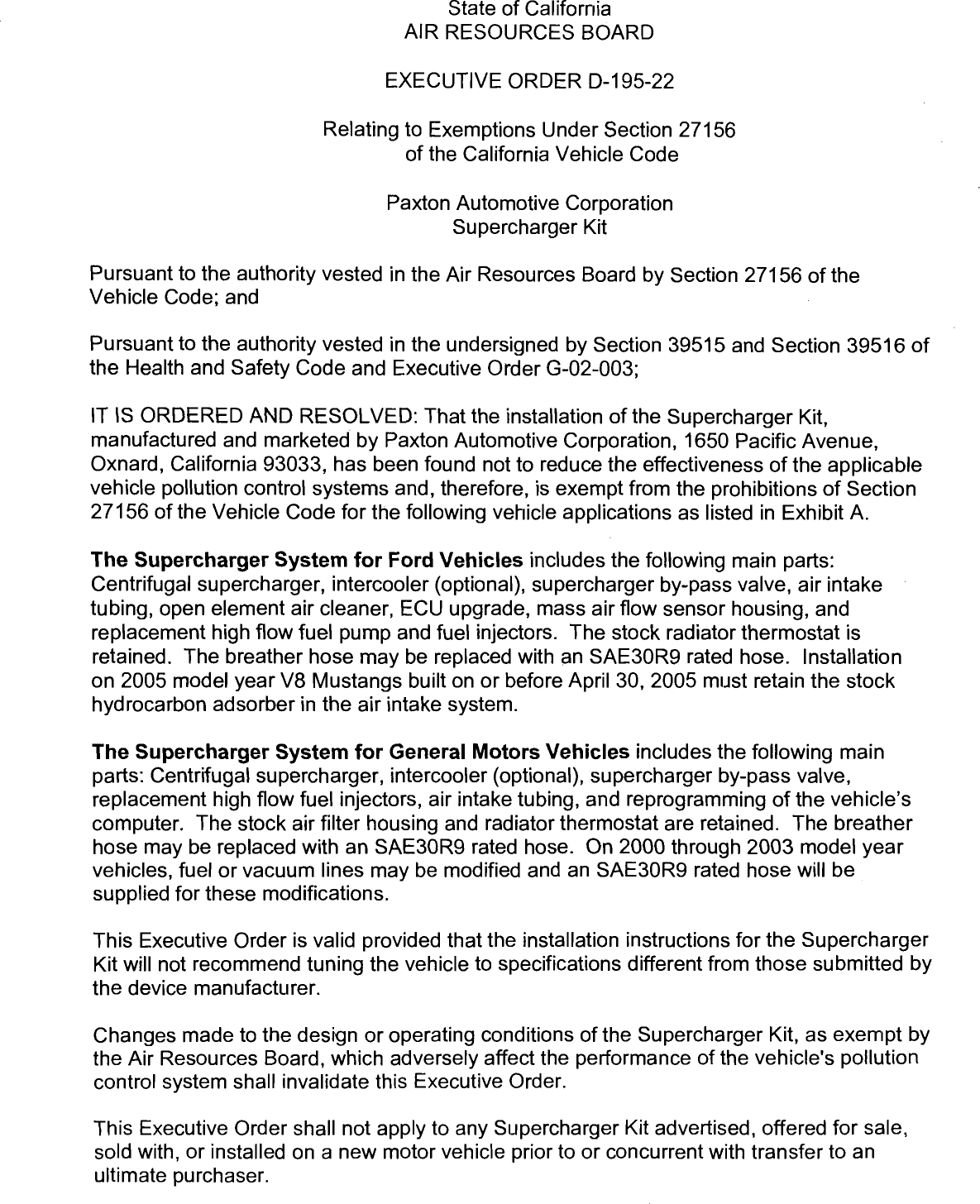

                                       State of Califorrria
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D-195-22

                          Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                 Paxton Automotive Corporation
                                       Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Kit,
manufactured and marketed by Paxton Automotive Corporation, 1650 Pacific Avenue,
Oxnard, California 93033, has been found not to reduce the effectiveness of the applicable
vehicle pollution control systems and, therefore, is exempt from the prohibitions of Section
27156 of the Vehicle Code for the following vehicle applications as listed in Exhibit A.

The Supercharger System for Ford Vehicles includes the following main parts:
Centrifugal supercharger, intercooler (optional), supercharger by-pass valve, air intake
tubing, open element air cleaner, ECU upgrade, mass air flow sensor housing, and
replacement high flow fuel pump and fuel injectors. The stock radiator thermostat is
retained. The breather hose may be replaced with an SAE30R9 rated hose. Installation
on 2005 model year V8 Mustangs built on or before April 30, 2005 must retain the stock
hydrocarbon adsorber in the air intake system.

The Supercharger System for General Motors Vehicles includes the following main
parts: Centrifugal supercharger, intercooler (optional), supercharger by-pass valve,
replacement high flow fuel injectors, air intake tubing, and reprogramming of the vehicle's
computer. The stock air filter housing and radiator thermostat are retained. The breather
hose may be replaced with an SAE30R9 rated hose. On 2000 through 2003 model year
vehicles, fuel or vacuum lines may be modified and an SAE30R9 rated hose will be
supplied for these modifications.

This Executive Order is valid provided that the installation instructions for the Supercharger
Kit will not recommend tuning the vehicle to specifications different from those submitted by
the device manufacturer.

Changes made to the desgn or operating conditions of the Supercharger Kit, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle's pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any SI- per charger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.


Marketing of the Supercharger Kit using any identification other than that shown in this
Executive Order or marketing of the Supercharger Kit for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the
Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Supercharger Kit may have on any warra.nty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on previously submitted emissions tests (Executive
Order D-195-20) and emissions test data generated on a 2007 model year Chevrolet
Silverado with a 5.3 liter engine (7GMXT05.3380, LEV II ULEV), modified with the
Supercharger Kit. Testing consisted of a Cold-Start Federal Test Procedure (F-TP), a
Supplemental Federal Test Procedure (SF-TP US06), and an examination of the On-Board
Diagnostic II (OBD II) system. Results from emissions testing conducted at Quantum
Technologies, Lake Forest, California, are shown below (in grams per mile with
deterioration factors applied):

                                   FTP                              SFTP US06
                           NMOG CO NOx HCHO                     NMHC+NOx      CO
Standards, 50k             0.070 2.1 0.04 0.011                   0.40        10.5
Device Test                0.063 1.2 0.03 0.000                   0.13        5.1

The err~issiontest results in the modified configuration were all below the applicable
certification standards. Examination of the OBD II system showed the Supercharger Kit
does not affect OBD II system operation. A similar effect on vehicle emissions and OBD II
system operation is expected with the installation of the Supercharger Kit on vehicles listed
in this Executive Order.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add-on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF -THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF -THE SUPERCHARGER
KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten-day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.


         PAXTON AUTOMOTIVE CORPORATION - SUPERCHARGER KIT - D-195-22


Executive Order D-195-21 issued November 14,2006, is superseded and of no further force
and effect.

Executed at El Monte, California, this   12     day of June 2008



                                          Annette Hebert, Chief
                                          Mobile Source Operations Division




        PAXTON AUTOMOTIVE CORPORATION - SUPERCHARGER KIT - D-195-22


Ford Motor Company
                                                                                                                                    Maximum
                                                                                                                                    manifold
                                                                                                                        S/C_          boost
                                                                                    Engine        Crank pulley dia,    pulley       pressure Supercharger
Part Number        Model years        Vehicle type/model                          size (liters)         (in.)         dia. (in.}|    (psig)       model
  1001831           1986—1993         Mustang 5.0L.                                    5               6.875             3.8           5       Novi 1220****
  1001834           2001—2004         Mustang 2V                                      4.6           6.60 (Stock)        3.25           0         Novi 1000
  1001836           2003—2004         Mustang 4V Mach 1                               4.6           6.60 (Stock)         3.5           9         Novi 1000
  1001838             2001            Mustang 2V Bullitt                              4.6           6.60 (Stock)        3.25           9         Novi 1000
  1001911           1999—2008         Super duty truck/SUV                            6.8               T.5             3.75           8         Novi 2000
  1001915           1997—2004         F—series truck/Exped.                           4.6               7.5              3.5           8         Novi 2000
  1001919           1999—2004         E—series truck/Exped/Nav 2V                     5.4               7.5             3.75           8         Novi 2000
  1001850           2005—2006         Mustang GT 3V w/charge cooler(air/air)          4.6           6.60 (Stock)        3.33           10      Novi 2200*****
  1001851           2005—2006         Mustang GT 3V                                   4.6           6.60 (Stock)         3.8           9       Novi 1200****
  1001857           2005—2006         Mustang V6 wicharge cooler                       4               Stock            3.25           10      Novi 1200****
  1001858           2007—2008         Mustang V6 wicharge cooler                       4               Stock            3.25           10      Novi 1200****
  1001860           2005—2006         Mustang GT 3V w/charge cooler (air/water)       4.6           6.60 (Stock)         3.6           10      Novi 1200****
  1001861           2000—2004         Mustang 4.6                                     4.6           6.60 (Stock)         3.6           8       Novi 1200****

2005 model year V8 Mustangs built on or before April 30, 2005 must retain the stockhydrocarbon adsorber in the air intake system.

General Motors
                                                                                                                                    Maximum
                                                                                                                                    manifold
                                                                                                                         S/C_        boost
                                                                                    Engine        Crank pulley dia.    pulley       pressure   Supercharger|
Part Number         Model years       Vehicle type/model                          size (liters)         (in.)         dia. (in.)|     (psig)       model
  1101210*           1999—2002        Mid—size truck/SUV LS1 wicharge cooler      4.8/5.3/6.0       7.54 (Stock)         3.33          9       Novi 1200****
  1101211**             2003          Mid—size truck/SUV LS1 w/charge cooler      4.8/5.3/6.0       7.54 (Stock)        3.33           9       Novi 1200****
 1101212**         2004         Mid—size truck/SUV LS1 w/charge cooler            4.8/5.3/6.0       7.54 (Stock)         3.33          9       Novi   1200****
 1101213**      2005—2006       Mid—size truck/SUV LS1 w/icharge cooler           |4.8/5.3/6.0      7.54 (Stock)         3.33          9       Novi   1200****
  1101215 101/03/04/05/06/07/08 Truck/SUV wicharge cooler                             8.1           7.75 (Stock)         3.33          9       Novi   1200****
  1101216          2002         Truck/SUV wicharge cooler                             8.1           7.75 (Stock)         3.33          9       Novi   1200****
  1101217*      2007—2008       Mid—size truck/SUV LS wicharge cooler                 6.2           7.54 (Stock)         3.33          9       Novi   1200****
 1101220***        2003         Hummer H2 wicharge cooler                              6            7.54 (Stock)         3.33          9       Novi   1200****
 1101221***        2004         Hummer H2 wicharge cooler                              6            7.54(Stock)          3.33          9       Novi   1200****
 1101222"**     2005—2007       Hummer H2 wicharge cooler                              6            7.54 (Stock)         3.33          9       Novi   1200****
 1101223***        2008         Hummer H2 wicharge cooler                             6.2           7.54 (Stock)         3.33          9       Novi   1200****

*same as Vortech 4GL218—060(re—labeled as Paxton kit)
**same as Vortech 4GL218—080 (re—labeled as Paxton kit)
***same as Vortech 4GL218—090 (re—labeled as Paxton kit)
****same as Vortech V1/V2 supercharger (re—labeled as Paxton unit)
****"*same as Vortech V7 supercharger (re—labeled as Paxton unit)

Note: Adding a "—P" at the end of the part number denotes polished finish
Adding "SL" or "SL—P" denotes optional self lubricating transmission.
