Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 30, 1975.
As of Monday, July 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1974 and older, EXCEPT: (1) 1973-1974 Mercedes-Benz, Mazda, Audi, Porsche, (2) GM with coil integrated into distributor, (3) 1966-1970 vehicles with Dana or Carter NOx device using an electronic speed sensor

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-20-3
  • Executive Order 20-3 / D20-3
  • ARB # D-20-3
  • Executive Order No: D-20-3
  • C.A.R.B. No. D-20-3
  • Resolution D-20-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-20-3 PDF

D-20-3 Document:

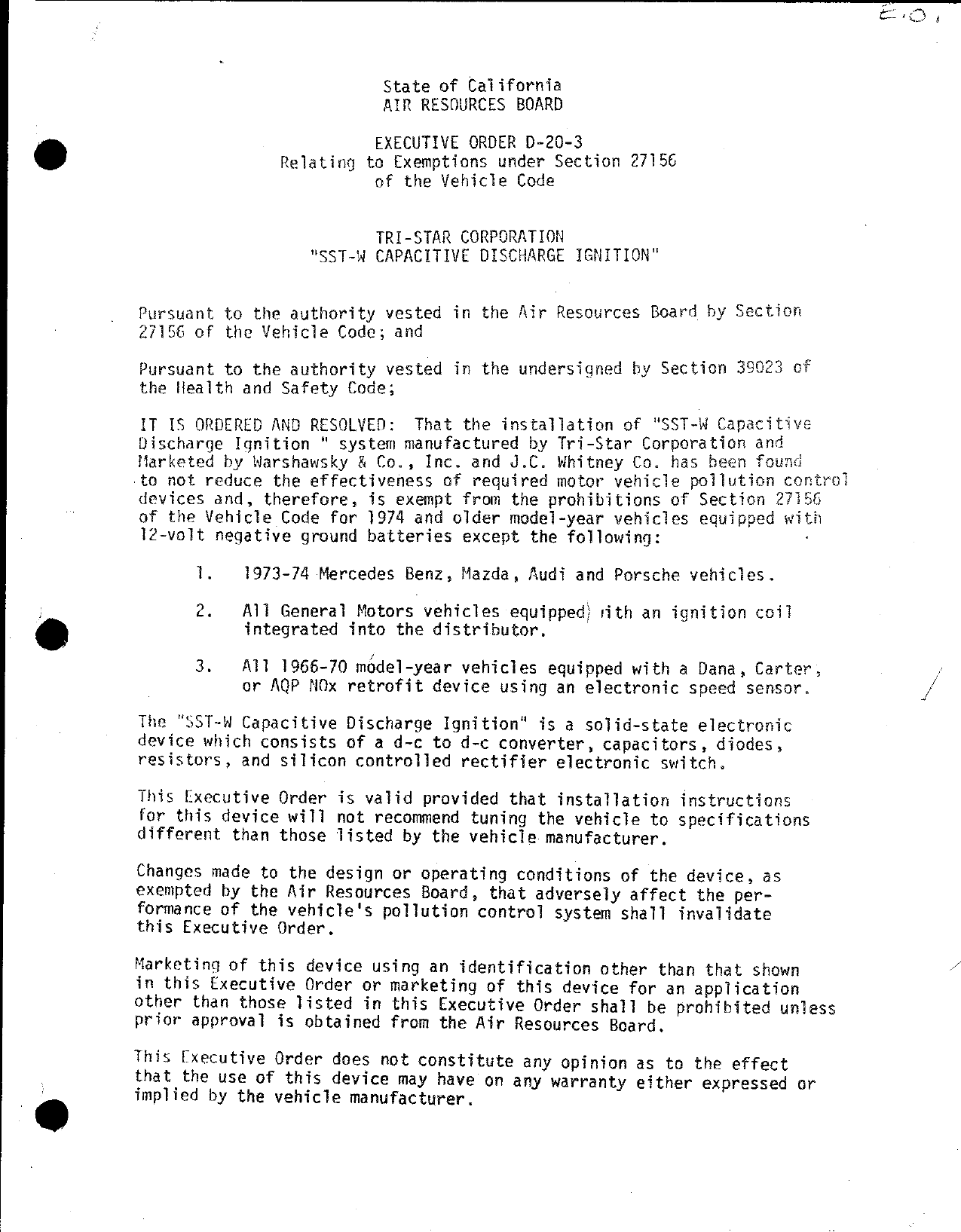

                                                                              Eoy



                         State of California
                         AIR RESOURCES BOARD

                        EXECUTIVE ORDER D—20—3
              Relating to Exemptions under Section 27156
                        of the Vehicle Code


                         TRI—STAR CORPORATION
                  "S5T—W CAPACITIVE OISCHARGE IGNITION"


Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39023 of
the Health and Safety Code;

1T 1S ORDERED AND RESOLYED:   That the installation of "SST—W Qapac%twve
Discharge Ignition " system manufactured by Tri—Star Corporation and
Marketed by Warshawsky & Co., Inc. and J.C. Whitney Co. has been found
to not reduce the effectiveness of required motor vehicle pollution control
devices and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for 1974 and older model—year vehicles equipped with
12—volt negative ground batteries except the following:               «

      1.   1973—74 Mercedes Benz, Mazda, Audi and Porsche vehicles.

      2.   All General Motors vehicles equipped) rith an ignition coil
           integrated into the distributor.

      3.   All 1966—70 médel—year vehicles equipped with a Dana, Carter,
           or AQP NOx retrofit device using an electronic speed sensor.

The "SST—W Capacitive Discharge Ignition" is a solid—state electronic
device which consists of a d—c to d—c converter, capacitors, diodes,
resistors, and silicon controlled rectifier electronic switch.

This Executive Order is valid provided that installation instructfons
for this device will not recommend tuning the vehicle to specifications
different than those listed by the vehicle manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the per—
formance of the vehicle‘s pollution control system shall invalidate
this Executive Order.

Marketing of this device using an identification other than that shown
in this Executive Order or marketing of this device for an application
other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.

This Cxecutive Order does not constitute any opinion as to the effect
Fhat_the use of this device may have on any warranty either expressed or
implied by the vehicle manufacturer.


"SST—4"                                              EXECUTIVE ORDER D—20—3



THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD Of
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE "SST—W CAPACITIVE DISCHARGE IGNITION® DEVICE.

o claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral
or written communication.

Section 17500 of the Business and Professions Code makes unlawful, untrue
or misleading advertising, and Section 17534 makes violation punishable as
a imisdemeanor.

Sections 39130 and 39184 of the Health and Safety Code provide as follows:

     "39130.      No person shall install, sell, offer for sale, or advertise,
     or, except in an application to the board for certification of a
     device, represent, any device as a motor vehicle pollution control
     device unless that device has been certified by the board. No
     person shall sell, offer for sale, advertise, or represent any motor
     vehicle pollution control device as a certified device which, in
     fact, is not a certified device. Any violation of this section is
     a misdemeanor."

     "39184. (a) No person shall install, sell, offer for sale, or adver—
     tise, or, except in an application to the board for accreditation of a
     device, represent, any device as a motor vehicle poliution control
     device for use on any used motor vehicle unless that device has been
     accredited by the board. No person shall sell, offer for sale, adver—
     tise, or represent any motor vehicle poliution control device as an
     accredited device which, in fact, is not an accredited device.      Any
     violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.


Executed at Sacramento, California, this      B2      day of September, 1975.




                                         WILLIAM H. LEWIS, JR.
                                         Executive Officer


                      State of California

                      AIR RESOURCES BOARD

                        September 2, 1975

                           Staff Report


              Evaluation of Tri—Star Corporation
         "SST—W Capacitive Discharge Ignition" System
            For Exemption from the Prohibitions of
            Section 27156 of the Motor Vehicle Code


Introduction
Tri—Star Corporation, Grand Junction, Colorado, has applied for exemp—

tion from the prohihitions of Section 27156 of the Motor Vehicle Code

for the "SST—W Capacitive Discharge Ignition" system to be marketed by

Warshawsky & Co., Inc. and J.C. Whitney Co.    Section 27156 prohibits the

installation of any device which reduces the effectiveness of motor vehicle

poltution control systems.    The applicant intends to sell the device as

an "after—market" part to augment the existing standard ignition system

for 1974 and older model year vehicles equipped with a 12—volt negative

ground battery, except the following:

A.   1973—74 Mercedes Benz, Mazda, Audi and Porsche vehicles.

B.   All Genreral Motors vehicles equipped with an ignition coil

     integrated into the distributor.

C.   All 1966—70 model—year vehicles equipped with a Dana, Carter,

     or AQP NOx retrofit device using an electronic speed sensor.


The Air Resources Board has adopted criteria for the evaluation of

"aftor—market" devices for compliance with Section 27156.       The basis

for evaluation is defined in the "Air Resources Soard Criteria for

Dotermining Compliance with Section 27156 of the Motor Vehicle Code",

dated February 17, 1971.


[1.   System Description

      The "SST—W Capacitive Discharge Ignition" is a solid—state printed—

      circuit ignition system which consists of a d—c to d—c converter, a

      rectifier bridge, a storage capacitor, a coil, resistors, diodes, and

      a silicon control rectifier.   The module is attached to the frame of the

      vehicle and used in combination with the standard Kettering ignition system

      component or with breakerless ignition systems.


      An earlier model of the Tiger series manufactured by Tri—Star, the "Tiger

      SST‘", was previously tested by the ARB staff; see staff report entitied

      "Evaluation of the Tri—Star Corporation "Tiger SST", dated June 12, 1974.

      The "SST—W" device is technically the same as the previously evaluated

      "Tiger SST" device.   The "SST—W" model, however, is not equipped with

      a function switch allowing restoration of the standard ignition.   Aside

      from the function switch there is no significant circuit difference between

      the "Tiger SST" and the "SST—W" devices as shown in the following comparison

      of schematics in Figure I.


                        Figure I




                                                                                     Reo
                                                                                      ®
                                                             23       ruse
                                                 a»~*                                             RED
                             22 *         25 , sw                                             casLe
                                                                                                  white
                                                                                              cagle
                                       s *ou.n

                                iz.z     A      \                            ys     SREEH
                         [      599 .01                                      s                    CABLE




                                                    ~—usi€
                                                                            chEEn




                                                              o
                                                                  3
                                                                                                  BLACK
                                                                                                  CABLE




                                                                      sli
    ATMAF —*~
    25v,2
     24




                                                                                    .;”_.
                               G




‘         .     '            SST—W
                    SCHEMATIC DIAGRAM




                                                                                      i4."
                                             SWITCH SHQWN IN CD1 m100€                      ’}:




                        TICER SST
                    — SCHEMATIC DIAGRAM


III. Staff Evaluation

      The ARB staff report entitled "Evaluation of the Tri—Star Corporation

      "Tiger SST", dated June 12, 1974 shows that the installation of the

      "Tiger SST" electronic capacitive discharge ignition system will not

      adversely affect the existing emission control devices in a motor vehicle.

      Since the "SST—W" and the "Tiger SST" devices are identical except for the

      function switch deleted from the "SST—W" model, the ARB staff believes that

      the "SST—W" should have no adverse effects on exhaust emissions.


IV.   Conclusions and Recommendations

      It is the staff opinion that Tri—Star Corp. "SST—W" Capacitive

      Discharge Iqgnition" system will not adversely affect motor vehicle

      exhaust emissions.   Therefore, the "SST—W" Capacitive Discharge

      Ignitions" system should be exempt from the prohibitions of Section

      27156 of the Motor Vehicle Code for 1974 and older model—year vehicles

      equipped with a 12—volt negative ground battery except the following:

      A.   1973—74 Mercedes Benz, Mazda, Audi, and Porsche.

      B.   «All vehicles equipped with an ignition coil integrated into the

           distributor of with an electronic ignition system whether it is

           a breakerless, capacitive discharge, or transistorized type.

      C.   All 1966—70 model—year vehicles equipped withva Dana, Carter,

           or AQP NOx retrofit device using an electronic speed sensor.


                                                                   "Exhibit A"

  Tri—Star Corporation
PHONE (303) 243—5200 @ P.O.BOX 1727 m 790 INDEPENDENT AVENUE a GRAND JUNCTION,
                                                                               COLORADO 81501




                        July 8, 1975




             G. C. Hass, Chief
             Division of Vehicle Emissions Control
             Air Resources Board
             9528 Telstar Avenue
             El Monte, California      91731

             Dear Mr. Hass:

                         This is a request to extend coverage of our exemption
             granted by Executive Order D—20—2 to include units built by us but
             marketed by Warshawsky & Company.

                       The units marketed by Warshawsky are identical in all
             details to our TIGER SST except that:

                       1.     The name TIGER SST is not displayed on those pnits.

                       2.     The electrical switch, which allows selection
                              of either STANDARD ignition or C.D. ignition,
                              is deleted along with associated nomenclature.

                       The units as built have only connection sequence
             printed on them identical to our SST.     Additional identification
             can be added if necessary.

                       Thank you for your early consideration of this
             matter.



             ;%ncerely yours,


                 ar / // /J/ y //
             Edward M. Junak //
                                         \
             Chief Engineer °

             EMJ/fs


                                                                 "Exhibit A"

  Iri— Star Corporation
PHONE (303) 243—5200 m P.O.BOX 1727 ® 790 INDEPENDENT AVENUE & GRAND JUNCTION, COLORADNO H1s07


©                                                               August 6,   1975



            Mr. K. D. Drachand, Chief
            Vehicle Compliance
            Air Resources Board Laboratory
            9528 Telstar Avenue
            El Monte, California 91731


            Dear Mr. Drachand:

            In reference to previous correspondence and telecom with Mr. Luczymski
            on August 4, 1975, we are enclosing requested data concerning the ex~
            emption of our SST units sold by Warshawsky and Whitney.

            1.       Units will be identified with nomenclature "SST—W Capacitive Discharge
            Ignition".  Nomenclature will be printed on the unit end plate.  No model.
            or part number is used since only the one model is marketed with this des—
            ignation.

            2.   With regard to "design changes" there are nome from our SST. Dele—
            tion of the switch which allows selection of original configuration
            ignition is not considered a design change but an option change.
            Deletion of the switch has no effect on performance of the capacitive
            discharge ignition unit. Note that identical components are used and
            connected in the SST—W as used and commected in our SST except:

                          1.   The switch is deleted along with its mounting rivets.
                          2.   Wires routed through switch in the SST are connected
                             directly to circuit board on the SST—W part.
                          3.  The end plate on the SST—W has 3 less holes punched
                            due to deletion of switch and switch rivets.
                          4. Nomenclautre printed on unit is different.

            Enclosed is schematic of the SST—W unit along with schematic of the SST
            unit in current production.

            Your early consideration in extending the D—20—2 exemption is appreciated.
            Please call collect if any additional information is required.




       ~L% l{y{?fifl/ /4
         Edward Junak
            Vice Presi@gnt
            Engineering

            EJ/ei.
            Enc.


  a       >                                                                                                                               Update 8—75
2tb L                                                                                                                                    "Exhibit A"
                                                                                                                         reo
                                                                                                                       /R
 .
                                                                                             Ls              ruse                 meo
                                                                   zzflfi                                                        cm;i
                                                         24         e                                                          whit
                                                                                                                               casce
                                Buack                      \\                s   *Su—ie
                                                                                                               1
                                                i9            10         /              3                          x
                  A~‘                      a"              uscg                  R          \                                  s
                  x                             c/or               ,_:Eozo ,cn\                                    3:/
                  to                            orance                   v
                                                                                                                               casce
                  1t                                                                         %                 creem
                                                                                       “        p . BC
                                                                   sen                  _A
                          L.A                                                          .22               *                     aLaACKk
                  A                                                          s         s             m                         CABLE
      4744F
      T2yem                                                                zro§
                                                                             3              \== o        9T
          24
                                                                           10



                  ——*                                                    *n                                              1

                                                                   SST—W
                                                         SCHEMATIC DIAGRAM




 ‘            —                                                                                                                               Update 8—75
y e ces                                                                                                                                    "Exhibit A"
                                                                                                                            reo
                                                                                                                             a



                                  Buack
                                          3
                                          3
                                _3
                      w                   77
                                  ren _3
                      io          —
                      aw



                       18
                  +
          s7aFr
          28 Vz [~
           24




                                                                                     SwiTch skown in CDi Mone




.                                                              TIGER SST
                                                         SCHEMATIC DIAGRAM



Document Created: 2005-09-01 12:45:39
Document Modified: 2005-09-01 12:45:39

Previous E.O. D-20-2 | Previous E.O. D-19 | Next E.O. D-20-4 | Next E.O. D-21
