Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 11, 1998.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
4FM218-010S 4FM218-018S1996-1998 Ford F-150/ 250/ Expedition equipped with 4.6L enginesInstallation of the system may require the installation of the following: Vortech fuel management system on the fuel return line, installation fo a supplemental fuel pump, and modifications made to the intake air ducting. Vehicles that are certified to an Enhanced Evaporative Emission Standard must maintain the stock air filter housingPulley Dia. Crankshaft: 6.70" Input: 3.60"

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-213-13
  • Executive Order 213-13 / D213-13
  • ARB # D-213-13
  • Executive Order No: D-213-13
  • C.A.R.B. No. D-213-13
  • Resolution D-213-13
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-213-13 PDF

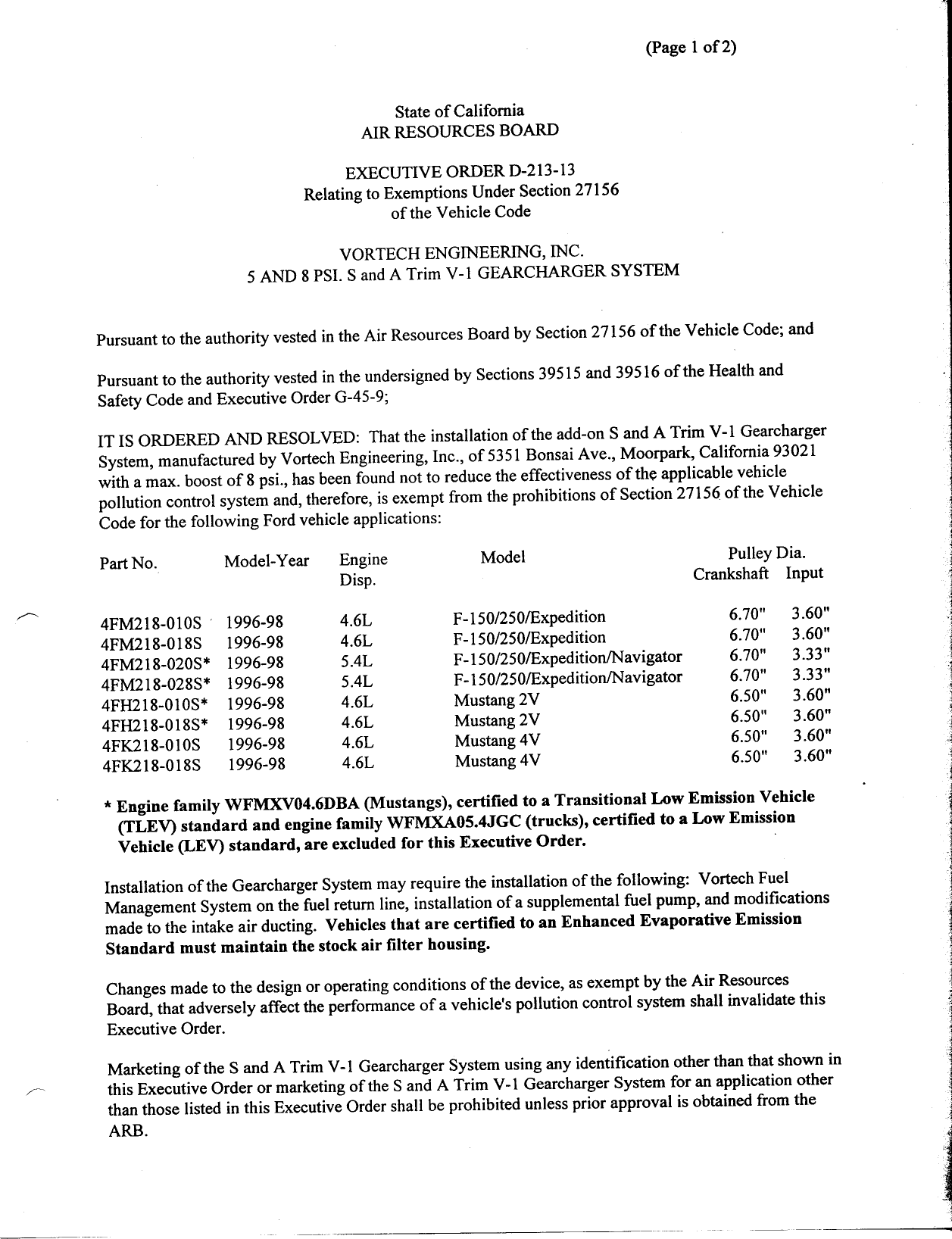

D-213-13 Document:


CARB_D-213-13

                                                                                 (Page 1 of 2)


                                           State of California
                                       AIR RESOURCES BOARD

                                     EXECUTIVE ORDER D—213—13
                               Relating to Exemptions Under Section 27156
                                            of the Vehicle Code

                                  VORTECH ENGINEERING, INC.
                      5 AND 8 PSI. S and A Trim V—1 GEARCHARGER SYSTEM


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and
Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the add—on S and A Trim V—1 Gearcharger
System, manufactured by Vortech Engineering, Inc., of 5351 Bonsai Ave., Moorpark, California 93021
with a max. boost of 8 psi., has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
Code for the following Ford vehicle applications:

Part No.          Model—Year       Engine               Model                               Pulley Dia.
                                   Disp.                                               Crankshaft Input

4FM218—0108 —     1996—98          4.6L             F—150/250/Expedition                    6.170"    3.60"
4FM218—018S       1996—98          4.6L             F—150/250/Expedition                    6.70"     3.60"
4FM218—0208*®     1996—98          5AL              F—150/250/Expedition/Navigator          6.170"    3.33"
4FM218—028S*®     1996—98          5AL              F—150/250/Expedition/Navigator          6.170"    3.33"
4FH218—0108*      1996—98          4.6L             Mustang 2V                              6.50"     3.60"
4FH218—018S*      1996—98          4.6L             Mustang 2V                              6.50"     3.60"
4FK218—0108       1996—98          4.6L             Mustang 4V                              6.50"     3.60"
4FK218—018S       1996—98          4.6L             Mustang 4V                              6.50"     3.60"

* Engine family WFMXV04.6DBA (Mustangs), certified to a Transitional Low Emission Vehicle
  (TLEV) standard and engine family WFMXA05.4JGC (trucks), certified to a Low Emnssnon
  Vehicle (LEV) standard, are excluded for this Executive Order.

Installation of the Gearcharger System may require the installation of the following: Vortech Fuel
Management System on the fuel return line, installation of a supplemental fuel pump, and modifications
made to the intake air ducting. Vehicles that are certified to an Enhanced Evaporative Emission
Standard must maintain the stock air filter housing.

Changes made to the design or operating conditions of the device, as exempt by the Air Resources
Board, that adversely affect the performance of a vehicle‘s pollution control system shall invalidate this
Executive Order.

Marketing of the S and A Trim V—1 Gearcharger System using any identification other than that shown in
this Executive Order or marketing of the S and A Trim V—1 Gearcharger System for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is obtained from the
ARB.


 This Executive Order does not constitute any opinion as to the effect the S and A Trim V—1 Gearcharger
_ System may have on any warranty either expressed or implied by the vehicle manufacturer.

 This Executive Order is granted based on comparative intake manifold air pressure testing which was
 recorded during a Hot—Start 505 LA4 drive cycle in the baseline and modified configuration. However,
 the ARB finds that reasonable grounds exist to believe that use of the S and A Trim V—1 Gearcharger
 System may adversely affect emissions of motor vehicles when operating under conditions outside the
 parameters of the previously prescribed test procedures. Accordingly, the ARB reserves the right to
 conduct additional emission tests, in the future, as such tests are developed, that will more adequately
 measure emissions from all cycle phases. If such test results demonstrate that the S and A Trim V—1
 Gearcharger System adversely affect emissions during off—cycle conditions (defined as those conditions
 which are beyond the parameters of the Cold— Start CVS—75 Federal Test Procedure), this Executive
 Order shall be effectively rescinded as of the date the test results are validated. Further, if such test
 results or other evidence provides the ARB with reason to suspect that the S and A Trim V—1
 Gearcharger System will affect the durability of the emission control system, Vortech shall be required
 to submit durability data to show that the durability of the vehicle emission control system is not, in fact,
 affected and/or that the add—on or modified part demonstrates adequate durability.

 In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order and
 the exemption provided herein to ensure that the exempted add—on or modified part continues to meet the
 standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
 CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
 BENEFITS OF VORTECH ENGINEERING, INC.—‘S S AND A TRIM V—1 GEARCHARGER SYSTEM.

 No claim of any kind, such as "Approved by the Air Resources Board" may be made with respect to the
 action taken herein in any advertising or other oral or written communication.

 Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
 revoked only after ten day written notice of intention to revoke the order, in which period the holder of
 the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
 shall be held within ten days of receipt of the request and the order may not be revoked until a
 determination after hearing that grounds for revocation exist.

 The Bureau of Automotive Repair will be notified by a copy of this order.

 Executed at El Monte, California, this [L day of February 1998.




                                    R. B. Summerfield, Chief
                                    Mobile Source Operations Division
