Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 4, 1998.
As of Friday, December 6th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
4GM218-050S1996-1998 General Motors Trucks equipped with the 5.7 liter engine, excluding the following engine families certified to a TLEV or LEV emission standard: WGMXA04.3188, WGMXT04.3185, WGMXT04.3187, WGMXA05.7185, and WGMXA05.7186Installation of the Gearcharger System may require the installation of the following: Vortech Fuel Management System on the fuel return line, installation of a supplemental fuel pump, and modifications made to the intake air ducting. Vehicles that are certified to an Enhanced Evaporative Emission Standard must maintain the stock air filter housing.Pulley Dia. Crankshaft 7.0" Supercharger 3.6"

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-213-14
  • Executive Order 213-14 / D213-14
  • ARB # D-213-14
  • Executive Order No: D-213-14
  • C.A.R.B. No. D-213-14
  • Resolution D-213-14
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-213-14 PDF

D-213-14 Document:


CARB_D-213-14

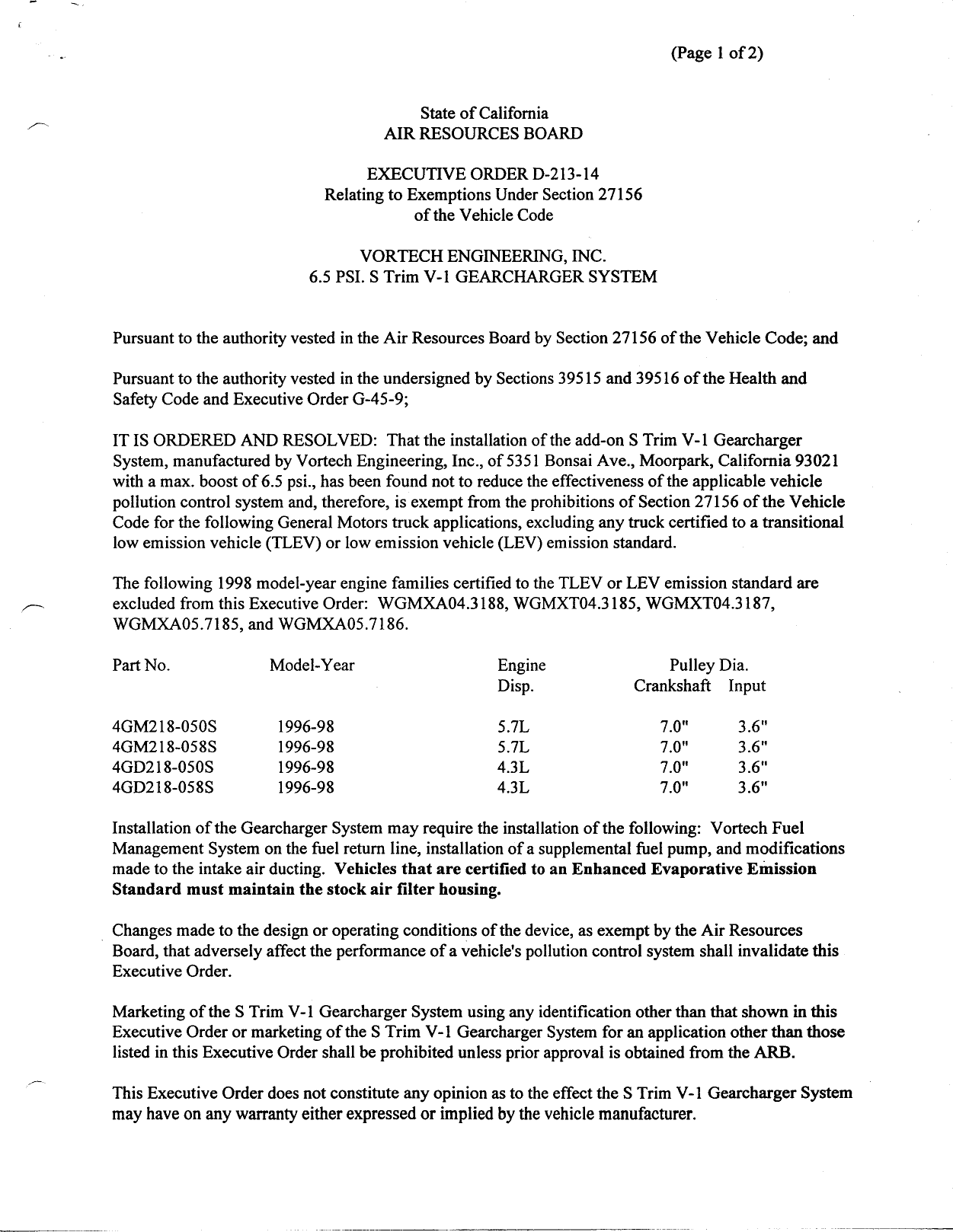

                                                                                  (Page 1 of 2)


                                            State of California
                                        AIR RESOURCES BOARD

                                      EXECUTIVE ORDER D—213—14
                               Relating to Exemptions Under Section 27156
                                            of the Vehicle Code

                                    VORTECH ENGINEERING, INC.
                             6.5 PSI. S Trim V—1 GEARCHARGER SYSTEM


 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and
 Safety Code and Executive Order G—45—9;

 IT IS ORDERED AND RESOLVED: That the installation of the add—on S Trim V—1 Gearcharger
 System, manufactured by Vortech Engineering, Inc., of 5351 Bonsai Ave., Moorpark, California 93021
 with a max. boost of 6.5 psi., has been found not to reduce the effectiveness of the applicable vehicle
 pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
 Code for the following General Motors truck applications, excluding any truck certified to a transitional
 low emission vehicle (TLEV) or low emission vehicle (LEV) emission standard.

 The following 1998 model—year engine families certified to the TLEV or LEV emission standard are
 excluded from this Executive Order: WGMXAO04.3188, WGMXTO4.3185, WGMXTO4.3187,
 WGMXAO5.7185, and WGMXAO05S.7186.

 Part No.              Model—Year                        Engine                   Pulley Dia.
                                                         Disp.               Crankshaft Input

 4GM218—0508             1996—98                         5.TL                   7.0"        3.6"
 4GM218—058S             1996—98                         5.TL                   7.0"        3.6"
 4GD218—0508             1996—98                         4.3L                   7.0"        3.6"
 4GD218—058S             1996—98                         4.3L                   7.0"        3.6"

 Installation of the Gearcharger System may require the installation of the following: Vortech Fuel
 Management System on the fuel return line, installation of a supplemental fue! pump, and modifications
 made to the intake air ducting. Vehicles that are certified to an Enhanced Evaporative Emission
 Standard must maintain the stock air filter housing.

_ Changes made to the design or operating conditions of the device, as exempt by the Air Resources
 Board, that adversely affect the performance of a vehicle‘s pollution control system shall invalidate this
 Executive Order.

 Marketing of the S Trim V—1 Gearcharger System using any identification other than that shown in this
 Executive Order or marketing of the S Trim V—1 Gearcharger System for an application other than those
 listed in this Executive Order shall be prohibited unless prior approval is obtained from the ARB.

 This Executive Order does not constitute any opinion as to the effect the S Trim V—1 Gearcharger System
 may have on any warranty either expressed or implied by the vehicle manufacturer.


                                                                                                               t remmmmm nonranmecrmminec +




 Vortech Engineering, Inc.                                                      Executive Order D—213—14
 Supercharger Kit                                                                              (Page 2 of 2)




This Executive Order is granted based on comparative intake manifold air pressure testing which was
recorded during a Hot—Start 505 LA4 drive cycle in the baseline and modified configuration. However,
the ARB finds that reasonable grounds exist to believe that use of the S Trim V—1 Gearcharger System
may adversely affect emissions of motor vehicles when operating under conditions outside the
parameters of the previously prescribed test procedures. Accordingly, the ARB reserves the right to
conduct additional emission tests, in the future, as such tests are developed, that will more adequately
measure emissions from all cycle phases. If such test results demonstrate that the S Trim V—1
Gearcharger System adversely affect emissions during off—cycle conditions (defined as those conditions
which are beyond the parameters of the Cold— Start CVS—75 Federal Test Procedure), this Executive
Order shall be effectively rescinded as of the date the test results are validated. Further, if such test
results or other evidence provides the ARB with reason to suspect that the S Trim V—1 Gearcharger
 System will affect the durability of the emission control system, Vortech shall be required to submit
durability data to show that the durability of the vehicle emission control system is not, in fact, affected
and/or that the add—on or modified part demonstrates adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order and
the exemption provided herein to ensure that the exempted add—on or modified part continues to meet the
standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

_ THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
  APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
  CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
  BENEFITS OF VORTECH ENGINEERING, INC.—‘S S TRIM V—1 GEARCHARGER SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board" may be made with respect to the
action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
revoked only after ten day written notice of intention to revoke the order, in which period the holder of
the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.

The Bureau of Automotive Repair will be notified by a copy of this order.
                                           th
Executed at El Monte, California, this i day of March 1998.




                                   R. B.   Summerfield, Chief
                                    Mobile Source Operations Division



Document Created: 2005-09-01 12:42:40
Document Modified: 2005-09-01 12:42:40
