Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 27, 2010.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
See PDF1999 to 2011 model year General Motors V8 trucksThe Lysholm Twin-Screw Supercharger System consists of the following main components: A twin screw supercharger, intake manifold, bypass valve, high flow fuel injectors, metal fuel rail, intercooler, and reflashed ECM. Boost is limited to 9 pounds per square inch. The stock air filter housing and crankshaft pulley is retained. Installation would not require any modification to the stock coolant thermostat, MAP sensor or mass air flow sensor. All supplied fuel hoses are AvonÔÇÖs CADbar 9000 series or metal, and fuel and vapor line connectors supplied with the kit are OEM ÔÇô equivalent parts.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-213-28
  • Executive Order 213-28 / D213-28
  • ARB # D-213-28
  • Executive Order No: D-213-28
  • C.A.R.B. No. D-213-28
  • Resolution D-213-28
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-213-28 PDF

D-213-28 Document:

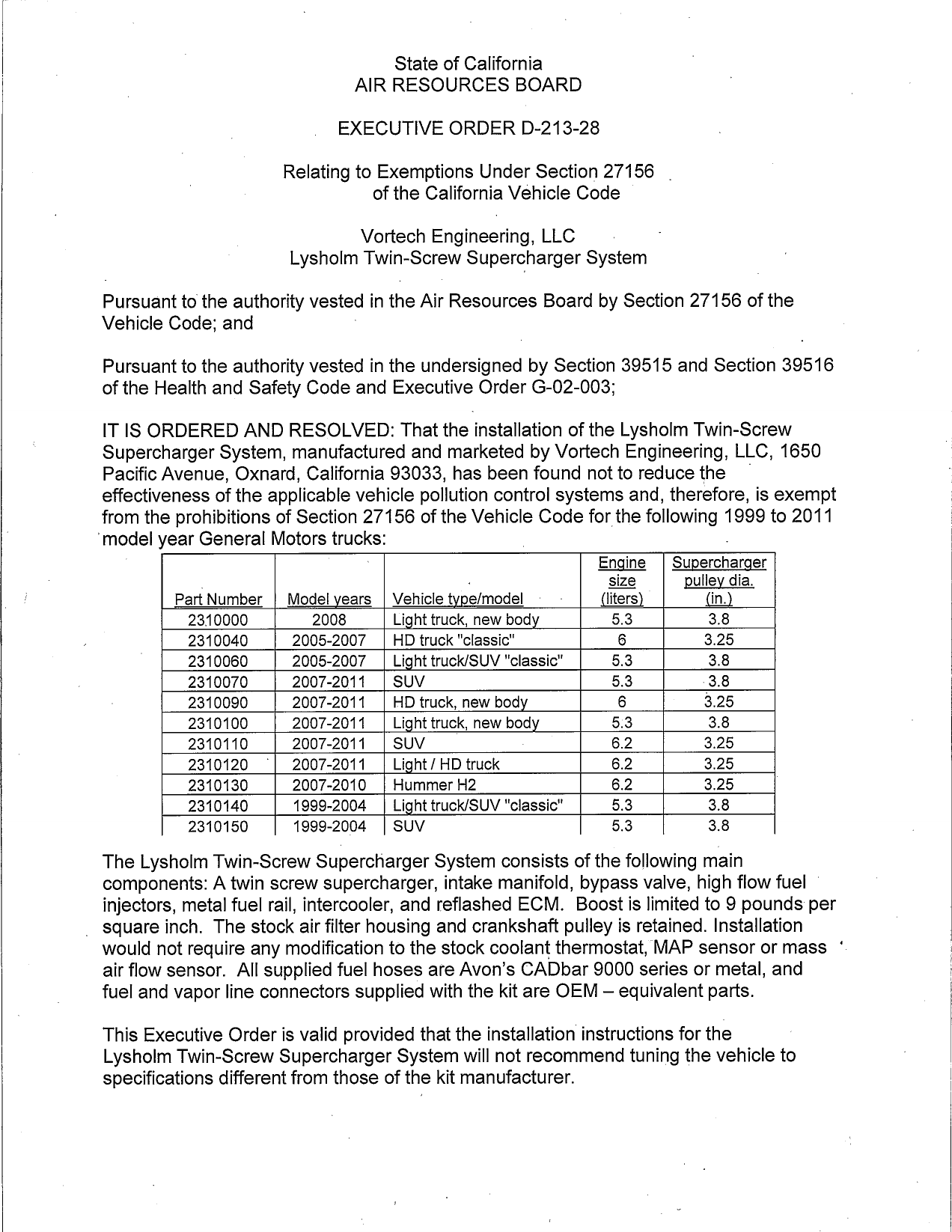

                                      State of California
                                AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—213—28

                        Relating to Exemptions Under Section 27156 _
                                   of the California Vehicle Code

                                 Vortech Engineering, LLC
                         Lysholm Twin—Screw Supercharger System

 Pursuant tothe authority vestedin the A|r Resources Board by Section 27156 of the
 Vehicle Code; and

  Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
  of the Health and Safety Code and Executive Order G—02—003;

  IT IS ORDERED AND RESOLVED: That the installation of the Lysholm Twin—Screw
  Supercharger System, manufactured and marketed by Vortech Engineering, LLC, 1650
 Pacific Avenue, Oxnard, California 93033, has been found not to reduce the _
 effectiveness of the applicable vehicle pollution control systems and, therefore, is exempt
 from the prohibitions of Section 27156 of the Vehicle Code forthe following 1999 to 2011
 'model year General Motors trucks:
                                                                  Engine     Sugercharge
              .                                  «                 size       pulley dia.
          Part Number   Model years   Vehicle type/model _        {liters)      (in.)
            2310000         2008      Light truck, new body         5.3          3.8
            2310040      2005—2007    HD truck "classic"             6          3.25
            2310060      2005—2007    Light truck/SUV "classic"     5.3          3.8
            2310070      2007—2011_   SUV                           5.3         —3.8
            2310090      2007—2011    HD truck, new body             6          3.25
            2310100      2007—2011    Light truck, new body         5.3          3.8
            2310110      2007—2011    SUV                           6.2          3.25
            2310120      2007—2011    Light / HD truck              6.2          3.25
            2310130      2007—2010    Hummer H2                     6.2          3.25
            2310140      1999—2004    Light truck/SUV "classic"     5.3          3.8
            2310150      1999—2004    SUV                           5.3          3.8

 The Lysholm Twin—Screw Supercharger System consists of the following main
 components: A twin screw supercharger, intake manifold, bypass valve, high flow fuel °
  injectors, metal fuel rail, intercooler, and reflashed ECM. Boost is limited to 9 poundsper
_ square inch. The stock air filter housing and crankshaft pulley is retained. Installation
  would not require any modification to the stock coolant thermostat, MAP sensor or mass *
  air flow sensor. All supplied fuel hoses are Avon‘s CADbar 9000 series or metal, and
  fuel and vapor line connectors supplied with the kit are OEM — equivalent parts.

  This Executive Order is valid provided that the installationinstructions for the
  Lysholm Twin—Screw Supercharger System will not recommend tuning the vehicle to
  specifications different from those of the kit manufacturer.


                                              2.


 Changes made to the design or operating conditions of the Lysholm Twin—Screw
 Supercharger System, as exempt by the Air Resources Board, which adversely affect
 the performance of the vehicle‘s poltution control system shall invalidate this Executive
 Order.                                                 ;

 This Executlve Order shall not applyto any Lyshoim Twin—Screw Supercharger System
 advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
 concurrent with transfer to an ultimate purchaser.                                .

 Marketing of the Lysholm Twin—Screw Supercharger System using any identification other
 than that shown in this Executive Order or marketing of the Lysholm Twin—Screw
 Supercharger System for an appllcatron other than those listed in this Executive Order shall
 be prohibited unless prior approval is obtained from the Air Resources Board.

 This Executive Order does not constitute any op:nlon as to the effect the use of the
 Lysholim Twin—Screw Supercharger System may haveon any warranty either expressed or
 implied by the vehicle manufacturer.

 This Executive Order is granted based on emission test results in the modified configuration
 using the Cold—Start CVS—75 Federal Test Procedure, Supplemental Federal Test Procedure
 (USO6/SC03), and an examination of the. On—Board Diagnostic II (OBD I1) system. A 2009
Chevrolet Silverado with a 5.3 liter engine. (QGMXTO5.3380) was used for the evaiuation of
the Lysholm Twin—Screw Supercharger System. Results from emissions testing conducted at
 Quantum Technologies, Lake Forest, California, are shown below {in grams per mile with
~ deterioration factors applied):

                    '          CVS—75               >         USO6/SCO3     >
                        NMOG CO      NOx   HCHO            NMHC+NOx         CO
 Standards UL           0.070 21    0.04   0.011           0.40/0.31 _      10.5/3.5
 Device                 0.059 15    0.02   0.001           0.05/70.01       6.410.5

  The emission test resultsin the modified configuration were below the applicable certification
 standards. Examination of the OBD II system showed the Supercharger Kit does not affect
 OBD II system operation.

 *LEV 11 ULEV CVS—75 FTP emissions standards.

 The Air Resources Board reserves the right in the future to review this Executive Order and
 the exemption provided herein to assure that the exempted add—on or modified part continues .
 to meet the standards and procedures of Title 13, California Code of Regulations, Sectlon
 2222, et seq.

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
~ ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
  RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
  ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE LYSHOLM
  TWIN—SCREWSUPERCHARGER SYSTEM.


     VORTECH ENGINEERING — TWIN—SCREW SUPERCHARGER SYSTEM — D—213—28:


                                               —3.0

                          ©                           <
No claim of any kind, such as "Approved by theAir Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in |
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this   Z 7.         day of October 2010.

                                                           Koa~>—
                                    Anne’de .Hebe&, Chief
                                     Mobile Source Operations Division




    VORTECH ENGINEERING —— TWIN—SCREW SUPERCHARGER SYSTEM — D—213—28
