Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 26, 2016.
As of Monday, December 9th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-213-35
  • Executive Order 213-35 / D213-35
  • ARB # D-213-35
  • Executive Order No: D-213-35
  • C.A.R.B. No. D-213-35
  • Resolution D-213-35
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-213-35 PDF

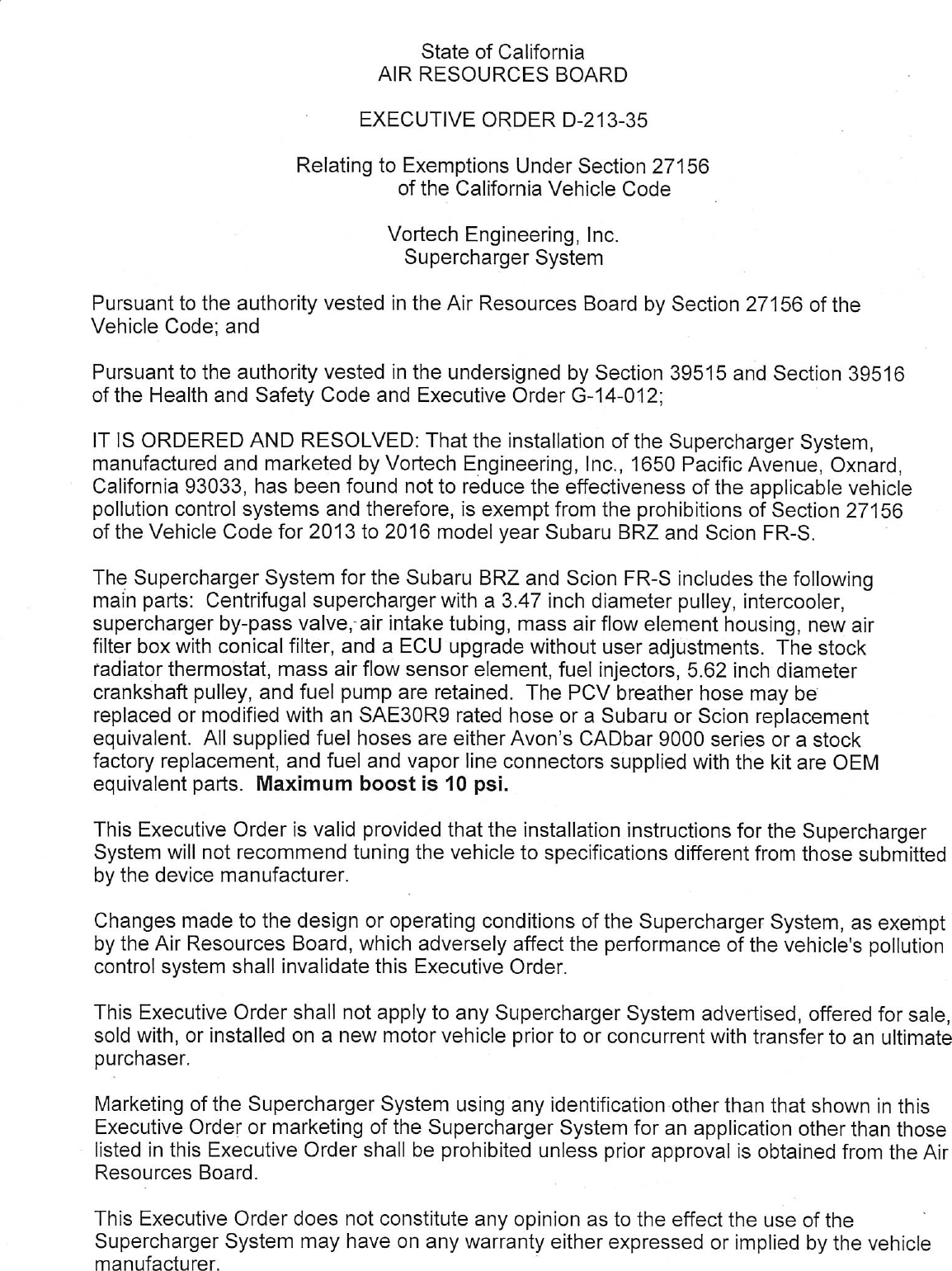

D-213-35 Document:


CARB_D-213-35

                                    State of California
                                AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—213—35

                      Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                 Vortech Engineering, Inc.
                                   Supercharger System

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Supercharger System,
manufactured and marketed by Vortech Engineering, Inc., 1650 Pacific Avenue, Oxnard,
California 93033, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for 2013 to 2016 model year Subaru BRZ and Scion FR—S.

The Supercharger System for the Subaru BRZ and Scion FR—S includes the following
main parts: Centrifugal supercharger with a 3.47 inch diameter pulley, intercooler,
supercharger by—pass valve,air intake tubing, mass air flow element housing, new air
filter box with conical filter, and a ECU upgrade without user adjustments. The stock
radiator thermostat, mass air flow sensor element, fuel injectors, 5.62 inch diameter
crankshaft pulley, and fuel pump are retained. The PCV breather hose may be
replaced or modified with an SAE30ORY rated hose or a Subaru or Scion replacement
equivalent. All supplied fuel hoses are either Avon‘s CADbar 9000 series or a stock
factory replacement, and fuel and vapor line connectors supplied with the kit are OEM
equivalent parts. Maximum boost is 10 psi.

This Executive Order is valid provided that the installation instructions for the Supercharger
System will not recommend tuning the vehicle to specifications different from those submitted
by the device manufacturer.

Changes made to the design or operating conditions of the Supercharger System, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Supercharger System advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the Supercharger System using any identification other than that shown in this
Executive Order or marketing of the Supercharger System for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Supercharger System may have on any warranty either expressed or implied by the vehicle
manufacturer.


                                                   A


  This Executive Order is granted based on emissions test data generated on one test vehicle
  modified with the Supercharger System. Test results showed that emission levels, with the
  supercharger kit installed, met the applicable emission standards when tested using the
  Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the Supplemental Federal
  Test Procedure (SFTP) test cycle. Examination of the OBD II system showed that the
  supercharger kit did not affect OBD II system operation. Results from emission testing
  conducted at Quantum Technologies, located at Lake Forest, California, are shown below, in
  grams per mile, with deterioration factors (df) applied to Cold—Start CVS—75 Federal Test
  Procedure modified test results.

  2013 model year Scion FR—S                CVS—75 FTP
                                    NMOG       CO    NOx              HCHO
  Standards, 50K*                   0.075      3.4   0.05             0.015
  Device Test w/df                  0.023      0.6   0.03             0.001

                                           USs0o6/SC03
                                 NMHC+NOx            cCO
  Standards 4k                     0.14/0.20         8.0/2.7
  Device                           0.05/0.08         7.210.2

  * USEPA Tier 2 Bin 5, Counted as LEV II LEV, CVS—75 FTP emissions standards.

  The Air Resources Board reserves the right in the future to review this Executive Order and
  the exemption provided herein to assure that the exempted add—on or modified part continues
  to meet the standards and procedures of Title 13, California Code of Regulations, Section
  2323, et seq.

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
  RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
  ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE SUPERCHARGER
  SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.                          j

Executed at El Monte, California, this    Z ,é         day of January 2016.




                  Annette Hebert, Chief
                  Emissions Compliance, Automotive Regulations and Science Division

          VORTECH ENGINEERING, INC. — SUPERCHARGER SYSTEM — D—213—35



Document Created: 2016-08-01 16:36:20
Document Modified: 2016-08-01 16:36:20
