D-214 Document:

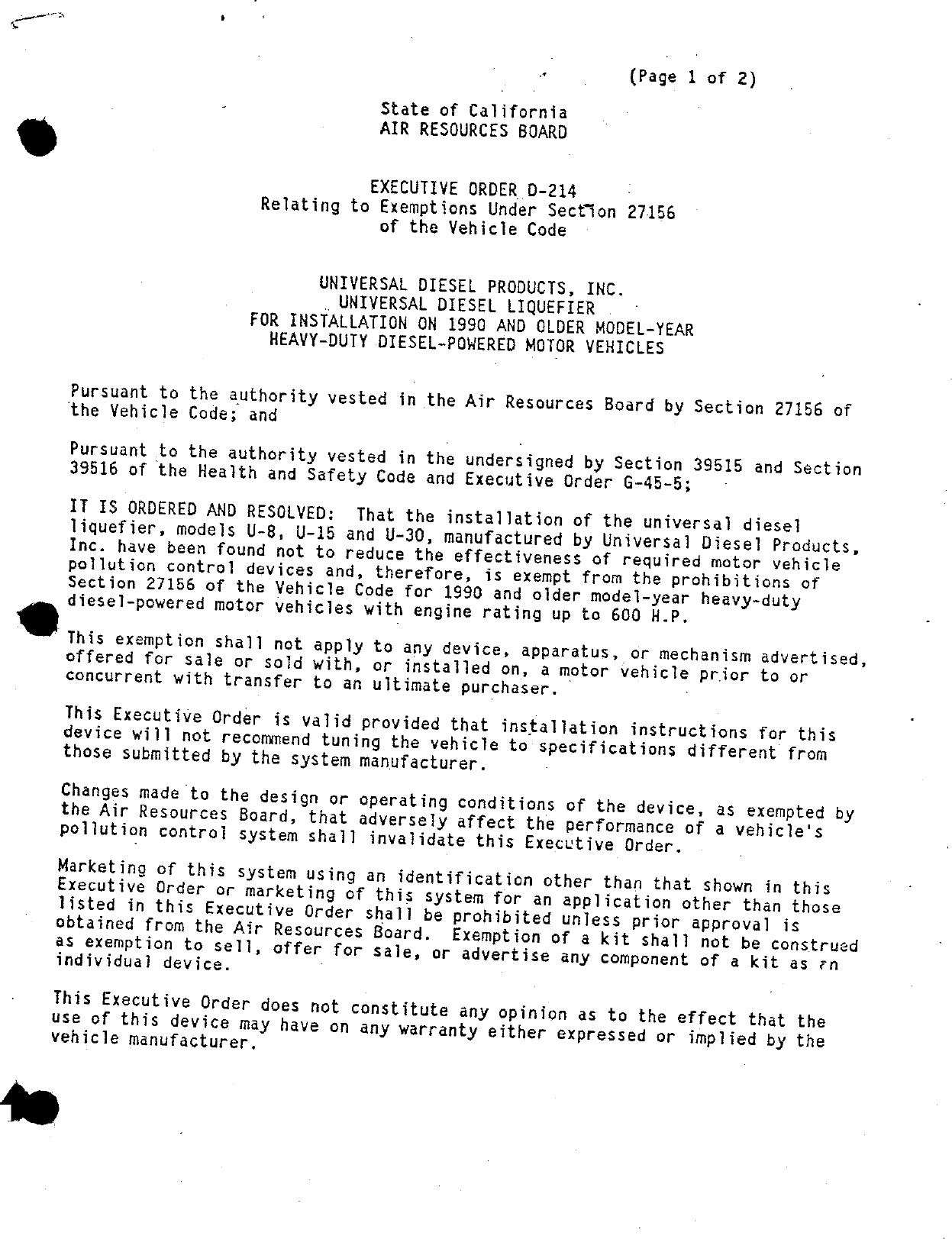

                                                    a        (Page 1 of 2)

       .           —               State of California
‘                                  AIR RESOURCES BOARD


                                   EXECUTIVE ORDER D—214     >
                       Relating to Exemptions Under Sectfion 27156
                                   of the Vehicle Code


                              UNIVERSAL DIESEL PRODUCTS, INC.
                               . UNIVERSAL DIESEL LIQUEFIER
                       FOR INSTALLATION ON 1990 AND QOLDER MODEL—YEAR
                         HEAYVY—DUTY DIESEL—POWERED MOTOR VEHICLES


    Pursuant to the authority vested in the Air Resources Board by Section 27156 of
    ‘the Vehicle Code; and
    Pursuant to the authority vested in thé undergigned by Section 39515 and Section
    39516 of the Health and Safety Code and Executive Order G—45—5;

    IT IS ORDERED AND RESOLVED: That the installation of the universal diesel
    liquefier, models U—8, U—15 and U—30, manufactured by Universal Diese] Products,
    Inc. have been found not to reduce the effectiveness of required motor vehicle
    pollution control devices and, therefore, is exempt from the prohibitions of
    Section 27156 of the Vehicle Code for 1998 and older model—year heavy—duty
    diesel—powered motor vehicles with engine rating up to 600 H.P,

‘ This exemption shall not apply to any device, apparatus, or mechanism advertised,
     offered for sale or sold with, or installed on, a motor vehicle prior to or
     concurrent with transfer to an ultimate purchaser.

     This Executive Order is valid provided that installation instructions for this
    device will not recommend tuning the vehicle to specifications different from
    those submitted by the system manufacturer.

    Changes made to the design or operating conditions of the device, as exempted by
    the Air Resources Board, that adversely affect the performance of a vehicle‘s
    poi]utiqn control system shall invalidate this Executive Order.

    Marketing of this system using an identification other than that shown in this
    Executive Order or marketing of this system for an application other than those
    listed in this Executive Order shall be prohibited unless prior approval is
    obtained from the Air Resources Board. Exemption of a kit shall not be construed
    as exemption to sell, offer for sale, or advertise any component of a kit as rn
    individual device.

    This Executive Order does not constitute any opinion as to the effect that the
    use of this device may have on any warranty either expressed or implied by the
    vehicle manufacturer.



fane


UNIVERSAL DIESEL PRODUCTS, INC.                            .EXECUTIVE ORDER D—214
               ~                      R                     {Page 2 of 2)


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE UNIVERSAL DIESEL LIQUEFIER.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor .

Section 43644 of.the Health and Safety Code provides as follows:

             "43644,   (a)   No person shall install, sell, offer for sale, or
             advertise, or, except in an application to the state board for
             certification of a device, represent, any device as a motor vehicle
             polilution control device for use on any used motor vehicle unless
             that device has been certified by the state board.     No person shall
             sell, offer for sale, advertise, or represent any motor vehicle
             pollution control device as a certified device which, in fact, is not
             a certified device.   Any violations of this subdivision is a
             misdemeanor ."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.


Executed at E1 Monte, California, this            day of February, 1991.




                                    R.    E. Summerfield
                                    Assistant Division Chief
                                    Mobile Source Division


                     State of California
                     AIR RESQURCES BOARD




        EVALUATION OF UNIVERSAL DIESEL PRODUCTS, INC.
UNIVERSAL DIESEL LIQUEFIER FOR EXEMPTION FROM THE PROHIBITIONS
OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
       TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




                        February 1991


                           State of California
                           AIR RESQURCES BOARD




              EVALUATION OF UNIVERSAL DIESEL PRODUCTS, INC.
      UNIVERSAL DIESEL LIQUEFIER FOR EXEMPTION FROM THE PROKIBITIONS
      OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
              TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




                                       by
                            Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                            E1 Monte, CA 91731—2990



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                   SUMMAR Y .

       Universal Diesel Products, Inc. (Universal) has applied for

exemption of the Universal Diesel Liquefier, Models U—8, U—15 and U—30, for

installation on 1990 and older model—year heavy—duty diesel—powered vehicles

from the prohibitions in California Yehicle Code Section 27156.

       Universal Diesel Liquefier is a heat exchanger which uses the engine

coolant to heat up the fuel supply to the engine.   This is to achieve easy

engine start—up in cold weather.   After an engineering evaluation of the

device, the staff has concluded that the device will not adversely affect

exhaust emissions from the vehicles for which the exemption is requested.

       The staff recommends that Universal be granted an exemption for their

Universal Diesel Liquefier for installation on 1990 and older model—year

heavy—duty diesel—powered vehicles with engine rating up to 600 H.P., and

that Executive Order D—214 be issued.




                                     —{—


                                              TS

                                                   Page Number

SUMMARY                                                 1

CONTENTS                                               11

I.        INTRODUCTION

II.       CONCLUSION

III.      RECOMMENDATIONS

IV.       DEVICE DESCRIPTION AND OPERATION

v.        DISCUSSION

VI.    APPENDIX : INSTALLATION INSTRUCTIONS




                                      —if—


                     EVALUATION OF UNIVERSAL DIESEL PRODUCTS, INC.
             UNIVERSAL DIESEL LIQUEFIER FOR EXEMPTION FROM THE PROHIBITIONS

6
             OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
                     TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




      1.   TROBU

             Universal Diesel Products, Inc. (Universal) of 897 Stremel Road,

      Kelowna, B.C., Canada V1X 5E6, has requested for an exemption of the

      Universal Diesel Liquefier from the prohibitions in California Vehicle Code

      (VC) Section 27156.   The exemption is requested for installation of the

      device on 1990 and older model—year heavy—duty diesel—powered vehicles under

      the following applications:

                        Up to 175 H.P.             Mode1 U~8

                        Up to 425 H.P.            Mode! U—15

                        Up to 600 H.P.            Mode? U—30



      II. CONCLUSIONS

             Based on an engineering evaluation of the device, the staff concludes

     that the device will not adversely affect exhaust emissions from 1990 and
     older model—year heavy—duty diesel—powered vehicles.



     III. RECOMMENDATIONS
            The staff recommends that Universal be granted an exemption for their

     Universal Diesel Liquefier for installation on 1990 and older model—year

     heavy—duty diesel—powered vehicles.   The staff also recommends that

    \ Executive Order D—214 be issued.


IV. DEVICE DESCRIPTION AND OPERATION

       The Universal Diesel Liquefier is an annular type heat exchanger of

about 18—inches long with a S—inch outside diameter.    A coil shaped tube,

with fuel inlet and outlet positions at the opposite ends, is attached to

the inner periphery of the cylinder (See Figure 1).     The device is mounted

on the engine frame, as close to the fuel pump és possible, using two

mounting L—~shaped brackets.   Figure 2 shows typical flow diagram.   In use, a

steel—braided hose carries the engine coolant as the heating medium from the

engine Block to one end of the cylinder.     A second hose carries fuel from

the tank through the coiled fuel tube.     Fuel is passed through the coil in

counter flow to hot engine coolant passing through the annular chamber

between the inner and outer walls.     This allows the fuel to be heated up to

150 °F before it flows into the fuel atomizing device of the engine.



v.     DISCUSSION

       Cold ambient temperatures frequently cause problems in the operation

of the internal combustion engines, especially diesel engines.     Pre—heating

the fuel for such an engine, either before carburation or injection, could

help improve the engine operation.     As with other fuel pre—heaters available

in the market, the Universal Diesel Liquefier uses hot coolant to preheat

the fuel.   The manufacturer claims the device is distinct from other pre—

heaters because diesel fuel is heated to its optimum temperature before it

is injected into the combustion chamber.    This results in reduced fue]

consumption, exhaust emissions and jelling problems, longer crankcase oil

life and smoother and quieter engine operation.


       Staff did not conduct any test to confirm manufacturer‘s claims.      The

applicant submitted testimonials from Universal Diesel Liquefier customers

stating improvements in engine performance and fuel economy.   Test results

were also submitted from American Services Associates, 18154 SE 41st Place,

Issaquah, WA 98027, showing reductions in hydrocarbons, oxides of nitrogen,

carbon monoxide and particulate emissions due to the use of the device on a

Caterpillar 3208 diesel engine.   The testimonials are very subjective and

the test results were not conducted in accordance with the Federal Test

Procedures.   Thus, they were not used in the ARB‘s evaluation of the device.

       The staff has evaluated the design and operation of the Universal

Diese] Liquefier.   Based on engineering principles, the staff has determined

that the device when installed in series with the diesel engine fuel system

will not adversely affect the performance of factory equipped emission

control systems on 1990 and older model—year heavy—duty diesel—powered

vehicles with engine rating up to 600 H.P.




                                     ~3—


                UNIVERSAL DIESEL LIQUEFIER

READ CAREFULLY                            INSTALLATION INSTRUCTIONS

 1.   CHECK engine operating temperature and make sure the thermostat is a
      minimum 190°.
2.    FIND a suitable location to mount the Liquefier unit.      The unit should
      be mounted on the frame(Drivers Side) as close as possible to the Final
      Fuel Filter.     This will assure the least amount of heat loss.   A piece
      of angle iron may be.used as a mounting bracket for the Liquefier.
      Many times there are holes in the frame or existing bolts that can be
      used to secure the angle iron.     Another alternative is to fabricate two
      T brackets.     The Liquefier may now be permanently mounted.
3.    LOCATE the HOT WATER SUPPLY HOSE that runs from the engine to the Cab
      Heater.    Cut the fhose and install a "Y".   From the "Y" run a hose to the
      Hot Water Inlet on the Liquefier. Hot Water must enter the Liquefier on
      the end that is nearest the Final Fuel Filter.                               ’
4.    LOCATE the Cab Heater HOT WATER RETURN HOSE.     Cut the hose and install
      a "Y".    From the "Y" run a hose to the Water Outlet on the Liquefier.
5.    BLOW OUT the fuel line running through the Liquefier with compressed air.
6.    CONNECT the fuel line from the fuel tank to the fuel inlet on the Liquefier
      by using the Nut, Compression Sleeve and an Aeroquip Adapter.
7.    FABRICATE a fuel line to run from the Fuel Outlet on the Liquefier to the
      Final Fuel Filter.    This line should run the shortest route possible.
      Connect the fuel line to the Liquefier by using the Nut, Compression Sleeve
      and an Aeroquip Adapter.
8.    SUPPORT fuel lines just before and after the Liquefier so as to reduce
      vibration,
9.    START the engine.    Check all fuel and water connections for leakage.


                               PARTS_LIST
In addition to the two(2) Water Elbows, Nuts and Compression Sleeves supplied
with each Liquefier, you will reduire the following:
1.    Heater Hose and Clamps
2.    Two(2) "Y"‘s
3.    Angle Iron or Flat Iron for mounting bracket and bolts
4.    Fuel Line Adapters by Aeroquip:
         CATERPILLAR         Part Numbers—#2027 8—6 or #2027 8—8 or #2027 10—8
        CUMMINS              Part Number—#2027 10—8


                        FUEL LINE ROUTING AND CONNECTIONS




 CATERPILLAR ENGINES

   DIAGRAM #1                      > freFer
                                      FuELl |I

                                           .     —»FUEL RETURN TO FUEL TANK
           LINJECTOR       _4         _
             PUMP          k   gmmmammmmmd______HOT WATER INLET
                             |_(                   WATER OUTLET(Return)
                                LIQUEFTER Fl                .
                             >                  y—*                               FUEL
          FUEL               *     e                          <—                  TANK
          PUMP                     *




    DLAGRAM #2

                                                                   > FUEL RETURN TO FUEL TANK
          INJECTOR
            PUMP
                                                              HOT WATER INLET FROM ENGINE
                                                      w//____wATER OUTLET(Return)

         PUMP          * [FILTER   &     LIQUEFIER            —£           TANK



CUMMINS ENcINES

                                                          y FUEL RETURN TO FUEL TANK
         INJECTOR         FUEL                              HOT WATER     INLET
           pump        [rruter         ‘f’/’,,j:::::::NATER OUTLET(Return)
                                   #

                                       L iquerter         c              Fu
                                                                         Ping

€ = FUEL FLOW DIRECTION


PAGE—3

                        UNIVERSAL DIESEL LIQUEFIER


             WATER OUTLET




                                                                       FUEL INLET FROM
                                                                       FUEL TANK




                                                            HOT WATER INLET




                          GENERAL   __INFORMATION


 1.   THE USE OF 90° ELBOWS IN FUEL LINES CAN CAUSE AN ENGINE TO LOSE POWER.

2.    THERMOSTATS ONLY CONTROL THE MINIMUM OPERATING TEMPERATURE, NOT THE

      MAX IMUM.

3.    ZERO LEAK (NON—VENTED) THERMOSTATS WILL MAINTAIN A MORE CONSTANT OPERATING

      TEMPERATURE.   A WEIRSTAT ZERO LEAK THERMOSTAT HAS PROYVEN TO BE VERY RELIABLE.

4.    WHEN USING WINTER(#1) FUEL, CONSUMPTION CAN BE UP TO 10% MORE AND A POWER

      LOSS OF UP TO 10% CAN BE EXPERIENCED     WITHOUT THE LIQUEFIER INSTALLED.

5.    WHEN COMPARING MILEAGE(RECORDS) IN ORDER TO DETERMINE FUEL REDUCTIONS, BE

      SURE TO COMPARE THIS WINTER OR SUMMER TO LAST WINTER OR SUMMER.

6.    A DIESEL ENGINE LEFT IDLING WILL CONSUME .5 to .75 GALLONS PER HOUR.

7.    THE UNIVERSAL DIESEL LIQUEFIER IS DESIGNED FOR YEAR—ROUND USE.     DO NOT

      DISCONNECT THE UNIT DURING SUMMER MONTHS.     SUMMER FUEL IS HEAYIER AND HARDER

      TO BURN.



                                                                     REV.—12/14/89


                          q
               Figure     1



        Unriverseal Diesel Liquefier




Fuel                                   Fuel
Inlet                                  Qutlet




                   olps


VI. INSTALLATION


                                        Figure 2

                      Fuel Line Routing and Connections




CATERPILLAR ENGINES
                                 ¥—4|     FuEl




                                 —
                                         suter||
                                                     V¥
                                                                        > FUEL RETURN TO FUEL TANK
          INJECTOR        %. 4               f
            PUMP          <                      —                        HOT WATER INLET
                                e                4_ WATER OUTLET(Return)
                                 LIQUEFIER           ]
                            s                                                        EUEL
         FUEL               mne2                                    &                TANK
         PUMP                    Ni




                                                                        > FUEL RETURN TO FUEL TANK
          LNJECTOR
            PUMP
                                                                  HOT WATER INLET FROM ENGINE
                                                          “//,___,HATER OUTLET(Return)

        FUEL          _|_EuEL            m                a                     FUrL
        PUMP          CAdFILTER —eq       LIQUEFIER                 <           TANK




CUMMINS ENGINES


                                                              ),FUEL RETURN TO FUEL TANK

         INIECTOR        FUEL                   //rf—_ HOT WATER INLET
                                        “f””,,/
           PUMP         FILTER                         WATER .OUTLET(Return)
                                                     w
                                E:      LIQUEFIER              &
                                                                w
                                                                              FUEL
                                                                              TANK


                                             —5.—



Document Created: 2005-09-01 12:44:16
Document Modified: 2005-09-01 12:44:16

| Previous E.O. D-213 | Next E.O. D-214-1 | Next E.O. D-215
