Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 24, 1997.
As of Wednesday, October 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
3501, 3502 3562, 35631987-1995 GM vehicles with 5.7L/ 7.4L throttle body injected engine, EXCEPT 1995 model year engine families: S3G5.785GBEB & S3G5.7J5G1EA

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-28
  • Executive Order 215-28 / D215-28
  • ARB # D-215-28
  • Executive Order No: D-215-28
  • C.A.R.B. No. D-215-28
  • Resolution D-215-28
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-28 PDF

D-215-28 Document:

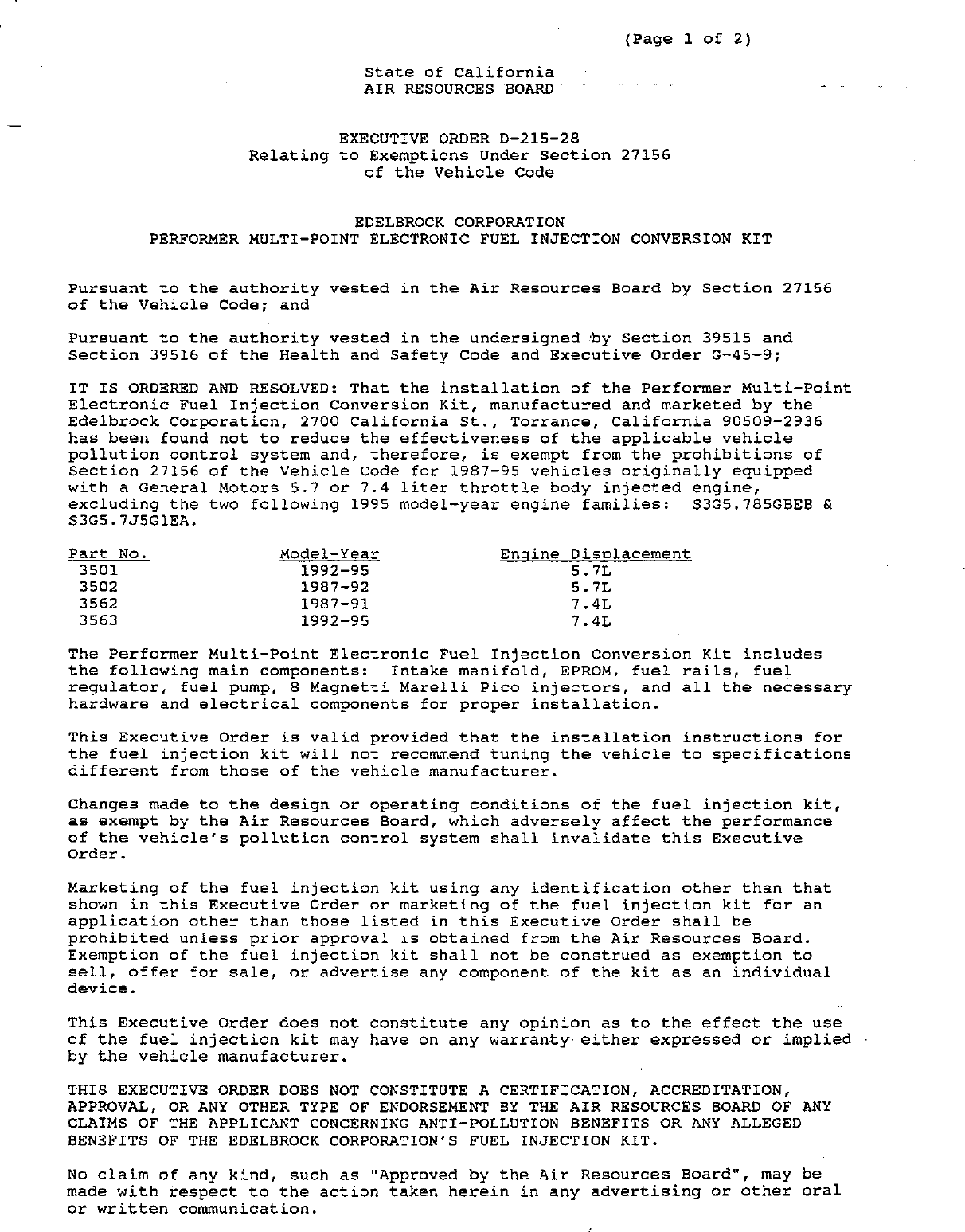

                                                                 (Page 1 of 2)

                                State of California
                                AIR RESOURCES BOARD                               ~


                              EXECUTIVE ORDER D—215—28
                    Relating to Exemptions Under Section 27156
                                of the Vehicle Code


                                EDELBROCK CORPORATION
           PERFORMER MULTI—POINT ELECTRONIC FUEL INJECTION CONVERSION KIT


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and
Section 39516 of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Performer Multi—Point
Electronic Fuel Injection Conversion Kit, manufactured and marketed by the
Edelbrock Corporation, 2700 California St., Torrance, California 90509—2936
has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and,       therefore,   is exempt from the prohibitions of
Section 27156 of the Vehicle Code for 1987—95 vehicles originally equipped
with a General Motors 5.7 or 7.4 liter throttle body injected engine,
excluding the two following 1995 model—year engine families:  S$3GS.78S5GBEB &
S3GS.7J5GCIEA.

Part No.               Model—Year                 Engine Displacement
 3501                     1992—95                         5.7L
 3502                     1987—92                         5.7L
 3562                     1987—91                         7.4L
 3563                     1992—95                         7.4L

The Performer Multi—Point Electronic Fuel Injection Conversion Kit includes
the following main components:  Intake manifold, EPROM, fuel rails, fuel
requlator, fuel pump, 8 Magnetti Marelli Pico injectors, and all the necessary
hardware and electrical components for proper installation.

This Executive Order is valid provided that the installation instructions for
the fuel injection kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the fuel injection kit,
as exempt by the Air Resources Board, which adversely affect the performance
of the vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of the fuel injection kit using any identification other than that
shown in this Executive Order or marketing of the fuel injection kit for an
application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of the fuel injection kit shall not be construed as exemption to
sell,   offer for sale, or advertise any component of the kit as an individual
device.

This Executive Order does not constitute any opinion as to the effect the use
of the fuel injection kit may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOBS NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE EDELBROCK CORPORATION‘S FUEL INJECTION KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be
made with respect to the action taken herein in any advertising or other oral
or written communication.


EDELBROCK                                         Execut;ve Order D—215—28
Fuel Injection Kit                                  ©        (Page 2 of 2)


Violation of any of the above conditions shall be grounds for revocation of
this order.  The order may be revoked only after a ten—day written notice of
intention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation.  If a hearing
is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination after hearing that grounds
for revocation exist.                      ,4¢

Executed at El Monte,   California,   thisday of June 1997.




                                             . B. Summerfield, Chie
                                            Mpbile Source Operations/Division


                      State of California
                     AIR RESOURCES BOARD




 EVALUATION OF THE EDELEBROCK CORPORATION®‘S FUEL INJECTION KIT
      FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                 CALIFORNIA CODE OF REGULATIONS




                          June 1997


                             State of California
                             AIR RESOURCES BOARD




        EVALUATION OF THE EDELBROCK CORPORATION‘S FUEL INJECTION KIT
             FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
       SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                        CALIFORNIA CODE OF REGULATIONS




                                      by
                      Mobile Ssource Operations Division
                             9528 Telstar Avenue
                              El Monte,    CA 91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies ‘of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                     SUMMARY



         The Edelbrock Corporation of 2700 California Street, Torrance,

California 90509—2936 has applied for an exemption from the prohibitions in

Section 27156 of the California Vehicle Code (VC) for their fuel injection kit

designed for 1987—95 vehicles originally equipped with a General Motors 5.7 or

7.4 liter throttle body injected engine, excluding the two following 1995

model—year engine families:   S$3G5.785GBEB & S3GS5.7J5G1EA.

         Based on submitted emissions test data,    thg staff concludes that the

fuel injection kit will not adversely affect exhaust emissions from vehicles

for which the exemption is requested.

         The staff recommends that the Edelbrock Corporation be granted an

exemption as requested and that Executive Order D—215—28 be issued.


                               TABLE OF CONTENTS



                                                   Page Number



SUMMARY                                               i
CONTENTS                                              ii

I.    INTRODUCTION                                     1

II.   CONCLUSION                                       1
III. RECOMMENDATION                                    1
IV.   FUEL INJECTION KIT DESCRIPTION                   1

v.    DISCUSSION OF THE FUEL INJECTION KIT             2




                                       1i


           EVALUATION OF THE EDELBROCK CORPORATION‘S FUEL INJECTION KIT
               FOR AN EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
          SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                           CALIFORNIA CODE OF REGULATIONS


I.      INTRODUCTION

             The Edelbrock Corporation of 2700 California Street, Torrance,

California 90509—2936 has applied for an exemption from the prohibitions in

Section 27156 of the California Vehicle Code (VC) for their fuel injection kit

designed for 1987—95 vehicles originally equipped with a General Motors 5.7 or

7.4 liter throttle body injected engine, excluding the two following 1995

model—year engine families:          S3G5.785GBEB & S3G5.7J5G1EA.

II.     CONCLYUSIONS

             Based on submitted emissions test data,      the staff concludes that the

Edelbrock Corporation‘s Performer Multi—Point Electronic Fuel Injection

Conversion Kit will not adversely affect exhaust emissions from the vehicles

for which the exemption is requested.

III.    RECOMMENDATION

             The staff recommends that the Edelbrock Corporation be granted an

exemption for their Performer Multi—Point Electronic Fuel Injection Conversion

Kit for installation on those applicable vehicles with General Motors engines.

The staff also recommends that Executive Order D—215—286 be issued.

IV.     EUEL INJECTION KIT DESCRIPTION

            The Performer Multi—Point Electronic Fuel Injection Conversion Kit

is designed for installation on 1987—95 vehicles originally equipped with a

General Motors 5.7 or 7.4 liter throttle body injected engine,             excluding the

two following 1995 model—year engine families:            §3G5.785GBEB & S3GS5.7J5GIEA.

Table 1 lists applicability.

                                          Table 1

Part No.                 Model—Year                 Engine Displacement

 3501                      1992—95                         5.7L
 3502                      1987—92                         5.7L
 3562                      1987—91                         7 .4L
 3563                      1992—95                         7.4L


            The purpose of converting an engine from throttle body injection to

multi—point injection is to increase the engine‘s performance and power

output.     The Performer Multi—Point Electronic Fuel Injection Conversion Kit

includes the following main components:           Intake manifold, EPROM,    fuel rails,

fuel regulator, fuel pump, 8 Magnetti Marelli Pico injectors,             and all the
                                            —1—


necessary hardware and electrical components for proper installation.             The new

components are designed to transform the vehicle‘s throttle body fuel

injection system to a more sophisticated multi—point fuel injected system

without any major modifications to the vehicle‘s electronic control unit (ECU)

or wiring harness.

             The installation of the Performer Multi—Point Electronic Fuel

Injection Conversion Kit modifies the existing throttle body to cperate as an

air valve.     The ECU is modified with a new EPROM,      and an additional fuel pump

is installed by the stock fuel filter.          The stock in;ake manifold is removed

and replaced with the intake manifold provided by Edelbrock.            The installation

of Edelbrock‘s fuel injection kit does not require the removal of any emission

related components or sensors.

v.         DISCUSSION OF THE FUEL INJECTION KIT

             A 1994 Chevrolet C1500 truck with a 5.7L engine was used for the

evaluation of the fuel injection kit.          Testing consisted of one Cold Start

CVS—75 Federal Test Procedure in the modified configuration.            The dynamometer

inertia weight and horsepower settings were 5250—lbs and 14.8 hp,

respectively.     The emissions testing was conducted by the Edelbrock

Corporation,    data was evaluated against the vehicle‘s emission standards with

deterioration factors (Dfs)       applied.    Confirmatory testing was performed at

the Air Resources Board‘s (ARB‘s) Haagen—Smit Laboratory.            Table 2.   list those

results.

                                         Table 2.

                                       NMHC         co    NOx

   Device w/ Dfs at Edelbrock          0.34         5.2    0.75
 Device w/ Dfs at Haagen—Smit          0.39         6.1    0.61
                    Standards          0.50         9.0    1.0

           Emission test results submitted by Edelbrock and confirmed by the

ARB were below the vehicle‘s applicable emission standards with deterioration

factors applied.     Therefore,   based on the test results,      the staff concludes

that the installation of the fuel injection kit will not have an adverse

effect on exhaust emissions on those applicable vehicles when operated similar

to the CVS—~75 Federal Test Procedure.

           The Edelbrock Corporation has spbmitted all the required information

and fulfilled the requirements for an exemption.
                                              —2~



Document Created: 2005-09-01 12:42:47
Document Modified: 2005-09-01 12:42:47

Previous E.O. D-215-27 | Previous E.O. D-214 | Next E.O. D-215-29 | Next E.O. D-216
