Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 28, 2005.
As of Sunday, July 21st, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
38241986-1993, 5.0L,Passenger Cars and Trucks65mm

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-65
  • Executive Order 215-65 / D215-65
  • ARB # D-215-65
  • Executive Order No: D-215-65
  • C.A.R.B. No. D-215-65
  • Resolution D-215-65
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-65 PDF

D-215-65 Document:

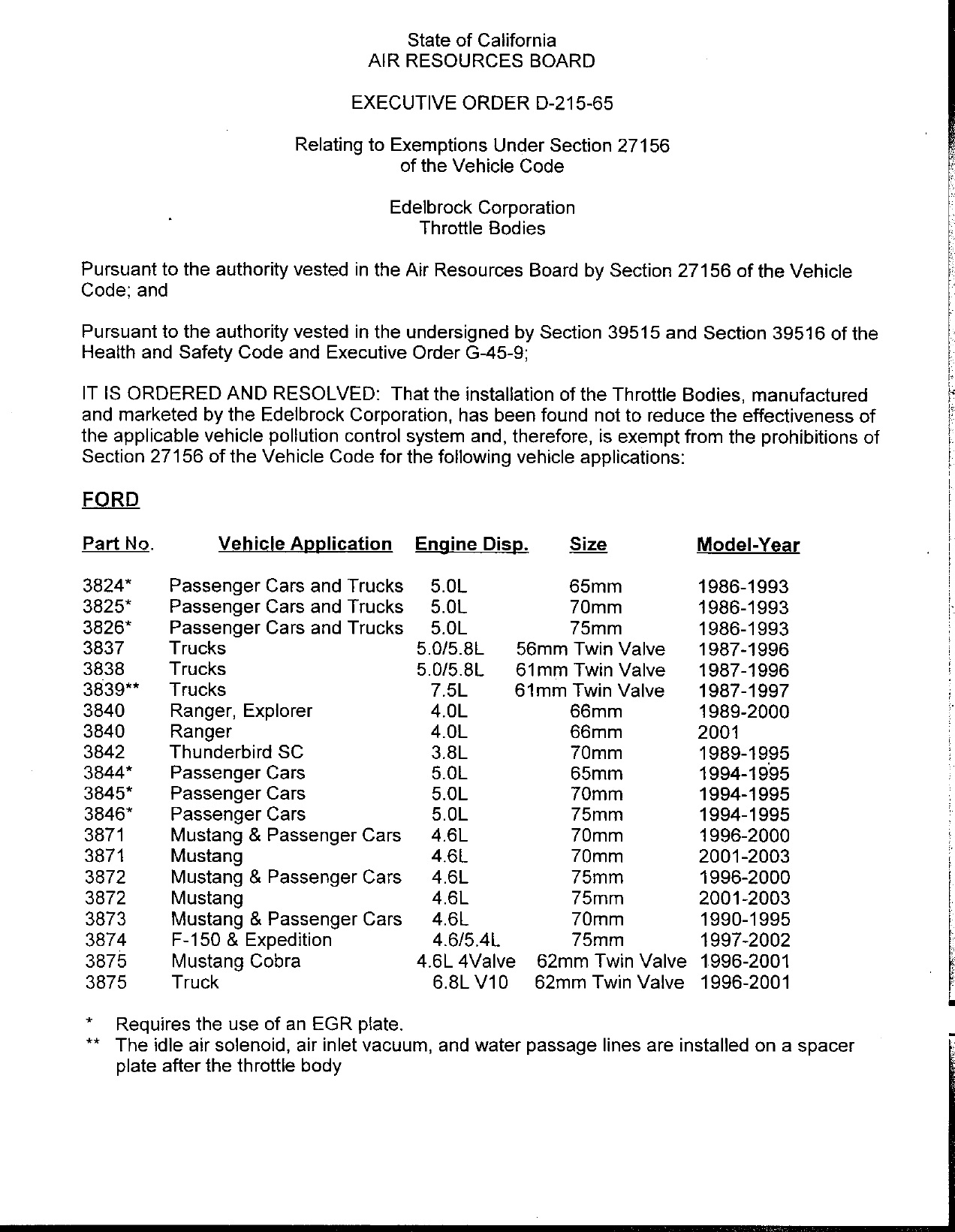

                                       State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—215—65

                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                     Edelbrock Corporation
                                        Throttle Bodies

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Throttle Bodies, manufactured               h
and marketed by the Edelbrock Corporation, has been found not to reduce the effectiveness of         :
the applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the following vehicle applications:

FORD

Part No.        Vehicle Application      Engine Disp.      Size            Model—Year

3824*      Passenger Cars and Trucks      5.0L             66mm            1986—1993
3825*      Passenger Cars and Trucks      5.0L             7O0mm           1986—1993
3826*      Passenger Cars and Trucks      5.0L             75mm            1986—1993
3837       Trucks                        5.0/5.8L    56mm Twin Valve       1987—1996                 i
3838       Trucks                        5.0/5.8L    61mm Twin Valve       1987—1996                 |
3839**     Trucks                          7.5L      61mm Twin Valve       1987—1997
3840       Ranger, Explorer                4.0L           66mm             1989—2000
3840       Ranger                          4.0L           66mm             2001
3842       Thunderbird SC                  3.8L           70mm             1989—1995
3844*      Passenger Cars                  5.0L             65mm           1994—1995
3845*      Passenger Cars                  5.0L             7Omm           1994—1995
3846+*     Passenger Cars                  5.0L             75mm           1994—1995
3871       Mustang & Passenger Cars        4.6L             70mm           1996—2000                 i
3871       Mustang                         4.6L             70mm           2001—2003                 (
3872       Mustang & Passenger Cars        4.6L             75mm            1996—2000                [
3872       Mustang                         4.6L             75mm           2001—2003                 |
3873       Mustang & Passenger Cars   4.6L                 70mm             1990—1995                |
3874       F—150 & Expedition         4.6/5.AL             75mm             1997—2002                    :
3875       Mustang Cobra            4.6L 4Valve         62mm Twin Valve     1996—2001
3875       Truck                      6.8L V10          62mm Twin Valve     1996—2001
x
   Requires the use of an EGR plate.
** The idle air solenoid, air inlet vacuum, and water passage lines are installed on a spacer
   plate after the throttle body


GENERAL MOTORS

Part No.         Vehicle Application        Engine Disp.             Size              Model—Year
3803    Camaro/Firebird/Corvette             5.0/5.7L                52mm              1985—1988
3804    Camaro/Firebird/Corvette             5.0/5.7L                58mm              1985—1988
3805    Camaro/Firebird/Corvette              5.0L                    52mm             1989—1992
3806    Camaro/Firebird/Corvette            5.0/5.7L                  58mm             1989—1992
3807    Camaro/Firebird/Impala SS/             5.7L                   52mm             1992—1993
                  Corvette
3808    Camaro/Firebird/Impala SS/             5.7L                   58mm             1992—1993
                Corvette
3809      Camaro/Firebird/Impala SS/            5.7L                 52mm              1994—1997
                   Corvette                                                            1994—1997
3810      Camaro/Firebird/Impala SS/            5.7L                 58mm              1994—1997
                   Corvette                                                            1994—1997

This Executive Order is valid provided that the installation instructions for the Throttle Bodies
will not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.

Changes made to the design or operating conditions of the Throttle Bodies, as exempt by the
Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

Marketing of the Throttle Bodies using any identification other than that shown in this Executive
Order or marketing of the Throttle Bodies for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the Throttle Bodies shall not be construed as exemption to sell, offer for
sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Throttle
Bodies may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on submitted emissions test data on a 1995 5.7L
Chevrolet Impala SS, certified to the tier 1 emission standards and a 1998 5.4L Ford
Expedition, certified to the Low Emission Vehicle (LEV) emission standards Test results
showed that tailpipe emissions with the Throttle Body installed on the vehicles met their
applicable emission standards during a Cold Start CVS—75 Federal Test Procedure. This
Executive Order is also based on an On Board Diagnostic II (OBD !I) testing conducted on a
1997 Camaro and a 1998 Ford Expedition. Test data showed that the Throttle Body when
installed on the vehicles did not affect their ability to perform OBD I! monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE EDELBROCK CORPORATION‘S THROTTLE BODIES.




               EDELBROCK CORPORATION — THROTTLE BODIES — D—215—65


                                                13.


No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this   __2#% day of December 2005.




                                           ‘Allen Lyons, Chief
                                           Mobile Source Operations Division




               EDELBROCK CORPORATION — THROTTLE BODIES — D—215—65



Document Created: 2005-12-30 11:34:37
Document Modified: 2005-12-30 11:34:37
