Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 16, 2010.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
1581 and 15831996 to 2011 model year Ford F-150 trucks equipped with either a 4.6L or 5.4L V8 engine.The E-Force Supercharger Kit consists of the following main components: Eaton supercharger with a 3.25ÔÇØ diameter pulley, intake manifold, bypass valve, high flow injectors, mass air flow sensor, intercooler, and a reflashed ECM. Boost is limited to 5.5 pounds per square inch. The stock crankshaft pulley, air cleaner housing, and thermostat are retained. All supplied fuel hoses are AvonÔÇÖs CADbar 9000 series or a stock replacement, and fuel and vapor line connectors supplied with the kit are OEM ÔÇô equivalent parts. Breather hoses may be replaced with an SAE30R9 rated hose or a stock replacement.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-74
  • Executive Order 215-74 / D215-74
  • ARB # D-215-74
  • Executive Order No: D-215-74
  • C.A.R.B. No. D-215-74
  • Resolution D-215-74
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-74 PDF

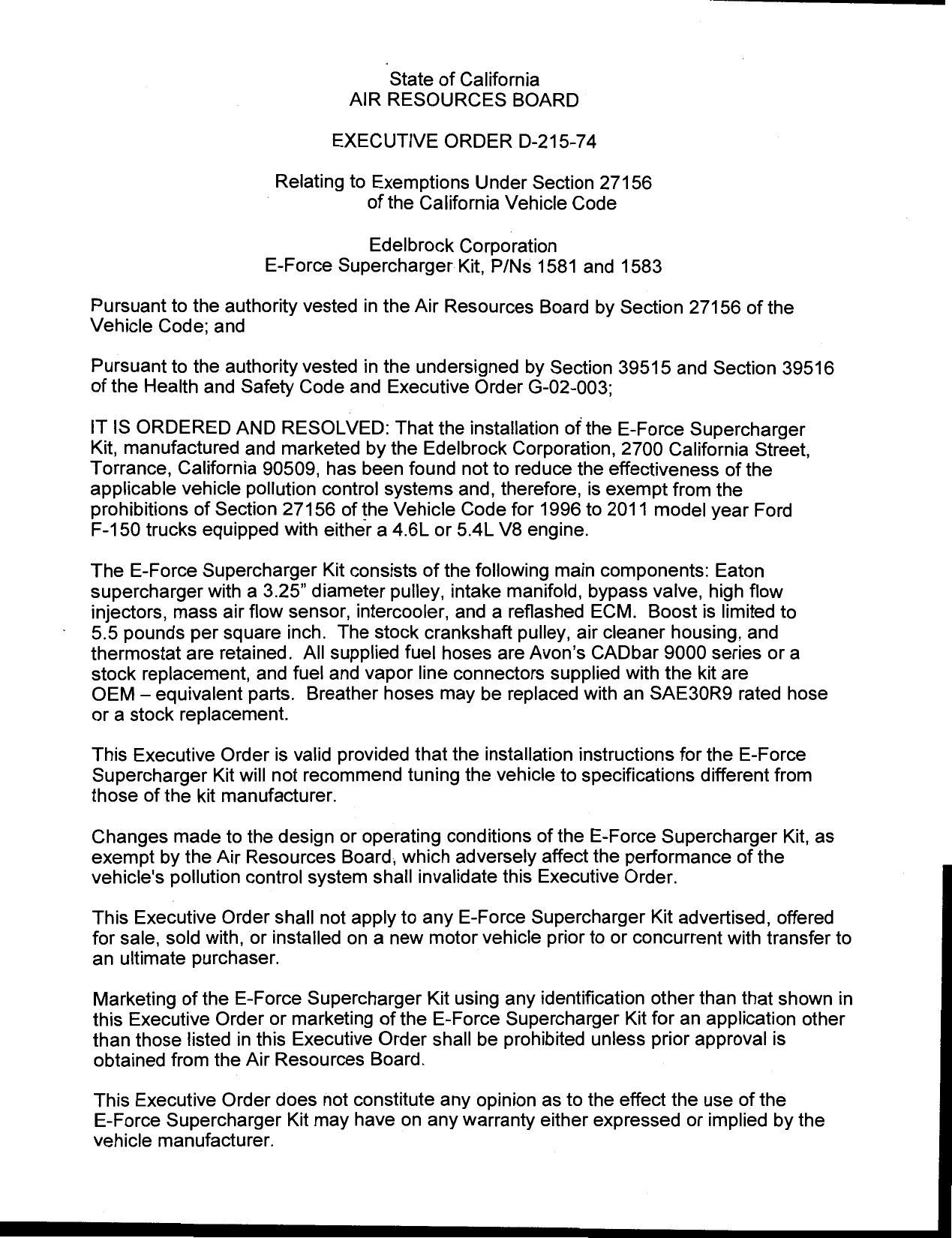

D-215-74 Document:



                                      ‘State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—215—74

                          Relating to Exemptions Under Section 27156
                      '             of the California Vehicle Code

                                Edelbrock Corpo'ration
                     E—Force Supercharger Kit, P/Ns 1581 and 1583

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the E—Force Supercharger
Kit, manufactured and marketed by the Edelbrock Corporation, 2700 California Street,
Torrance, California 90509, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 1996 to 2011 model year Ford
F—150 trucks equipped with either a 4.6L or 5.4L V8 engine.

The E—Force Supercharger Kit consists of the following main components: Eaton
supercharger with a 3.25" diameter pulley, intake manifold, bypass valve, high flow
injectors, mass air flow sensor, intercooler, and a reflashed ECM. Boost is limited to
5.5 pounds per square inch. The stock crankshaft pulley, air cleaner housing, and
thermostat are retained. All supplied fuel hoses are Avon‘s CADbar 9000 series or a
stock replacement, and fuel and vapor line connectors supplied with the kit are
OEM — equivalent parts. Breather hoses may be replaced with an SAE30R9 rated hose
or a stock replacement.

This Executive Order is valid provided that the installation instructions for the E—Force
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the kit manufacturer.

Changes made to the design or operating conditions of the E—Force Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Exeéutive Order shall not apply to any E—Force Supercharger Kit advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the E—Force Supercharger Kit using any identification other than that shown in
this Executive Order or marketing of the E—Force Supercharger Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
E—Force Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.


                                               9.


This Executive Order is granted based on previously submitted emissions and OBD II test
data that was generated in support of Executive Order D—215—72. The test vehicle was a
2008 model year 4.6L Ford Mustang certified to the Low Emission Vehicle !I Uitra Low
Emission Vehicle emission standards. Test results showed that emission levels, with the
E—Force Supercharger kit installed, met the applicable emission standards when tested
using the Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the
Supplemental Federal Test Procedure (SFTP) test cycle. Examination of the OBD II
system showed that the supercharger kit did not affect OBD II system operation. Results
from emissions testing conducted at the Auto Club Emissions Laboratory, located in
Diamond Bar, California, are shown below (in grams per mile).

    2008 Ford Mustang              CVS—75 FTP                         SFTP USO6/SCO3
                           NMOG     CO NOx          HCHO         NMHC+NOx      CO
    Standards*, 5OK        0.040    1.7 0.05        0.008          0.14/0.20   8.0/2.7
    Device Test 1**        0.028    12 0.02         0.000          0.02/0.01   3.0/0.4
    Device Test 2**        0.032    11 0.02         0.000
    Average                0.030    11 0.02         0.000
    Average w/df           0.032    12 0.03         0.001

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,      '
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE E—FORCE
SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this       é,é     day of December 2010.




                                 m, Chief
                                     Mobile Source Operations Division



               EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—74



Document Created: 2010-12-27 10:09:16
Document Modified: 2010-12-27 10:09:16

Previous E.O. D-215-73 | Previous E.O. D-214 | Next E.O. D-215-75 | Next E.O. D-216
