Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 23, 2011.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
see pdfsee pdfsee pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-76
  • Executive Order 215-76 / D215-76
  • ARB # D-215-76
  • Executive Order No: D-215-76
  • C.A.R.B. No. D-215-76
  • Resolution D-215-76
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-76 PDF

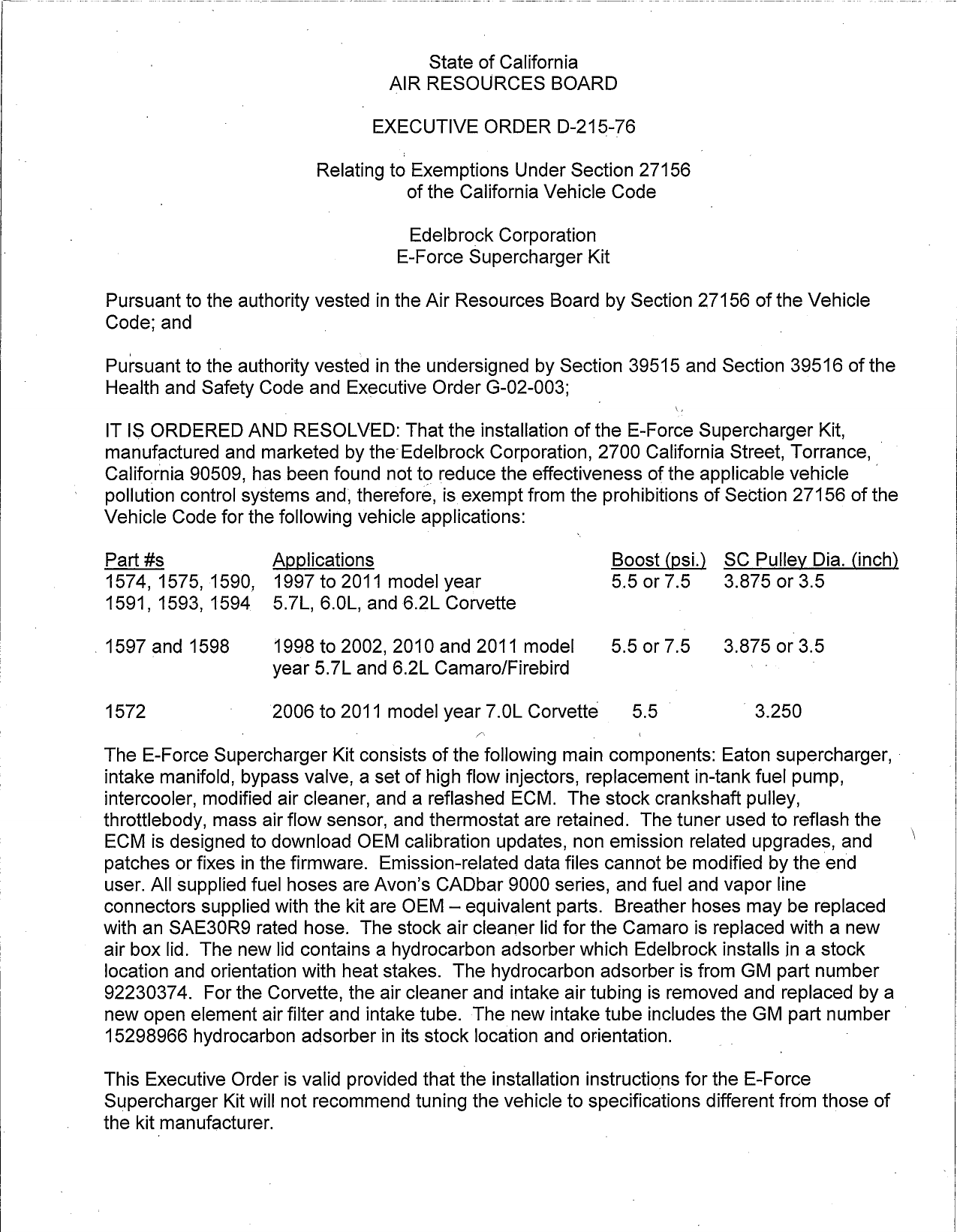

D-215-76 Document:



                                        State of California
                                     AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—215—76

                           Relating te Exemptions Under Section 27156
                                      of the California Vehicle Code

                                      Edelbrock Corporation
                                     E—Force Supercharger Kit

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
 Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
 Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the E—Force Supercharger Kit,
 manufactured and marketed by the Edelbrock Corporation, 2700 California Street, Torrance, —
 California 90509, has been found not to reduce the effectiveness of the applicable vehicle |
 pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
 Vehicle Code for the following vehicle applications:

 Part #s              Applications                              Boost (psi.)   SC Pulley Dia. (inch)
 1574, 1575, 1590,    1997 to 2011 model year                   5.5 or 7.5     3.875 or 3.5
 1591, 1593, 1594     5.7L, 6.0L, and 6.2L Corvette

. 1597 and 1598       1998 to 2002, 2010 and 2011 model         5.5 or 7.5     3.875 or 3.5
                      year 5.7L and 6.2L Camaro/Firebird                          60      '

 1572             '   2006 to 2011 model year 7.0L Corvette       5.5            —3.250

 The E—Force Supercharger Klt consists of the followmg maincomponents Eaton supercharger, —
 intake manifold, bypass valve, a set of high flow injectors, replacement in—tank fuel pump,
 intercooler, modified air cleaner, and a reflashed ECM. The stock crankshaft pulley,
throttlebody, mass air flow sensor, and thermostat are retained. The tuner used to reflash the
ECM is designed to download OEM calibration updates, non emission related upgrades, and
 patches or fixes in the firmware. Emission—related data files cannot be modified by the end
user. All supplied fuel hoses are Avon‘s CADbar 9000 series, and fuel and vapor line
connectors supplied with the kit are OEM — equivalent parts. Breather hoses may be replaced
with an SAE30R9 rated hose. The stock air cleaner lid for the Camaro is replaced with a new
air box lid. The new lid contains a hydrocarbon adsorber which Edelbrock installs in a stock
location and orientation with heat stakes. The hydrocarbon adsorber is from GM part number
 92230374. For the Corvette, the air cleaner and intake air tubing is removed and replaced by a
 new open element air filter and intake tube. The new intake tube includes the GM part number '
 15298966 hydrocarbon adsorber in its stock location and orientation.

This Executive Order is valid provided that the installation instructions for the E—Force
Supercharger Kit will not recommend tuning the vehicle to specifications different from those of
the kitmanufacturer.


                                                92.


Changes made to the design or operating conditions of the E—Force Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any E—Force Supercharger Kit advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the E—Force Supercharger Kit using any identification other than that shown in
this Executive Order or marketing of the E—Force Supercharger Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is obtained
from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
E—Force Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on submitted emission test data generated on one test
vehicle modified with the E—Force Supercharger Kit. Test results showed that emission levels,
with the supercharger kit installed, met the applicable emission standards when tested using
the Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the Supplemental
Federal Test Procedure (SFTP) test cycle. Examination of the OBD II system showed that
the supercharger kit did not affect OBD II system operation. Results from emissions testing
conducted at the Auto Club Emissions Laboratory, located in Diamond Bar, California, are
shown below (in grams per mile).

    2010 6.2L Corvette             CVS—75 FTP                          SFTP USO6/SCO3
                           NMOG     CO NOx        HCHO            NMHC+NOx      CO
    Standards*, UL         0.070    21 0.04       0.011             0.14/0.20   8.0/2.7
    Device Test 1          0.036    1.0 0.01      0.000             0.04/0.03   5.2/1.0
    Device Test 2          0.036    0.9 0.01      0.000
    Average                0.036    1.0 0.01      0.000
    Average w/idf          0.049    1.2 0.03      0.001

*LEV If ULEV CVS—75 FTP emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section
2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE E—FORCE
SUPERCHARGER KIT.


                                                     —3.


 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
_respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.                 .        m                             *

Executed at El Monte, California, this :      :)«3         day of February 2011.




                                          \nnette Hebert, Chief          O
                                     Mobile Source Operations Division




                 EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—76



Document Created: 2011-06-13 11:40:00
Document Modified: 2011-06-13 11:40:00
