Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 26, 2011.
As of Sunday, August 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
1580, 1582, and 15881996 to 2012 Ford V8 MustangsThe E-Force Supercharger Kit consists of the following main components: Eaton supercharger, intake manifold, bypass valve, high flow injectors, mass air flow sensor, intercooler, and a reflashed ECM. The stock crankshaft pulley and thermostat are retained on all applications. Boost is limited to 5 pounds per square inch. The new ECU calibration has no user adjustments. The breather hose may be replaced with an SAE30R9 rated hose or a Ford replacement equivalent. Additional components are: 1996 to 2009 model year applications, new air cleaner housing that uses the stock air cleaner lid. 2010 model year applications, a new air cleaner lid with hydrocarbon paper. 2005 and 2006 model year applications the thermostat is relocated. 2005 to 2010 model year applications, new 85mm single bore throttle body.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-78
  • Executive Order 215-78 / D215-78
  • ARB # D-215-78
  • Executive Order No: D-215-78
  • C.A.R.B. No. D-215-78
  • Resolution D-215-78
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-78 PDF

D-215-78 Document:

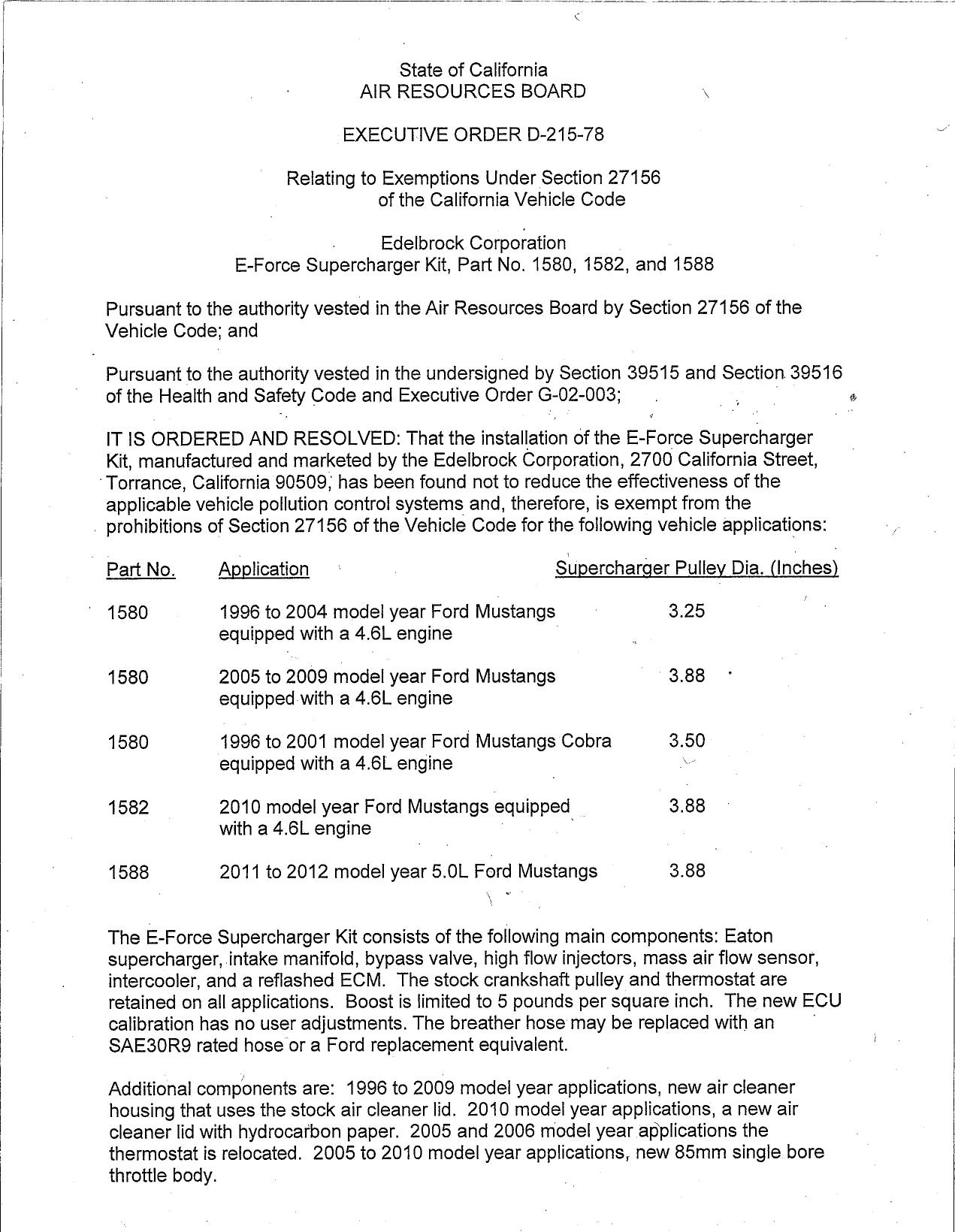

                                             State of California
                                      AIR RESOURCES BOARD                               \

                                     EXECUTIVE ORDER D—215—78

                        Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                             —          Edelbrock Corpofation              .
                 E—Force Supercharger Kit, Part No. 1580, 1582, and 1588

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
 of the Health and SafetyCode and Executive Order G02—008;         .      Dog           #

  IT I1S ORDERED AND RESOLVED: That the mstallatlon of the E—Force Supercharger
  Kit, manufactured and marketed by the Edelbrock Corporation, 2700California Street,
 ‘Torrance, California 90509has been found not to reduce the effectiveness of the
  applicable vehicle pollution control systems and, therefore, is exempt from the
. prohibitions of Section 27156 of the Vehicle Code for the following vehicle applications:

— Part No.     Application       >       .                         Supercharger Pulley Dia. (Inches)

 1580          1996 to 2004 model year Ford Mustangs                   -         3.25
               eqmpped with a 4.6L engine

 1580          2005 to 2009 model year Ford Mustangs                           _ 3.88
               equipped with a 4.6L engine

 1580          1996 to 2001 model year Ford Mustangs Cobra                       3.50
               equipped with a 4.6L engine

 1582          2010 model year Ford Mustangs equped .                            3.88
               with a 4.6L engine

 1588          2011 to 2012 model year 5.0L Ford Mustangs                        3.88

 The E—Force Supercharger Kit consists of the following main components: Eaton
 supercharger, intake manifold, bypass valve, high flow injectors, mass air flow sensor,
 intercooler, and a reflashed ECM. The stock crankshaft pulley and thermostat are
 retained on all applications. Boost is limited to 5 pounds per square inch. The new ECU
 calibration has no user adjustments. The breather hose may be replaced with an
 SAE30RG rated hose or a Ford replacement equivalent.

 Additional components are: 1996 to 2009 model year applications, new air cleaner
 housing that uses the stock air cleaner lid. 2010 model year applications, a new air
 cleaner lid with hydrocarbon paper. 2005 and 20086 model year applications the
 thermostat is relocated. 2005 to 2010 model year applications, new 85mm single bore
 throttle body.


                                               7.


This Executive Order is valid provided that the instailation instructions for the E—Force
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the kit manufacturer. _

Changes made to the design or operating conditions of the E—Force Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any E—Force Supercharger Kit advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the E—Force Supercharger Kit using any identification other than that shown in
this Executive Order or marketing of the E—Force Supercharger Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
E—Force Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on emission test data generated on two test
vehicles modified with the E—Force Supercharger Kit. Test results showed that emission
levels, with the supercharger kit installed, met the applicable emission standards when
tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the
Supplemental Federal Test Procedure (SFTP) test cycle. Examination of the OBD II
system showed that the supercharger kit did not affect OBD II system operation. Results
from emissions testing conducted at the Auto Club Emissions Laboratory, located in
Diamond Bar, California, are shown below (in grams per mile).

    2008 4.6L Ford Mustang   CVS—75 FTP                                SFTP USO6/SCO3
                       NMOG CO NOx                  HCHO          NMHC+NOx      CO
    Standards*, 5OK    0.040  1.7 0.05              0.008           0.14/0.20   8.0/2.7
    Device Test 1**    0.028  1.2 0.02              0.000           0.02/0.01   3.0/0.4
    Device Test 2**    0.032  11 0.02               0.000                                   *
    Average            0.030  11 0.02               0.000
    Average w/df       0.032  112 0.03              0.001

    2012 5.0L Mustang

                      SFTP USO6
                   NMHC+NOx     CO
    Standards          0.14          8.0
    Device             0.09          0.4

*LEV If ULEV CVS—75 FTP emissions standards.
** Two FTP tests were required because the Auto Club has a CVS measurement system.


                EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—78


                                                —3.


 The Air Resources Board reserves the right in the future to review this Executive Order and
‘the exemption provided herein to assure that the exempted add—on or modified part
 continues to meet the standards and procedures of Title 13, California Code of
_ Regulations, Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,      _
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
 AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE E—FORCE
 SUPERCHARGER KIT .                  ’           ‘            ‘

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.

 Violation of any of the above conditions shall be grounds for revocation of this order. The
 order may be revoked only after a ten—daywritten notice of intention to revoke the order, in
 which period the holder of the order may request in writing a hearing to contest the .
 proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
 the request and the order may not be revoked until a determination is made after the
 hearing that grounds for revocation exist.

 Executed at El Monte, California, this      Zg       day of September 201\ 1.




                                       CAnnette Hebert, Chief
                                        Mobile Source Operations Division




                EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—78



Document Created: 2011-11-02 13:07:25
Document Modified: 2011-11-02 13:07:25
