Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 29, 2016.
As of Friday, December 6th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-93
  • Executive Order 215-93 / D215-93
  • ARB # D-215-93
  • Executive Order No: D-215-93
  • C.A.R.B. No. D-215-93
  • Resolution D-215-93
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-93 PDF

D-215-93 Document:


CARB_D-215-93

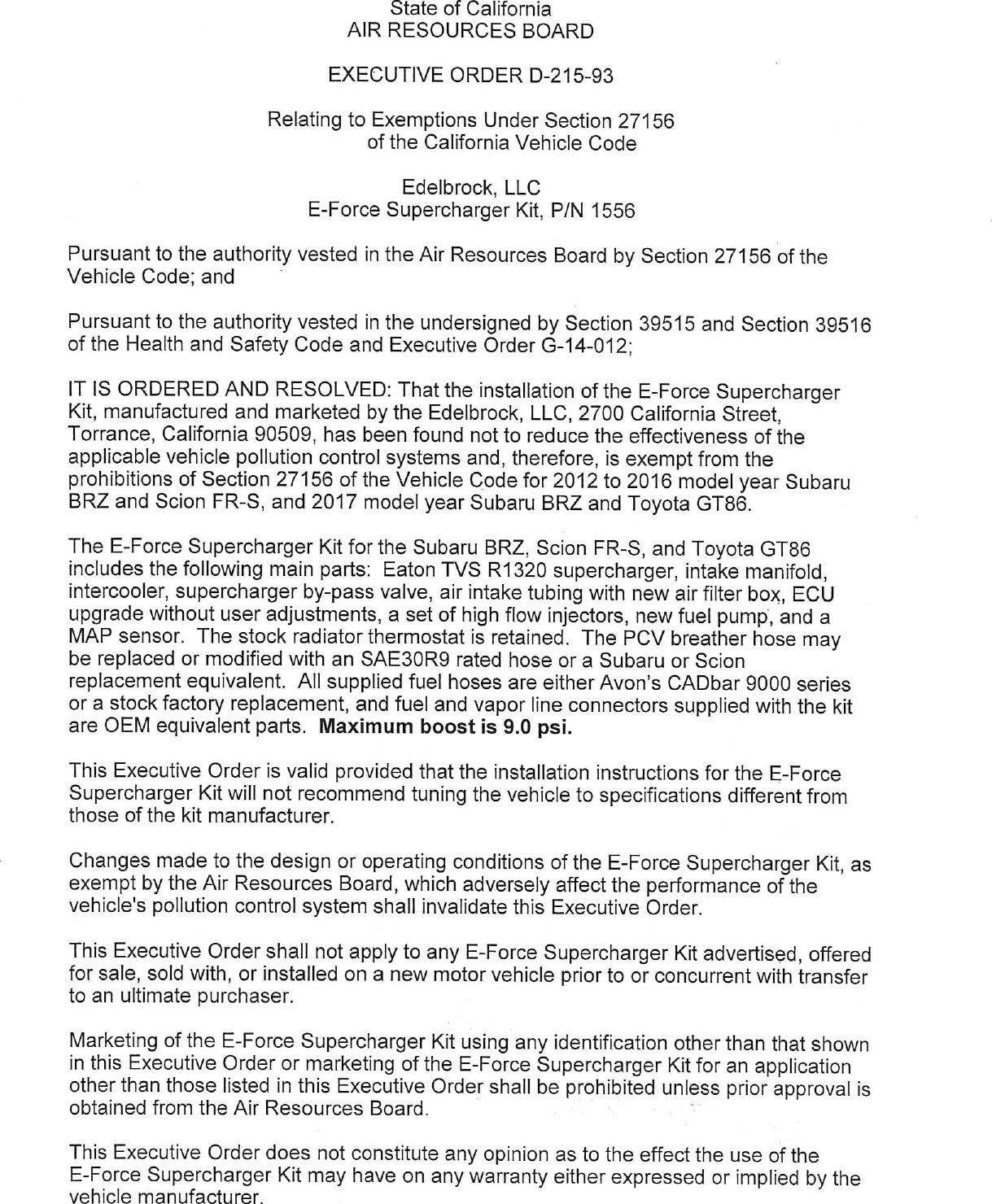

                                     State of California
                                 AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—215—93

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                      Edelbrock, LLC
                            E—Force Supercharger Kit, P/N 1556

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the E—Force Supercharger
Kit, manufactured and marketed by the Edelbrock, LLC, 2700 California Street,
Torrance, California 90509, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 2012 to 2016 model year Subaru
BRZ and Scion FR—S, and 2017 model year Subaru BRZ and Toyota GT86.

The E—Force Supercharger Kit for the Subaru BRZ, Scion FR—S, and Toyota GT86
includes the following main parts: Eaton TVS R1320 supercharger, intake manifold,
intercooler, supercharger by—pass valve, air intake tubing with new air filter box, ECU
upgrade without user adjustments, a set of high flow injectors, new fuel pump, and a
MAP sensor. The stock radiator thermostat is retained. The PCV breather hose may
be replaced or modified with an SAE30RY rated hose or a Subaru or Scion
replacement equivalent. All supplied fuel hoses are either Avon‘s CADbar 9000 series
or a stock factory replacement, and fuel and vapor line connectors supplied with the kit
are OEM equivalent parts. Maximum boost is 9.0 psi.

This Executive Order is valid provided that the installation instructions for the E—Force
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the kit manufacturer.

Changes made to the design or operating conditions of the E—Force Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any E—Force Supercharger Kit advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer
to an ultimate purchaser.

Marketing of the E—Force Supercharger Kit using any identification other than that shown
in this Executive Order or marketing of the E—Force Supercharger Kit for an application
other than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
E—Force Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.


                                              4.

This exemption is issued based on submitted emissions test data, from the SEMA
Garage, Diamond Bar, California, on a 2014 model year Subaru BRZ 2.0L, certified to
the LEV II LEV emission standards and tested using the Cold—Start CVS—75 Federal Test
Procedure (FTP) test cycle and the Supplemental Federal Test Procedure
(SFTP USO6/SC03 (AC2 test + 20%)) test cycles.

                                           CVS—75 FTP
                                   NMOG       CO    NOx               HCHO
Standards, UL                      0.075      3.4   0.05              0.015
Device Test w/df, 2 test avg.      0.038      1.1   0.02              0.001

                                              USO6/SCO3 (AC2 Alternative)
                                NMHC+NOx              CO
Standards 4k                     0.14/0.20         8.0/2.7
Device                           0.03/0.03         1.8/0.2

Maximum Boost measured at 9 psi.

Test results showed that the E—Force Supercharger Kit installed on the vehicle did not
cause exhaust emissions to exceed the applicable emission standards during the FTP
and SFTP. This Executive Order is also based on the On—Board Diagnostic II (OBD 11)
testing conducted on the same test vehicle. The E—Force Supercharger Kit when
installed on the test vehicle did not affect the vehicle‘s ability to perform its OBD II
monitoring.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE E—FORCE
SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this     Z i         day of July 2016.




        Annette Hebert, Chief
        Emissions Compliance, Automotive Regulations and Science Division

              EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—93



Document Created: 2016-08-02 15:21:46
Document Modified: 2016-08-02 15:21:46
