Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 7, 1991.
As of Wednesday, October 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
201GM, Ford, AMC Chrysler vehicles with "screw-in" type fuel filler caps and Chrysler vehicles with "twist-on" type fuel filler caps. All other foreign and domestic vehicles with pipe diameter of 1.80 to 1.95 inches.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-223
  • Executive Order 223 / D223
  • ARB # D-223
  • Executive Order No: D-223
  • C.A.R.B. No. D-223
  • Resolution D-223
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-223 PDF

D-223 Document:

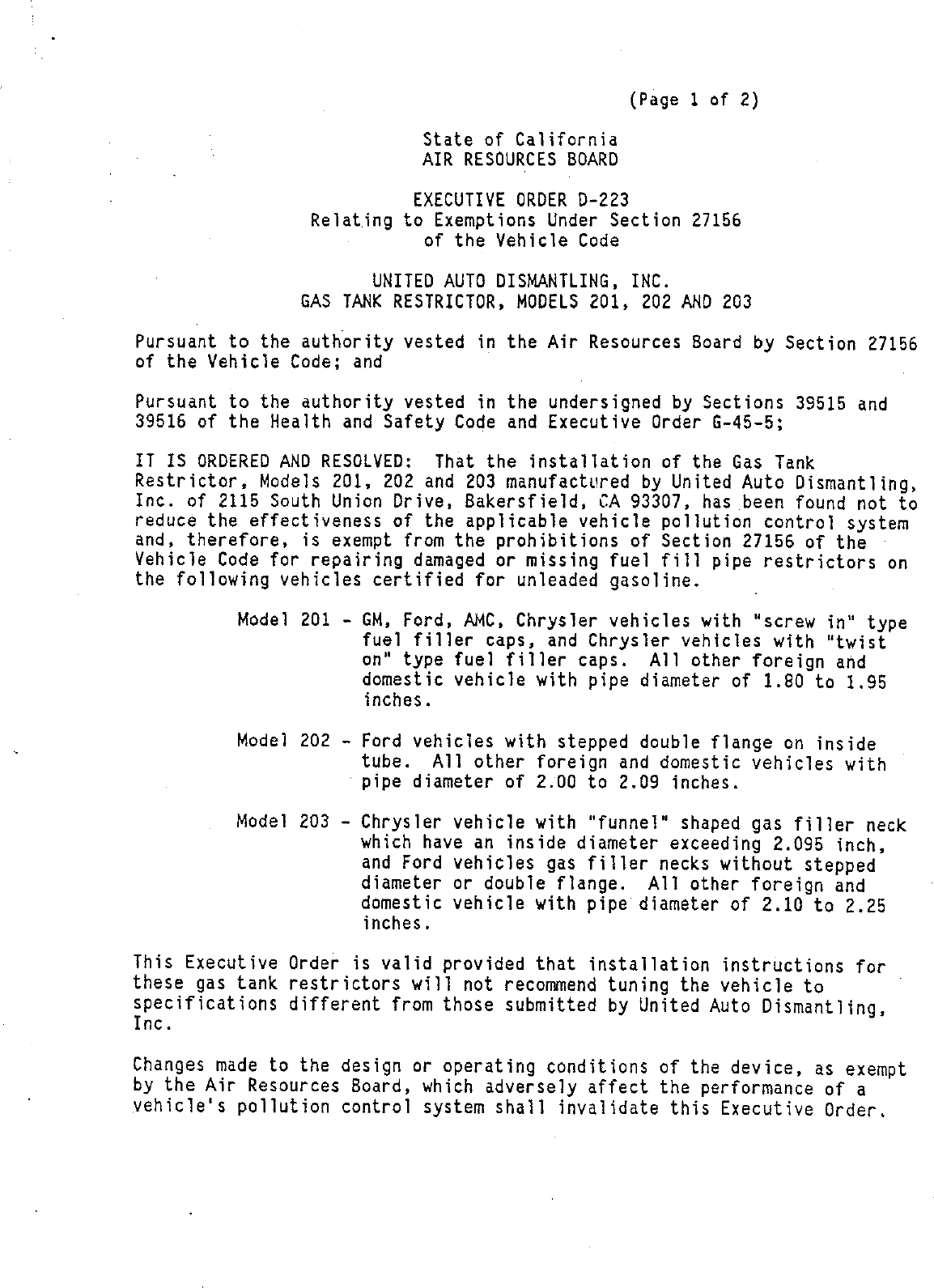

                                                    {Page 1 of 2)

                              State of California
                              AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—223
                 Relating to Exemptions Under Section 27156
                            of the Vehicle Code

                       UNITED AUTO DISMANTLING, INC.
                GAS TANK RESTRICTOR, MODELS 201, 202 AND 203

Pursuént to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLYED:      That the installation of the Gas Tank
Restrictor, Models 201, 202 and 203 manufactured by United Auto Dismantling,
Inc. of 2115 South Union Drive, Bakersfield, CA 93307, has been found not to
reduce the effectiveness of the applicable vehicle pollution control system
and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for repairing damaged or missing fuel fill pipe restrictors on
the following vehicles certified for unleaded gasoline.

          Model 201 — GM, Ford, AMC, Chrysler vehicles with "screw in" type
                      fuel filler caps, and Chrysler vehicles with "twist
                      on" type fuel filler caps. All other foreign and
                      domestic vehicle with pipe diameter of 1.80 to 1.95
                      inches.

          Model 202 — Ford vehicles with stepped double flange on inside
                       tube. All other foreign and domestic vehicles with
                     © pipe diameter of 2.00 to 2.09 inches.

          Model 203 — Chrysler vehicle with "funnel" shaped gas filler neck
                      which have an inside diameter exceeding 2.09§5 inch,
                      and Ford vehicles gas filler necks without stepped
                      diameter or double flange.      All other foreign and
                      domestic vehicle with pipe diameter of 2.10 to 2.25
                      inches .

This Executive Order is valid provided that installation instructions for
these gas tank restrictors will not recommend tuning the vehicle to
specifications different from those submitted by United Auto Dismantling,
Inc.

Changes made to the design or operating conditions of the device, as exempt
by the Air Resources Board, which adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.


UNITED AUTO DISMANTLING, INC.                    EXECUTIVE ORDER D—223
GAS TANK RESTRICTOR, MODELS 201, 202 AND 203     (Page 2 of 2)



Marketing of this device using any identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.  Exemption of the
device shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the
use of this device may have on any warranty either expressed or implied by
the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF UNITED AUTO DISMANTLING, INC.‘S G@AS TANK RESTRICTOR, MODELS 201,
202 AND 203.

No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of
this order.  The order may be revoked only after ten day written notice of
intention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation.  If a
hearing is requested, it shall be held within ten days of receipt of the
request and the order may not be revoked until a determination after hearing
that grounds for revocation exist.

Executive Order D—160—2, dated August 18, 1988, is superseded and of no
further force and effect.
                                         _D>
Executed at E1 Monte, California, this   _Z_ _ day of May, 1991.



                                         R B Summerffield
                                         Assistant Division Chief
                                         Mobile Source Division


                          State of California
                          AIR RESOURCES BOARD




EVALUATION OF UNITED AUTO DISMANTLING, INC.‘S GAS TANK RESTRICTOR, MODELS
   201, 202 AND 203 FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
      SECTION 27156 IN ACCORDANCE WITH SECTION 2222,‘ TITLE 13, OF THE
                      CALIFORNIA CODE OF REGULATIONS




                                May 1991


                           State of California
                           AIR RESOURCES BOARD




 EVALUATION OF UNITED AUTO DISMANTLING, INC.‘S GAS TANK RESTRICTOR, MODELS
    201, 202 AND 203 FOR EXEMPTION FROM THE PROKIBITIONS Of VEHICLE CODE
       SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                     by
                           Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                            E1 Monte, CA   91731—2990



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                    SUMMARY


         United Auto Dismantling, Inc., of 2115 South Union Drive, Bakersfield,

CA   93307, has requested an update to Executive Order D—160—2 from the

prokibitions of Vehicle—Code Section (VC) 27156 for their Gas Tank Restrictor,

Models 201, 202 and 203.    The exemption update will reflect a change in

ownership; these devices were previously owned by Advanced Emission Technology

{AET).    AET has submitted a letter informing the Air Resources Board (ARB) of

the transfer of ownership to United Auto Dismantling, Inc.

         These devices are designed to repliace damaged or tampered original

equipment manufacturer (OEM) unleaded fuel fill pipe restrictors on the

following catalyst equipped vehicles:



         Model 201 — GM, Ford, AMC, Chrysler vehicles with "screw in" type fuel

                     filler caps, and Chrysler vehicles with "twist on" type fuel

                     filler caps.   All other foreign and domestic vehicles with

                     pipe diameter of 1.80 to 1.95 inches.



         Model 202 — Ford vehicles with stepped double flange on inside tube.

                    All other foreign and domestic vehicles with pipe diaméter

                    of 2.00 to 2.09 inches.


       Model 203 — Chrysler vehicle with "funnel" shaped gas filler neck which

                   have an inside diameter exceeding 2.095 inches and Ford

                   vehicle with gas filler necks without stepped diameter of

                   double flange.   ATl other foreign and domestic vehicles with

                   pipe diameter of 2.10 and 2.25 inches.



This device is only applicable for replacing OEM restrictors where remains of

the OEM restrictor exists.

       The staff recommends adoption of Executive Order D—223 granting United

Auto Dismantling, Inc. exemption for the Gas Tank Restrictor, Models 201, 202

and 203 from the prohibitions in Vehicle Code Section (VC) 27156.




                                       11


                                                                     Page Number



SUMMARY

CONTENTS

1.        INTRODUCTION

II.       CONCLUSION

III.      RECOMMENDATION

IV.       DESCRIPTION

V.        DISCUSSION

       — APPENDIX

          APPENDIX A:    DRAWING AND SPECIFICATIONS OF MODEL 201

          APPENDIX B:    DRAWING AND SPECIFICATIONS OF MODEL 202

          APPENDIX C:      DRAWING AND SPECIFICATIONS OF MODEL 203

          APPENDIX D:    INSTALLATION INSTRUCTIONS


EVALUATION OF UNITED AUTO DISMANTLING, INC.‘S GAS TANK RESTRICTOR MODELS 201,
202 AND 203 FOR EXEMPTION FROM THE PROMIBITIONS OF VEHICLE CODE SECTION 27156
IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF
                                  REGULATIONS                       ‘

I.    INTRODUCTION
      Advanced Emission Technology (AET) of Vancouver, Washington has received

an exemption from the prohibitions of Section 27156 of the Vehicle Code under

Executive Order D-160;2 for its Gas Tank Restrictor, Models 201, 202 and 203.

This device is designed to replace damaged or tampered original equipment

manufacturer (OEM) unleaded fuel fill pipe restrictors on the following

catalyst equipped vehicles:



       Mode} 201 — GM, Ford, AMC, Chrysler vehicles with "screw in" type fuel

                     filter caps, and Chrysler vehicles with "twist on" type fuel

                     filler caps.     All other foreign and domestic vehicles with

                     pipe diameter of 1.80 to 1.95 inches.



       Model 202 — Ford vehicles with stepped double flange on inside tube.

                     All other foreign and domestic vehicles with pipe diameter

                     of 2.00 to 2.09 inches.



       Mode] 203 — Chrysler vehicles with "funnel" shaped gas filler neck which

                     have an inside diameter exceeding 2.095 inches and Ford

                     vehicles with gas filler necks without stepped diameter or

                     double flange.    ‘All other foreign and domestic vehicles with

                     pipe diameter of 2.10 and 2.25 inches.



                                          —1—


This device is only applicable for replacing OEM restrictors where remains of

the OEM restrictor exists.

       United Auto Dismantling, Inc. (United), of 2116 South Union Drive,

Bakersfield, California 93307, has requested an update to Executive Order D—

160—2 to reflect a change in ownership of the Gas Tank Restrictor, Models 201,

202 and 203.   AET submitted a statement to the ARB stating that United has

acquired all rights to the gas tank restrictors.   United claims that there is

no change in the design of the original units or their application.



II.    CONCLUSTONS
       Based on the previous evaluation of the gas tank restrictors, the staff

concludes that the United Gas Tank Restrictor, Mogels 201, 202 and 203 meets

the requirements for a Y¥C 27156 exemption and will not have any adverse effects

on the exhaust emissions from gasoline powered vehicles.



III.   RECOMMENDATION
       The staff recommends United Auto Dismantling, Inc. be granted an

exemption from the prohibitions in California Vehicle Code Section 27156 for

their Gas Tank Restrictor, Models 201, 202 and 203 and that Executive Order

D—223 be issued.


IV.    DEVICEDESCRIPTIGN
       The Gas Tank Restrictor device is an unleaded fuel fill pipe testrictor

to replace damaged or tampered OEM restrictors.    It is not intended to

replace OEM restrictors which have been completely removed; without any support

(remnant from the damaged or tampered OEM restrictor) it would fall through the

fill pipe into the fuel. tank.

       The device (all three models) is made of 0.028 inch sheet metal (see

Appendices A, B and C for drawings).    The device has a 0.915 inch diameter

filling hole for passing the nozzle to the required depth in the fill pipe.

The filling hole has an eccentricity of 0.230 inch with respect to the

centerline of the fill pipe neck.   The overall diameter of the device is 1.95

inches (model 201), 2.072 inches (model 202), or 2.210 inches (model 203).

       The diameter of the device where the teeth have been removed is 1.56

inches (only models 201 and 203).   Attached to the hind side of the device is a

spring loaded 0.029 inch thick flapper door which covers the filling hole and

is maintained in the closed position.

       The device has 16 ({model 202) or 12 (models 201 and 203) sharp teeth

which are unequally spaced around the device allowing the device to be pushed

into the fill pipe and to fit on top of the remains of the OEM restrictor.

According to the installation instructions (see Appendix D), the device can be

installed without removing the gas tank or gas filler tube from the vehicle.

Once installed, it cannot be removed since the teeth are all bent upward, and

the device is squeezed tightly against the fill pipe wall.


V.     DISCUSSTON
       United has purchased AET and the rights to their products which are

exempted from VC 27156 under Executive Order D—160—2.   All the necessary

equipment used by AET to manufacture Gas Tank Restrictor, Models 201, 202 and

203 will be acquired by United.   The manufacturing process and materials used

will remain the same and some personnel from AET will be retained by United as

consultants.

       The staff is of the opinion that the United Gas Tank Restrictor, Models

201, 202 and 203, meets the requirements for exemption from the prohibitions of

Vehicle Code Section 27156.


APPENDIX


                         APPENDUIX A




   L¥6‘l




           "MODEL 201"

7. Metul Frame — 0.028 thickness
2. Flapper Door — 0.029 thickness
3. ESpring
4. Frame for Flapper
5. Rivet




                                —6—


                         APPENDIX B




           "MOLLL 202"

7. Metal Frume — 0.028 thickness
2.‘Flapper Boor — 0.029 thickness
3. Spring
4. Frame for Flapper
5. Rivet


                               a9Aty °S
             gaoddrtq; jojp omeif c+
                              Suradg +¢
ssouyotur 620°0 — goog asddota *z
 ssouuoftY1 g20°O — oWe44& Tri®H ‘l

                n€O02 TIIGOH»:




                      h
                       a CU




                       ib .
                    _\_L




   0 XIOHRIIY


                         AFPENDIX D




 INSTALLATION
 INSTRUCTIONS




When resizer is being installed, use a 1" wooden dowel to make
sure worn or tampered hole is large enough to accept unit. The
Restrictor with flapper assembly will require a much larger opening.
Insert the Ford type 202 or the 302 vertically (on edge} through the
two notches in the fip. Unit will then drop into pipe. After
positioning, drive into place using a suitable sized wooden dowel or
installation tool part no. 304. See fig. 1.
Then insert the device at a 45 degree angle with the top 7 teeth still
outside the lip and the bottom 5 teeth inside the pipe touching the
old restrictor cross section. After proper pasitioning, drive into
place with a wooden dowel against the top 7 teeth but below the
bend fine. If the 203 is used on a Chrysler neck with a wide lip, snap
off the Sth tooth for easier insertion. See fig. 2.
When using the 203 on Ford vehicles, refer to installation in—
structions above for the 202.
If the original hole does not exist or is greatly enlarged,
Restrictor with flapper should always be installed so that the offSet
filler hole is positioned toward the bottom of the filler pipe.
                             LIMITATIONS
All makes and models where tampering is so exiensive that original
equipment metal has been completely removed, in this case use
Universal Part No. D—160.
                                               Part No‘s       Inches
Device will not "seat" properly outside of      201, 301       1.950
diameter range listed on chart to the right;    202, 302       2.090
                            ‘                   203, 303       2.250
                            The Leader in All Emission Parts
                       ADVANCED EMISSION TECH
                            516 SE Chkalov Dr. Suite 106
                                Vancouver, WA 98668
                               1—800—531—5314 ext. 3242
                                «C



Document Created: 2005-09-01 12:41:35
Document Modified: 2005-09-01 12:41:35

| Previous E.O. D-222 | Next E.O. D-223-1 | Next E.O. D-224
