Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 2, 2002.
As of Sunday, December 16th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
WIK-LR4-4.8LA1999-2002 GENERAL MOTORS TRUCKS 4.8L, Pulley Supercharger 3.995", Pulley Crankshaft 7.50", Compressor Size 2.1LThe WhippleCharger is a supercharger consisting of the following main components: Twin Screw Whipple supercharger, two auxiliary fuel injectors (one injector on the PT-Cruiser) with a stand alone computer, air bypass valve, a low temperature thermostat to replace stock thermostat, and a new air cleaner element for use in the stock air cleaner housing. Intercooler is included on selected kits and denoted as IC in the part number. The maximum boost is 8 psi. on the Ford and General Motors vehicles and 9.2 psi. on the Chrysler PT-Cruisers.Excluding any Ford or General Motors vehicle certified to the Ultra Low Emission Vehicle (ULEV) emission standards

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-19
  • Executive Order 231-19 / D231-19
  • ARB # D-231-19
  • Executive Order No: D-231-19
  • C.A.R.B. No. D-231-19
  • Resolution D-231-19
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-19 PDF

D-231-19 Document:

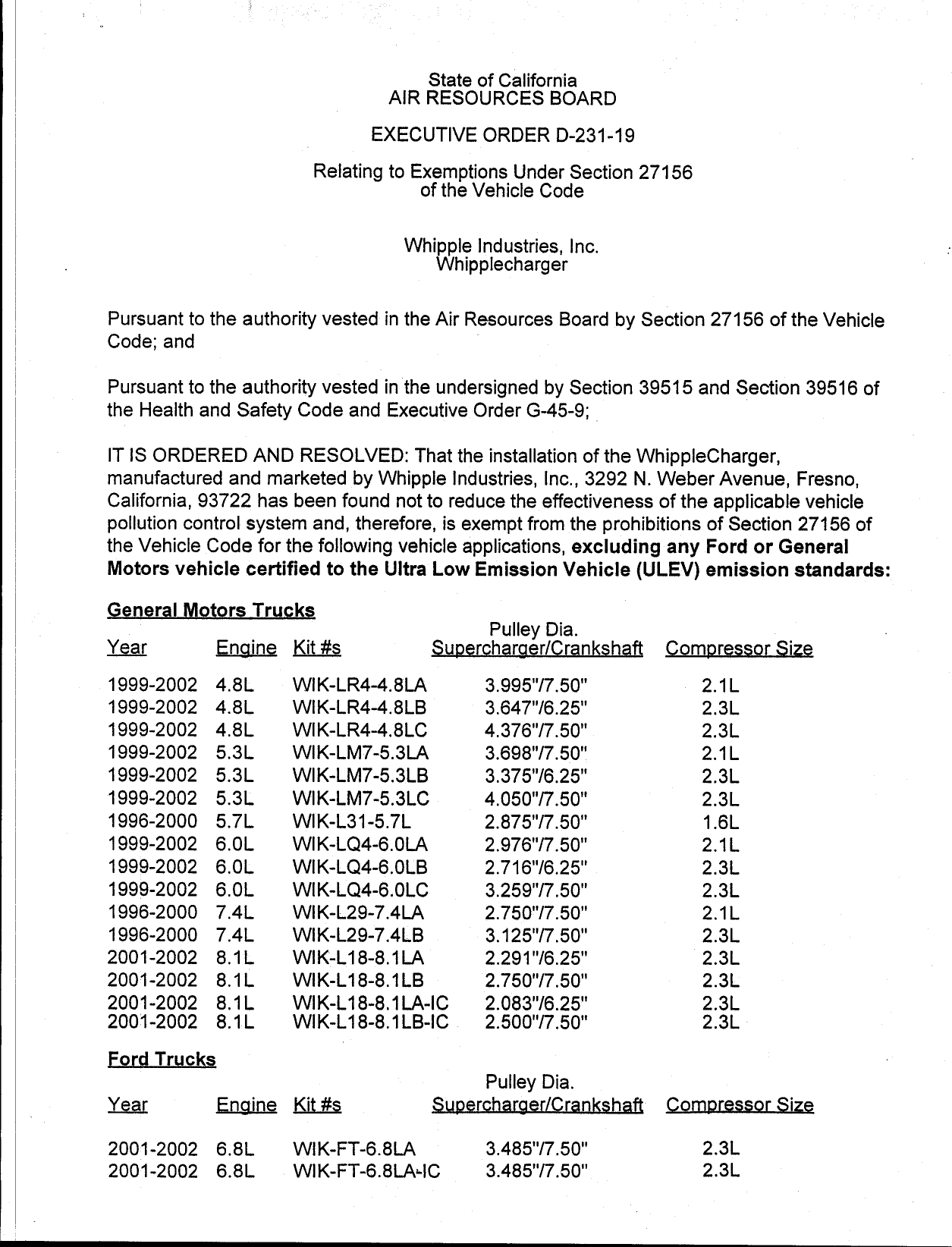

                                      State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—231—19
                         Relating to Exemptions Under Section 27156
                                      of the Vehicle Code

                                   Whipple Industries, Inc.
                                      Whipplecharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and                                    |

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the WhippleCharger,
manufactured and marketed by Whipple Industries, Inc., 3292 N. Weber Avenue, Fresno,
California, 93722 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of
the Vehicle Code for the following vehicle applications, excluding any Ford or General
Motors vehicle certified to the Ultra Low Emission Vehicle (ULEV) emission standards:

       ral    ors Tr
                                              Pulley Dia.
Year          Engine Kit#s             Supercharger/Crankshaft     Compressor Size

1999—2002     4.8L.    WIK—LR4—4.8LA         3.995"/7.50"             21L
1999—2002     4.8L     WIK—LR4—4.8LB         3.647"/6.25"             2.3L
1999—2002     4.8L     WIK—LR4—4.8LC         4.376"/7.50"             2.3L
1999—2002     5.31     WIK—LM7—5.3LA         3.698"/7.50"             21L
1999—2002     5.3L     WIK—LM7—5.3LB         3.375"/6.25"             2.3L
1999—2002     5.3L     WIK—LM7—5.3LC         4.050"/7.50"             2.3L
1996—2000     5.7L     WIK—L31—5.7L          2.875"/7.50"             1.6L
1999—2002     6.O0L    WIK—LQ4—6.O0LA        2.976"/7.50"             21L
1999—2002     6.OL     WIK—LQ4—6.0LB         2.716"/6.25"             2.3L
1999—2002     6.0L     WIK—LQ4—6.0LC         3.259"/7.50"             2.3L
1996—2000     7.4L     WIK—L29—7.4LA         2.750"/7.50"             2.1L
1996—2000     7.4L     WIK—L29—7.4LB         3.125"/7.50"             2.3L
2001—2002     8.1L     WIK—L18—8 . 1LA       2.291"/6.25"             2.3L
2001—2002     8.1L     WIK—L18—8.1LB         2.750"/7.50"             2.3L
2001—2002     8.1L     WIK—L18—8 1LA—IC      2.083"/6.25"             2.3L
2001—2002     8.1L     WIK—L18—8 . 1LB—1C    2.500"/7.50"             2.3L
       Truc
                                             Pulley Dia.
Year           ngine   Kit             Supercharger/Crankshaft Compressor

2001—2002     6.8L.    WIK—FT—68.8LA         3.485"/7.50"              2.3L
2001—2002     6.8L.    WIK—FT—6.8LA~1C       3.485"/77.50"             2.3L


Chrysler PT—Cruiser
                                               Pulley Dia.
Year         Engine Kit#s               Supercharger/Crankshaft         Compressor
2001—2002 24L          WIK—PT—2.4              2.875"/6.30"                1.2L
2001—2002 24L          WIK—PT—ULEV—2.4         3.000%/6.30"                1.2L

The WhippleCharger is a supercharger consisting of the following main components: Twin
Screw Whipple supercharger, two auxiliary fuel injectors (one injector on the PT—Cruiser) with
a stand alone computer, air bypass valve, a low temperature thermostat to replace stock
thermostat, and a new air cleaner element for use in the stock air cleaner housing.
Intercooler is included on selected kits and denoted as IC in the part number. The maximum
boost is 8 psi. on the Ford and General Motors vehicles and 9.2 psi. on the Chrysler
PT—Cruisers.

This Executive Order is valid provided that the installation instructions for the supercharger
will not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer. Whipple Industries, Inc. recommends that only premium fuel be used.

Changes made to the design or operating conditions of the WhippleCharger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Industries WhippleCharger advertised,
offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer
to an ultimate purchaser.

Marketing of the supercharger using any identification other than that shown in this Executive
Order or marketing of the supercharger for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the supercharger shall not be construed as exemption to sell, offer for
sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the
supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emissions test data generated on the following test
vehicles using the Cold Start CVS—75 Federal Test Procedures. Emission levels of the
modified vehicles met the applicable emission standards. The following test results are in
grams per mile:                       |                               '




                WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—19


                   2001 2.4L (LEV) Chrysler              2002 2.4L (ULEV) Chrysiler
                   PT—Cruiser                            PT—Cruiser

                  NMOG CO          NOx    HCHO           NMOG      CO       NOx     HCHO
Standards         0.075 3.4       0.2     0.015          0.040     1.7     0.2     0.008
device w/ dfs     0.042 0.9       0.1     0.001          0.035     1.3    0.1      0.000


                  2001 6.8L. (LEV) Ford                  1999 5.3L (LEV) General Motors
                  Excursion                              C1500

                  NMOG CO          NOx HCHO              NMOG      CO    _NOx     HCHO

Standards         0.195    5.0    0.6     0.022          0.160     4.4   0.4      0.018
device w/ dfs     0.118    15     0.2     0.002          0.105     1.3   0.4      0.002

This Executive Order is also based on On—Board Diagnostic I! (OBD II) tests conducted on
the same test vehicles. Test data showed that the supercharger when installed on the
vehicles did not affect the vehicle‘s ability to perform its OBD II monitoring.

This Executive Order is granted based on submitted emissions test data which show that
emissions are not affected during the Cold—Start CVS—75 Federal Test Procedures. However,
the ARB finds that reasonable grounds exist to believe that use of the WhippleCharger may
adversely affect emissions of motor vehicles when operating under conditions outside the
parameters of the previously prescribed test procedures. Accordingly, the ARB reserves the
right to conduct additional emission tests, in the future, as such tests are developed, that will
more adequately measure emissions from all cycle phases. If such test results demonstrate
that the WhippleCharger adversely affects emissions during off—cycle conditions (defined as
those conditions which are beyond the parameters of the Cold—Start CVS—75 Federal Test
Procedures), this Executive Order shall be effectively rescinded as of the date the test results
are validated.

Further, if such test results or other evidence provides the ARB with reason to suspect that
the WhippleCharger will affect the durability of the emission control system, Whipple shall be
required to submit durability data to show that the durability of the vehicle emission control
system is not, in fact, affected and/or that the add—on or modified part demmnonstrates
adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.




                WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—19


                                               —4—


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF WHIPPLE INDUSTRIES,
INC.‘S WHIPPLECHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination has been made after the hearing that
grounds for revocation exist.

Executed at El Monte, California, this Z ~P day of July 2002.




                                 Allen%yons, Chief
                                 Mobile SourceOperations Division




                 WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—19
