Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 27, 2004.
As of Monday, June 24th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2005 and older General Motors trucks excluding the following engine test groups; 2004 model year, 4GMXT04.2185, 4GMXA06.0189; 2005 model year, 5GMXT04.2185, and 5GMXA06.0189The WhippleCharger is a supercharger consisting of the following main components: Twin Screw Whipple supercharger, two auxiliary fuel injectors with a stand alone computer, air bypass valve, a low temperature thermostat to replace stock thermostat, and a new closed element air cleaner housing. An intercooler is included on selected kits and denoted as IC in the part number. The maximum boost is 10 psi.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-22
  • Executive Order 231-22 / D231-22
  • ARB # D-231-22
  • Executive Order No: D-231-22
  • C.A.R.B. No. D-231-22
  • Resolution D-231-22
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-22 PDF

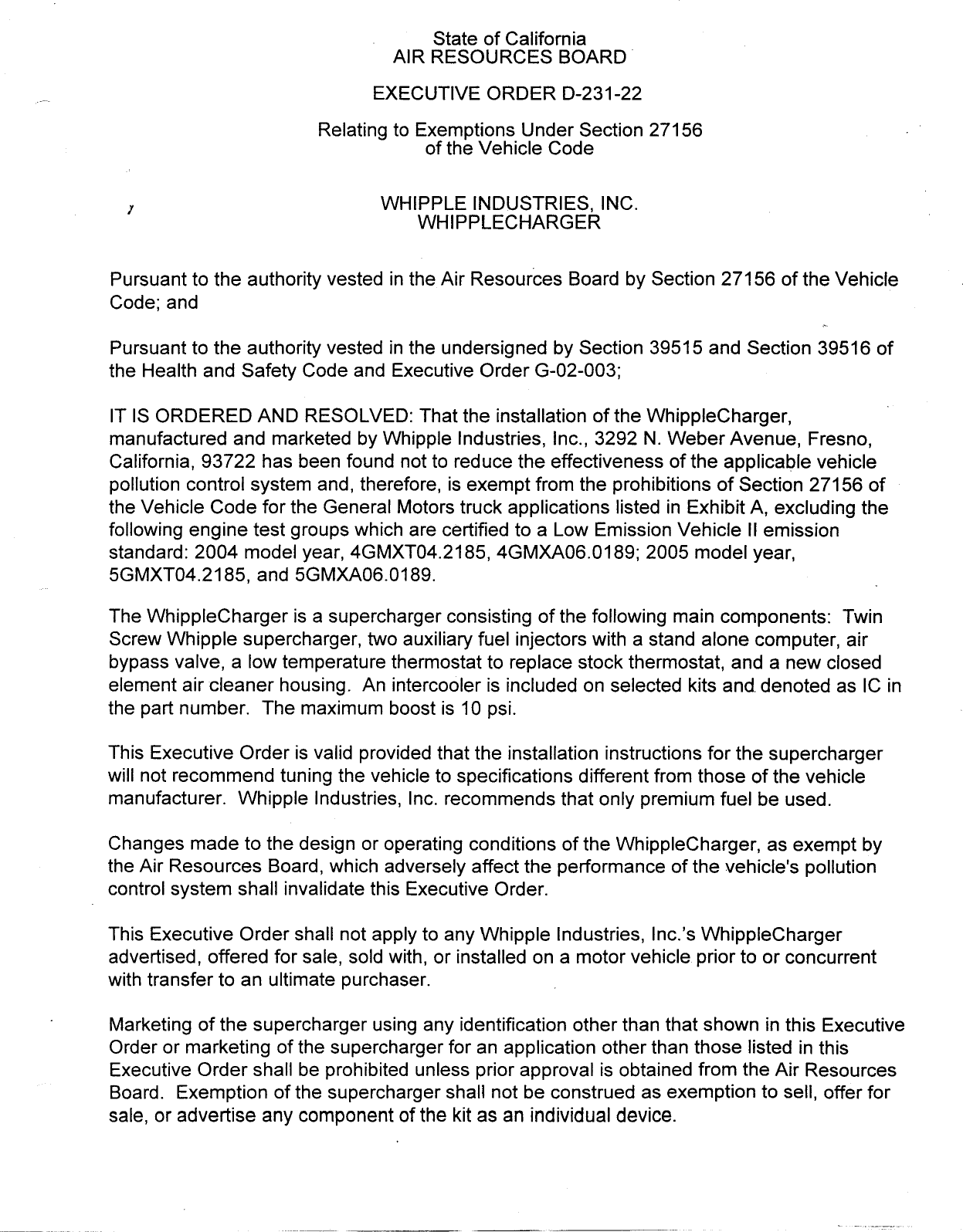

D-231-22 Document:



                                       State of California
                                   AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—231—22
                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code


  7                              WHIPPLE INDUSTRIES, INC.
                                    WHIPPLECHARGER

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the WhippleCharger,
manufactured and marketed by Whipple Industries, Inc., 3292 N. Weber Avenue, Fresno,
California, 93722 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of
the Vehicle Code for the General Motors truck applications listed in Exhibit A, excluding the
following engine test groups which are certified to a Low Emission Vehicle II emission
standard: 2004 model year, 4GMXTO04.2185, 4GMXAO06.0189; 2005 model year,
5GMXTO4.2185, and 5GMXAO6.0189.

The WhippleCharger is a supercharger consisting of the following main components: Twin
Screw Whipple supercharger, two auxiliary fuel injectors with a stand alone computer, air
bypass valve, a low temperature thermostat to replace stock thermostat, and a new closed
element air cleaner housing. An intercooler is included on selected kits anddenoted as IC in
the part number. The maximum boost is 10 psi.

This Executive Order is valid provided that the installation instructions for the supercharger
will not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer. Whipple Industries, Inc. recommends that only premium fuel be used.

Changes made to the design or operating conditions of the WhippleCharger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Industries, Inc.‘s WhippleCharger
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

Marketing of the supercharger using any identification other than that shown in this Executive
Order or marketing of the supercharger for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the supercharger shall not be construed as exemption to seill, offer for
sale, or advertise any component of the kit as an individual device.


                                               7.

This Executive Order does not constitute any opinion as to the effect the use of the
‘supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on submitted emissions test data generated on a
2004 model year General Motors C1500 certified to the Super Ultra Low Emission Vehicle
(SULEV) emission standards. Testing consisted of a Cold—Start CVS—75 Federal Test
Procedure (FTP) and the Supplemental Federal Test Procedure (SFTP USO6/SCO3) test
cycle. Results are in grams per mile with deterioration factors added to CVS—75 FTP results.
Emission levels of the modified vehicle met the applicable emission standards.

                     .                                      USO6/SCO3
                  NMOG CO          NOx    HCHO           NMHC+NOx     CO
Standards         0.125 3.4—      0.14    0.015           0.4/0.31    10.5/3.5
Device w/ dfs     0.067 1.2       0.04    0.000          0.05/0.026   2.0/0.3

This Executive Order is also based on On—Board Diagnostic II (OBD II) tests conducted on
the same test vehicle. Test data showed that the supercharger when installed on the vehicle
did not affect the vehicle‘s ability to perform its OBD II monitoring.

The ARB reserves the right in the future to review this Executive Order and the exemption
provided herein to assure that the exempted add—on or modified part continues to meet the
standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF WHIPPLE INDUSTRIES,
INC.‘S WHIPPLECHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination has been made after the hearing that
grounds for revocation exist.

Executed at El Monte, California, this Z7* day of October 2004



                                      AllenJ¥Yons, Chief
                                      Mobile Source Operations Division

                WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—22


                                                        Exhibit A


             WHIPPLE SUPERCHARGERS TRUCK KIT MATRIX
                                                                      MAX                CRANK
                                                         ENGINE             COMPRESSOR               SC
 YEARS         MAKE                 WHIPPLE KIT #        (LITER)     BOOST     SIzE      PULLEY    PULLEY
                                                                      PSI                 SiZzEe
1996—2000|General    Motors      |\WIK—L31—5.7L             5.7         8       1.6L      7.500     2.875
1996—2000|(General   Motors      |WIK—L29—7.4LA             7.4         8 >     21L       7.500     2.750
1996,;2000|General   Motors      |\WIK—L29—7.4LB            7.4         8       2.3L      7.500     3.125
2001—2004{General    Motors      |WIK—LL8—4.2LA             4.2        10       1.6L      7.000     2,750
2001—2004|General    Motors      |WIK—LL8—4.2LB             4.2        10       1.6L      7.000     3.000
2001—2004|General    Motors      |WIK—LL8—4.2LC             4.2        10       1.6L      7.000     3.125
2001—2004|General    Motors      |WIK—LL8—4.2LD             4.2        10       1.6L      7.000     3.250
2001—2004 |General   Motors      |WIK—LL8—4.2LE             4.2        10       1.6L      7.000     3.375
2001—2004 |General   Motors      |WIK—LL8—4.2LA—IC          4.2        10       1.6L      7.000     2,625
2001—2004|General    Motors      |WIK—LL8—4.2LB—IC          4.2        10       1.6L      7.000     2.875
2001—2004|General Motors |WIK—LL8—4.2LC—1C                  4.2       10       1.6L       7.000     3.000
2001—2004 (General   Motors      |WIK—LL8—4.2LO—IC          4.2       10       1.6L       7.000    3.125
2001—2004|General    Motors      |WIK—LL8—4.2LE—IC          4.2       10       1.6L       7.000    3.250
1999—2005|General    Motors      |WIK—LR4—4.8LA             4.8       10       2.A1L      7.500    3.995
1999—2005|General    Motors      |WIK—LR4—4.8LB             4.8       10       2.3L       6.250    3.647
1999—2005|General    Motors      {WIK—LR4—4.8LC             4.8       10       2.3L       7.500    4.376
1999—2005|General    Motors      |WIK—LR4—4.8LTA—IC         4.8       10       2.3L       7.500    4,376 >
1999—2005|General    Motors      |\WIK—LR4—4.8LTB—IC        4.8       10       2.3L       7.500    4.500
1999—2005|General    Motors      |WIK—LR4—4.8LTC—IC         4.8       10       2.3L       7.500    4,625
1999—2005|General    Motors      |WIK—LR4—4.8LTD—IC         4.8       10       2.3L       7.500    4.750
1999—2005|General    Motors      |\WIK—LM4—5.3LA            5.3       10       2.AL       7.500    3.698
1999—2005|General    Motors      |WIK—LM4—5.3LB             5.3       10       2.3L       6.250    3.375
1999—2005|General    Motors      |WIK—LM4—5.3LC             5.3       10       2.3L       7.500    4.050
1999—2005|General    Motors      |WIK—LM4—5.3LD             5.3       10       2.3L       7.500    4.185
1999—2005|General    Motors      {WIK—LM4—5.3LE             5.3       10       2.3L       7.500    4,250
1999—2005]|General   Motors      |WIK—LM4—5.3LF           ~ 5.3       10       2.3L       7.500    4.375
1999—2005|General    Motors      |WIK—LM4—5.3LG             5.3       10       2.3L       7.500    4.500
1999—2005|General    Motors      |WIK—LM4—5.3LH             5.3       10       2.3L       7.500    4.625
1999—2005|General    Motors      |WIK—LM4—5.3LTA—IC         5.3       10       2.3L       7.500    3.750
1999—2005}General    Motors      |WIK—LM4—5.3LTB—IC         5.3       10       2.3L       7.500    3.875
1999—2005])General   Motors      |WIK—LM4—5.3LTC—IC         5.3       10       2.3L       7.500    4.000
1999—2005 General    Motors      |WIK—LM4—5.3LTDO—IC        5.3       10       2.3L       7.500    4125
1999—2005|General    Motors      |WIK—LM4—5.3LTE—IC         5.3       10       2.3L       7.500    4.250
1999—2005|General    Motors      |WIK—LM4—5.3LTF—IC         5.3       10       2.3L       7.500    4,.375
1999—2005|General    Motors      |WIK—LM4—5.3LTG—IC         5.3       10       2.3L       7.500    4.500
1999—2005|General    Motors:—|   WIK—LM7—5.3LA              5.3       10       21L        7.500    3.698
1999—2005|General    Motors      |WIK—LM7—5.3LB             5.3       10       2.3L       6.250    3.375
1999—2005|General    Motors      |WIK—LM7—5.3LC             5.3       10       2.3L       7.500    4,050
1999—2005|General    Motors      |WIK—LM7—5.3LD             5.3       10       2.3L       7.500    4,185
1999—2005|General    Motors      |WIK—LM7—5.3LE             5.3       10       2.3L       7.500    4,.250
1999—2005|General    Motors      |WIK—LM7—5.3LF             5.3       10       2.3L       7.500    4.375
1999—2005|General    Motors      |WIK—LM7—5.3LG             5.3       10       2.3L       7.500    4.500
1999—2005|General    Motors      |WIK—LM7—5.3LH             5.3       10       2.3L       7.500    4,625
1999—2005|General    Motors      |WIK—LM7—5.3LTA—IC         5.3       10       2.3L       7.500    3,750
1999—2005|General    Motors      |\WIK—LM7—5.3LTB—IC        5.3       10       2.3L       7.500    3,875
1999—2005|General    Motors      |WIK—LM7—5.3LTC—IC         5.3       10       2.3L       7.500    4.000
1999—2005|General    Motors      |WIK—LM7—5.3LTD—IC         5.3       10       2.3L       7.500    4,.125
1999—2005|General    Motors      {WIK—LM7—5.3LTE—IC         5.3       10       2.3L       7.500    4,250
1999—2005])General   Motors      |WIK—LM7—5.3LTF—IC         5.3       10       2.3L       7.500    4.375



                                                       Page 1 of 3


                                                        — Exhibit A
1999—2005|General       Motors   |WIK—LM7—5.3LTG—IC          5.3      10   2.3L     7.500   4.500
1999—2005|General       Motors   |WIK—LS59—5.3LA             5.3      10   2AL      7.500   3.698
1999—2005|General       Motors   |WIK—LS59—5.3LB             5.3      10   2.3L     6.250   3.375
1999—2005|General       Motors   |WIK—LS59—5.3LC             5.3      10   2.3L     7.500   3.750
1999—2005|General       Motors   |WIK—LS59—5.3LD             5.3      10   2.3L     7.500   4.000
1999—2005|General       Motors   |\WIK—LS59—5.3LE            5.3      10   2.3L     7.500   4.250
1999—2005|General       Motors   |{\WIK—L59—5.3LF            5.3      10   2.3L     7.500   4.375
1999—2005|General       Motors   |WIK—L59—5.3LG              5.3      10   2.3L     7.500   4.500
1999—2005|General       Motors   |\WIK—L59—5.3LH             5.3      10   2.3L     7.500   4.625
1999—2005}General       Motors   |\WIK—L59—5.3LTA—IC         5.3      10   2.3L     7.500   3.750
1999—2005|General       Motors   {WIK—L59—5.3LTB—IC          5.3      10   2.3L     7.500   3.875
1999—2005]|General      Motors   |WIK—LS59—5.3LTC—IC         5.3      10   2.3L     7.500   4.000
1999—2005 General       Motors   |WIK—LS9—5.3LTO—IC          5.3      10   2.3L     7.500   4. 125
1999—2005|General       Motors   |\WIK—L59—5.3LTE—IC         5.3      10   2.3L     7.500   4.250
1999—2005|General       Motors   |\WIK—L59—5.3LTF—IC         5.3      10   2.3L     7.500   4.375
1999—2005|General       Motors   |WIK—LS59—5.3LTG—IC         5.3      10   2.3L     7.500   4.500
   2005     |General    Motors   |WIK—L33—5.3LA              5.3      10   21L      7.500   3.698
   2005     |{General   Motors   |\WIK—L33—5.3LB             5.3      10   2.3L     6.250   3.375
   2005     |General    Motors   |WIK—L33—5.3LC              5.3      10   2.3L     7.500   3.500
   2005     j|General   Motors   |\WIK—L33—5.3LD             5.3      10   2.3L _   7.500   3.750
   2005    [General     Motors   |WIK—L33—5.3LE              5.3      10   2.3L     7.500   4.000
   2005     |General    Motors   |WIK—L33—5.3LF              5.3      10   2.3L     7.500   4.125
   2005    {General     Motors   |\WIK—L33—5.3LG             5.3      10   2.3L     7.500   4.250
   2005    General      Motors   |WIK—L33—5.3LH              5.3      10   2.3L     7.500   4.375
   2005     |General    Motors   |WIK—L33—5.3L1              5.3      10   2.3L     7.500   4.500
   2005     |General    Motors   |WIK—L33—5.3LTA—IC          5.3      10   2.3L     7.500   3.750
   2005    }|General    Motors   |\WIK—L33—5.3LTB—IC         5.3      10   2.3L     7.500   3.875
   2005    |General     Motors   |\WIK—L33—5.3LTC—IC         5.3      10   2.3L     7.500   4.000
   2005     {General    Motors   |WIK—L33—5.3LTD—IC          5.3      10   2.3L     7.500   4.125
   2005    {General     Motors   {WIK—L33—5.3LTE—IC          5.3      10   2.3L     7.500   4.250
   2005     |General    Motors   |\WIK—L33—5.3LTF—IC         5.3      10   2.3L     7.500   4.375
  2005     {General     Motors   |WIK—L33—5.3LTG—IC          5.3      10   2.3L     7.500   4.500
   2005     |General    Motors   |\WIK—LHG—5.3LA             5.3      10   21L      7.500   3.698
   2005     |General    Motors   |\WIK—LHG6—5.3LB            5.3      10   2.3L     6.250   3.375
   2005     |General    Motors   |\WIK—LHG6—5.3LC            5.3      10   2.3L     7.500   4.050
   2005     |General    Motors   |WIK—LHG6—5.3LD             5.3      10   2.3L     7.500   4.185
   2005    |General     Motors   |WIK—LHG6—5.3LE             5.3      10   2.3L     7.500   4.250
   2005     {General    Motors   |WIK—LHG—5.3LF              5.3      10   2.3L     7.500   4.375
  2005     {General     Motors   |WIK—LHG6—5.3LG             5.3      10   2.3L     7.500   4.500
  2005      [General    Motors   |\WIK—LHG—5.3LH             5.3      10   2.3L     7.500   4.625
   2005     |General    Motors   |WIK—LH6—5.3ETA—IC          5.3      10   2.3L     7.500   3.750
   2005    jGeneral     Motors   |\WIK—LH6—5.3LTB—IC         5.3      10   2.3L     7.500   3.875
   2005     |General    Motors   |\WIK—LHG6—5.3LTC—IC        5.3      10   2.3L     7.500   4.000
   2005    {General     Motors   |\WIK—LH6—5.3LTD—IC         5.3      10   2.3L     7.500   4.125
   2005     |General    Motors   |\WIK—LH6—5.3LTE—IC         5.3      10   2.3L     7.500   4.250
   2005     |{General   Motors   |\WIK—LH6—5.3LTF—IC         5.3      10   2.3L     7.500   4.375
   2005     |General    Motors   {WIK—LH6—5.3LTG—IC          5.3      10   2. 3L    7.500   4.500
2001—2005|General       Motors   |WIK—LS1—5.7LTA—IC          5.7      10   2.3L     7.500   2.750
2001—2005]|General      Motors   |WIK—LS1—5.7LTB—IC          5.7      10   2.3L     7.500   3.000
2001—2005|General       Motors   |WIK—LS1—5.7LTC—IC          5.7      10   2.3L     7.500   3.250
2001—2005!General       Motors   |WIK—LS1—5.7LTO—IC          5.7      10   2.3L     7.500   3.500
2001—2005|General       Motors   |WIK—LS1—5.7LTE—IC          5.7      10   2.3L     7.500   3.625
2001—2005|General       Motors   {WIK—LS1—5.7LTF—IC          5.7      10   2.3L     7.500   3.750
2001—2005|General       Motors   {WIK—LS1—5.7LTG—IC          5.7      10   2.3L     7.500   23.875



                                                        Page 2 of 3


                                                       Exhibit A
2001—2005|General      Motors   |WIK—LS1—5.7LTH—IC         5.7      10   2.3L     7.500   4.000
1999—2005|General      Motors   |WIK—LQ4—6.O0LA            6.0      10   2.3L     7.500   2.976
1999—2005]|General     Motors   jWIK—LQ4—6.0LB             6.0      10   21L      6.250   2.716
1999—2005|General      Motors   |WIK—LQ4—6.0LC             6.0      10   2.3L     7.500   3.259
1999—2005|General      Motors   |WIK—LQ4—6.0LD             6.0      10   2.3L     7.500   3.500
1999—2005!General      Motors   |WIK—LQ4—6.OLR             6.0      10   2.3L     7.500   3.625
1999—2005|General      Motors   |WIK—LQ4—6.0LF             6.0      10   2.3L     7.500   3.875
1999—2005|General      Motors   WIK—LQ4—6.0LG              6.0      10   2.3L     7.500   4.000
1999—2005|General      Motors   |WIK—LQ4—6.0LG             6.0      10   2.3L     7.500   4.125
1999—2005|General      Motors   |WIK—LQ4—6.0LTA—IC         6.0      10   2.3L     7.500   3.250
1999—2005|General      Motors   |\WIK—LQ4—6.0LTB—IC        6.0      10   2.3L     7.500   3.500
1999—2005|General      Motors   |WIK—LQ4—6.O0LTC—IC        6.0      10   2.3L    ©7.500   3.750
1999—2005|General      Motors   |WIK—LQ4—6.0LTD—IC         6.0      10   2.3L     7.500   4.000
1999—2005|General      Motors   |WIK—LQ4—6.O0LTE—IC        6.0      10   2. 3L    7.500   4.125
1999—2005|jGeneral     Motors   |WIK—LQ4—6.O0LTF—IC        6.0      10   2.3L     7.500   4.250
1999—2005|General      Motors   {WIK—LQ4—6.0LTG—IC         6.0      10   2.3L     7.500   4.500
1999—2005]|General     Motors   |WIK—LQ9—6.O0LA            6.0      10   2.3L     7.500   2.976
1999—2005|General      Motors   |WIK—LQ9—6.0LB             6.0      10   21L      6.250   2.716
1999—2005|General      Motors   |WIK—LQ9—6.0LC             6.0      10   2.3L     7.500   3.259
1999—2005|General      Motors   |WIK—LQ9—6.0LD             6.0      10   2.3L     7.500   3.500
1999—2005|General      Motors   WIK—LQ9—6.O0LR             6.0      10   2.3L     7.500   3.750
1999—2005|General      Motors   |\WIK—LQ9—6.0LF            6.0      10   2.3L     7.500   4.000
1999—2005|General      Motors   |WIK—LQ9—6.0LG             6.0      10   2.3L     7.500   4.250
1999—2005|General      Motors   |WIK—LQ9—6.O0LTA—IC        6.0      10   2.3L     7.500   3.250
1999—2005|General      Motors   |WIK—LQ9—6.0LTB—IC         6.0      10   2.3L     7.500   3.500
1999—2005|General      Motors   IWIK—LQ9—6.0LTC—IC         6.0      10   2.3L     7.500   3.750
1999—2005|General      Motors   |WIK—LQ9—6.O0LTD—IC        6.0      10   2.3L     7.500   4.000
1999—2005|General      Motors   |WIK—LQ9—6.OLTE—IC         6.0      10   2.3L     7.500   4.125
1999—2005|General      Motors   |\WIK—LQ9—6.OLTF—IC        6.0      10   2.3L     7.500   4.250
1999—2005 General      Motors   |WIK—LQ9—6.0LTG—IC         6.0      10   2.3L     7.500   4.500
   2005    General     Motors   |WIK—LS2—6.0LTA—IC         6.0      10   2.3L     7.500   3.000
   2005    j{General   Motors   |\WIK—LS2—6.0LTB—IC        6.0      10   2.3L     7.500   3.250
   2005    General     Motors   JWIK—LS2—6.OLTC—IC         6.0      10   2.3L     7.500   3.500
   2005    General     Motors   |\WIK—LS2—6.0LTO—IC        6.0      10   2.3L     7.500   3.750
   2005    General     Motors   |WIK—LS2—6.O0LTE—IC        6.0      10   2.3L     7.500   4.000
   2005    General     Motors   [WIK—LS2—6.O0LTF—IC        6.0      10   2.3L     7.500   4.125
   2005    General     Motors   |WIK—LS2—6.0LTG—IC         6.0      10   2.3L     7.500   4.250
2001—2005| General     Motors   |WIK—L18—8. 1LA            8.1      8    2.3L     6.250   2.291
2001—2005| General     Motors   |WIK—L18—8.1LB             8.1      8    2.3L     7.500   2.750
2001—2005]|General     Motors   |WIK—L18—8.1LTA            8.1      8    2.3L     7.500   2.875
2001—2005|General      Motors   |WIK—L18—8.1LTB            8.1      8    2.3L     7.500   2.750
2001—2005|General      Motors   JWIK—L18—8.1LA—1C          8.1       8   2.3L     6.250   2.083
2001—2005|General      Motors   |WIK—L18—8.1LB—1C          8.1       8   2.3L     7.500   2.500
2001—2005|General      Motors   |WIK—L18—8. 1LTA—IC        8.1       8   2.3L     7.500   2.750
2001—2005|General      Motors   {WIK—L18—8.1LTB—IC         8.1       8   2.3L     7.500   2.875

IC = INTERCOOLED




                                                      Page 3 of 3



Document Created: 2005-09-01 12:41:16
Document Modified: 2005-09-01 12:41:16

Previous E.O. D-231-21 | Previous E.O. D-230 | Next E.O. D-231-23 | Next E.O. D-232
