Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 5, 2008.
As of Sunday, June 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
See PDF1996 through 2009 Ford vehiclesThe Whipple Supercharger kit, part number WIK-4.6L-3V-IC and WIK-5.4L-3V, consists of the following main components: 2.3L Twin Screw Whipple supercharger using a 3.125 to 4.0 inch diameter pulley, intercooler, intake manifold, bypass valve, 160 degree thermostat to replace the stock thermostat, fuel pump, reflashed ECM, mass air flow sensor, a set of high flow injectors, and an open element air filter on 2005 model year Mustangs built after April 30, 2005 and 2006 model year Mustangs only. The applicable stock air cleaner housing lid with the hydrocarbon adsorber or the hydrocarbon adsorber puck in the intake on 2005 model year Mustangs built on or before April 30, 2005, and 2007 to 2009 model year Mustangs is retained but modified with a new air cleaner housing bottom, a new high flow filter and an air cleaner housing lid modified to accept the mass air flow (MAF) extension. The breather hose may be replaced with an SAE30R9 rated hose. Boost is limited to a maximum of 13 psi. The stock crankshaft pulley and throttle body are retained during installation. The Whipple Charger kit, for other Ford vehicles, consists of the following main components: Twin Screw Whipple supercharger, intake manifold, bypass valve, 160 degree thermostat to replace the stock thermostat, new air cleaner housing with a high-flow element, fuel pump, reflashed ECM, mass air flow sensor, and a set of high flow injectors. Some kits may include an intercooler. The breather hose may be replaced with an SAE30R9 rated hose.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-28
  • Executive Order 231-28 / D231-28
  • ARB # D-231-28
  • Executive Order No: D-231-28
  • C.A.R.B. No. D-231-28
  • Resolution D-231-28
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-28 PDF

D-231-28 Document:

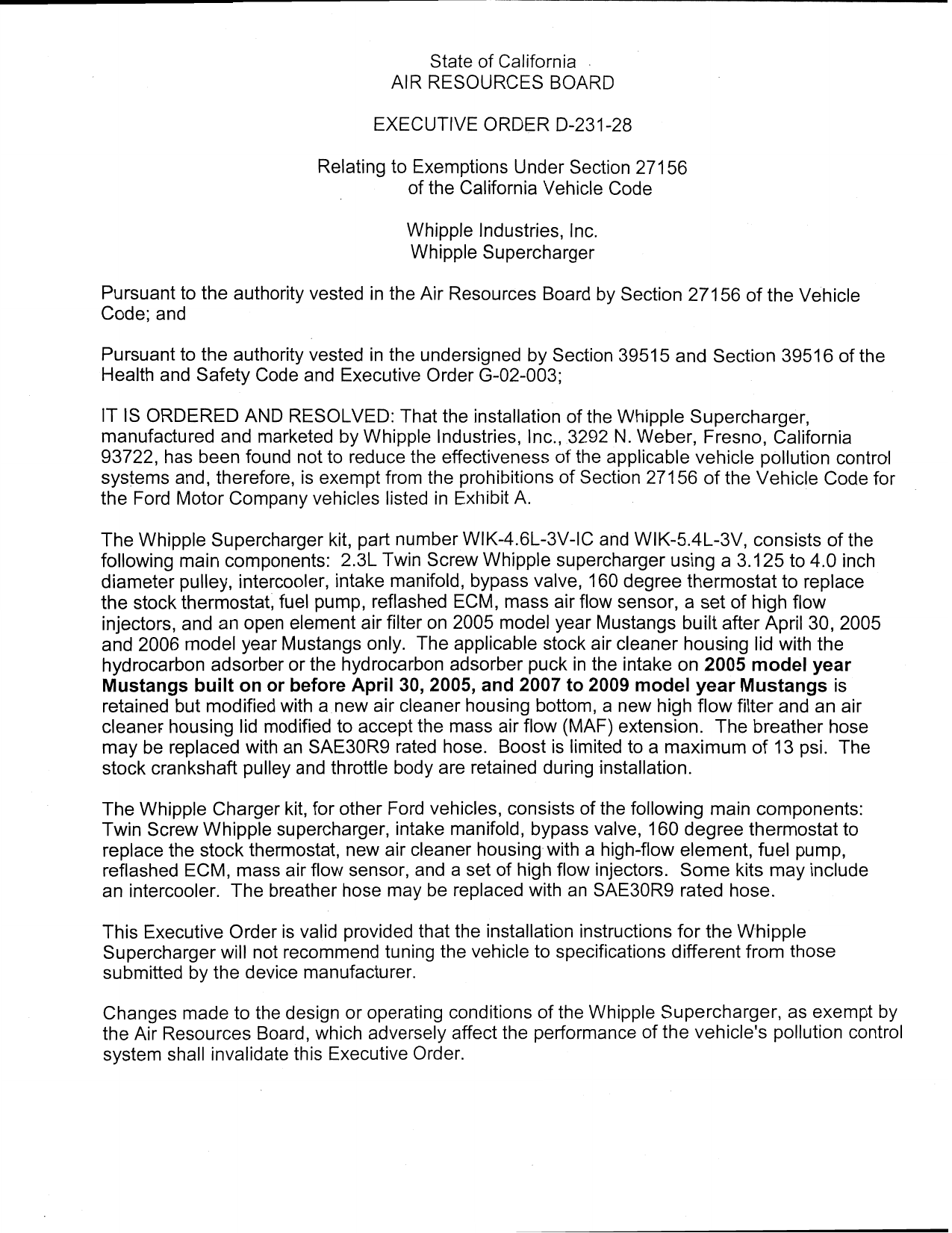

                                        State of California .
                                    AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—231—28

                           Relating to Exemptions Under Section 27156
                                      of the California Vehicle Code

                                      Whipple Industries, Inc.
                                      Whipple Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and         |

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Whipple Supercharger,
manufactured and marketed by Whipple Industries, Inc., 3292 N. Weber, Fresno, California
93722, has been found not to reduce the effectiveness of the applicable vehicle pollution control|
systems and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for
the Ford Motor Company vehicles listed in Exhibit A.

The Whipple Supercharger kit, part number WIK—4.6L—3V—IC and WIK—5.4L—3V, consists of the
following main components: 2.3L Twin Screw Whipple supercharger using a 3.125 to 4.0 inch
diameter pulley, intercooler, intake manifold, bypass valve, 160 degree thermostat to replace
the stock thermostat, fuel pump, reflashed ECM, mass air flow sensor, a set of high flow
injectors, and an open element air filter on 2005 model year Mustangs built after April 30, 2005
and 2006 model year Mustangs only. The applicable stock air cleaner housing lid with the
hydrocarbon adsorber or the hydrocarbon adsorber puck in the intake on 2005 model year
Mustangs built on or before April 30, 2005, and 2007 to 2009 model year Mustangs is
retained but modified with a new air cleaner housing bottom, a new high flow filter and an air
cleaner housing lid modified to accept the mass air flow (MAF) extension. The breather hose
may be replaced with an SAE30R9 rated hose. Boost is limited to a maximum of 13 psi. The
stock crankshaft pulley and throttle body are retained during installation.

The Whipple Charger kit, for other Ford vehicles, consists of the following main components:
Twin Screw Whipple supercharger, intake manifold, bypass valve, 160 degree thermostat to
replace the stock thermostat, new air cleaner housingwith a high—flow element, fuel pump,
reflashed ECM, mass air flow sensor, and a set of high flow injectors. Some kits may include
an intercooler. The breather hose may be replaced with an SAE30R9 rated hose.

This Executive Order is valid provided that the installation instructions for the Whipple
Supercharger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the Whipple Supercharger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.


 This Executive Order shall not apply to any Whupple Supercharger advertised, offered for sale,
 sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate _
 purchaser.

  Marketing of the Whipple Supercharger using any identification other than that shown in this
 Executive Order or marketing of the Whipple Supercharger for an application other than those
  listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
_ Resources Board.

 This Executive Order does not constitute any opinion as to the effect the use of the Whipple
 Supercharger may have on any warranty either expressed or implied by the vehicle
 manufacturer.

  This Executive Order is granted based on submitted emission test data generated on a
  2007 model year 4.6L Ford Mustang certified to the Low Emission Vehicle II Ultra Low Emission
  Vehicle (LEV 1| ULEV) emission standards and modified with the Whipple Supercharger Kit,
  part number WIK—4.6L—3V—IC using the 2.3L compressor and the 3.125 inch diameter
 supercharger pulley. Test results showed that emission levels, with Whipple Industries, Inc.‘s
  Whipple Supercharger installed, met the applicable emission standards when tested using the
  Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental Federal Test
  Procedure (SFTP USO6/SC03) test cycles. Boost pressure was measured at 13 psi.
  Examination of the OBD II system showed the Whipple Supercharger did not affect OBD II
  system operation. Results from emission testing conducted at the Roush Emissions
  Laboratory, Livonia, Michigan are listed below with deterioration factors applied.

     2007 model year Ford Mustang               CVS—75 FTP
     ~                         NMOG             CO    NOx           HCHO
     Standards                0.040             1.7   0.05       ——0.008
     Device Test              0.031             1.0   0.04          0.001

                                   _—  USO6/S5C03
                                 NMHC+NOx              CO
     Standards 4k                  0.14/0.20           8.0/2.7
     Device                         0.02/0.01          1.9/1.8

  The Air Resources Board ‘reserves the right in the future to review this Executive Order and the
  exemption provided herein to assure that the exempted add—on or modified part continues to
  meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
  seq.                 o

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
  APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
  OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
 ALLEGED BENEFITS OF THE WHIPPLE SUPERCHARGER.      |

  No claim of any kind, such as "Approved by the Air Resources Board", may be made with réspect
  to the action taken herein in any advertising or other oral or written communication.




              WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—28


                                                                                               m

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made after the hearing that grounds for
revocation exist.                          ‘


Executed at El Monte, California, this      54       day of September 2008.




                                     Annette Hebert, Chief
                                     Mobile Source Operations Division




             WHIPPLE INDUSTRIES, INGC. — WHIPPLE SUPERCHARGER — D—231-28.


                                                           Exhibit A
                                                                                    MAX                    CRANK
  YEARS                    MAKE                                     ENGINE                   COMPRESSOR                  SC
                                                   WHIPPLE KIT #    (LITER)       B(;(S)fT      SIZE       Ptsji-éEY   PULLEY

1996—2004{Ford    Mustang                      WIK—4.6—2V               4.6L        10          2.3L        6.555      4.000
1996—2004|Ford    Mustang                      WIK—4.6—2V               4.6L        10          2.3L        6.555      4.250
1996—2004|Ford    Mustang                      WIK—4.6—2V—IC            4.6L        10          2.3L.       6.555      3.250
1996—2004|Ford    Mustang                      WIK—4.6—2V—IC            4.6L _      10          2.3L        6.555      3.500
1996—2004[|Ford   Mustang                      WIK—4.6—2V—IC            4.6L        10          2.3L.       6.555      3.625
1996—2004|Ford    Mustang                      WIK—4.6—2V—IC            4.6L        10          2. 3L       6.555      3.750
1996—2004|Ford    Mustang                      WIK—4.6—2V—IC            4.6L        10          2.3L        6.555      3.875
1996—2004|Ford    F150/F250/F350/Expedition    __|WIK—5.4—2V—IC         5.AL        10          2.3L        6.555      3.375
1996—2004|Ford    F150/F250/F350/Expedition    WIK—5.4—2V—IC            5.AL        10          2. 3L       6.555      3.500
1996—2004|Ford    F150/F250/F350/Expedition    __|WIK—5.4—2V—IC         5.4L        10          2.3L        6.555      3.625
1996—2004|Ford    F150/F250/F350/Expedition    WIK—5.4—2V—IC            5.4L        10          2.3L        6.555      3.750
1996—2004|Ford    F150/F250/F350/Expedition    _|WIK—5.4—2V _           5.4L        10          2. 3L       6.555      3.875
1996—2004|Ford    F150/F250/F350/Expedition    __|WIK—5.4—2V            5.4L        10          2.3L      _ 6.555      4.000
1996—2004|Ford    F150/F250/F350/Expedition    __|WIK—5.4—2V            5.AL        10          2.3L        6.555      4.125
1998—2001|Ford Mustang Cobra                   WIK—4.6—4V—IC            4.6L        10          2.3L       6.555       3.000
1998—2001(Ford    Mustang Cobra                WIK—4.6—4V—IC             4.6L      10           2.3L       6.555       3.125
1998—2001|Ford    Mustang Cobra                WIK—4.6—4V—IC             4.6L      10           2. 3L      6.555       3.250
1998—2001|Ford    Mustang Cobra                WIK—4.6—4V—IC             4.6L      10           2.3L       6.555       3.385
1998—2006|Ford    F250/F350                    WIK—6.8L.                 6.8L.     10           2.3L       7.500       3.485
1998—2006|Ford    F250/F350                    WIK—6.8L—IC               6.8L.     10           2.3L       7.500       3.250
1999—2004|Ford    Lightning/Harley Truck       WIK—5.AL—2V23             5.4L      15           2.3L       7.500       2.750
1999—2004|Ford    Lightning/Harley Truck       WIK—5.4L—2V23             5.AL      15           2.3L       7.500       3.000
1999—2004|Ford    Lightning/Harley Truck       WIK—5.4L—2V23             5.AL      15           2.3L       7.500       3.250
1999—2004|Ford    Lightning/Harley Truck       WIK—5.4L—2V33             5.AL      15           3.3L       7.500       4.500
1999—2004|Ford    Lightning/Harley Truck       WIK—5.4L—2V33             5.4L      15           3.3L       7.500       4.750
1999—2004|Ford    Lightning/Harley Truck       WIK—5.4L—2V33             5.4L      15           3.3L       7.500       5.000
2002—2004|Ford    Cobra                        WIK—4.6L—4V23           . 4.6L      15           2.3L       7.500       3.250
2002—2004|Ford    Cobra                        WIK—4.6L—4V23             4.6L      15           2.3L       7.500       3.500
2002—2004|Ford    Cobra                        WIK—4.6L—4V33             4.6L      15           3.3L       7.500       4.250
2002—2004|Ford    Cobra                        WIK—4.6L—4V33             4.6L      15           3.3L       7.500       4.500
2002—2004|Ford    Cobra                        WIK—4.6L—4V/33            4.6L      15           3.3L       7.500       4.750
2002—2004|Ford    Cobra                        WIK—4.6L—4V33             4.6L      15           3.3L       7.500       5.000
2002—2006|Ford    Ranger/Mazda B—Series        WIK—3.OL                  3.0L      11           1. 2L      5.830       2.750
2002—2006|Ford    Ranger/Mazda B—Series        WIK—3.OL                  3.OL      11           1. 2L      5.830       2.875
2002—2006|Ford    Ranger/Mazda B—Series        WIK—3.OL                  3.OL      11           1. 2L      5.830       3.000
2002—2006|Ford    Ranger/Mazda B—Series        WIK—3.OL                  3.0L      11           1.2L       5.830       3.125
2004—2009|Ford    F150/F250/F350/Expedition    WIK—5.4L—3V—IC            5.AL      10           2.3L       6.500       3.250
2004—2009|Ford    F150/F250/F350/Expedition    __|WIK—5.4L—3V—IC         5.4L      10           2.3L.      6.500       3.385
2004—2009|Ford    F150/F250/F350/Expedition    WIK—5.4L—3V—IC            5.4L      10           2.3L       6.500       3.500
2004—2009] Ford   F150/F250/F350/Expedition    WIK—5.4L—3V               5.AL      10           2.3L.      6.500       3.385
2004—2009|Ford    F150/F250/F350/Expedition    WIK—5.4L—3V               5.4L      10           2.3L       6.500       3.500
2005—2009|Ford    F250/F350              |     WIK—6.8L—3V—IC            6.8L      10           2.3L       6.500       3.000
2005—2009|Ford    F250/F350                    WIK—6.8L—3V—IC            6.8L      10           2.3L       6.500       3.125
2005—2009|Ford    F250/F350                    WIK—6.8L—3V—IC            6.8L.     10           2.3L       6.500       3.250
2005—2009|Ford    F250/F350                    WIK—6.8L—3V               6.8L _    10           2.3L       6.500       3.125
2005—2009|Ford    F250/F350                    WIK—6.8L—3V               6.8L      10           2.3L.      6.500       3.250
2005—2009|Ford F250/F350                       WIK—6.8L—3V             6.8L        10           2.3L       6.500       3.385
2005—2009|Ford Mustang*_                       WIK—5.4L—3V             4.6L        13           2.3L       6.500       4.250
2005—2009|Ford Mustang*                        WIK—5.4L—3V             4.6L         13          2.3L       6.500       4.125
2005—2009|Ford    Mustang*_                    WIK—5.4L—3V             4.6L        13           2.3L       6.500       4.000
2005—2009]|Ford   Mustang*_                    WIK—5.4L—3V             4.6L        13           2.3L       6.500       3.875
2005—2009|Ford    Mustang*                     WIK—5.4L—3V             4,6L        13           2.3L.      6.500       3.750
2005—2009|Ford    Mustang*_                    WIK—5.4L—3V             4,6L        13           2.3L       6.500       3.625
2005—2009|Ford    Mustang*_                    WIK—5.4L—3V             4.6L        13           2.3L       6.500       3.500
2005—2009|Ford    Mustang*                     WIK—5.AL—3V             4.6L        13           2.3L       6.500       3.375
2005—2009|Ford    Mustang*                     WIK—5.4L—3V             4.6L        13           2.3L       6.500       3.250
2005—2009|Ford    Mustang*                     WIK—4.6L—3V—IC          4.6L        13           2.3L       6.500       3.125
2005—2009|Ford    Mustang*                     WIK—4.6L—3V—IC          4.6L        13           2.3L       6.500 .     3.250
2005—2009|Ford    Mustang*                     WIK—4.6L—3V—IC          4.6L        13           2.3L       6.500       3.385
2005—2009|Ford Mustang*                        WIK—4.6L—3V—IC          4.6L        13           2. 3L.     6.500       3.500
2005—2009|Ford Mustang*                        WIK—4.6L—3V—IC          4.6L        13           2.3L       6.500       3.625
2005—2009|Ford Mustang*                       _| WIK—4.6L—3V—IC        4.6L        13          2.3L        6.500       3.750
2005—2009]|Ford Mustang*                       WIK—4.6L—3V—IC          4.6L        13          2. 3L       6.500       3.875
2005—2009|Ford Mustang*                        WIK—4.6L—3V—IC          4.6L        13          2.3L        6.500       4.000
* The applicable stock air cleaner housing lid with the hydrocarbon adsorber or the hydrocarbon adsorber puck
in the intake on 2005 model year Mustangs built on or before April 30, 2005, and 2007 to 2009 model year Mustangs is retained


IC = INTERCOOLED
