Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 13, 2009.
As of Tuesday, December 18th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
Applicable 1996 through 2009 Ford vehiclesThe Whipple Supercharger kit, part number WIK-4.6L-3V-IC and WIK-5.4L-3V, consists of the following main components: 2.3L Twin Screw Whipple supercharger using a 3.125 to 4.0 inch diameter pulley, intercooler, intake manifold, bypass valve, 160 degree thermostat to replace the stock thermostat, fuel pump, reflashed ECM, mass air flow sensor, a set of high flow injectors, and an open element air filter on 2005 model year Mustangs built after April 30, 2005 and 2006 model year Mustangs only. The applicable stock air cleaner housing lid with the hydrocarbon adsorber or the hydrocarbon adsorber puck in the intake on 2005 model year Mustangs built on or before April 30, 2005, and 2007 to 2010 model year Mustangs is retained but modified with a new air cleaner housing bottom, a new high flow filter and an air cleaner housing lid modified to accept the mass air flow (MAF) extension. The breather hose may be replaced with an SAE30R9 rated hose. Boost is limited to a maximum of 13 psi. The stock crankshaft pulley and throttle body are retained during installation. The Whipple Charger kit, for other Ford vehicles, consists of the following main components: Twin Screw Whipple supercharger, intake manifold, bypass valve, 160 degree thermostat to replace the stock thermostat, new air cleaner housing with a high-flow element, fuel pump, reflashed ECM, mass air flow sensor, and a set of high flow injectors. Some kits may include an intercooler. The breather hose may be replaced with an SAE30R9 rated hose.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-30
  • Executive Order 231-30 / D231-30
  • ARB # D-231-30
  • Executive Order No: D-231-30
  • C.A.R.B. No. D-231-30
  • Resolution D-231-30
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-30 PDF

D-231-30 Document:

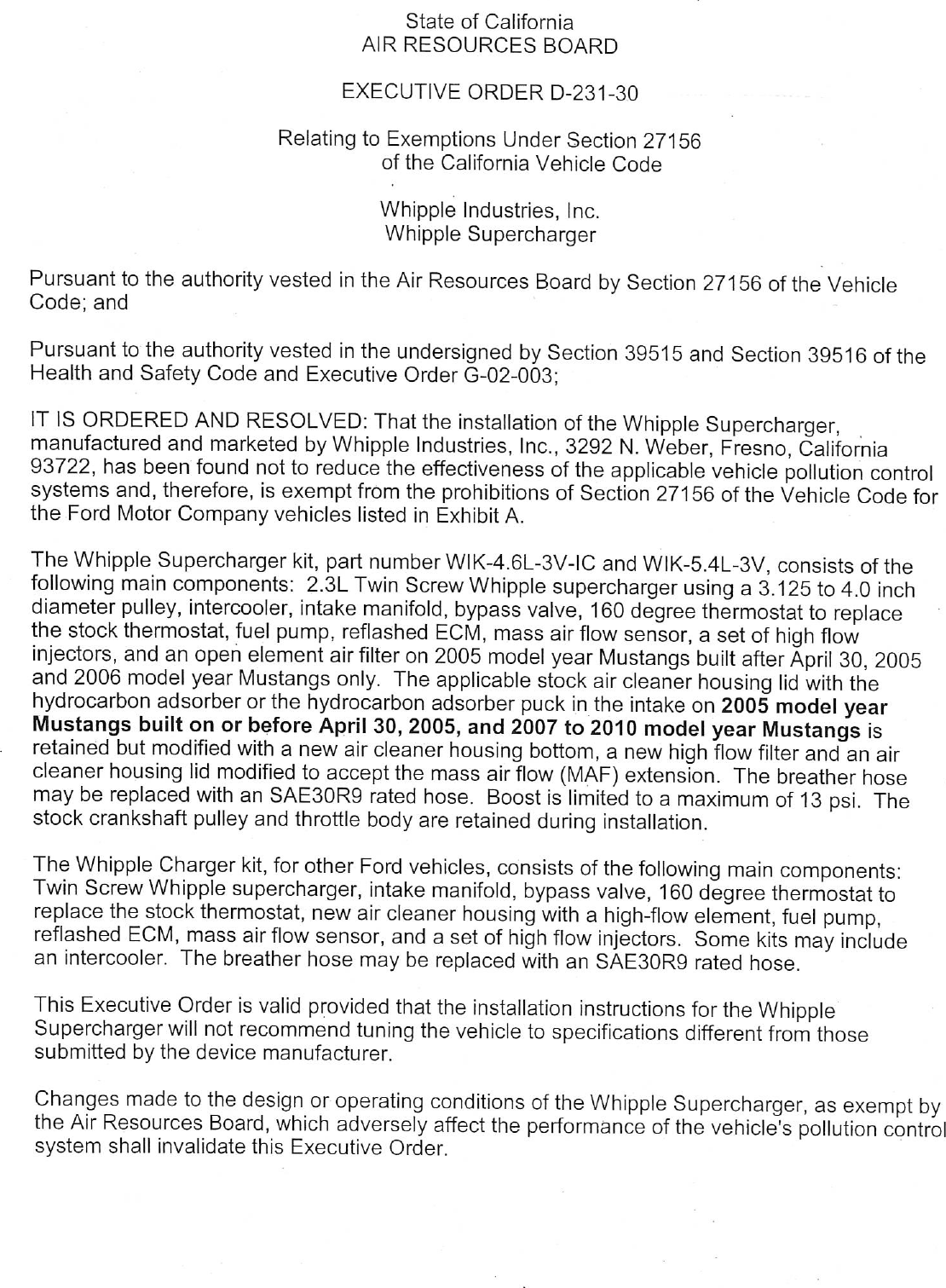

                                       State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—231—30

                          Relating to Exemptions Under Section 27156
                                      of the California Vehicle Code

                                     Whipple Industries, Inc.
                                      Whipple Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Whipple Supercharger, .
manufactured and marketed by Whipple Industries, Inc., 3292 N. Weber, Fresno, California
93722, has been found not to reduce the effectiveness of the applicable vehicle pollution control
systems and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for
the Ford Motor Company vehicles listed in Exhibit A.

The Whipple Supercharger kit, part number WIK—4.6L—3V—IC and WIK—5.4L—3V, consists of the
following main components: 2.3L Twin Screw Whipple supercharger using a 3.125 to 4.0 inch
diameter pulley, intercooler, intake manifold, bypass valve, 160 degree thermostat to replace
the stock thermostat, fuel pump, reflashed ECM, mass air flow sensor, a set of high flow
injectors, and an open element air filter on 2005 model year Mustangs built after April 30, 2005
and 2006 model year Mustangs only. The applicable stock air cleaner housing lid with the
hydrocarbon adsorber or the hydrocarbon adsorber puck in the intake on 2005 model year
Mustangs built on or before April 30, 2005, and 2007 to 2010 model year Mustangs is
retained but modified with a new air cleaner housing bottom, a new high flow filter and an air
cleaner housing lid modified to accept the mass air flow (MAF) extension. The breather hose
may be replaced with an SAE30RY rated hose. Boost is limited to a maximum of 13 psi. The
stock crankshaft pulley and throttle body are retained during installation.

The Whipple Charger kit, for other Ford vehicles, consists of the following main components:
Twin Screw Whipple supercharger, intake manifold, bypass valve, 160 degree thermostat to
 replace the stock thermostat, new air cleaner housing with a high—flow element, fuel pump,
 reflashed ECM, mass air flow sensor, and a set of high flow injectors. Some kits may include
 an intercooler. The breather hose may be replaced with an SAE30RY rated hose.

 This Executive Order is valid provided that the installation instructions for the Whipple
 Supercharger will not recommend tuning the vehicle to specifications different from those
 submitted by the device manufacturer.

 Changes made to the design or operating conditions of the Whipple Supercharger, as exempt by
 the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
 system shall invalidate this Executive Order.


This Executive Order shall not apply to any Whipple Supercharger advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the Whipple Supercharger using any identification other than that shown in this
Executive Order or marketing of the Whipple Supercharger for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Whipple
Supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on submitted emission test data generated on a
2007 model year 4.6L Ford Mustang certified to the Low Emission Vehicle II Ultra Low Emission
Vehicle (LEV II ULEV) emission standards and modified with the Whipple Supercharger Kit,
part number WIK—4.6L—3V—IC using the 2.3L compressor and the 3.125 inch diameter
supercharger pulley. Test results showed that emission levels, with Whipple Industries, Inc.‘s
Whipple Supercharger installed, met the applicable emission standards when tested using the
Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental Federal Test
Procedure (SFTP USO6/SC03) test cycles. Boost pressure was measured at 13 psi.
Examination of the OBD II system showed the Whipple Supercharger did not affect OBD II
system operation. Results from emission testing conducted at the Roush Emissions
 Laboratory, Livonia, Michigan are listed below with deterioration factors applied.

    2007 model year Ford Mustang               CVS—75 FTP
                                   NMOG        CO      NOx          HCHO
    Standards                      0.040       §74     0.05         0.008
    Device Test                    0.031       1.0     0.04         0.001

                                      USO6/SC03
                                NMHC+NOx               CO
    Standards 4k                  0.14/0.20            8.0/2.7
    Device                        0.02/0.01            1.91.8

 The Air Resources Board reserves the right in the future to review this Executive Order and the
 exemption provided herein to assure that the exempted add—on or modified part continues to
 meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
 seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
 OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
 ALLEGED BENEFITS OF THE WHIPPLE SUPERCHARGER.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
 to the action taken herein in any advertising or other oral or written communication.




              WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—30


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made after the hearing that grounds for
revocation exist.


Executed at El Monte, California, this       l 3     day of March 2009.



                                    eboecs—
                                     Annette Hebert, Chief
                                     Mobile Source Operations Division




             WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—30


                                                              Exhibit A
                                                                                       MAX                         CRANK
 YEARS                    MAKE                     WHIPPLE KIT #        fls            BOOST       COMPRESSOR       PULLEY      SC PULLEY
                                                                        (UTER)             pyy        mz            SIze
1996—2004|Ford Mustang                          WIk—4.6—2V                   4.6L          10          23L           6.555        4.000
1996—2004]Ford Mustang                          WIk—4.6—2V                   4.6L          10           23L          6.555        4250
1996—2004|Ford Mustanq                           Wik—4.6—2/—1C               4.6L          10           23L          6.555        3.250
1996—2004]Ford Mustang                          WIke4.6—2V—4C                4.6L          10           23L          6.555        3.500
1996—2004]Ford Mustang                           WIK—4.6—2V—1C               4.6L          10           23L          6.555        3.625
1996—2004]Ford Mustang                           WIk4.6—2V—1C                4.6L          10           23L          6.555        3.750
1996—2004]Ford Mustang                           Wikc4.6—2V—1C               4.6L          10           23L          6.555        3.875
1996—2004|Ford F150/F250/F350/Expedition         |\WIK—5.4—2V—IC             54L           10           23L          6.555        3.375
1996—2004|Ford F150/F250/F350/Expedition         |WIK—5.4—2V—IC              54L           10           23L          6.555        3.500
1996—2004|Ford F150/F250/F350/Expedition         |WIK—5.4—2V—IC              54L           10           23L          6.555        3.625
1996—2004|Ford F150/F250/F350/Expedition         |WIK—5.4—2V—IC              54L           10           23L          6.555        3.750
1996—2004|Ford F150/F250/F350/Expedition         |WIK—5.4—2V                 54L           10           23L          6.555        3.875
1996—2004|Ford F150/F250/F350/Expedition         |WIK—5.4—2V                 54L           10           23L          6.555        4.000
1996—2004|Ford F150/F250/F350/Expedition         |WIk—5.4—2V                 54L           10           23L          6.555        4.125
1998—2001|Ford Mustang Cobra                     Wik—4.6—4V—1C               4.6L          10           23L          6.555         3.000
1998—2001|Ford Mustang Cobra                     Wike4.6—4V—1C               4.GL          10           23L          6.555         3.125
1998—2001|Ford Mustang Cobra                     WIk—4.6—4V—1C               4.6L          10           23L          6.555         3.250
1998—2001|Ford Mustang Cobra                     Wik4.6—4V—1C                48.           10           2X           6.555         3.385
1998—2006|Ford F250/E350                         WIk—6.8L                    6.8L          10           23L          7.500         3.485
1998—2006|Ford F250/F350                         WIk—6.8L—IC                 6.8L          10           23L          7.500         3.250
1999—2004]Ford Lightning/Harley Truck            WIk—5.4L—2023               5AL           15           23L          7.500         2.750
1999—2004]Ford Lightning/Harley Truck            Wik—5.4L—20/23              5AL           15           23L          7.500         3.000
1999—2004]Ford Lightning/Harley Truck            Wik—5.4L—20/23              54L           15           23L          7.500         3.250
1999—2004]Ford Lightning/Harley Truck            WIk—5.4L—20/29              5AL           15           2.9L         7.500         3.250
1999—2004|Ford Lightning/Harley Truck            WIk—5.4L—20/29              54L           15           2.9L         7.500         3.500
1999—2004]Ford Lightning/Harley Truck            WIk—5.4L—20/29              54L           15           2.9L         7.500         3.750
1999—2004]Ford Lightning/Harley Truck            WIk—5.4L—2033               54L           15           33L          7.500         4.500
1999—2004]Ford Lightning/Harley Truck            WIk—5.4L—2033               54L           15           33L          7.500         4.750
1999—2004]Ford Lightning/Harley Truck            WIK—5.4L—2033               54L           15           hi l         7.500         5.000
2002—2004|Ford Cobra                             WIK—4.6L—4V23               4.6L           15          23L          7.500         3.250
2002—2004|Ford Cobra                             WIK—4.6L—4V23               4.6L          15           23L          7.500         3.500
2002—2004|Ford Cobra                             Wik—4.6L—4V29               4.6L           15          29L          7.500         3.500
2002—2004|Ford Cobra                             WIk—4.6L—4029               4.L            15          29L          7.500         3.750
2002—2004|Ford Cobra                             Wik—4.6L—4V29               4.6L           15          23X          7.500.        4.000
2002—2004|Ford Cobra                             Wik—4.6L—4033               4.6L           15          3.3L         7.500         4.250
2002—2004|Ford Cobra                             WIk—4.6L—4033               4.GL           15          33L          7.500         4.500
2002—2004|Ford Cobra                             Wik—4.6L—4033               4.6L           15          33L          7.500         4.750
2002—2004|Ford Cobra                             WIk—4.6L—4033               4.GL           15          33L          7.500         5.000
2002—2007|Ford Ranger/Mazda B—Series             Wik—3.0L                    3.0L           11.         L2L          5.830         2.750
2002—2007|Ford Ranger/Mazda B—Series             Wike3.0L                    3.0L           11          12L          5.830         2.875
2002—2007|Ford Ranger/Mazda B—Series             Wik—3.0L                    3.0L           11          12L          5.830         3.000
2002—2007|Ford Ranger/Mazda B—Series             Wik—3.0L                    3.0L           11          L2L          5.830         3.125
2004—2010|Ford F150/F250/F350/Expedition         |WIK—5.4L—3V—1C             5AL            10          23L          6.500         3.250
2004—2010 |Ford F150/F250/F350/Expedition        WIK—5.4L—3V—IC              54L            10          24           6.500         3.385
2004—2010|Ford F150/F250/F350/Expedition         __|WIK—5.4L—3V—IC           54L            10          23L          6.500         3.500
2004—2010 |Ford F150/F250/F350/Expedition        |WIK—5.4L—3V                5AL            10          23L          6.500         3.385
2004—2010 |Ford F150/F250/F350/Expedition        |WIK—5.4L—3V                54L            10          23L          6.500         3.500
2005—2009|Ford F250/F350                         WIk—6.8L—3/—C               6.8L           10          23L          6.500         3.000
2005—2009|Ford F250/F350                         WIk—6.8L—3—C                6.8L           10          23L          6.500         3.125
2005—20093 |Ford F250/F350                       WIkc6.BL—3V—C               6.8L           10          23L          6.500         3.250
2005—20093 |Ford F250/F350                       WIk—6.8L—3V                 6.8L           10          23L          6.500         3.125
2005—20093 |Ford F250/F350                       WIk—6.8L—30                 6.8L           10          23L          6.500         3.250
2005—2009 |Ford F250/E350                        WIk—6.8L—3V                 6.8L           10          23           6.500         3.385
2005—2010|Ford Mustang*                          WIke4.6L—30                 4.6L           13          23L          6.500         4.250
2005—2010|Ford Mustang*                          WIke4.6L—3V                 4.6L           13          23L          6.500         4.125
2005—2010|Ford Mustang*                          WIK—4.6L—30                 4.0L           13          23L          6.500         4.000
2005—2010 |Ford Mustang*                         WIK—4.6L—3V                 4.6L           13          23           6.500         3.875
2005—2010|Ford Mustang*                          WIk—4.6L—3V                 4.GL           13          23L          6.500         3.750
2005—2010|Ford Mustang*                          WIK—4.6L—3V                 4.6L           13          23L          6.500         3.625
2005—2010|Ford Mustang*                          Wik—4.6L—3V                 4.GL           13          23L          6.500         3.500
2005—2010|Ford Mustang*                          WIk—4.6L—3V                 4.GL           13          23L          6.500         3.375
2005—2010|Ford Mustang*                          WIk—4.6L—3V                 4.GL           13          23L          6.500         3.250
2005—2010|Ford Mustang*                          WIk—4.6L—3/—C               4.6L           13          23           6.500         2.750
2005—2010|Ford Mustang*                          WIK—4.6L—3/—1C              4.6L           13          23           6.500         2.875
2005—2010|Ford Mustang*                          WIk—4.6L—3/—1C              4.GL           13          23L          6.500         3.000
2005—2010 |Ford Mustang*                         WIk—4.6L—3/—C               4.6L           13          23L          6.500         3.125
2005—2010 |Ford Mustang*                         WIke4.6L—3/—1C              4.6L           13          23           6.500         3.250
2005—2010 |Ford Mustang*                         WIk—4.6L—3/—1C              4.6L           13          23L          6.500         3.385
2005—2010 |Ford Mustang*                         WIk—4.6L—3/—1C              4.GL           13          23L           6.500        3.500
2005—2010 |Ford Mustang*                         WIk—4.6L—3/—C               4.6L           13          23L           6.500        3.625
2005—2010|Ford Mustang*                          WIk—4.6L—3/—C               4.6L           13          23L           6.500        3.750
2005—2010|Ford Mustang*                          WIk—4.6L—3—1C               4.0L           13          2X            6.500        3.875
2005—2010|Ford Mustang*                          WIk—4.6L—3/—1C              4.6L           13          23L           6.500        4.000
*The stock air cleaner housing is retained on 2005 model year built on or   before April   30, 2005, and 2007 to 2010 model year Mustangs
IC = INTERCOOLED



Document Created: 2016-06-03 13:22:46
Document Modified: 2016-06-03 13:22:46

Previous E.O. D-231-29 | Previous E.O. D-230 | Next E.O. D-231-31 | Next E.O. D-232
