Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 30, 2014.
As of Monday, December 9th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-42
  • Executive Order 231-42 / D231-42
  • ARB # D-231-42
  • Executive Order No: D-231-42
  • C.A.R.B. No. D-231-42
  • Resolution D-231-42
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-42 PDF

D-231-42 Document:


CARB_D-231-42

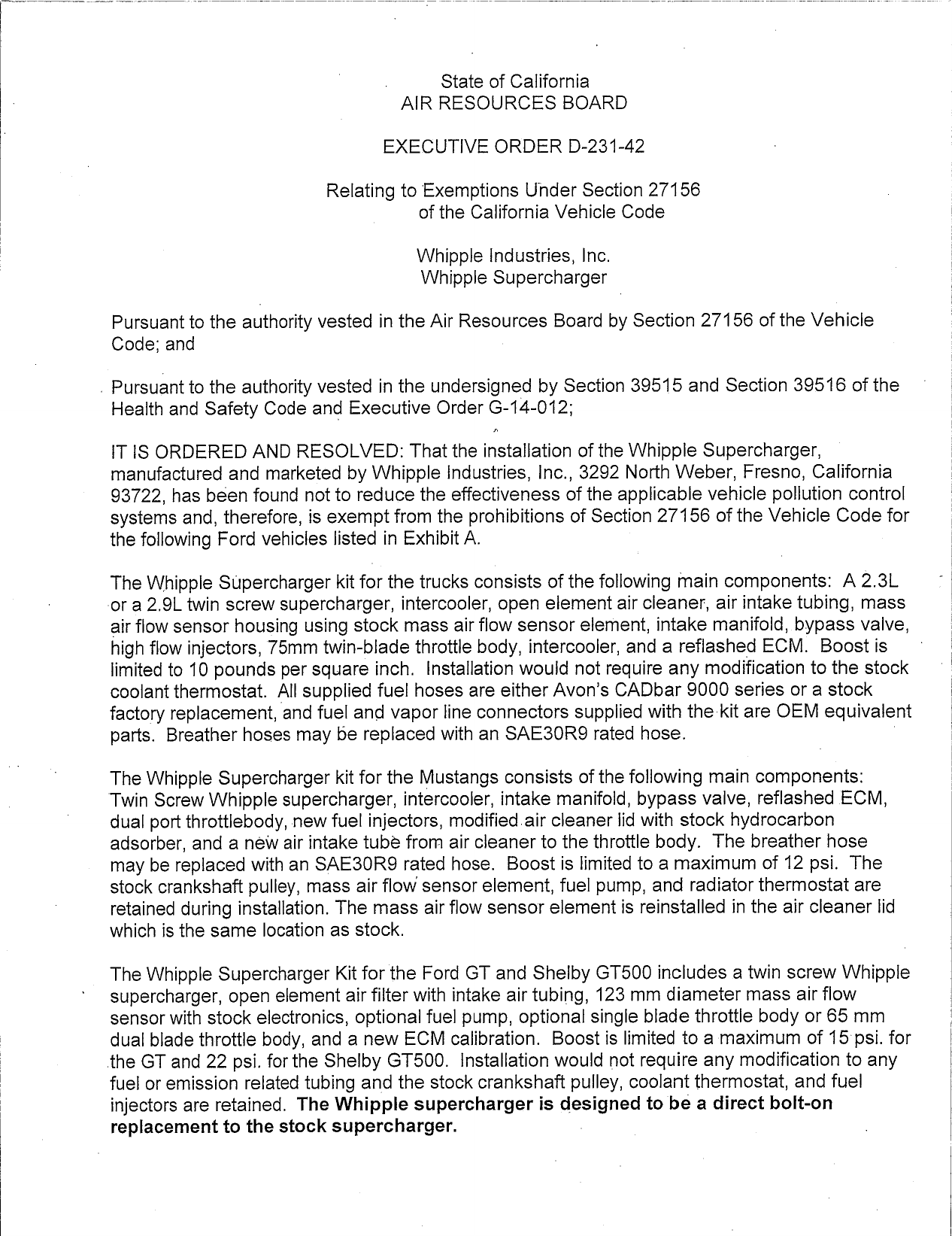

                                         State of California
                                     AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—231—42

                            Relating to Exemptions Under Section 27156
                                       of the California Vehicle Code

                                       Whipple Industries, Inc.
                                       Whipple Supercharger

 Pursuant to the aufhority vested in the Air Resources Board by Section 27156 of the Vehicle
 Code; and

. Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
 Health and Safety Code and Executive Order G—14—012;

 IT IS ORDERED AND RESOLVED: That the installation of the Whipple Supercharger,
 manufactured and marketed by Whipple Industries, Inc., 3292 North Weber, Fresno, California
 93722, has been found not to reduce the effectiveness of the applicable vehicle pollution control
 systems and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for
 the following Ford vehicles listed in Exthibit A.

 The Whipple Supercharger kit for the trucks consists of the following main components: A 2.3L
‘or a 2.9L twin screw supercharger, intercooler, open element air cleaner, air intake tubing, mass
 air flow sensor housing using stock mass air flow sensor element, intake manifold, bypass valve,
 high flow injectors, 7Z5mm twin—blade throttle body, intercooler, and a reflashed ECM. Boost is
 limited to 10 pounds per square inch. Installation would not require any modification to the stock
 coolant thermostat. All supplied fue!l hoses are either Avon‘s CADbar 9000 series or a stock
factory replacement, and fuel and vapor line connectors supplied with the kit are OEM equwalent
parts. Breather hoses may be replaced with an SAE30R9 rated hose.

The Whipple Supercharger kit for the Mustangs consists of the following main components:
Twin Screw Whipple supercharger, intercooler, intake manifold, bypass valve, reflashed ECM,
dual port throttlebody, new fuel injectors, modified air cleaner lid with stock hydrocarbon
adsorber, and a néew air intake tubé from air cleaner to the throttle body. The breather hose
may be replaced with an SAE30RY rated hose. Boost is limited to a maximum of 12 psi. The
stock crankshaft pulley, mass air flowsensor element, fuel pump, and radiator thermostat are
retained during installation. The mass air flow sensor element is reinstalled in the air cleaner lid
which is the same location as stock.

The Whipple Supercharger Kit for the Ford GT and Shelby GT500 includes a twin screw Whipple
supercharger, open element air filter with intake air tubing, 123 mm diameter mass air flow
sensor with stock electronics, optional fuel pump, optional single blade throttle body or 65 mm
dual blade throttle body, and a new ECM calibration. Boost is limited to a maximum of 15 psi. for
the GT and 22 psi. for the Shelby GT500. Installation would not require any modification to any
fuel or emission related tubing and the stock crankshaft pulley, coolant thermostat, and fuel
injectors are retained. The Whipple supercharger is designed to be a direct bolt—on
replacement to the stock supercharger.                —


This Executive Order is valid provided that the installation instructions for the Whipple
Supercharger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the Whipple Supercharger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Supercharger advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the Whipple Supercharger using any identification other than that shown in this
Executive Order or marketing of the Whipple Supercharger for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Whipple
Supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on previously submitted emissions and OBD 1} test data
that was generated in support of prior Executive Orders. The test vehicies were a 2008 model
year 5.4L Ford Mustang certified to the Low Emission Vehicle II Low Emission Vehicle emission
standards, a 2012 model year 5.0L Ford Mustang certified to the Low Emission Vehicle II Ultra
Low Emission Vehicle emission standards, and a 2011 model year 6.2L Ford F—150 certified to
the Low Emission Vehicle II Ultra Low Emission Vehicle emission standards.

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to
meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE WHIPPLE SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made after the hearing that grounds for
revocation exist.

Executed at El Monte, California, this    Z      2   day of January 2014.




                          nnette Hebert, Chief
                        Emissions Compliance, Automotive Regulations and Science Division

            WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—42


                                   Exhibit A
                                                 MAX                 CRANK
                                     ENGINE             COMPRESSOR                SC
       MAKE       WHIPPLE KIT #                 BOOST                PULLEY
                                     (LTTER)     poj       SIZE       SIZE      PULLEY
  Ford GT         WK—2000 Series         5.4L      15       3 .4L       Stock     3.500
  Ford GT         WK—2000 Series         5AL      15        3 AL        Stock     3.750
  Ford GT         WK—2000 Series         5.4L     15        4.0L        Stock     3.250
  Ford GT         WK—2000 Series        5.4L      15        4.0L       Stock      3.375
  Ford GT ©       WK—2000 Series        5AL       15        4.0L       Stock      3.500
  Ford GT         WK—2000 Series        5AL       15        4.O0L      Stock      3.625
  Ford GT        WK—2000 Series         5AL       15        4.0L       Stock      3.750
  Ford GT        WK—2000 Series         5AL       15        4.0L       Stock      3.875
  Ford GT        WK—2000 Series         5AL       15        4.0L       Stock      4.000
 Shelby GT500 _  |WK—2000 Series        5AL       22        2.9L       Stock      2.750
 Shelby GT500    WK—2000 Series         5AL       22        2.9L       Stock      2.875
 Shelby GT500    WK—2000 Series         5AL       22        2.9L       Stock      3.000
 Shelby GT500    WK—2000 Series         5AL       22        2.9L       Stock      3.125
 Shelby GT500    WK—2000 Series         5AL       22        2.9L       Stock      3.250
 Shelby GT500    WK—2000 Series         5.4L     22        2.9L        Stock      3.375
 Shelby GT500    WK—2000 Series         5.4L     22        2.9L        Stock      3.500
 Shelby GT500    WK—2000 Series         5AL      22        2.9L        Stock      3.625
 Shelby GT500    WK—2000 Series        5AL       22        3 .AL       Stock      3.000
 Shelby GT500    WK—2000 Series        5AL       22        34L         Stock      3.125
 Shelby GT500    WK—2000 Series        54L       22        3 AL        Stock    —3.250
 Shelby GT500    WK—2000 Series        5AL       22        3 AL       Stock      3.3 75
 Shelby GT500    WK—2000 Series        5AL       22        3 AL       Stock      3,.500
 Shelby GT500    WK—2000 Series        5AL       22        34L        Stock      3.625
 Shelby GT500    WK—2000 Series        5AL       22        3 AL       Stock      3.750
 Shelby GT500    WK—2000 Series        5AL       22        3.4L       Stock      3.875
 Shelby GT500    WK—2000 Series        5 AL      22        3 AL       Stock      4,000
 Shelby GT500   WK—2000 Series         5AL       22        4.0L       Stock      3.000
 Shelby GT500   WK—2000 Series         5 AL      22        4.0L       Stock      3.125
Shelby GT500    WK—2000 Series         5AL       22       4.0L        Stock      3.250
Shelby GT500    WK—2000 Series         5 AL      22       4.0L        Stock      3.375
Shelby GT500    WK—2000 Series         5.4L      22       4.0L        Stock      3.500
Shelby GT500    WK—2000 Series         5.AL      22       4.0L        Stock      3,.625
Shelby GT500    WK—2000 Series         5 AL      22       4.0L        Stock      3.750
Shelby GT500    WK—2000 Series         5 AL     22        4.0L        Stock      3.875
Shelby GT500    WK—2000 Series         5 AL      22       4.0L        Stock      4.000
Shelby GT500    WK—2000 Series        5.8L.     22        2.9L        Stock      2750
Shelby GT500    WK—2000 Series        5.8L      22        2.9L        Stock      2.875
Shelby GT500    WK—2000 Series        5.8L.     22        2.9L        Stock      3.000
Shelby GT500    WK—2000 Series        5.8L      22        2.9L        Stock      3.125
Shelby GT500    WK—2000 Series      | 5.8L      22        2.9L        Stock      3.250
Shelby GT500    WK—2000 Series        5.81      22        2.9L        Stock      3.375
Shelby GT500    WK—2000 Series        5.81      22        2.9L        Stock      3.500
Shelby GT500    WK—2000 Series        5.8L      22        2.9L        Stock      3.625
Shelby GT500    WK—2000 Series        5.8L.     22        3 AL        Stock      3.000
Shelby GT500    WK—2000 Series        5.B8L     22        3 .4L       Stock      3.125
Shelby GT500    WK—2000 Series        5.8L      22        3 AL       Stock      3.250
Shelby GT500    WK—2000 Series        5.8L.     22        3 AL       Stock      3.375
Shelby GT500    WK—2000 Series        5.8L      22        3 AL       Stock      3.500 —
Shelby GT500    WK—2000 Series        5.8L      22        3 AL       Stock      3.625
Shelby GT500    WK—2000 Series :      5.8L      22        3 AL       Stock      3.750
Shelby GT500    WK—2000 Series        5.8L.     22        3 AL       Stock      3.875
Shelby GT500    WK—2000 Series        5.8L.     22        3 AL       Stock      4.000
Shelby GT500    WK—2000 Series        5.8L.     22       4.0L        Stock      3.000:
Shelby GT500 _: |WK—2000 Series       5.8L      22       4,.0L       Stock      3.125
Shelby GT500    WK—2000 Series        5.8L      22       4,.0L       Stock      3.250
Shelby GT500    WK—2000 Series        5.8L      22       4.0L        Stock      3.375
Shelby GT500    WK—2000 Series        5.8L      22       4.0L        Stock      3.500
Shelby GT500    WK—2000 Series        5.8L      22       4.0L        Stock      3.625
Shelby GT500    WK—2000 Series        5.8L      22       4.0L        Stock      3.750
Shelby GT500    WK—2000 Series        5.8L      22       4.0L        Stock      3.875
Shelby GT500    WK—2000 Series        5.8L      22       4.0L        Stock      4,000

     WHIPPLE INDUSTRIES, INC.— WHIPPLE SUPERCHARGER — D—231—42


                                                           Exhibit A
                                                                                  MAX                                CRANK
                                                                        ENGINE                      COMPRESSOR                       SC
  YEARS                 MAKE                      WHIPPLE KT #          (LITER   BC;gIST               SI7E          PLSJII_é_gY   PULLEY

2010—2014|F150, F250                           WK—2000 Series            5.0L       10                 2.3L           6.555         3.385
2010—2014]|F150, F250                          WK—2000 Series .          5.0L       10                 2.3L           6,.555        3.500
2010—2014[F150, F250                           WK—2000 Series            5.0L       10                 2.3L          6.555         3,.625
2010—2014|F150, F250                           WK—2000 Series            5.0L       10                 2.3L          6.555         3.750
2010—2014|F150, F250                           WK—2000 Series            5.0L       10                 2.3L          6.555         3.875
2010—2014]F150, F250                           WK—2000 Series           5.0L.      10                  2.9L          6.555          3.625
2010—2014|}F150, F250                          WK—2000 Series       —    5.0L      10                  2.9L          6.555         3.750
2010—2014{F150, F250                          WK—2000 Series            5.0L       10                  2.9L          6.555         3,.875
2010—2014|F150, F250                          WK—2000 Series            5.0L.      10                 _2.9L          6.555         4,000
2010—2014|F150, F250                          WK—2000 Series            5.0L       10                  2.9L          6.555         4.125
2010—2014]|F150, F250                         WK—2000 Series            5.0L       10                  2.9L          6.555         4.250
2010—2014{F150, F250            .             WK—2000 Series            5.0L.     .10                  2.9L          6.555         4.375
2010—2014|Ford Raptor, F150,   E250,   F350   ___|WK—2000 Series        6.2L     10        _          2.9L           6.555         3.000
2010—2014|Ford Raptor, F150,   F250,   F350   _{WK—2000 Series          6.2L       10                  2.9L          6.555         3.125
2010—2014|Ford Raptor, F150,   F250,   F350___|WK—2000 Series           6.2L.      10                  2.9L          6.555         3.250
2010—2014|Ford Raptor, F150,   F250,   F350   |WK—2000 Series           6.2L       10                  2.9L          6.555         3,.500
2010—2014|Ford Raptor, F150,   F250,   F350   __|WK—2000 Series _       6.2L       10                  2.9L          6.555         3.625
2010—2014|Ford Raptor, F150,   F250,   F350   WK—2000 Series            6.2L       10                  2.9L          6.555         3.750
2010—2014}Ford Raptor, F150,   F250,   F350   __|WK—2000 Series         6.2L       10                 2.9L       .   6.555         3.875
2011—2014|Ford Mustang                        WK—2000 Series            5.0L       12                  2.9L          6.500         3.6525
2011—2014|Ford Mustang                        WK—2000 Series            5.0L.      12                 2.9L >         6.500         3.750
2011—2014|Ford Mustang                        WK—2000 Series            5.0L       12                 2.9L           6.500         3.875
2011—2014]}Ford Mustang                       WK—2000 Series            5.0L       12                 2.9L           6.500         4.000
2011—2014!Ford Mustang                        WK—2000 Series            5.0L       12          |—     2.9L           6.500         4.125
2011—2014|Ford Mustang                        WK—2000 Series            5.0L       12                 2.9L           6.500         4.250




                        WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—42



Document Created: 2014-02-04 16:54:45
Document Modified: 2014-02-04 16:54:45

Previous E.O. D-231-41 | Previous E.O. D-230 | Next E.O. D-231-43 | Next E.O. D-232
