Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 25, 2015.
As of Friday, December 14th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-43
  • Executive Order 231-43 / D231-43
  • ARB # D-231-43
  • Executive Order No: D-231-43
  • C.A.R.B. No. D-231-43
  • Resolution D-231-43
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-43 PDF

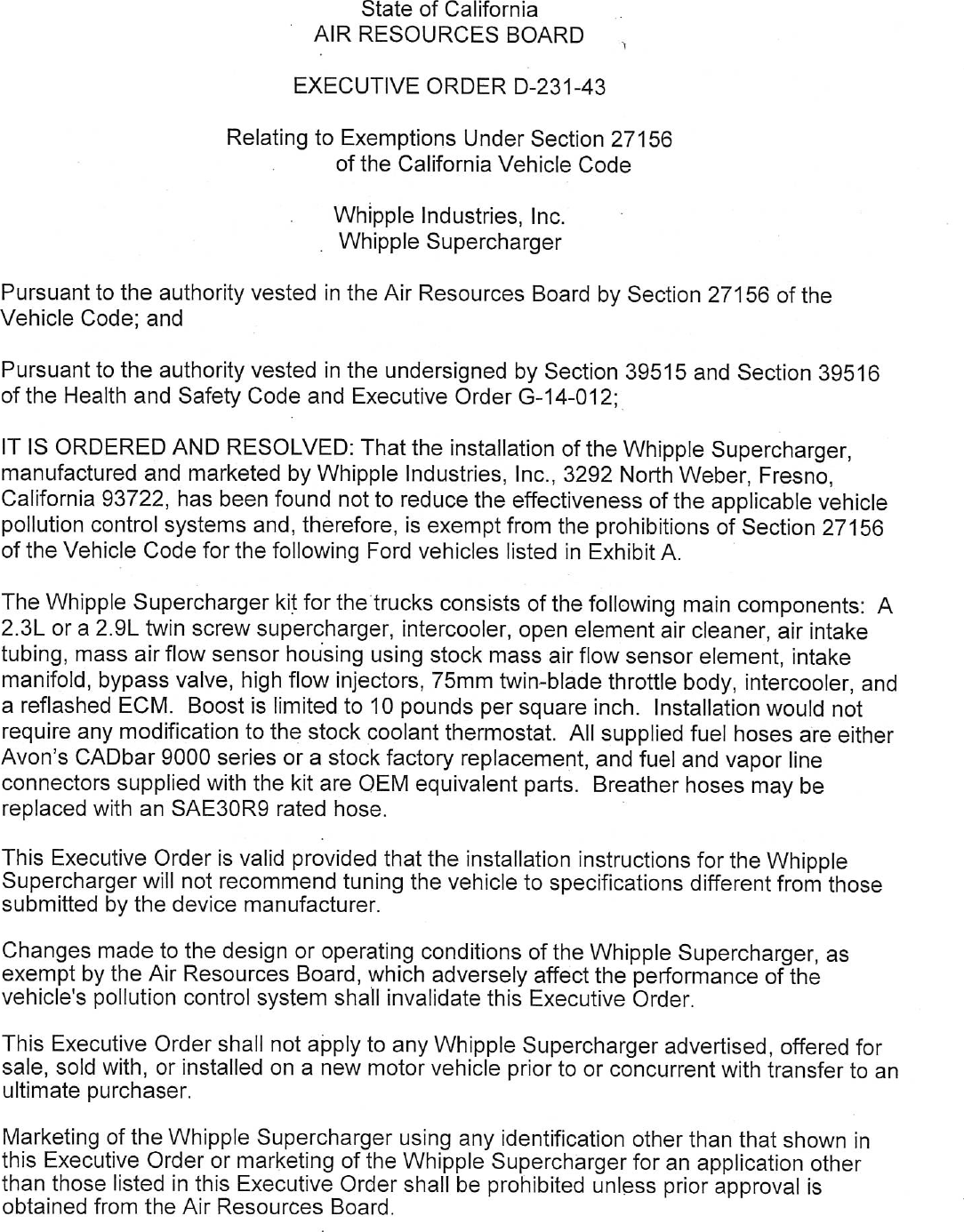

D-231-43 Document:



                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—231—43

                       Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                   Whipple Industries, Inc.
                                 . Whipple Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Whipple Supercharger,
manufactured and marketed by Whipple Industries, Inc., 3292 North Weber, Fresno,
California 93722, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for the following Ford vehicles listed in Exhibit A.

The Whipple Supercharger kit for the trucks consists of the following main components: A
2.3L or a 2.9L twin screw supercharger, intercooler, open element air cleaner, air intake
tubing, mass air flow sensor housing using stock mass air flow sensor element, intake
manifold, bypass valve, high flow injectors, 75mm twin—blade throttle body, intercooler, and
a reflashed ECM. Boost is limited to 10 pounds per square inch. Installation would not
require any modification to the stock coolant thermostat. All supplied fuel hoses are either
Avon‘s CADbar 9000 series or a stock factory replacement, and fuel and vapor line
connectors supplied with the kit are OEM equivalent parts. Breather hoses may be
replaced with an SAE30RY rated hose.

This Executive Order is valid provided that the installation instructions for the Whipple
Supercharger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the Whipple Supercharger, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Supercharger advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the Whipple Supercharger using any identification other than that shown in
this Executive Order or marketing of the Whipple Supercharger for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.


This Executive Order does not constitute any opinion as to the effect the use of the
Whipple Supercharger may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on previously submitted emissions and OBD 1I test
data that was generated in support of prior Executive Orders. The test vehicles were a
2008 model year 5.4L Ford Mustang certified to the Low Emission Vehicle II Low Emission
Vehicle emission standards, a 2012 model year 5.0L Ford Mustang certified to the Low
Emission Vehicle II Ultra Low Emission Vehicle emission standards, and a 2011 model
year 6.2L Ford F—150 certified to the Low Emission Vehicle II Ultra Low Emission Vehicle
emission standards.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE WHIPPLE
SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this    ,,25/      day of March 2015.


               yA          4
               K/—) %«44/\%«@
               <—Annette Hebert, Chief
             ;/{jrmssnons Comphance Automotive Regulations and Science Division
              )




        WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—43


                                                              Exhibit A
                                                                                   MAX                 CRANK
                                                                      ENGINE              COMPRESSOR              8C
 YEARS                   MAKE                       WHIPPLE KIT #                 BOOST                PULLEY
                                                                      (LITER)      Pst       SIZE       SIze    PULLEY
2010—2015 F150                            WK—2000 Series                  5.0L     10        2.3L      6.555    3.250
2010—2015|F150                            WK—2000 Series                  5.0L     10        7.3L.     6.555    3.373
2010—2015 F150                            WK—2000 Series                  5.0L     10        2.3L      6.555    3500
2010—2015|F150                            WK—2000 Series                  5.0L     10        23L       6.555    3.625
2010—2015|F150                            WK—2000 Series                  5.0L     10        2.3L      £.555    3.750
2010—2015 F150                            WK—2000 Series                  5.0L     10        2.9L      6.555    3,500
2010—2015|F150                            WK—2000 Series                  5.0L     10        29L       6.555    3.625
2010—2015|F150                            WK—2000 Series                  5.0L     10        29.       6.555    3.750
2010—2015|F150                            WK—2000 Series                  5.0L     10        2.9L      6.555    3.875
2010—2015 F150                            WK—2000 Series                  5.0L     10        2.9L      6.555    4.000
2010—2015|F150                            WK—2000 Series                  5.0L     10        2.9L      6.555    4.125
2010—2015|F150                            WK—2000 Series                  5.0L.    10        2.9L      6.555    4.250
2010—2015|Ford Raptor, F150, F250, F350___|WK—2000 Series                 6.2L     10        2.9L      6.555    3.000
2010—2015}Ford Raptor, F150, F250, F350   ___JWK—2000 Series              6.2L     10        2.9L      6.555    3.125
2010—2015)Ford Raptor, F150, F250, F350          ___|WK—2000 Series       6.2L      10       2.9L       6.555    3.250
2010—2015|Ford Raptor,   F150,   F250,   F350   __|WK—2000 Series         6.2L      10       2.9L       6.555    3.500
2010—2015|Ford Raptor,   F150,   F250,   F350___|WK—2000 Series           6.2L      10       2.9L       6.555    3.625
2010—2015|Ford Raptor,   F150,   F250,   F350   ___|WK—2000 Series        6.2L      10       2.9L       6.555    3.750
2010—2015|Ford Raptor,   F150,   F250,   F350   __|WK—2000 Series         6.2L      10       2.9L       6.555    3.875
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3.000
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3.125
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3.250
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3500
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3.625
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3.750
2010—2015|F250, F350                            WK—2000 Series            6.2L      10       2.9L       6.555    3.875




                            WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—43





Document Created: 2015-08-14 17:30:41
Document Modified: 2015-08-14 17:30:41
